Diane Bronstein

The Maxwell development is located in Ft. Worth. This monument underwent numerous changes for the client, budget and city code. It is two sided, illuminated and made with cedar planks over an aluminum cabinet.

Production photo of main monument illuminated.

The Maxwell corner monument in Ft. Worth underwent many design revisions due to changes in the city code. This monument is internally lit with push through acrylic letters on a painted aluminum cabinet. The original structures were demolished. The wood at the bottom of the monument is stained cedar.

Secondary Maxwell monument illuminated at the shop.

Palomar is located in Tyler, TX. This is the main monument, located at the entrance of the development. The "P" logo is an illuminated channel letter layered with translucent aqua and solid brown cut vinyl. The name is acrylic push through letters and the tagline is show through letters. Both are layered with translucent vinyl The structure is an aluminum cabinet and the bump out area has powder coated planks attached..

This is a corner monument for Palomar in Tyler, TX. It has double-faced illuminated letters and logo in an aluminum cabinet with powder coated planks on the bump out.

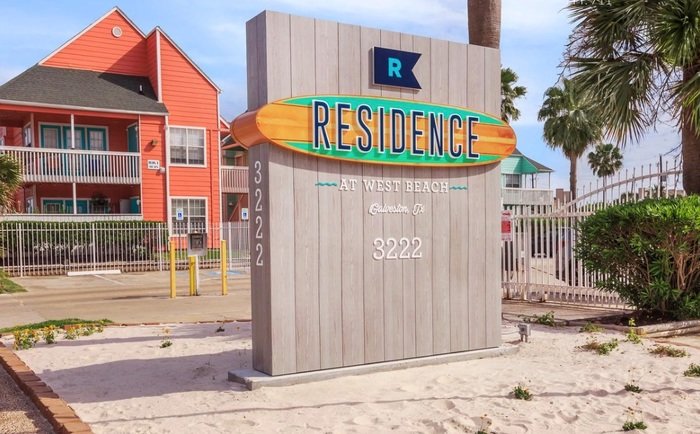

This large monument located in Galveston needed a beach feel and so an illuminated "surfboard" was created. It is two-sided and measures 12 feet tall. The aluminum cabinet is covered with powder coated "planks" with varying patterns.

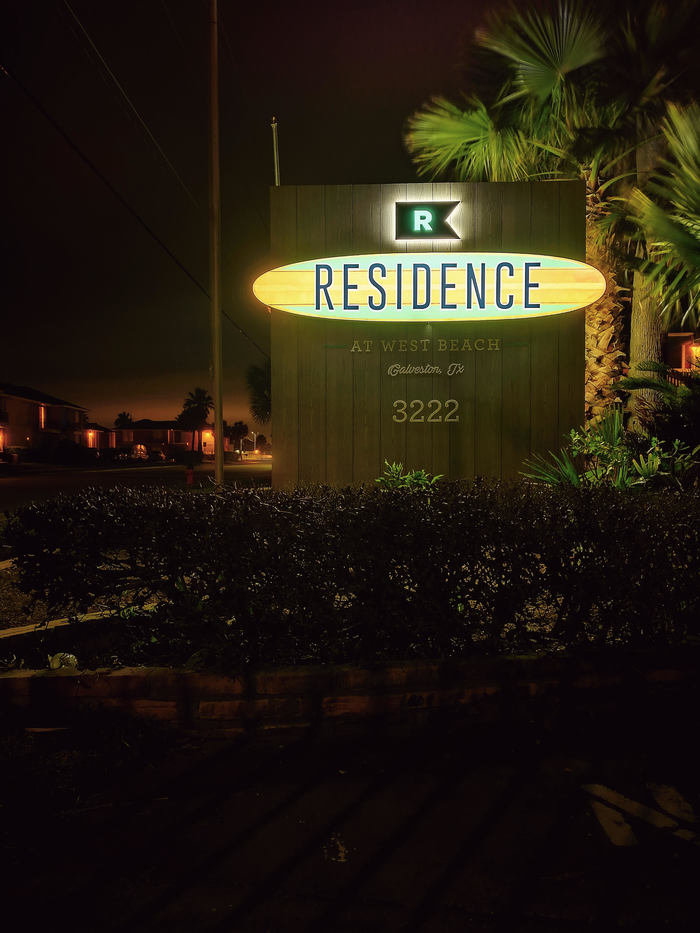

The Residence at West Beach monument at night.

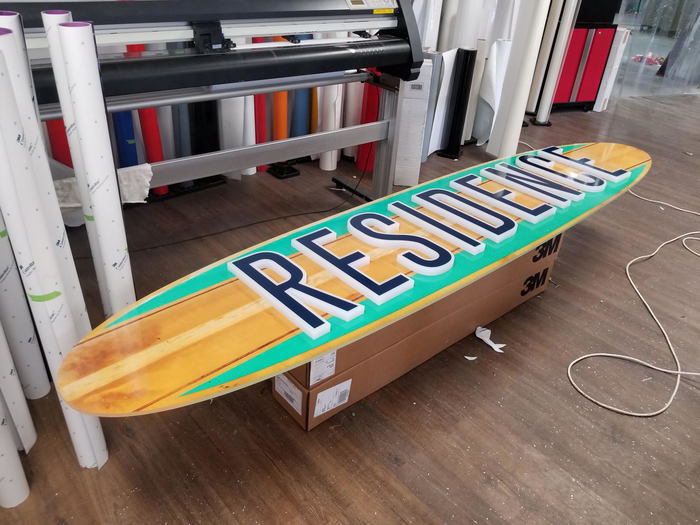

A production shot of the "surfboard". This was a modified stock photo digitally printed to translucent vinyl onto an acrylic board. The letters are push-through 1" thick white acrylic with solid blue vinyl on the face.

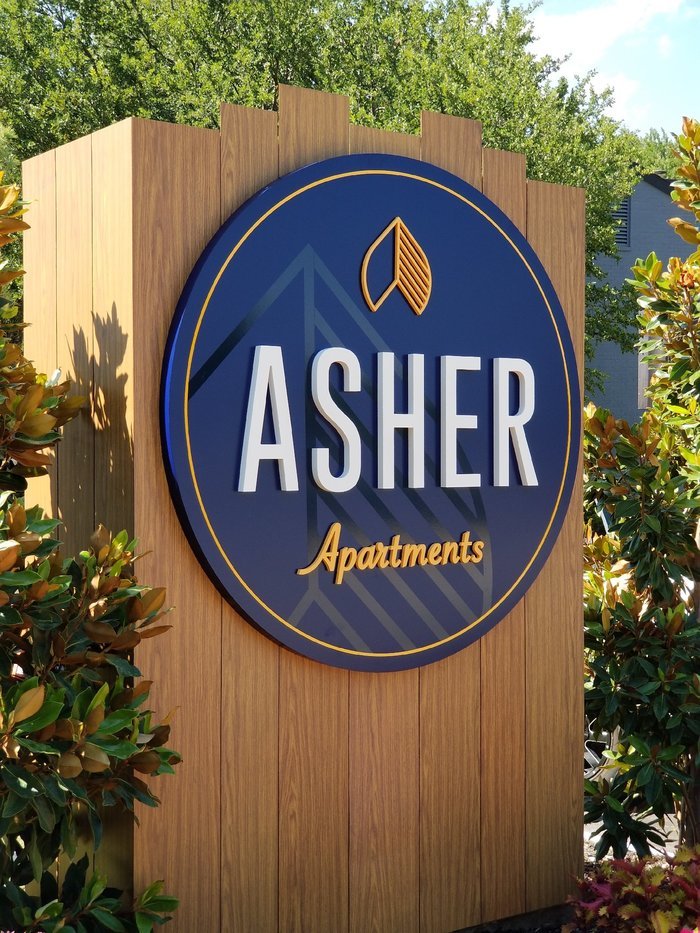

The Asher is located in Ft. Worth and is a non-illuminated sign due to code restrictions. It is built around an existing non-illuminated structure, which was modified to keep the size within city code requirements. The "planks" are each powder coated and the large circle is 1" painted acrylic. The leaf design is high gloss paint so it shows against the matte surface. The letters are painted acrylic flush mounted onto the surface.

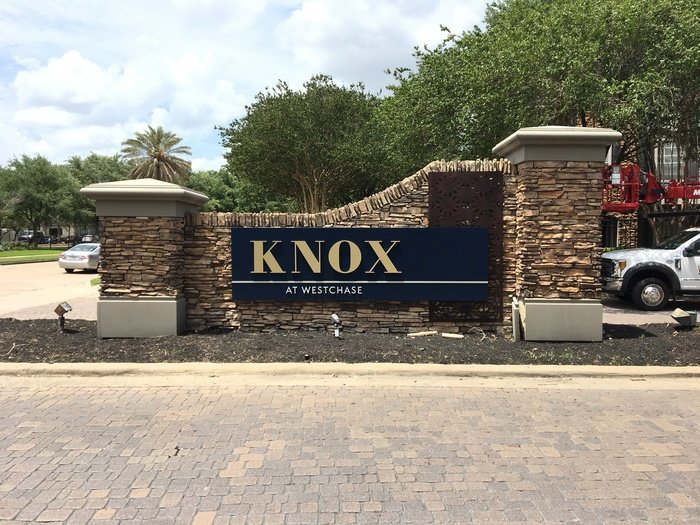

The Knox at WestChase is located in San Antonio, TX and is a large development with multiple entrances. I created the interlocking panels for the current wing walls so none of the standing walls needed to be changed. The decorative panel is made from aluminum and painted with a faux finish to simulate core ten steel. The pattern was very complex and had to be laid out so that the cut areas were large enough for the router blade. The pattern is also tapered, so that the open part of the design is narrower at the top and wider at the bottom.

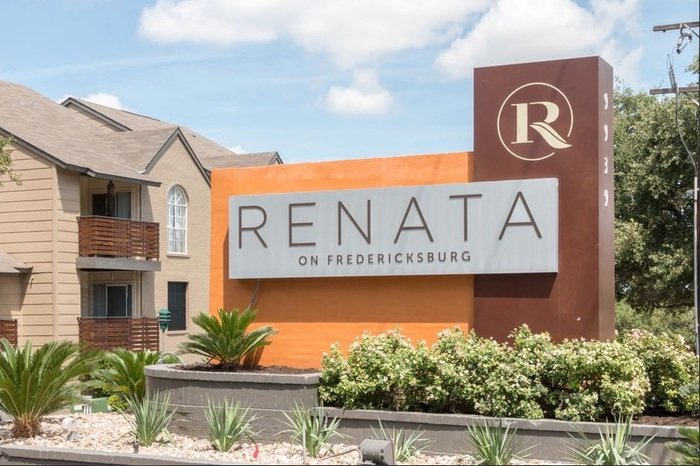

The Renata on Fredericksburg is located in San Antonio, TX. The monument was built onto an existing larger monument, requiring the top part to be cut off. The original monument was not illuminated, so this version has internally lit cabinets surrounding the existing structure. The vertical cabinet was placed over the existing painted base and then the name cabinets (two-sided) were fabricated to fit over the vertical one. The name is push-through acrylic letters. There are show-through numbers and logo element. The vertical cabinet is painted with a faux finish core ten paint to look like steel.

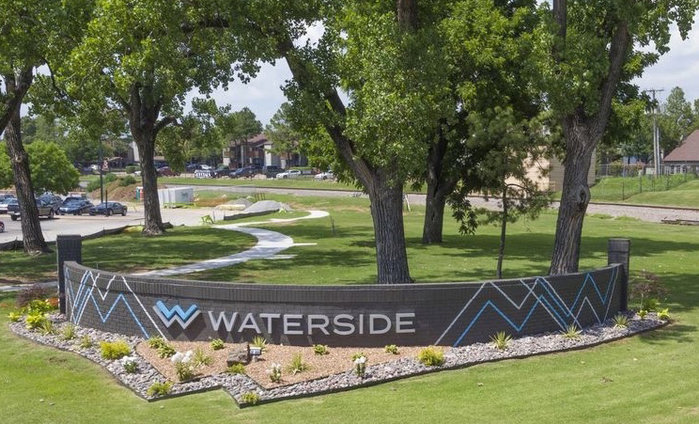

Waterside is located in Tulsa, OK and is close to the university and colleges. It has a younger demographic and is a large property. There is no monument, but large radius walls lining both sides of the entrance. They are illuminated with pack lights. The walls were painted, then hand painted by a mural artist. The reverse channel letters and logo are 4" deep and anchored to the brick. The zig zag pattern repeated on all of the signage throughout the property.

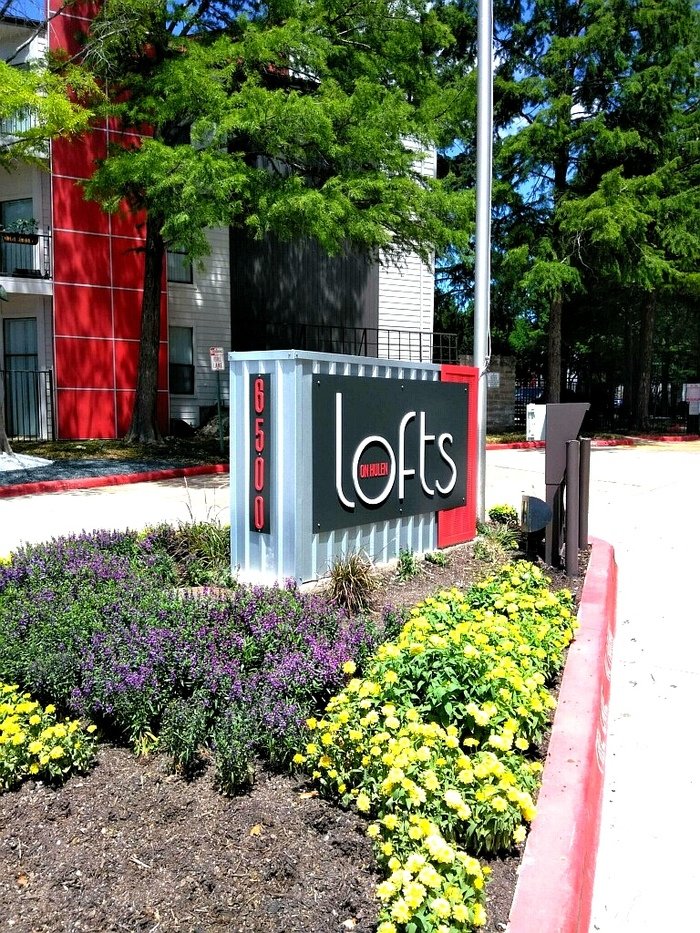

The Lofts on Hulen, also located in Ft. Worth was built on an existing structure. It is non-illuminated. The cabinet is faced with corrugated aluminum panels and a framed perforated stock metal screen. The letters are all painted acrylic. The cabinet wraps around an irregular shaped monument that would've cost a lot to modify and was not permitted to demolish.

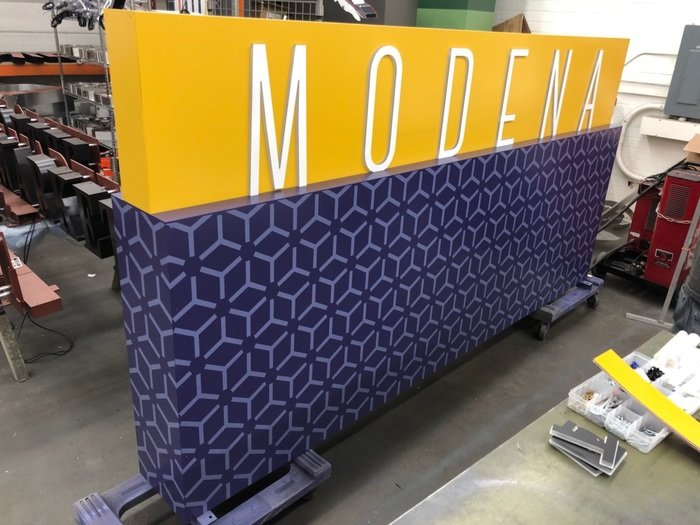

Modena is a large property in Phoenix, AZ. This large monument had a limited budget, so only the letters are illuminated. The bottom portion of the monument is paint and cut vinyl and is two aluminum cabinets attached under the letters.
