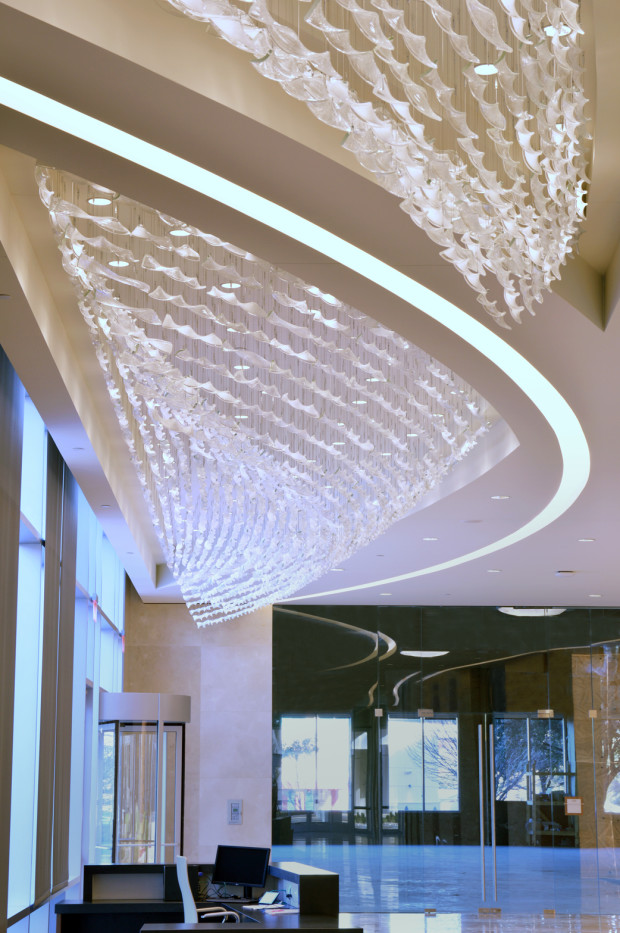

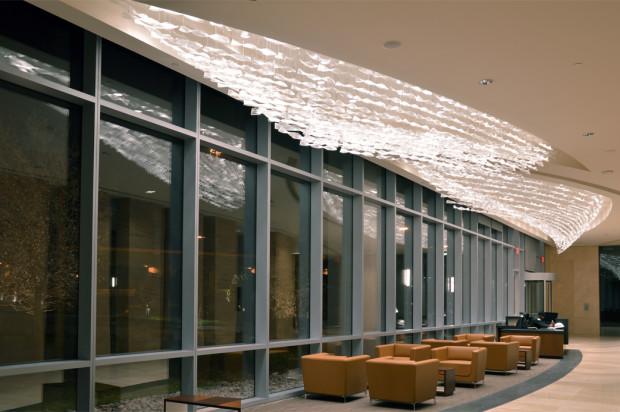

Large and small crescent
Large and small crescent
Large and small crescent

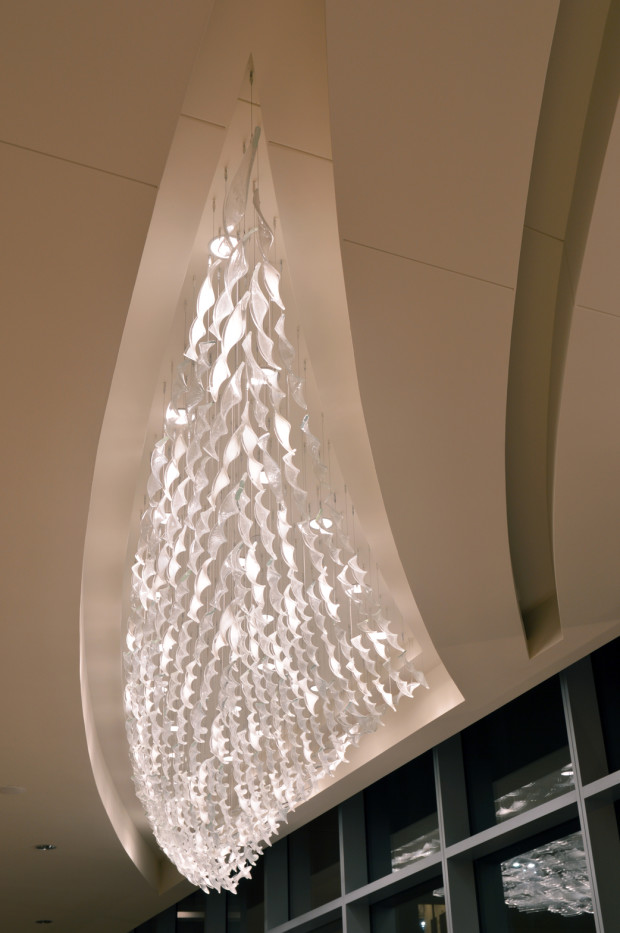

Point of small crescent. Build out of the ceiling deviated from the original plans, layout of the anchor points were revised on site.

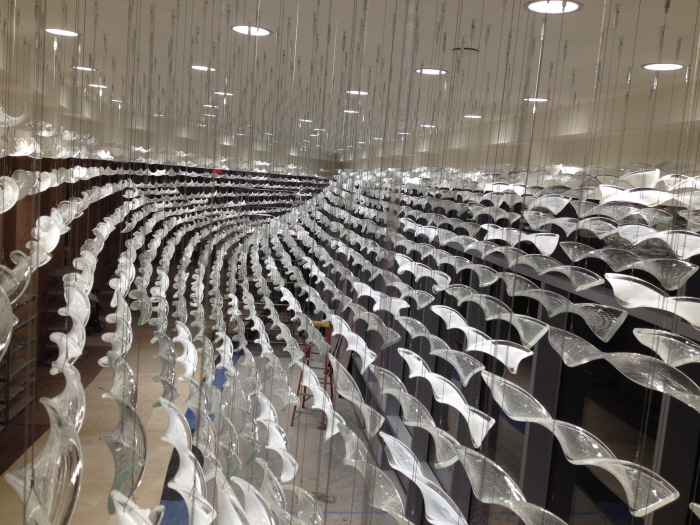

View inside the large crescent. All anchor points were located in SolidWorks then plotted and transferred to the ceiling.

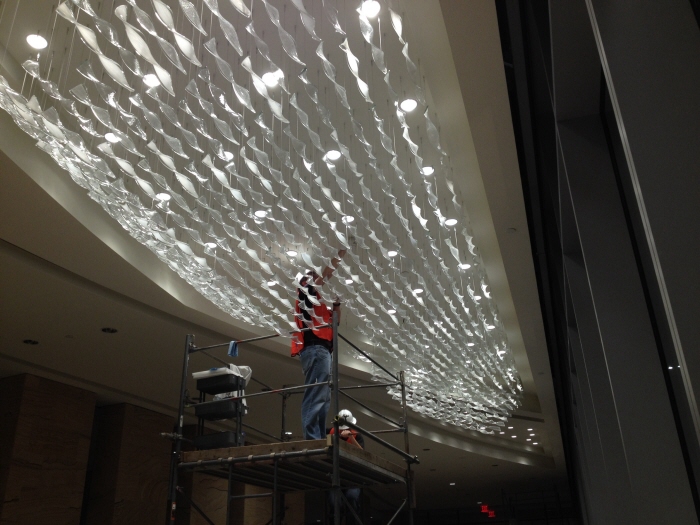

Worked with 2 assistants to install the 3 assemblies.

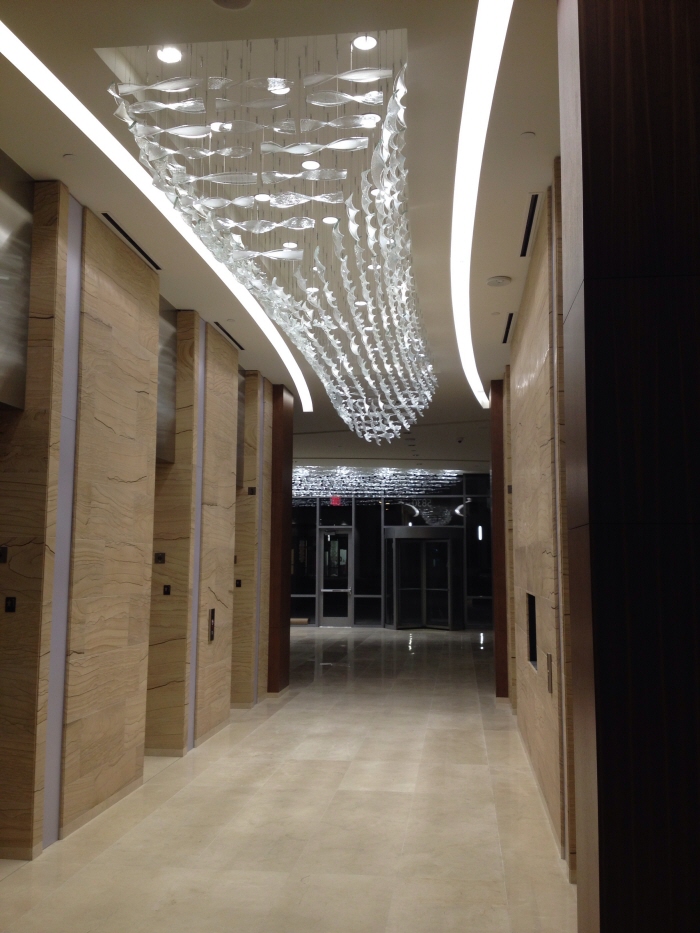

Elevator lobby assembly.

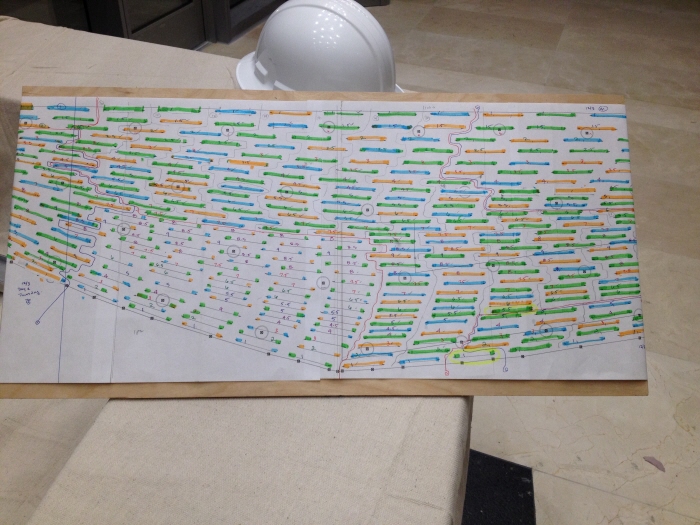

SolidWorks layout map during installation.

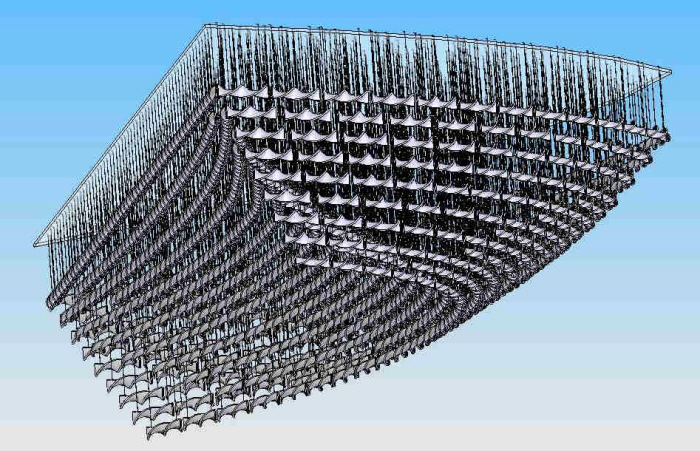

SolidWorks rendering of largest crescent, includes 625 glass twists and 1,250 anchor points.

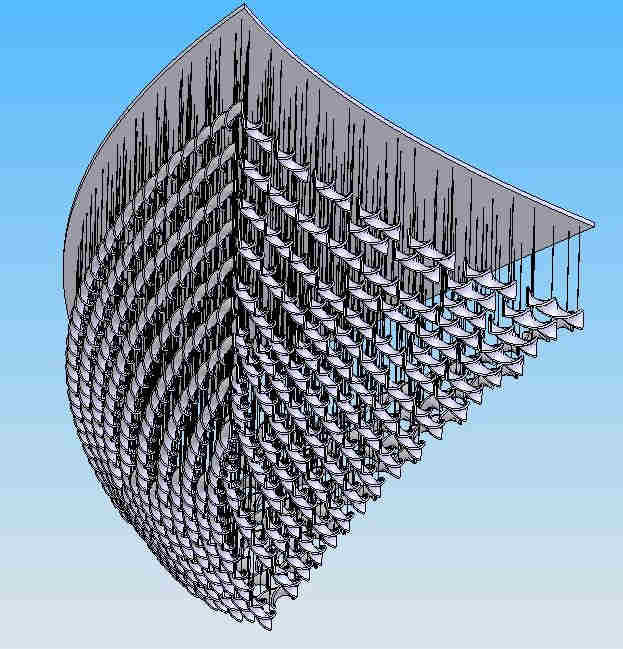

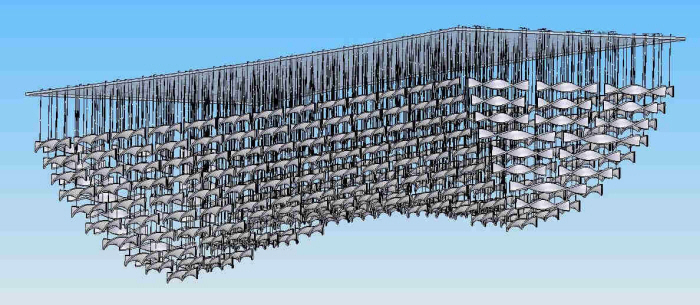

Solidworks rendering of Small Crescent, includes 255 glass twists and 510 anchor points.
Solidworks rendering of Elevator Lobby fixture, includes 269 glass twists and 538 anchor points.

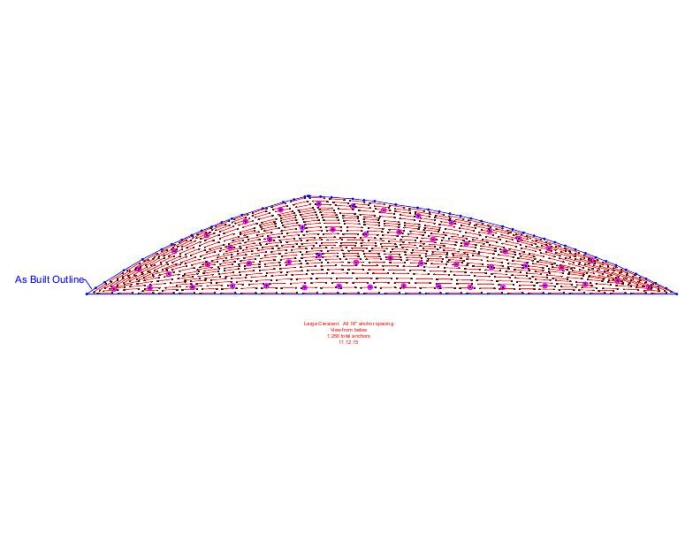

Large Crescent, anchor layout was adjusted on site as ceiling build out deviated from the floor plans.
View PDF
View PDF

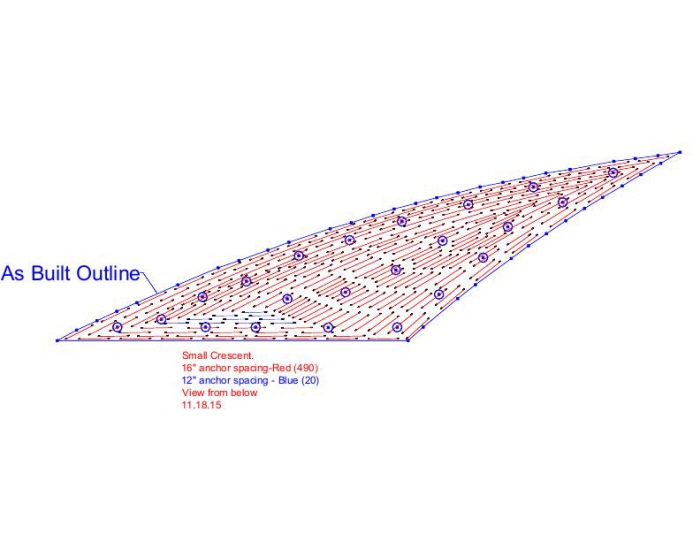

Small Crescent, anchor layout was adjusted on site as ceiling build out deviated from the floor plans.
View PDF
View PDF

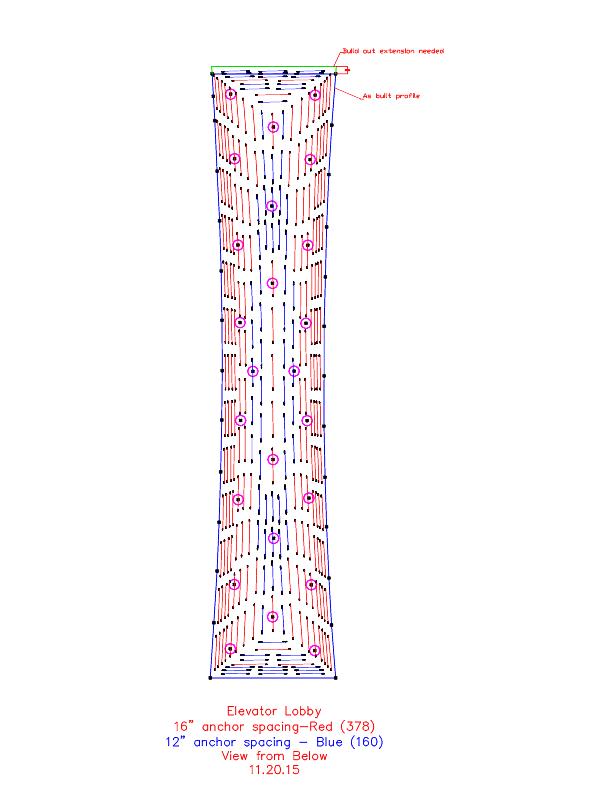

Elevator Lobby, anchor layout was adjusted on site as ceiling build out deviated from the floor plans.
View PDF
View PDF

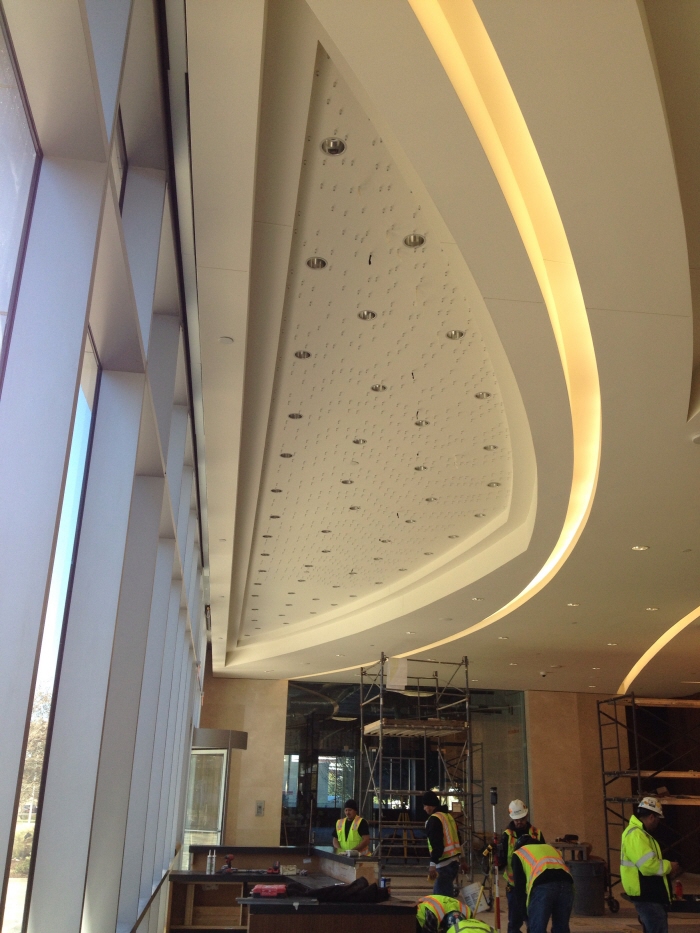

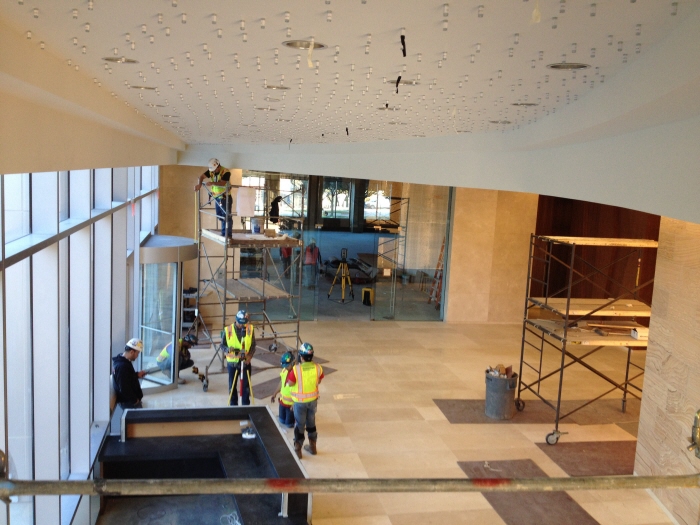

We contracted Cummings Electrical to use the CAD layout files and install the anchors.
Detail of anchors in the ceiling. Each anchor point was labeled to correspond with its respective glass.

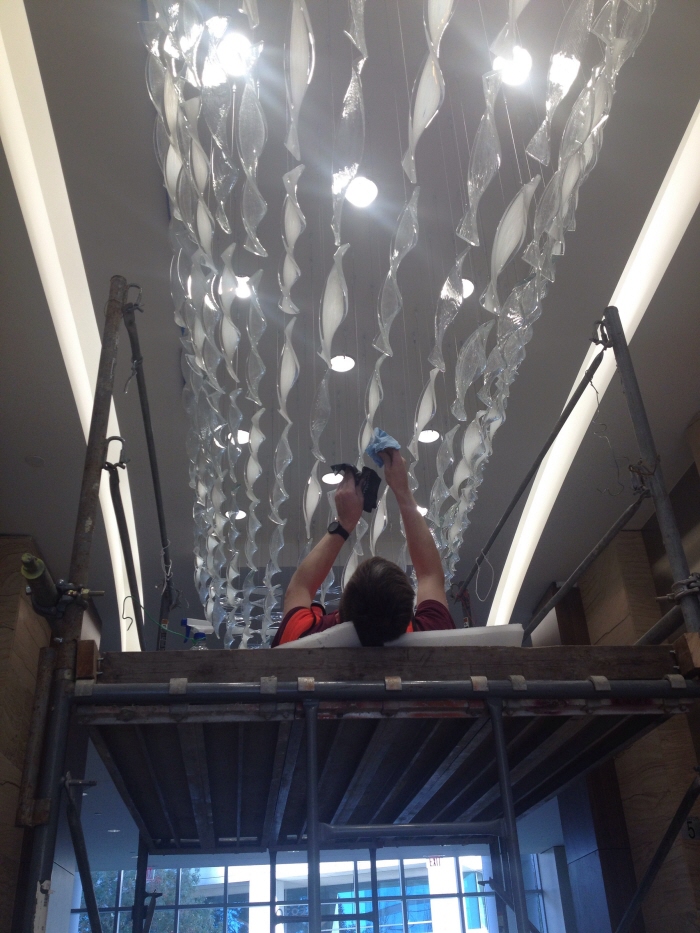

Each piece of glass was cleaned by hand after the installation.
gLike
Granite Park V, Plano TX
Custom design, engineering and installation of 1,149 glass twists with 2,298 anchor points. Concept by BOKA Powell. There are three separate installations, Large Crescent, Small Crescent and Elevator Lobby'. The large Crescent measures 53' in length. Initial iterations were done in AutoCAD while layout, engineering, final anchor and glass positioning was done in SolidWorks. Custom tooling was designed and created to form, drill, wire and provide quality control for the glass twists.
