Fahad Azad

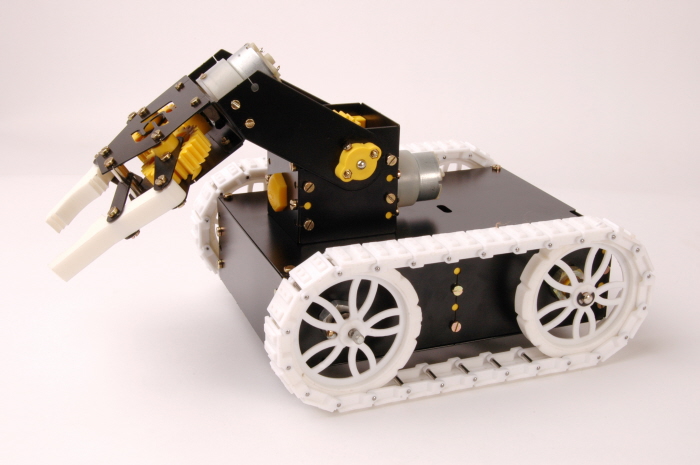

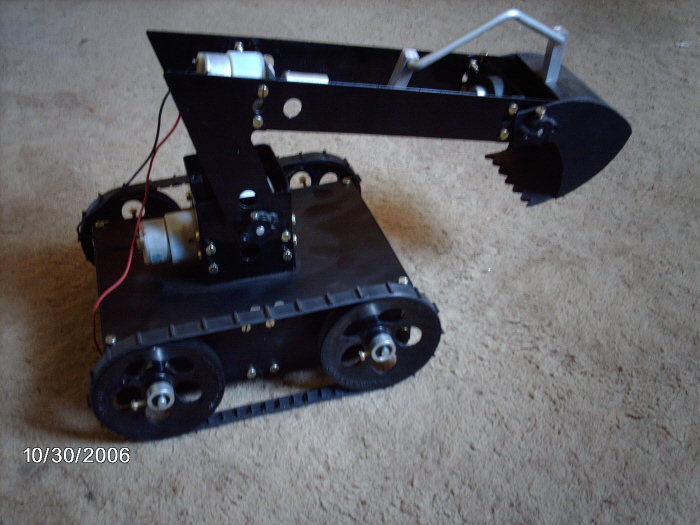

Mobile Robotic Arm is manually controlled platform which uses Caterpillar type track belt locomotion. It is quite evident from the name that it will be used for pick & place operations, therefore it has a gripper with 1 DOF. The gear box is dominantly a mechanical assembly which uses a Worm gear assembly and hence can lift heavy loads. The platform is rear wheel driven wherein two high torque DC motors of 12V, 45 r.p.m. rating are used, additional two motors are used in the gear box and gripper assembly.
