Rendering of outside of trailer using Solidworks and Keyshot programs.

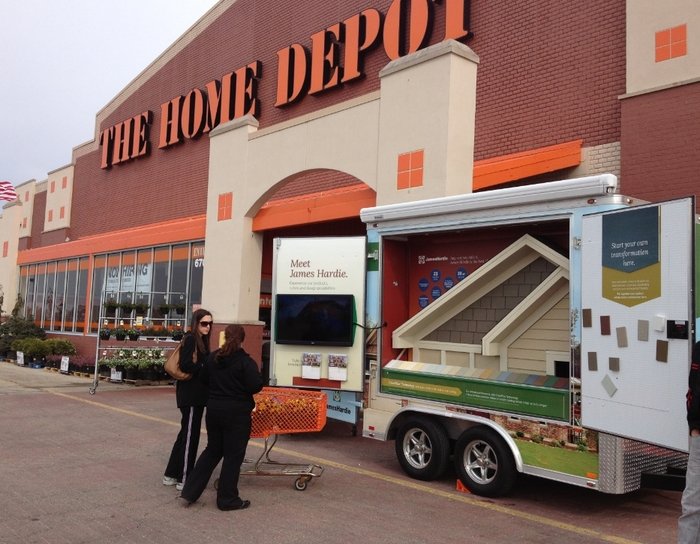

Photo of actual trailer before final finishing touches.

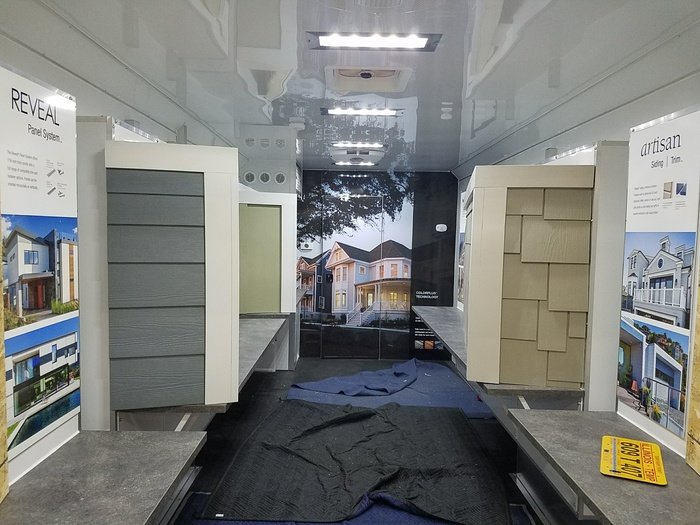

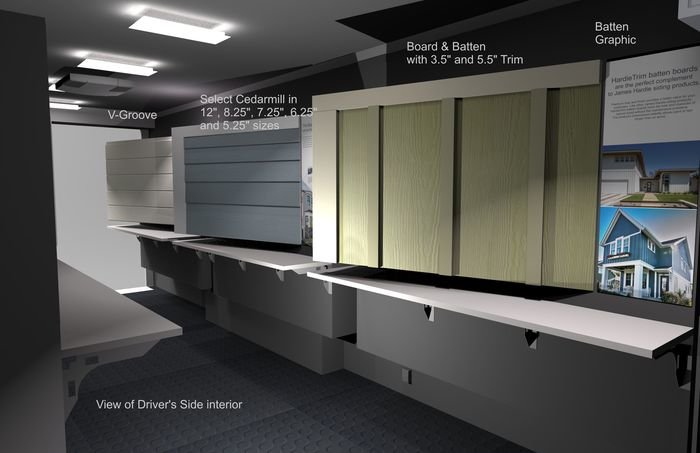

Final Concept rendering of display design inside trailer using Solidworks and Keyshot programs.

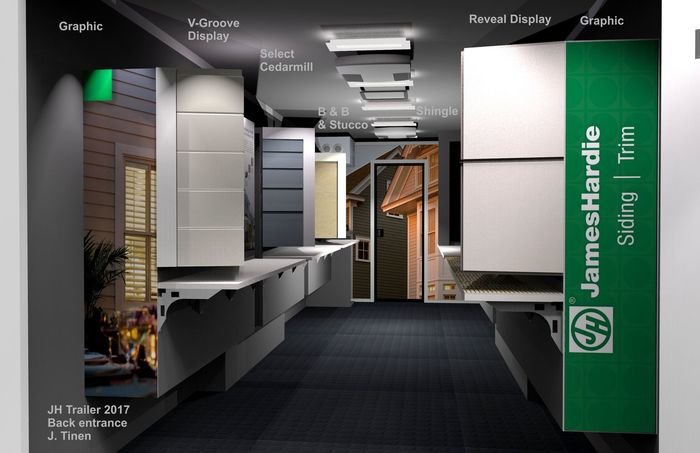

Keyshot rendering of entrance of trailer showing displays and graphics.

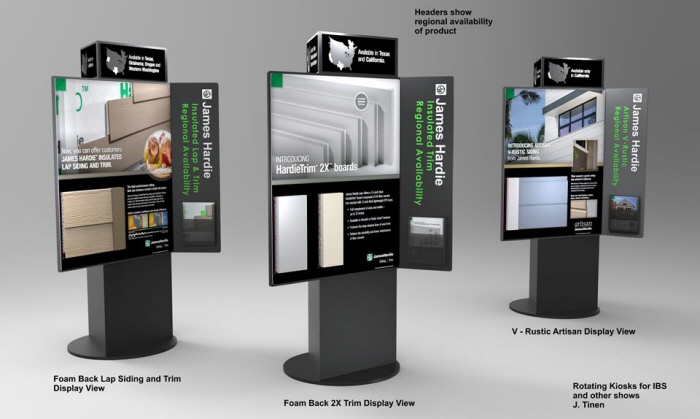

Concept rendering of rotating product display kiosks using the Keyshot program.
Project goal was to design an eye-catching display for the end of an aisle featuring 5 Wheel Chocks which are shown in orange. This image was created using Solidworks, KeyShot and Corel Paint. Note that the largest Chock at the bottom is located under the graphic wheel showing how it would be used.

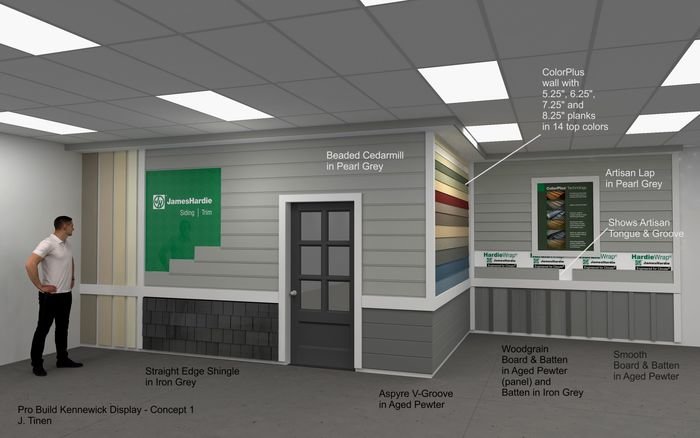

Image is a concept rendering of company product display in a dealer's showroom. Specific sized space was given along with photos of space.

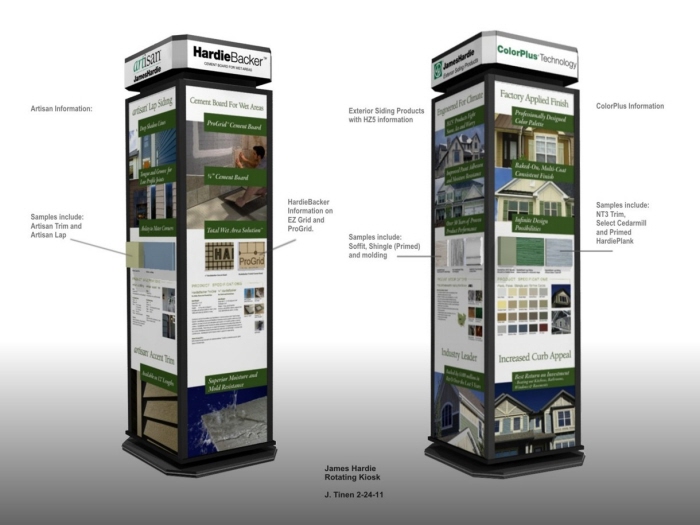

ProBuild Merchandising Program - Designed and provided all specifications for this merchandising program for 100 ProBuild stores in upper midwest region. Concept renderings and fabrications drawings of the rotating kiosk and 3'x 5' wall panel were done in Solidworks and enhanced using Corel Paint. Photo of models taken just before final packing and shipment.
ProBuild Merchandising Program - Designed and provided all specifications for this merchandising program for 100 ProBuild stores in upper midwest region. Concept renderings and fabrications drawings of the rotating kiosk and 3'x 5' wall panel were done in Solidworks and enhanced using Corel Paint. Photo of models taken just before final packing and shipment.
This floor display shows two options for handling corners in siding installation including Trim pieces and a mitered corner without trim. The beveled groove is a detail that is shown wrapping around the corner.

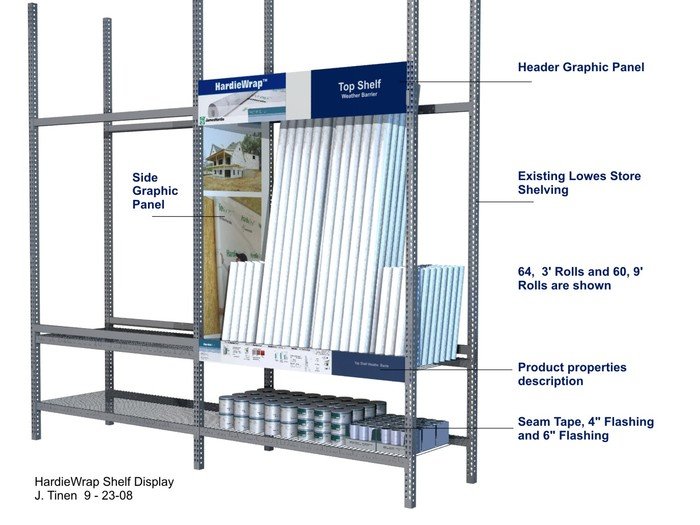

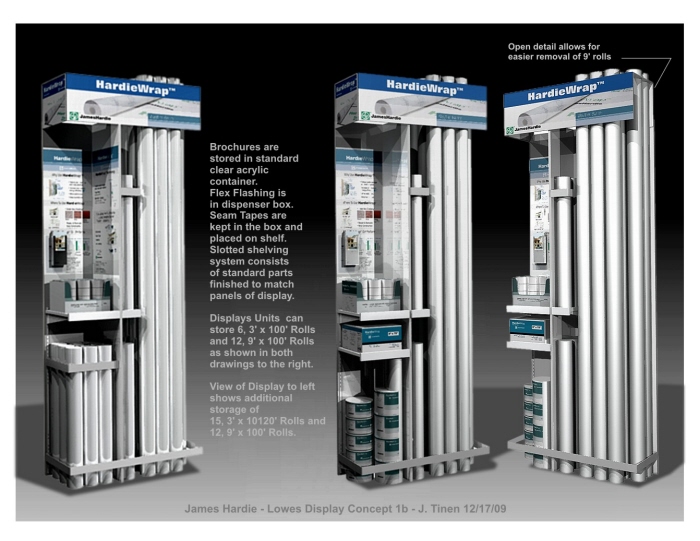

In Store Merchandising for Lowes - This is a final concept rendering of a display of HardieWrap rolls for insulating homes. Design allows the removal of the 9' long rolls with minimum effort. Note clearance on right side. 9' rolls would not have to be raised much to be removed yet are still held in place for display. There are also options for either displaying more 3' rolls or shelving for more accessories that go with this system. Each store can have its preference. I created rendering with Solidworks and Corel Paint.
Ambassador trailer showing driver's side of open displays. Unit is driven to a location for one on one selling of products.

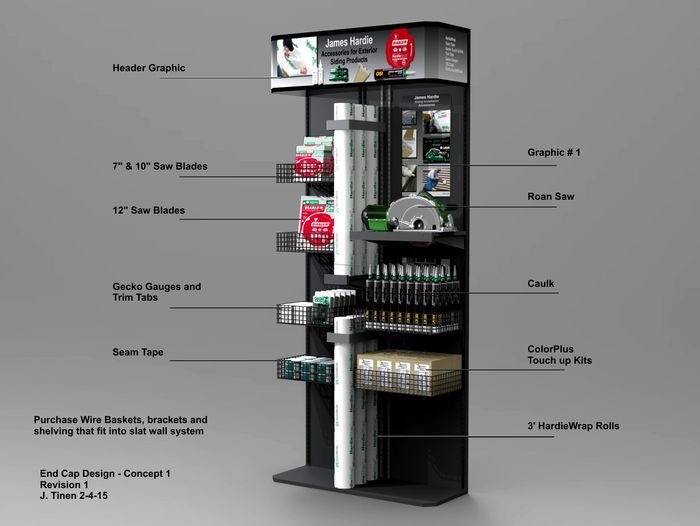

End Cap Gondola Design for big box retailers. Items displayed are circular saws, caulking, house wrap and other installation accessories.
Display designed for specific sized space in the Indiana Design Center.

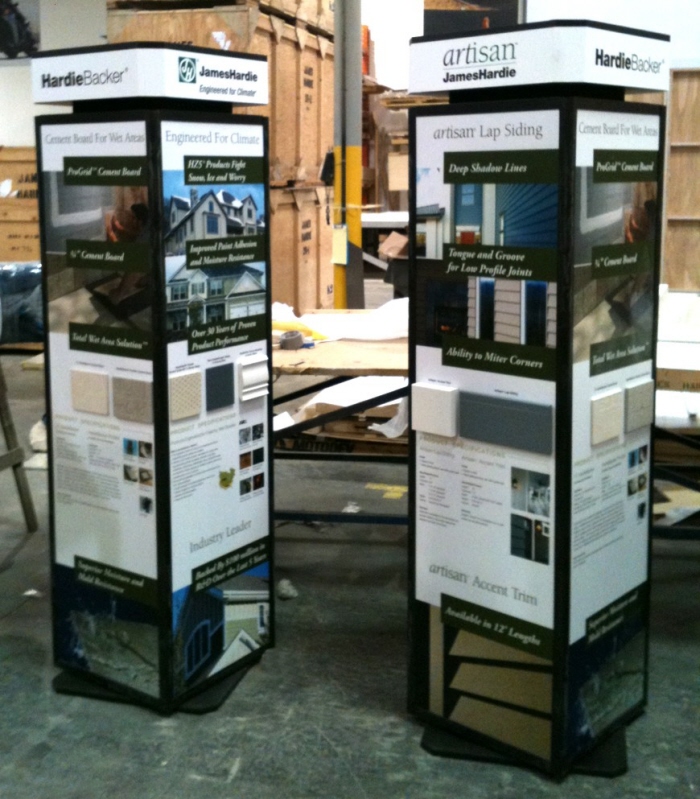

Photo of completed rotating displays based on concept rendering below.
Concept rendering of a rotating, countertop display of a high-end siding product. The design shows the two ways of installation at corners including a miter joint (due to its larger thickness) and a corner with separate trim pieces.
Concept rendering of rotating display design. Actual displays are shown below.
Rotating Countertop Display design showing both inside and outside corner installation. This is the outside corner view.
Rotating Countertop Display design showing both inside and outside corner installation. This is the inside corner view.
