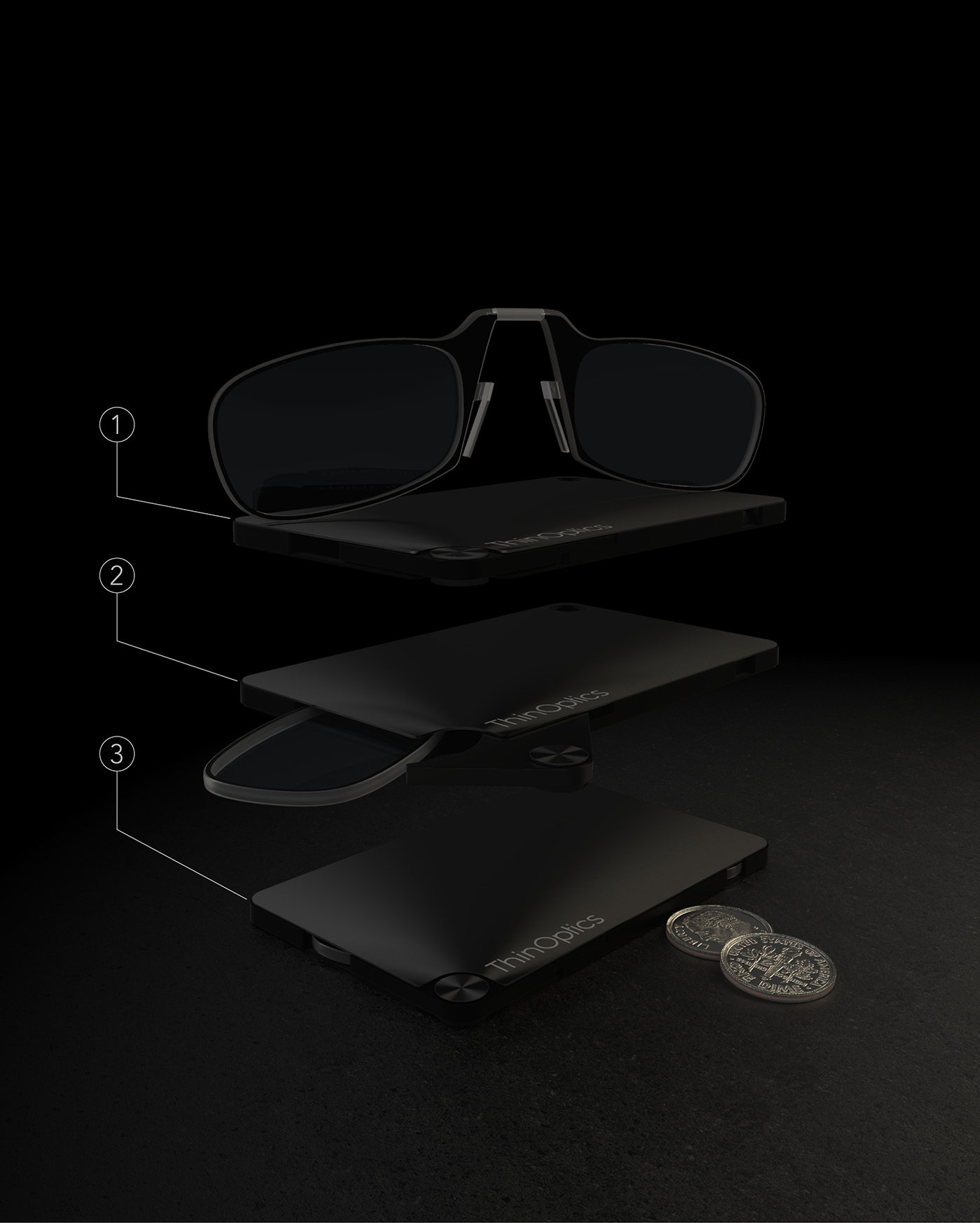

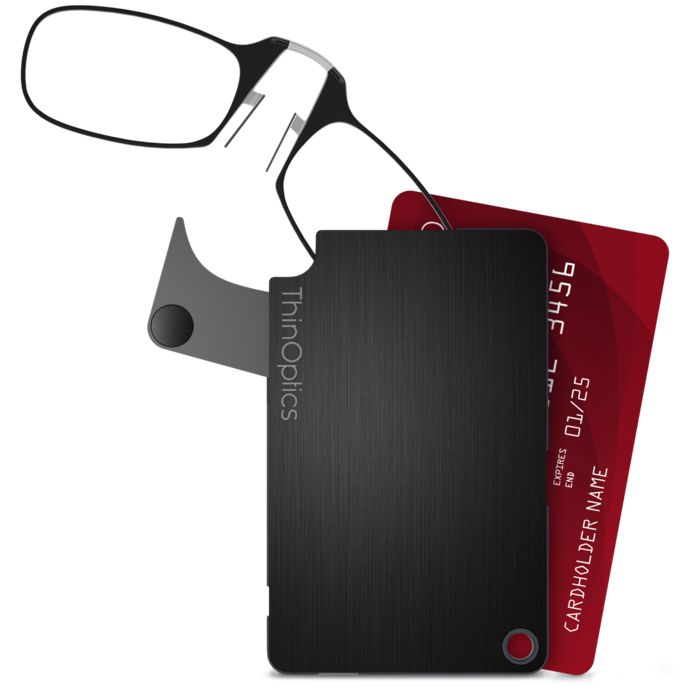

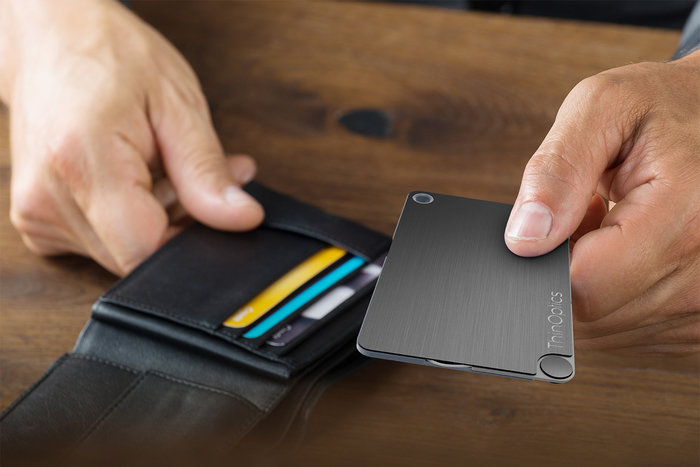

1. Glasses Out for Use 2. Case Open and Glasses Inserting 3. FlashCase Ready to Travel An Ultra-Slim Case for ThinOptics Ultra-Slim Glasses The “stash anywhere…go everywhere” reading glasses! Small enough to fit in your wallet, purse, pocket.
Credit: ThinOptics

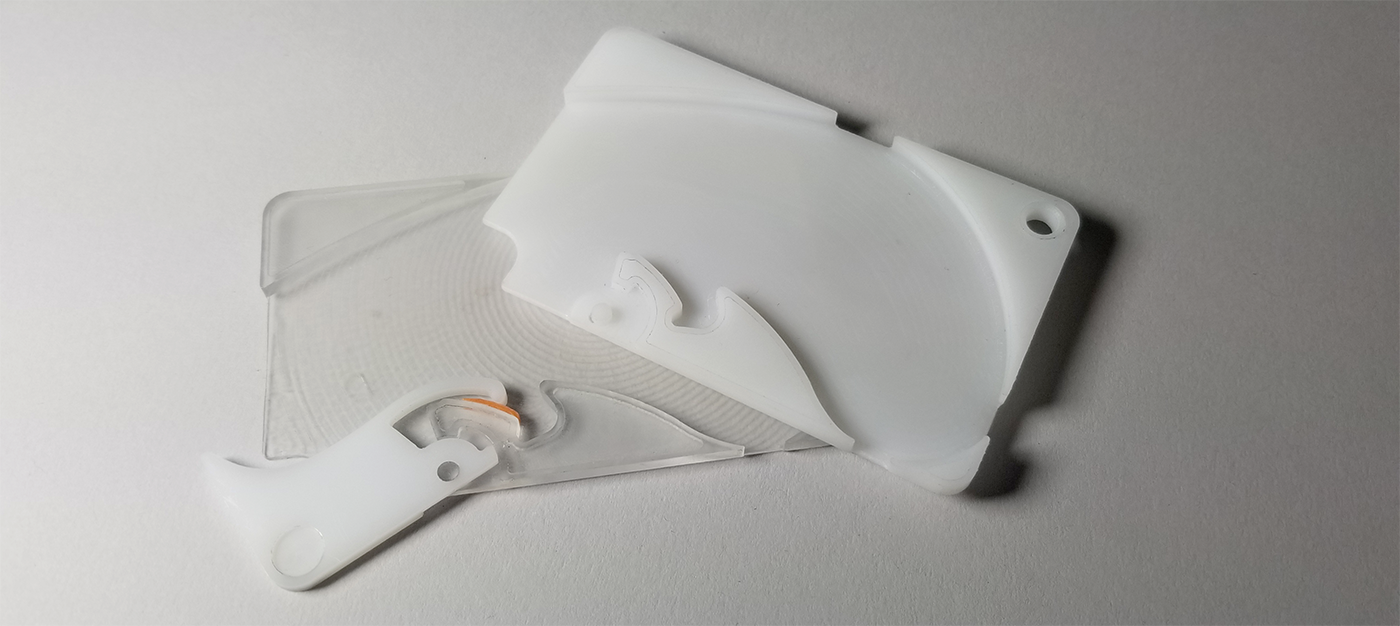

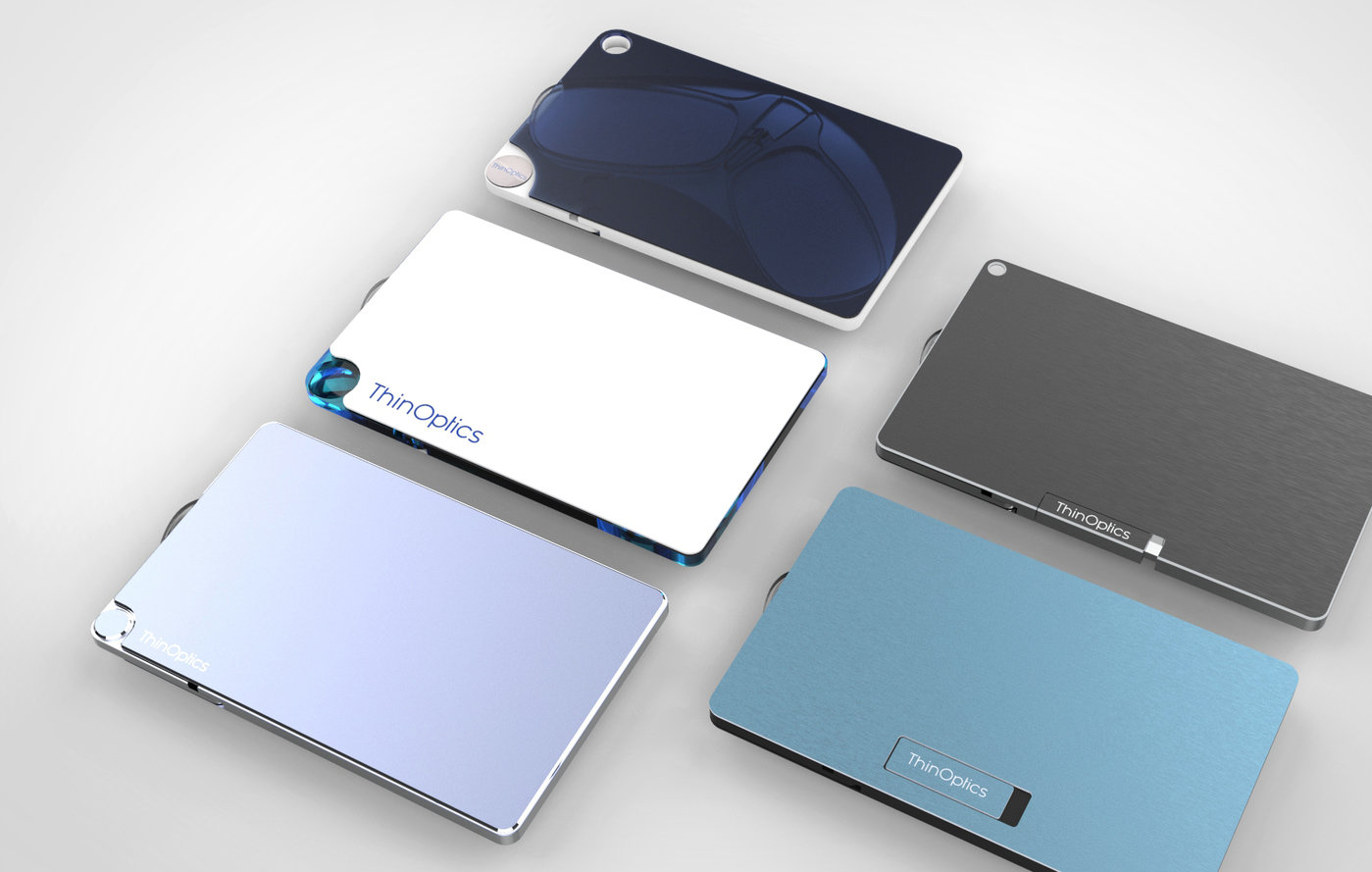

Initial concepts explored a variety of materials and finishes, mechanisms and stack-up geometry. Ultimately the concepts that utilized thin sheet-metal over an injection molded body that could be UV printed upon, trumped the other material stack-up constructions. Read below to see how the design influenced the Mechanical engineering.
FlashCard engineering was highly dependent on balancing the intended look and feel of a thin, sleek product, with the manufacturing realities based on material limitations. To make sure we produced a design that was manufacturable we worked early on with the plastics vendor to establish minimum wall thicknesses that would allow us to push the design as thin as possible. Efficient back and forth provided a design that had the look and feel we required with full sign on of the manufacturer.
Credit: ThinOptics
FlashCard engineering was highly dependent on balancing the intended look and feel of a thin, sleek product, with the manufacturing realities based on material limitations. To make sure we produced a design that was manufacturable we worked early on with the plastics vendor to establish minimum wall thicknesses that would allow us to push the design as thin as possible. Efficient back and forth provided a design that had the look and feel we required with full sign on of the manufacturer. Another challenge in the flash card design is the attachment of sheet metal to plastic, while fairly common practice the flashcard is challenging as there is very limited contact area due to coring. As such we worked closely with adhesive vendors to determine a solution that would be both easy to apply while still providing sufficient strength.

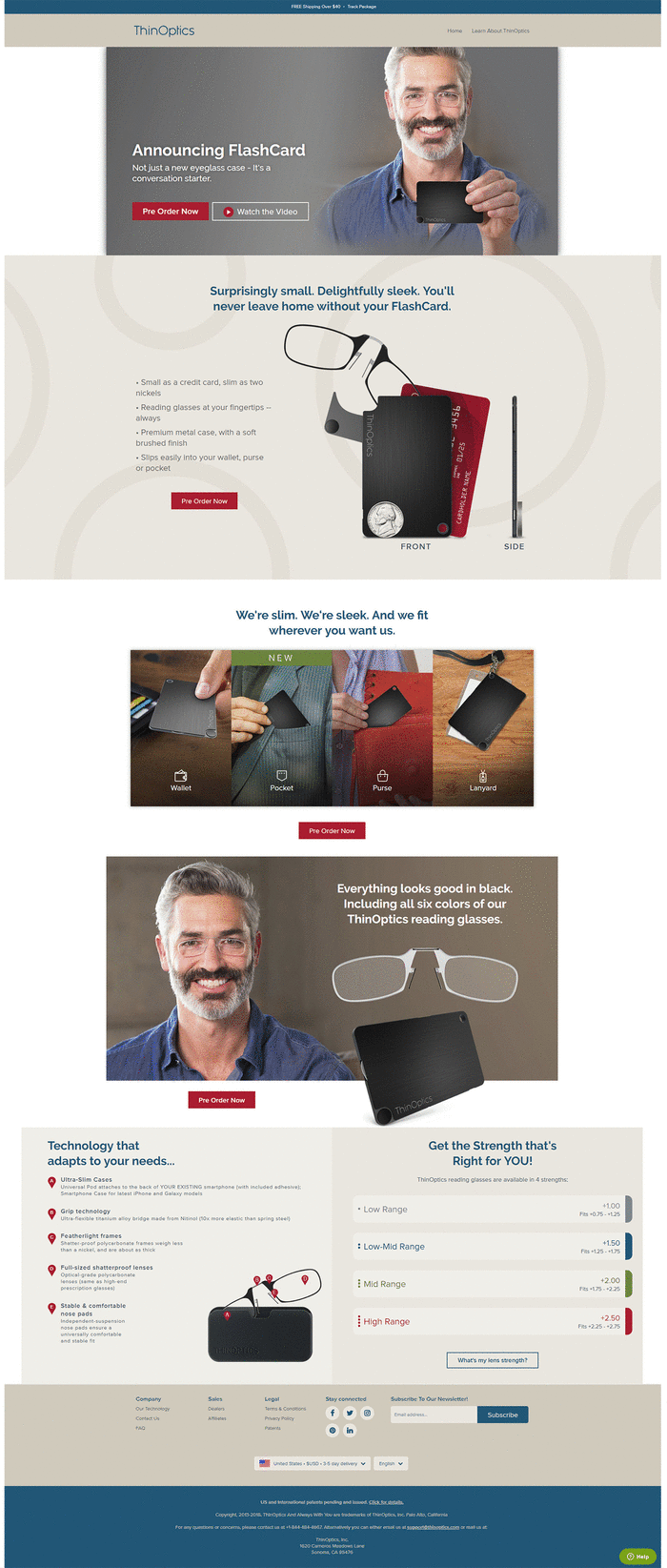

Client's Web Page
gLike
ThinOptics FlashCard

FlashCard is a design and engineering challenge of compactness that truly follows the the ThinOptics mantra of being ultra-thin. Many materials, treatments, constructions, mechanisms and assembly methods were considered before StudioRed quickly delivered this optimal and customizable design that appears simple and intuitive to the user.

R

D

E

P

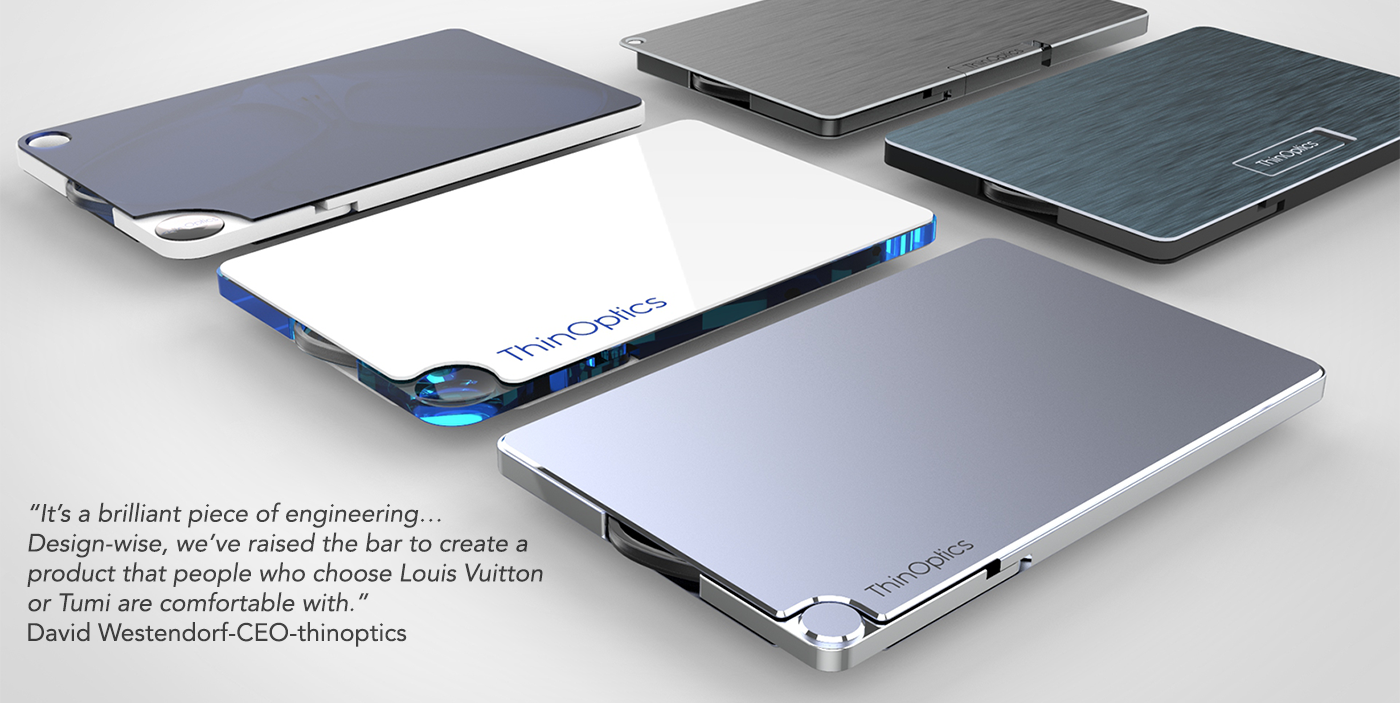

“It’s a brilliant piece of engineering…
Design-wise, we’ve raised the bar to create a product that people who choose Louis Vuitton or Tumi are comfortable with.”
David Westendorf-CEO-thinoptics
