Motorola Solutions asked us to redesign their best selling scanner of all time, the LS2208.
With over 5 million units sold to date, we think that we have successfully given the LI2208 a newer, timeless look and feel. No doubt, many more will be sold...
![](https://s3images.coroflot.com/user_files/individual_files/563464_2d2qjd7kgn64xvjplzbtiwmnf.png)

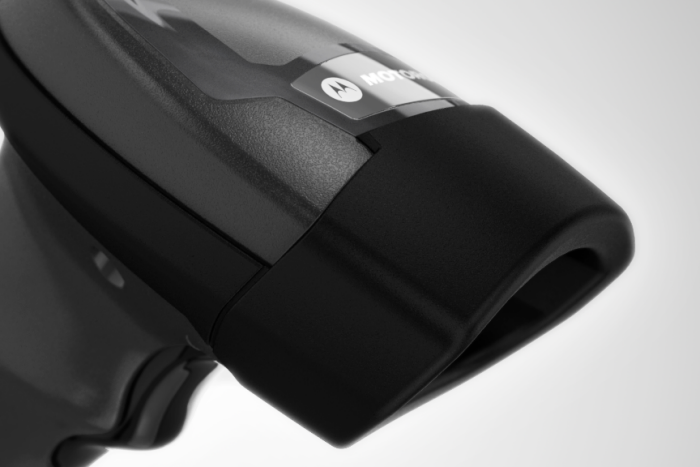

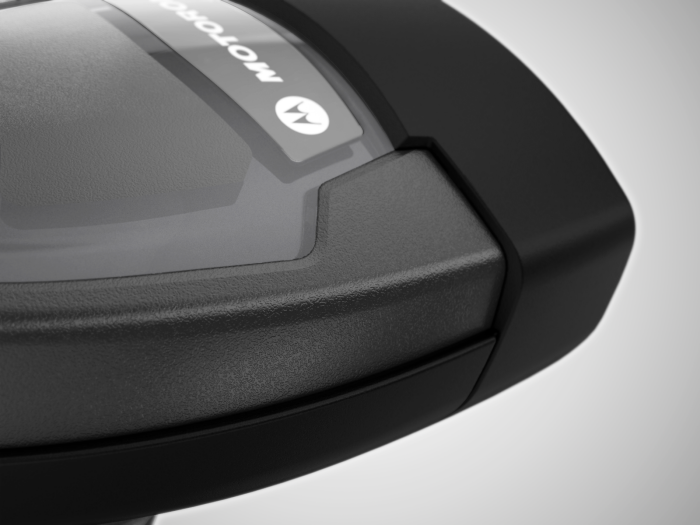

Crisp lines, smart uses of materials characterize the new LI2208.
![](https://s3images.coroflot.com/user_files/individual_files/563464_curjh2r7iizgyunyf6dyt5l5z.png)
![](https://s3images.coroflot.com/user_files/individual_files/563464_ejqf3ualnjhbpudkfizigopih.png)
![](https://s3images.coroflot.com/user_files/individual_files/563464_y2q3vgwpunjoljlkdaesox8xz.png)
![](https://s3images.coroflot.com/user_files/individual_files/563464_augfd2khjwte8ogg0jzy7t_di.png)

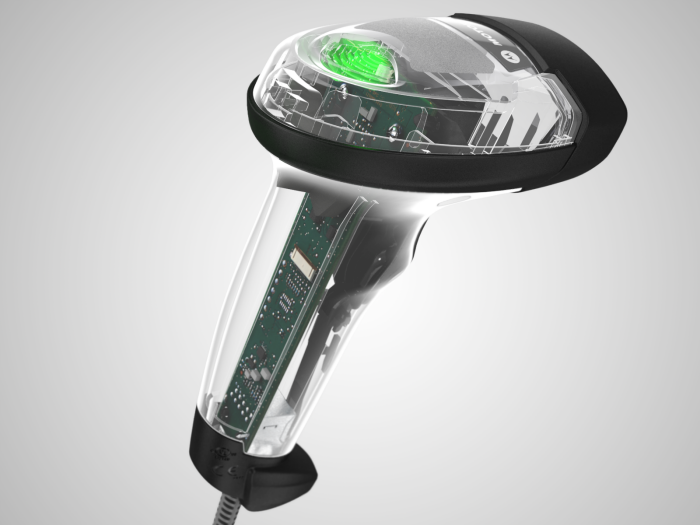

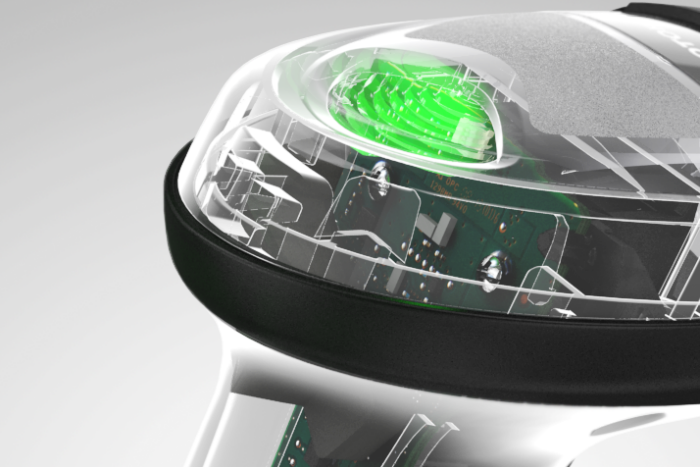

See-thru render shows super-efficient single pcb/engine combo with bright, user-guided visual LED feedback.

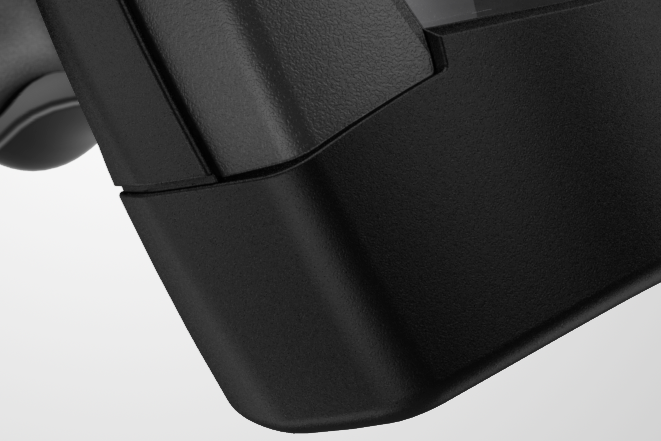

Strategic rubber overmolds on handle and nose cap add haptic feel and added wear points/ruggedness.
![](https://s3images.coroflot.com/user_files/individual_files/563464_oloy8ubrxplwvdwhpgt_0bylg.png)

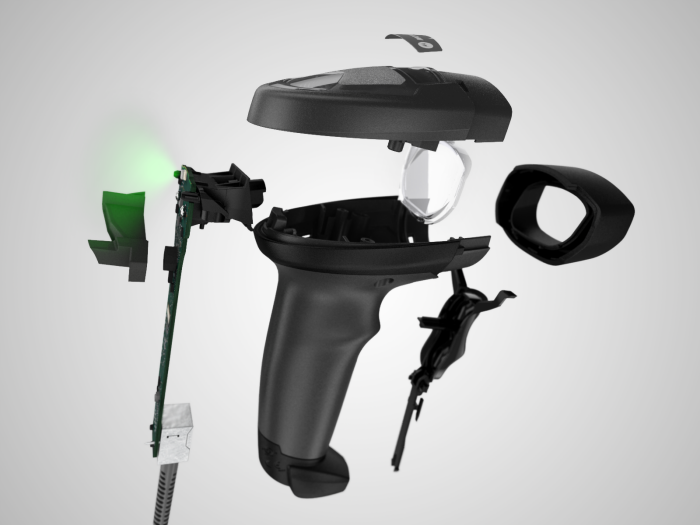

We designed the LI2208 assembly to be literally a 'snap'. Two screws add extra ruggedness.
![](https://s3images.coroflot.com/user_files/individual_files/563464_ydjzcmbcdhnirurmpkew8oqne.png)

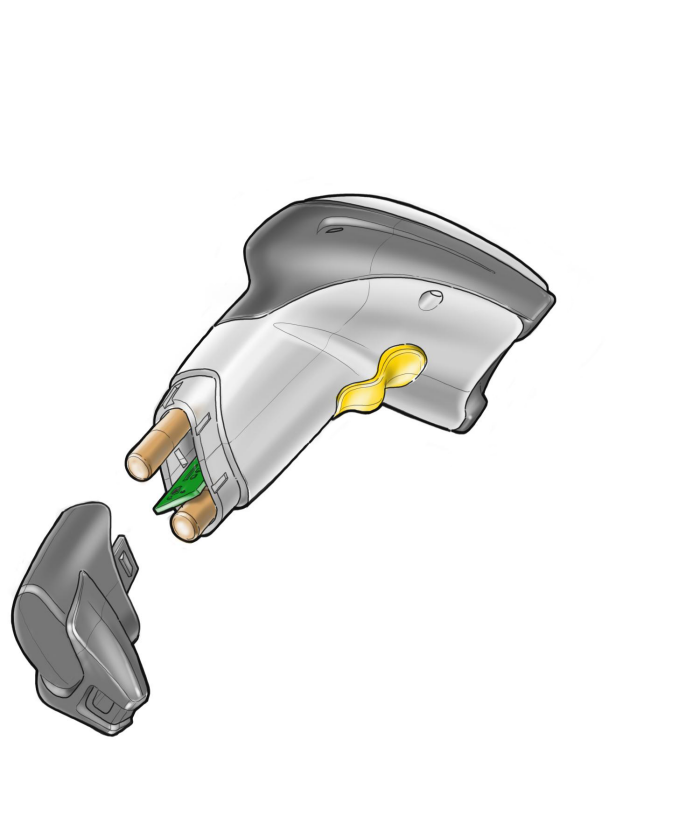

Countless design concepts were explored, from corded to cordless ones...
![](https://s3images.coroflot.com/user_files/individual_files/563464_pfctvk28_ei0tsdizidzz5oap.png)

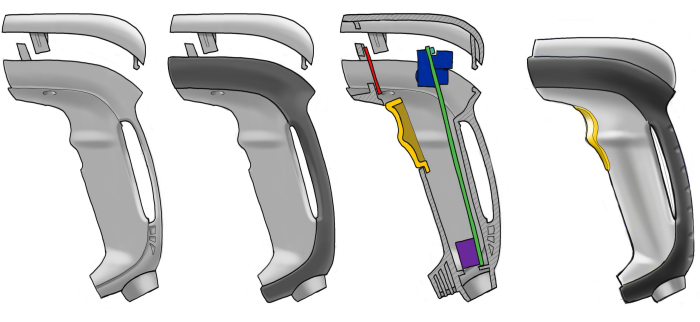

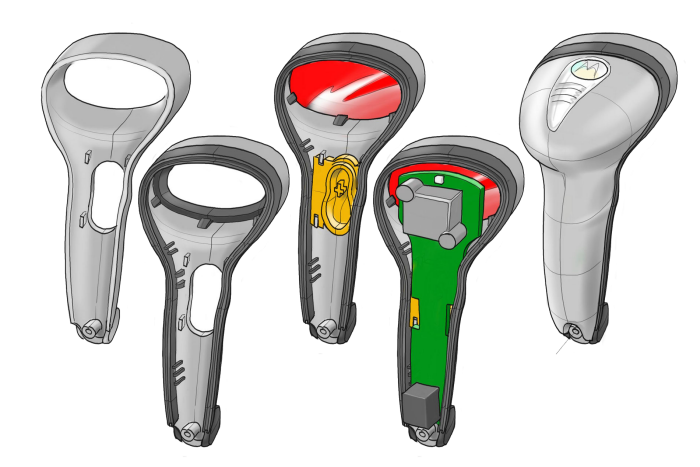

...to new assembly methods...
![](https://s3images.coroflot.com/user_files/individual_files/563464_oxiy6ptwmke6mrupfolfx0qyr.png)
![](https://s3images.coroflot.com/user_files/individual_files/563464_tgbhzvzonovws0x3rpe9ssibx.png)

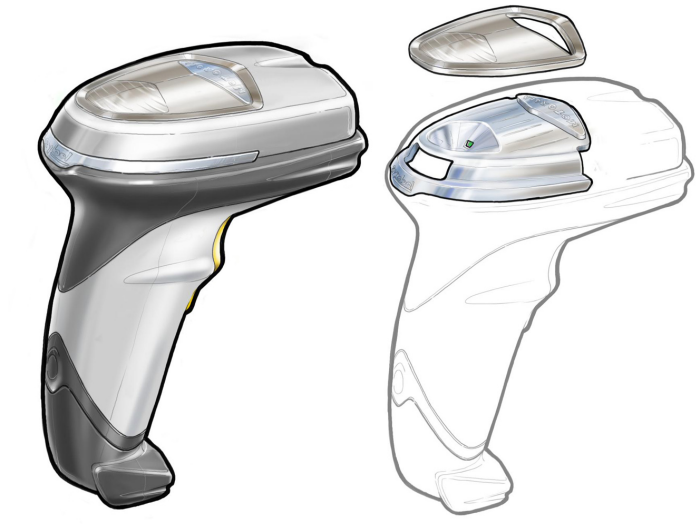

... and to different ways to establish a 'higher end feel'
![](https://s3images.coroflot.com/user_files/individual_files/563464_iurawasi2pfpmq_kywgccqtma.jpg)

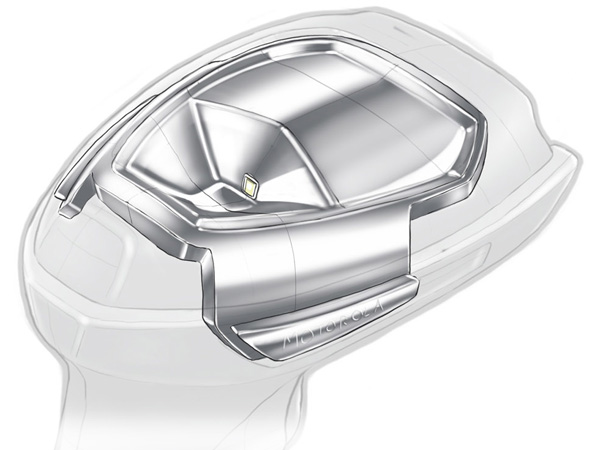

Here we explored using a metal insert (or vacuum metalised plastic piece) which provided double duty as a LED lightpipe as well as an appealing highend accent hidden under the clear plastic and exposed at the sides.
![](https://s3images.coroflot.com/user_files/individual_files/563464_pkdq09othv5dxi0dep5uyt8og.png)

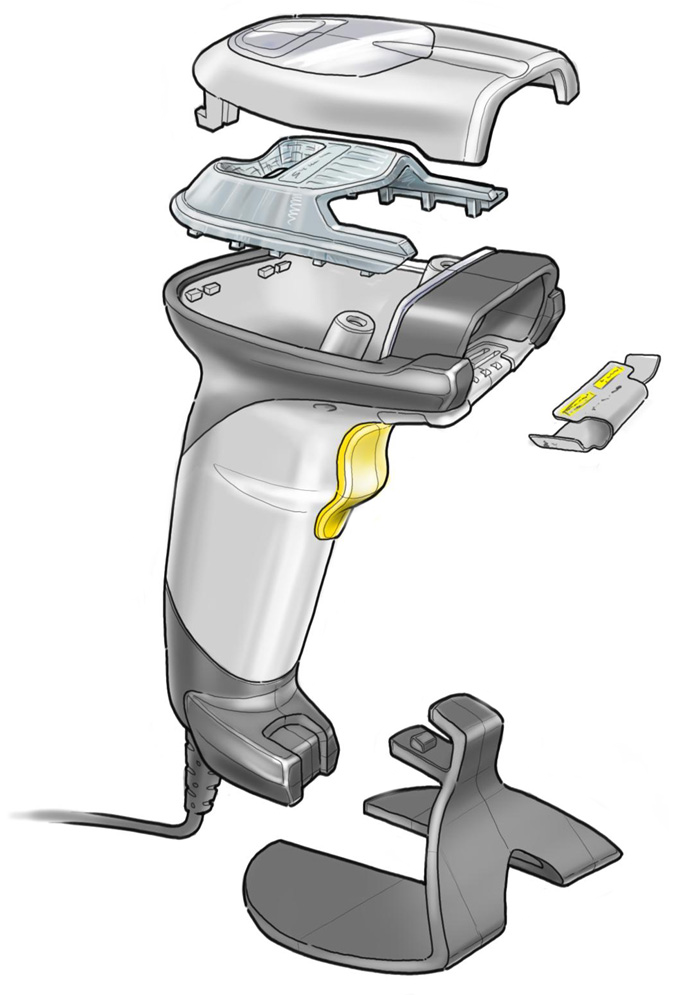

Here, we're crafting a story around a simple assembly along with an accessory stand that ties into a feature on the foot. Accessories are often the forgotten afterthought to a design, but can spell the difference between a design that works for a retailer's needs, and one that doesn't.
![](https://s3images.coroflot.com/user_files/individual_files/563464_bub7vc8xdrrpjljktol9bqkui.png)
![](https://s3images.coroflot.com/user_files/individual_files/563464_6qzvoe8kqr5f5q3m_d94rouyl.png)
![](https://s3images.coroflot.com/user_files/individual_files/563464_mfr9io_l_2pzhke5legygtmbl.png)
![](https://s3images.coroflot.com/user_files/individual_files/563464__whwcp0aalg_8ehrlzgzggssi.png)

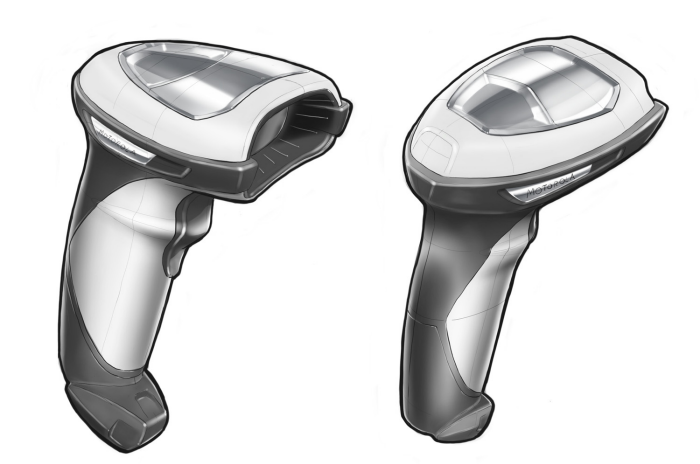

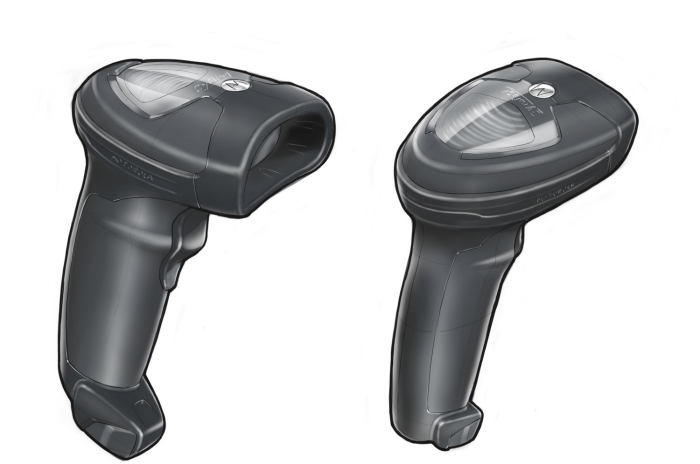

"The details are not the details. They make the product. The connections, the connections, the connections." - Charles Eames

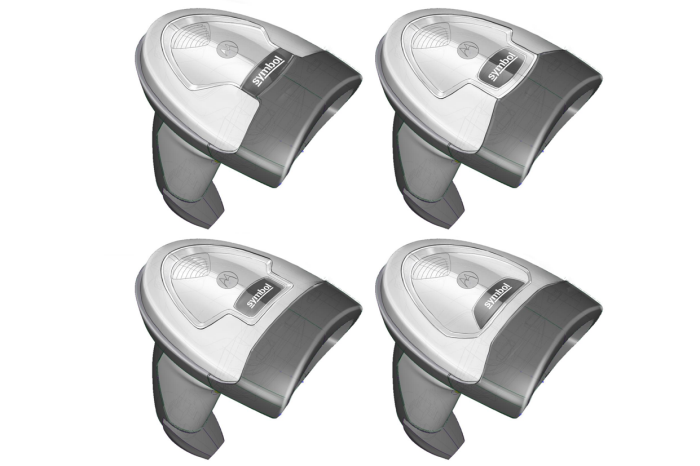

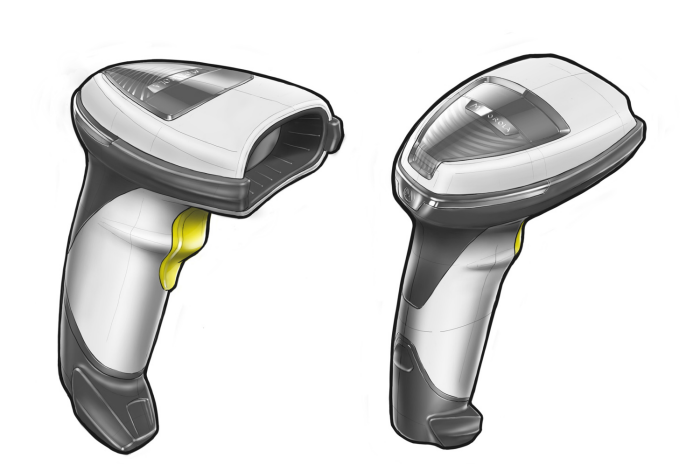

Here as we close in on an overall aesthetic, the canopy goes through a multitude of smaller, nuanced iterations in order to find that key balance of shape, proportion and emotional appeal.
![](https://s3images.coroflot.com/user_files/individual_files/563464_j5aeb7w5a9ejbeyavetb5mnkj.png)

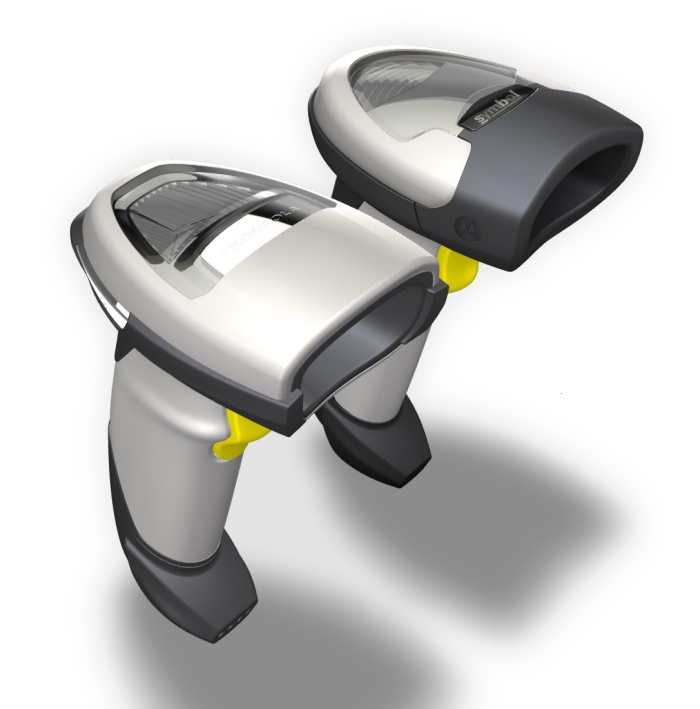

The numerous concepts were narrowed down to 2; a more conservative V1 on the right, versus the more radical V2 on the left

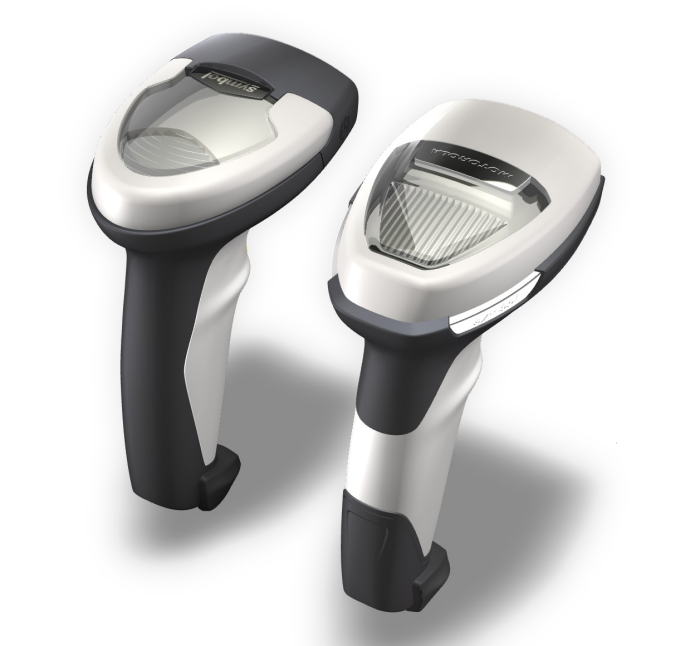

![](https://s3images.coroflot.com/user_files/individual_files/563464_e3h4eccmeb7beuzr3gfx8czol.png)
V1 shows a more refined and modern-edgy styling with a comfortable ergonomic rubber-overmould extending down the handle.
V2 is much more of a departure from the Motorola Solutions design language at the time; bringing in a stronger angular profile, along with prominent high-end detailing like the metal lightpipe exposed at the sides and a design that incorporates a removable door in the handle to access the batteries for the wireless version.
![](https://s3images.coroflot.com/user_files/individual_files/563464_bppgx8henfhj_ee0ygd6dtzte.png)

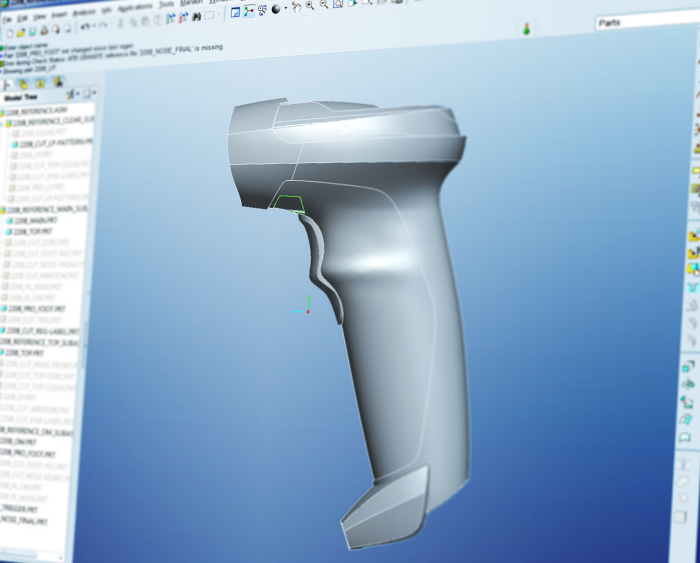

Screengrab from ProEngineer/Creo of one of the appearance models before the radii are added.
Deciding when and where to add in features like radii are important during the development of a design. Add them in too early and you risk causing downstream problems during feature changes and updates; add them in too late and the radii will often be limited by internal constraints and the ability for Parametric CAD programs to impliment large, aesthetic surfaces.
![](https://s3images.coroflot.com/user_files/individual_files/563464_tblmd9zttqrw_wpvvni2qmx8i.gif)

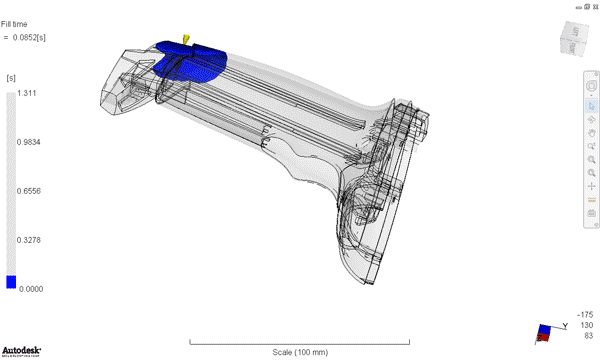

Mouldflow analysis (Injection fill time) for the handle substrate
![](https://s3images.coroflot.com/user_files/individual_files/563464_wqap5xbltbwdf7zzs5uafhbdy.gif)

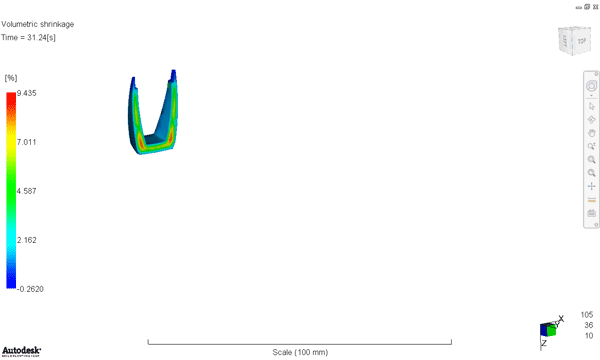

Mouldflow analysis (Volumetric shrinkage) for the handle substrate
