![](https://s3images.coroflot.com/user_files/individual_files/464976_NST5ALxVshZZ33cIJ5LzdSVzo.jpg)
A landscape of sound on the East Coast public park. A traffic-heavy expressway lies behind this recreational soundscape.
![](https://s3images.coroflot.com/user_files/individual_files/464976_IIHLrkuJlyObOFvzQBj6XzWqS.jpg)

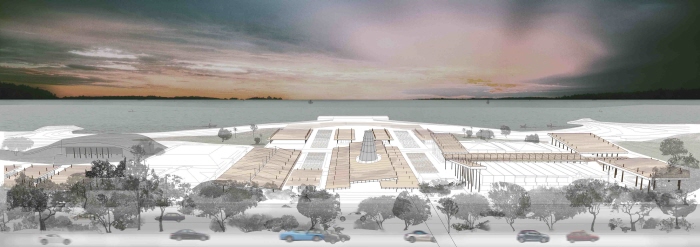

View of the soundscape from the opposite side.
![](https://s3images.coroflot.com/user_files/individual_files/464976_Scq8GaUkCQXQ0OrX3LOtzUM8d.jpg)

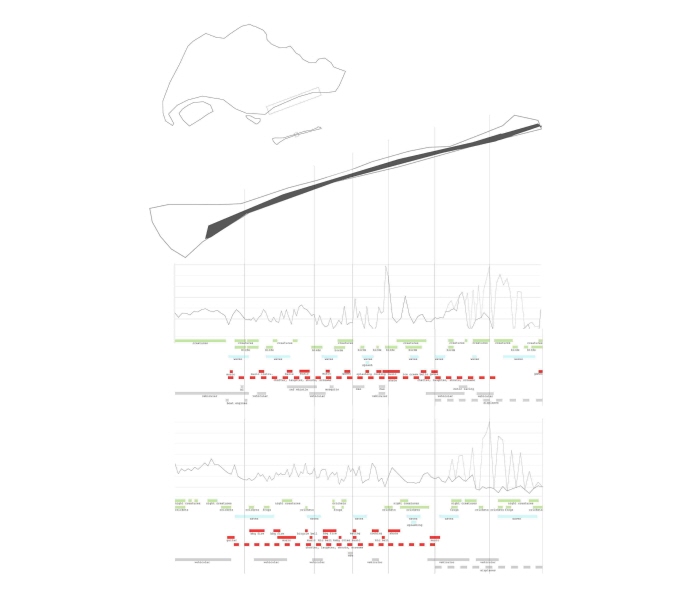

Mapping of existing sounds of the entire East Coast public park. Red: Anthrophony, Blue: Geophony, Green: Biophony, White: Quietness.
![](https://s3images.coroflot.com/user_files/individual_files/464976_wYkyxcBmTq5azhGEhJBeb_CFk.jpg)

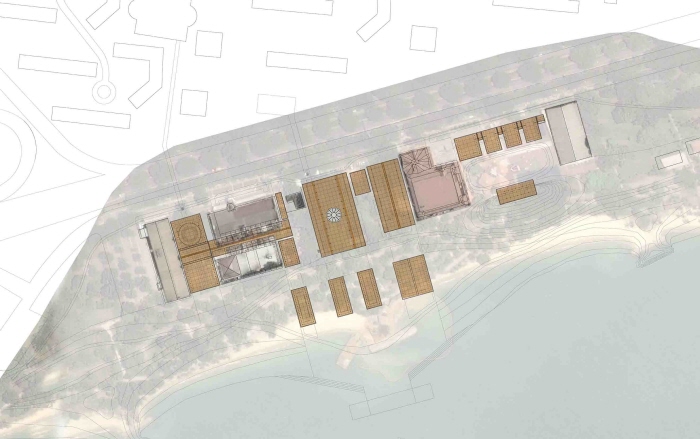

Site plan of the landscape of sound. Through this gesture, the congregation and combinations of different spaces and programs in the soundscape also suggest itself as a gateway for this park.
![](https://s3images.coroflot.com/user_files/individual_files/464976_7m68sl0mO2djAlTCyxDdmYAnF.jpg)

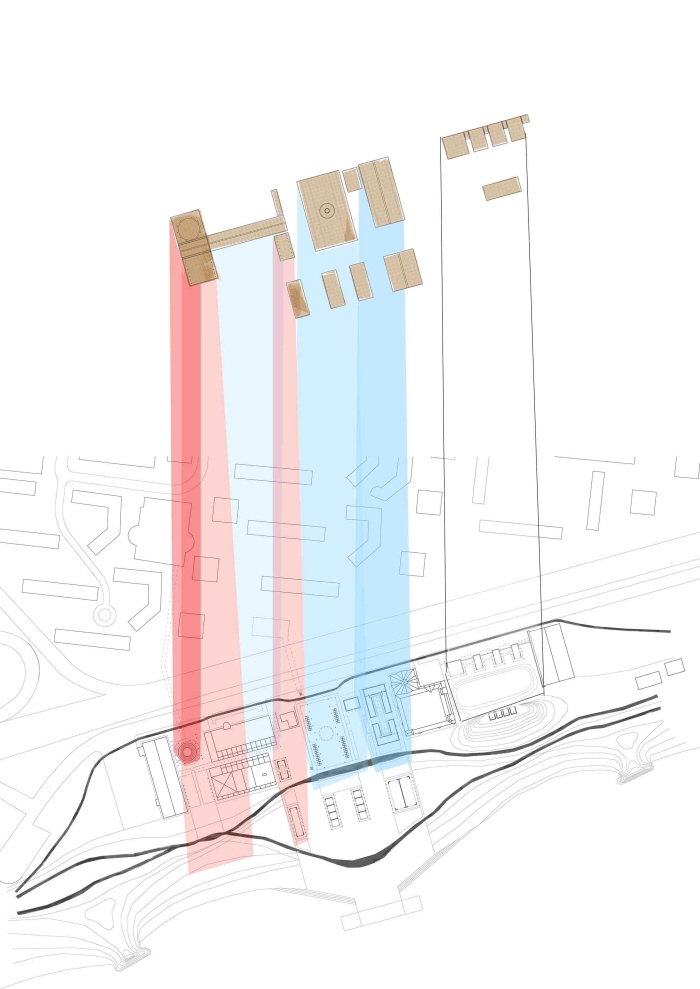

Red: Anthrophony, Blue: Geophony, White: Quietness.
![](https://s3images.coroflot.com/user_files/individual_files/464976_BNutpMFlDyUKw6GCyz2hYsaH_.jpg)

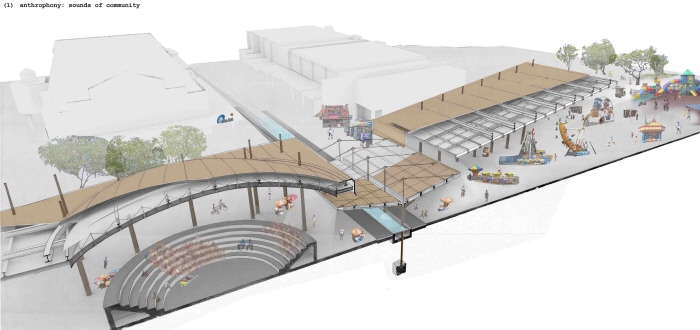

1: Anthrophony. Sounds of communities and people.
![](https://s3images.coroflot.com/user_files/individual_files/464976_T96KGZjlqpv_750Ax48Ld6C6f.jpg)

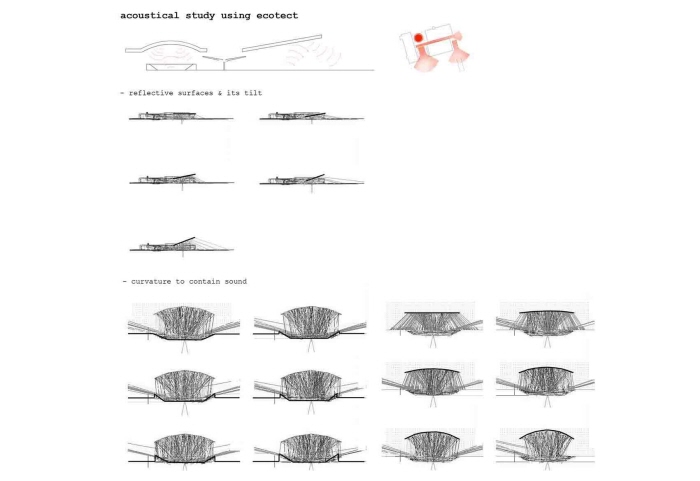

Studies on how the tilt and curvature of roofs reflect and contain sound from people-centric sources.
![](https://s3images.coroflot.com/user_files/individual_files/464976_dy2VCiuHhX38ou9aSRnvGLVG3.jpg)
Section of anthrophonic zone.
![](https://s3images.coroflot.com/user_files/individual_files/464976_ZIGIoD3cDiyte84dGgUGJVQjc.jpg)

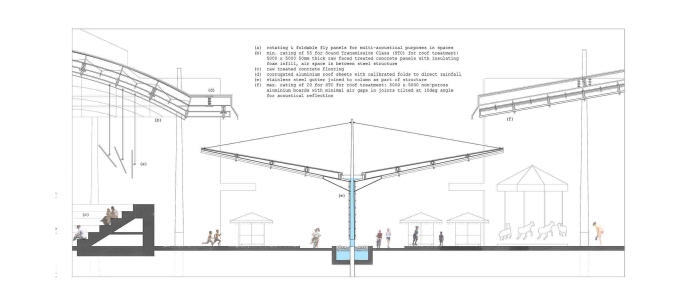

Detail section.
![](https://s3images.coroflot.com/user_files/individual_files/464976_YFVjT_cbikTTlQpomOsyIycTB.jpg)

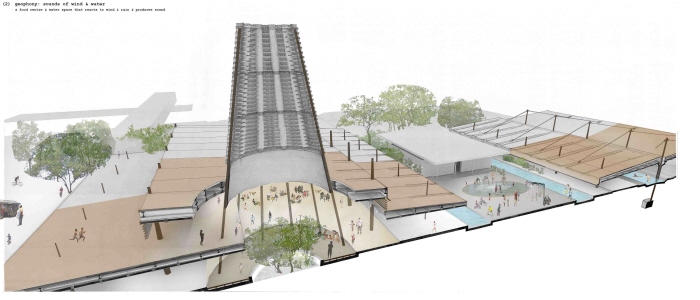

2: Geophony. Sounds of wind and water.
![](https://s3images.coroflot.com/user_files/individual_files/464976_3GfICGmvGk3oCjjr2w859iycT.jpg)

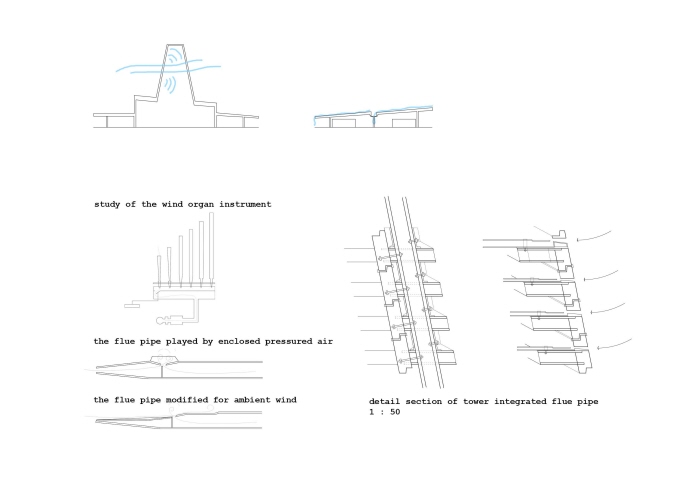

The flue pipe that generate sounds of different frequencies when played by wind.
![](https://s3images.coroflot.com/user_files/individual_files/464976_BRDWLBZo4TQDQdwQA6bn3XVhb.jpg)

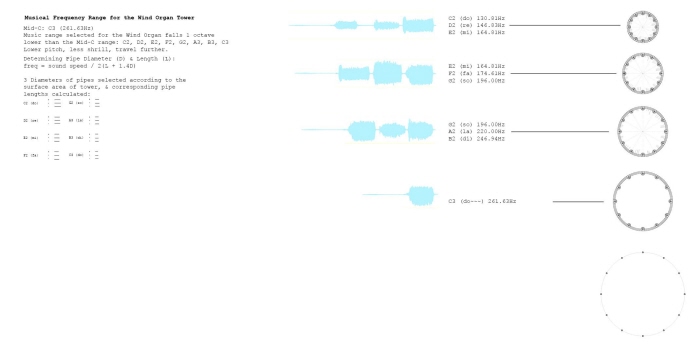

Desired frequencies determining the sizes of flue pipes to be integrated into the wind tower.
![](https://s3images.coroflot.com/user_files/individual_files/464976__C_i96ViuA6Zys4x0qo92RWoi.jpg)

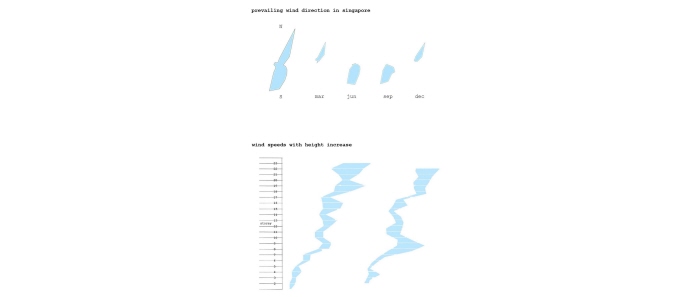

East Coast wind data.
![](https://s3images.coroflot.com/user_files/individual_files/464976_3LGhZP5hsmaNOe7JMzzXg9aTA.jpg)

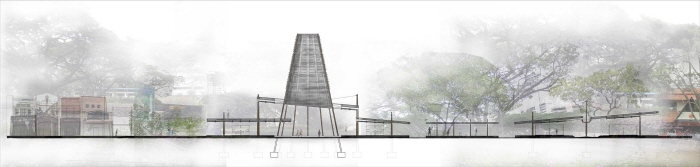

Section of geophonic zone.
![](https://s3images.coroflot.com/user_files/individual_files/464976_yI7Hyq0t4KBCrMbdzFZSb4b52.jpg)
Section of geophonic zone.
![](https://s3images.coroflot.com/user_files/individual_files/464976_avZltI6OvH4qFIzHmadMgW5P5.jpg)

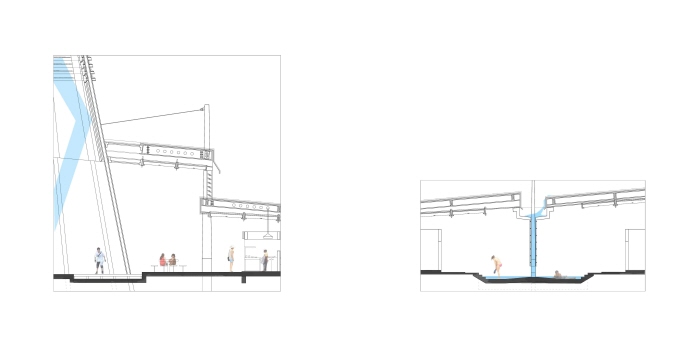

Detail sections.
![](https://s3images.coroflot.com/user_files/individual_files/464976_2PldkkQpQlI9qrNcpDcpu7QCc.jpg)

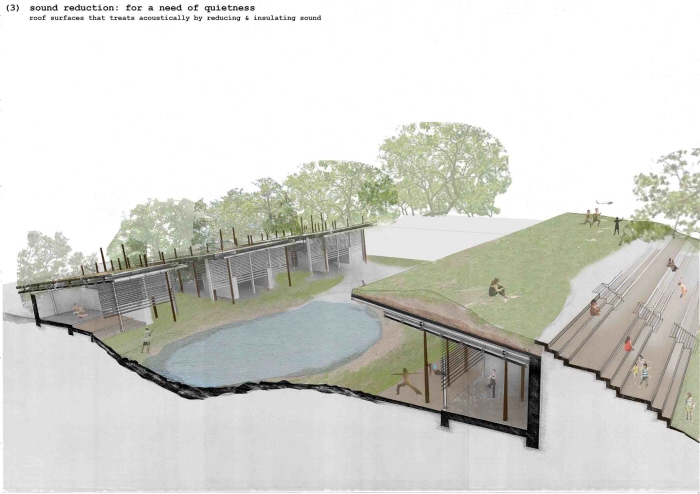

3: Anti-noise. Absorption of unwanted sounds.
![](https://s3images.coroflot.com/user_files/individual_files/464976_nS556dg8xg6N_4oCYR2YBTvUx.jpg)

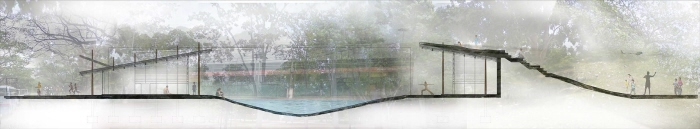

Section of anti noise zone.
![](https://s3images.coroflot.com/user_files/individual_files/464976_XstvvDJOrD5UaqNPQZqFwga9V.jpg)

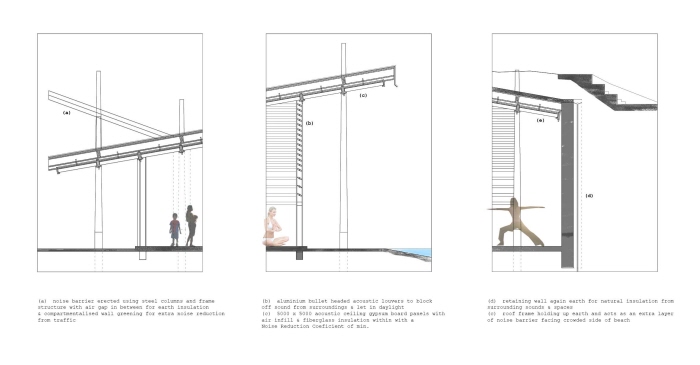

Detail sections.
![](https://s3images.coroflot.com/user_files/individual_files/464976_j_D9Gwkhun49leYlM0glLSqQu.jpg)

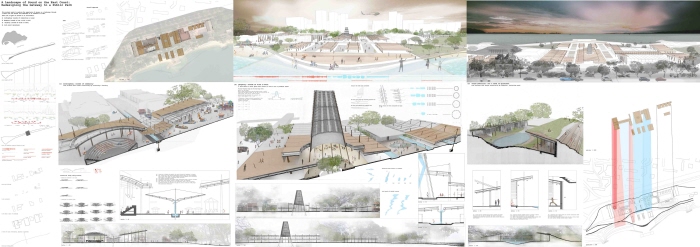

Panels.
