Rendering of a hot-shoe mount.

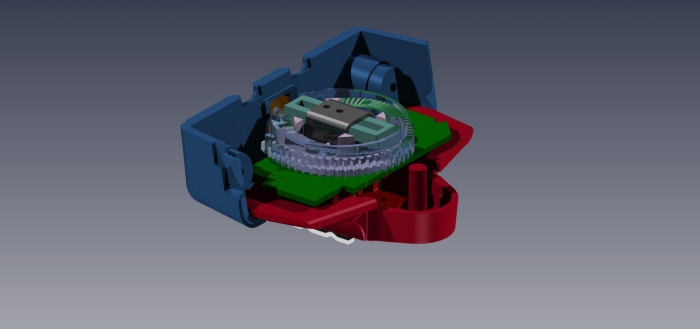

Hot-shoe mount assembly.

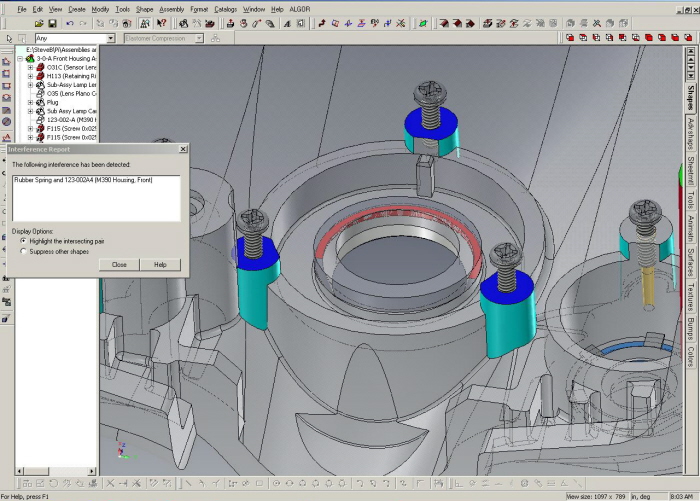

A screen shot of a the development of a focus light lens in a flash.

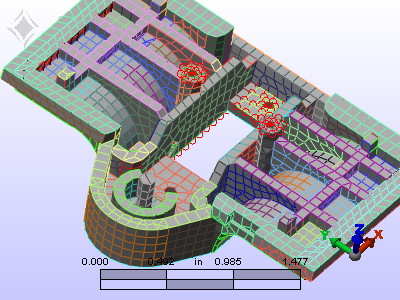

FEA meshing of a flash housing member.

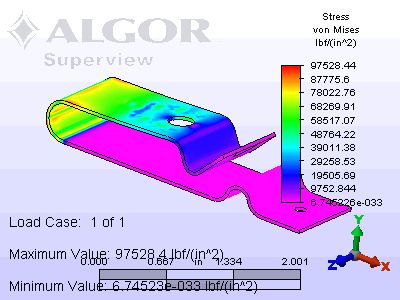

FEA stress analysis for a belt clip.

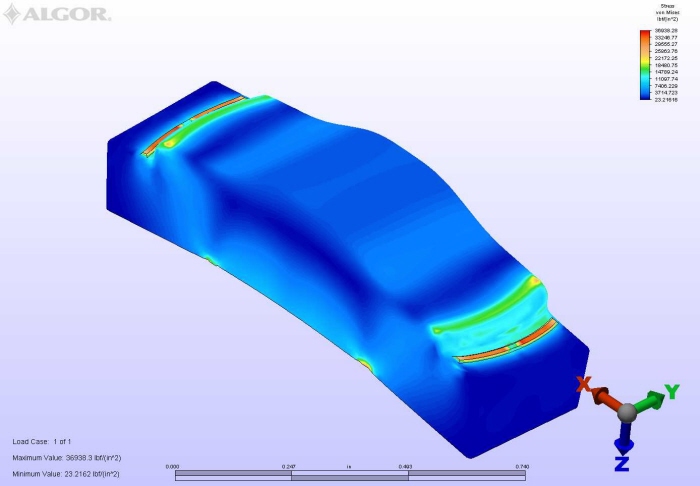

FEA stress analysis for a clamping cam.

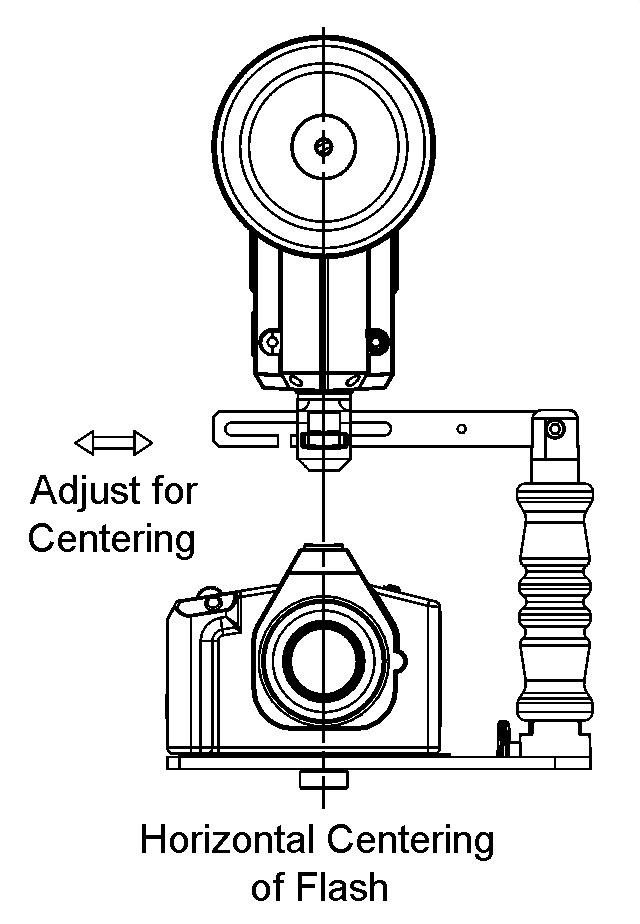

User instructions for a camera bracket.

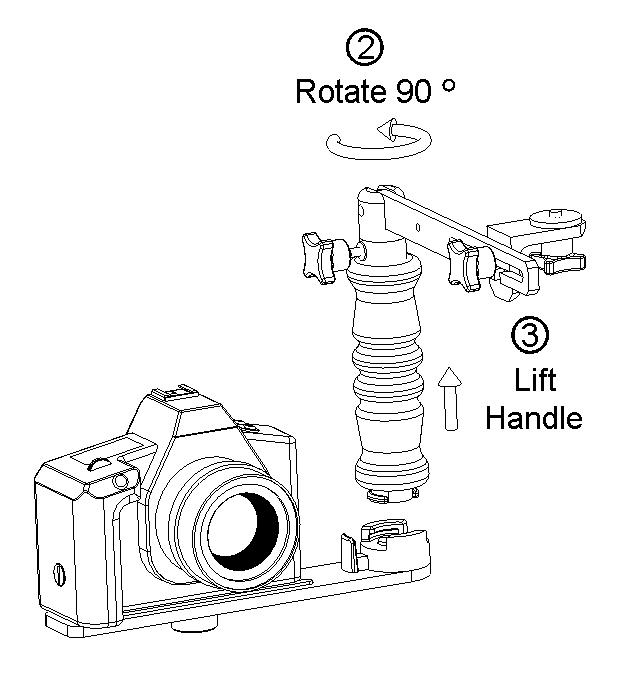

User instructions for a camera bracket.
FEA stress analysis of a lens mount.

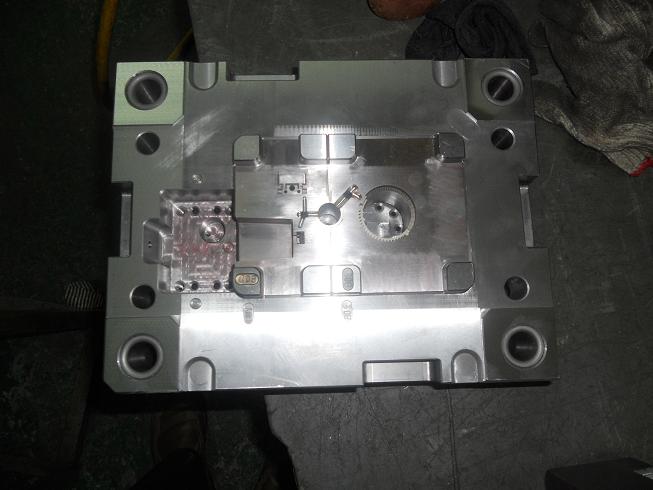

Injection mold for for flash plastic parts.

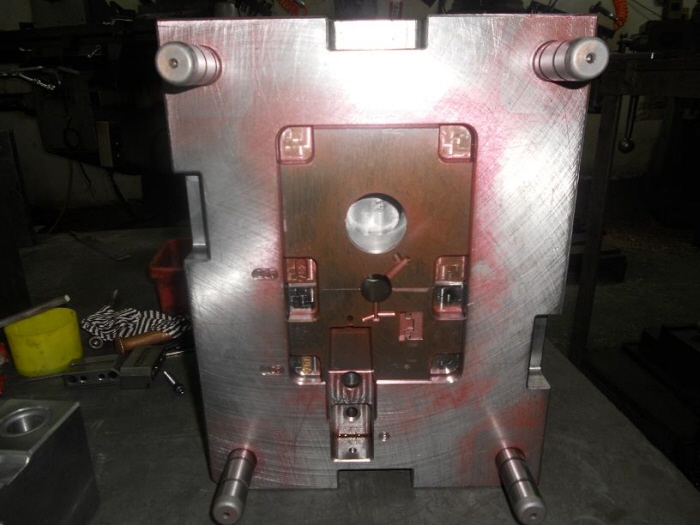

Injection mold for for flash plastic parts.

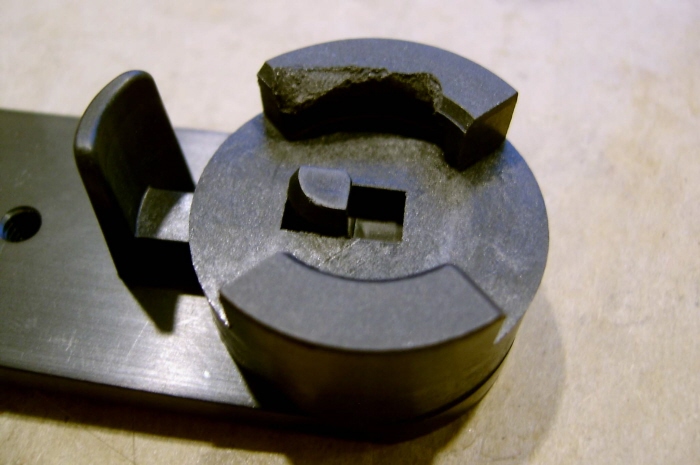

Flash Bracket bayonet mount made of high strength glass filled nylon. Notice the fracture on the upper overhang. The part failed in test as predicted by the FEA analysis but the failure was well outside the expected range of normal use.
A rendering of the shoe locking mechanism.
gLike
Quantum Instruments, Photographic Accessories, Miscellaneous Items
Renderings and photos of miscellaneous items used in developing the various photographic products for Quantum Instruments.
Available
Freelance
Stephen J. Cole
Mechanical Engineer, Phoenix Design & Analysis Services LLC
White Plains, NY
