A rendering of a radial engine that I drew to show off my modeling skills. It was developed in Autodesk Mechanical Desktop when wire-frames were the only graphics available in 3D CAD. It was rendered using an application called Accurender. I have a fascination with bi-planes and radial engines so I doodled around with these models.
![](https://s3images.coroflot.com/user_files/individual_files/511720_gn92qhmume6qblfulzzjvdpei.jpg)

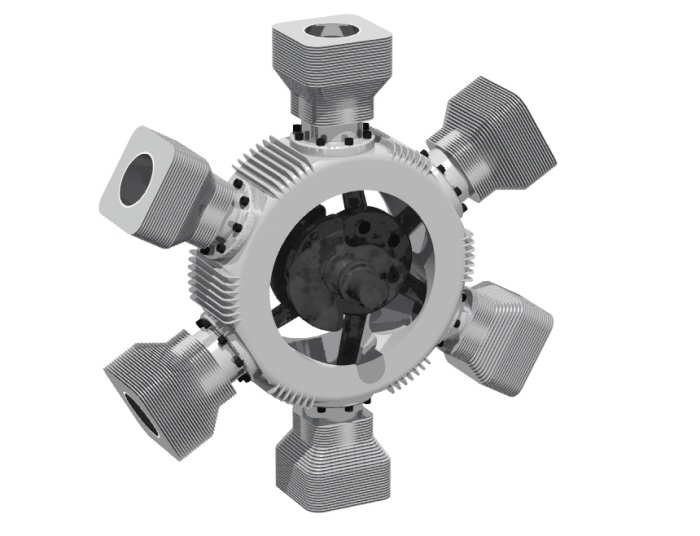

More radial engine views.
![](https://s3images.coroflot.com/user_files/individual_files/511720_ifeso5ud5heqcylxhsym_du6u.jpg)

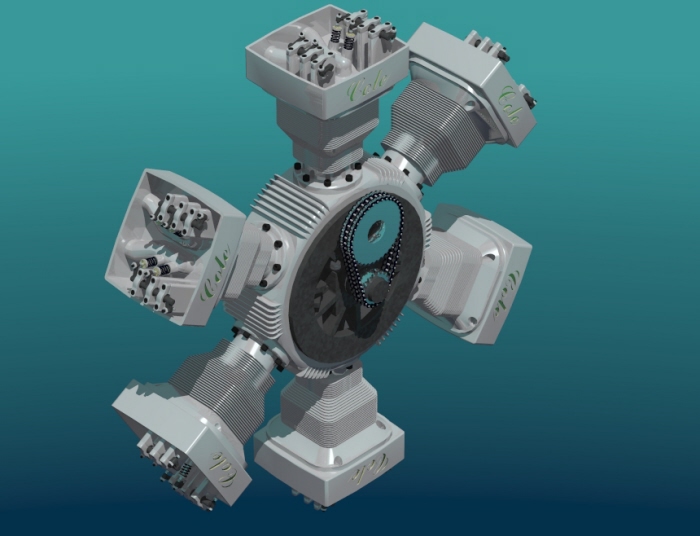

More radial engine views.
![](https://s3images.coroflot.com/user_files/individual_files/511720_vgvdjmm73lr22xh8qvgy2nm2h.jpg)

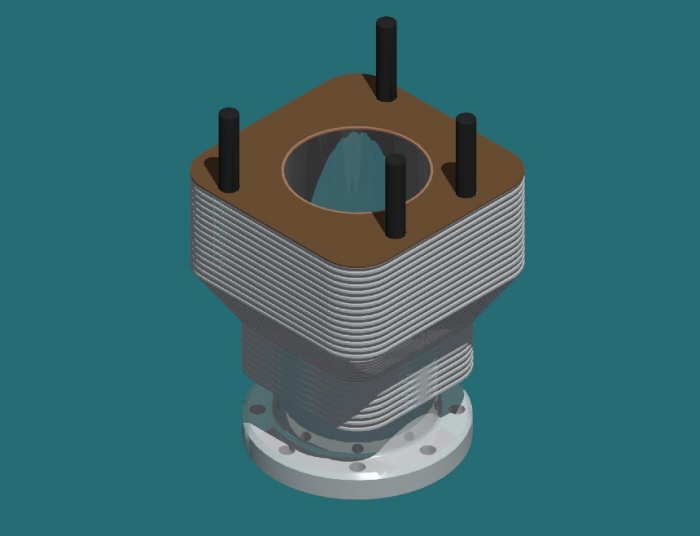

Radial engine cylinder. The cylinders were modeled after the cylinders from the Harley Davidson Evolution engine.
![](https://s3images.coroflot.com/user_files/individual_files/511720_a32xaqgoyzu0wynxz8a9udeoe.jpg)

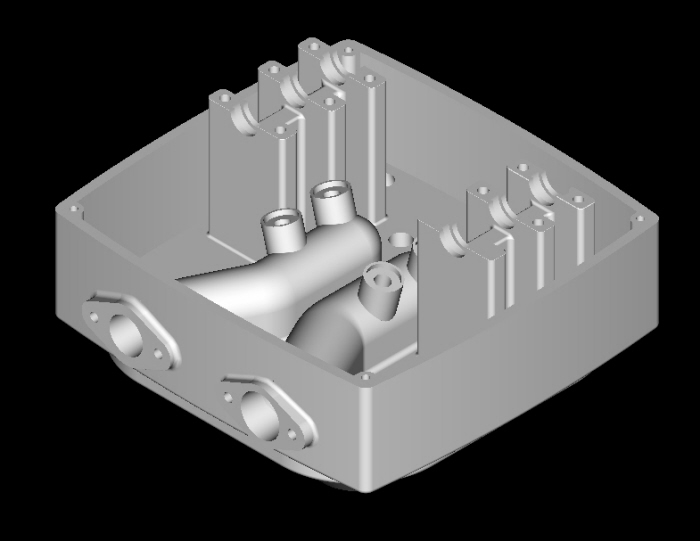

Close-up of a cylinder head.
![](https://s3images.coroflot.com/user_files/individual_files/511720_jvikfqdmovhd8eyudpnkrb38p.jpg)

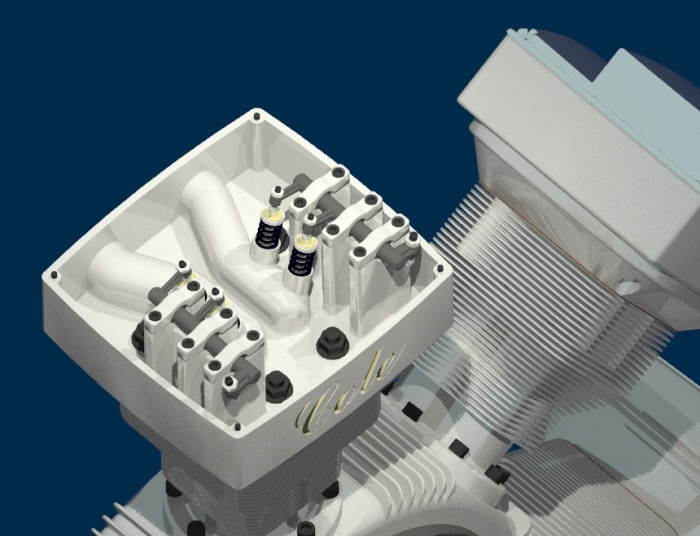

A cylinder head detail.
![](https://s3images.coroflot.com/user_files/individual_files/511720_yojeiikpnpbqequqknanlfcwn.jpg)

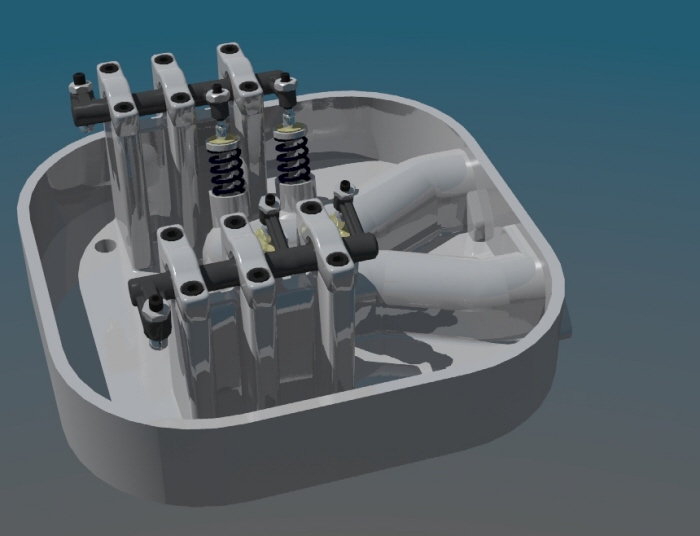

Another cylinder head detail.
![](https://s3images.coroflot.com/user_files/individual_files/511720_yq5fexrr4lpsmwwoglvs3lvm2.jpg)
And yet another view of the cylinder head.
![](https://s3images.coroflot.com/user_files/individual_files/511720_vrs6b645l8nl0ymnifklftn32.jpg)

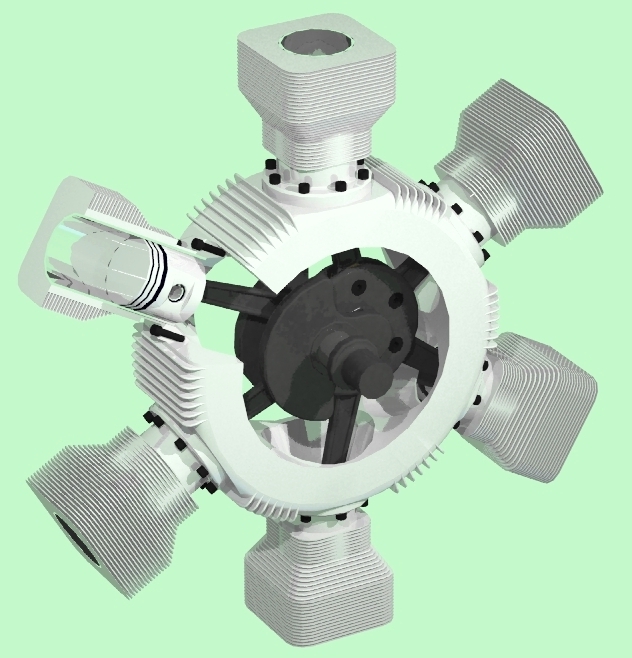

An engine view with the cylinder cross-sectioned.
