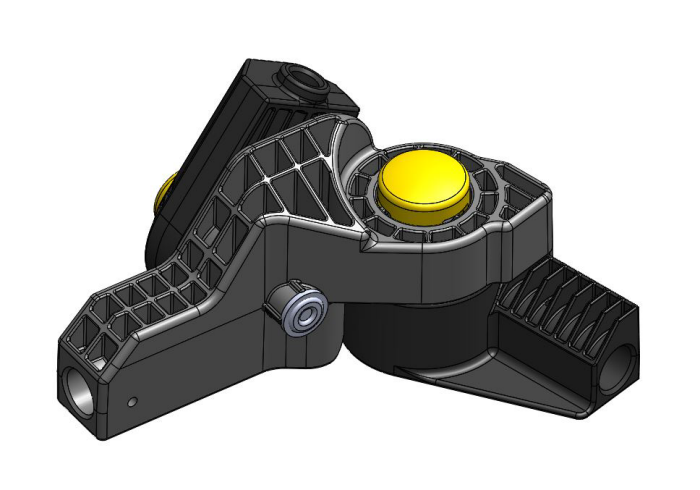

Push button corner Joint design
![](https://s3images.coroflot.com/user_files/individual_files/531733_jypobdunqzgtts42zfody85p_.jpg)

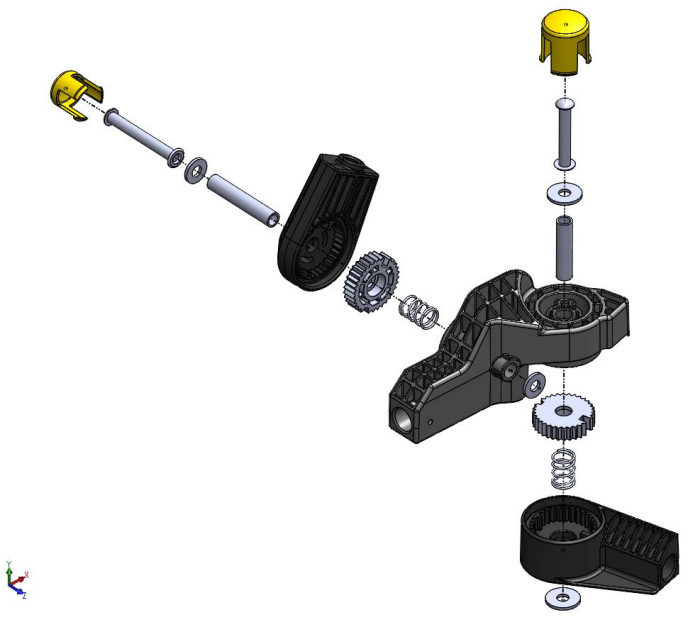

Exploded view of corner joint
![](https://s3images.coroflot.com/user_files/individual_files/531733_zafgj2ur8ylcmurrdkvcp5x0h.jpg)

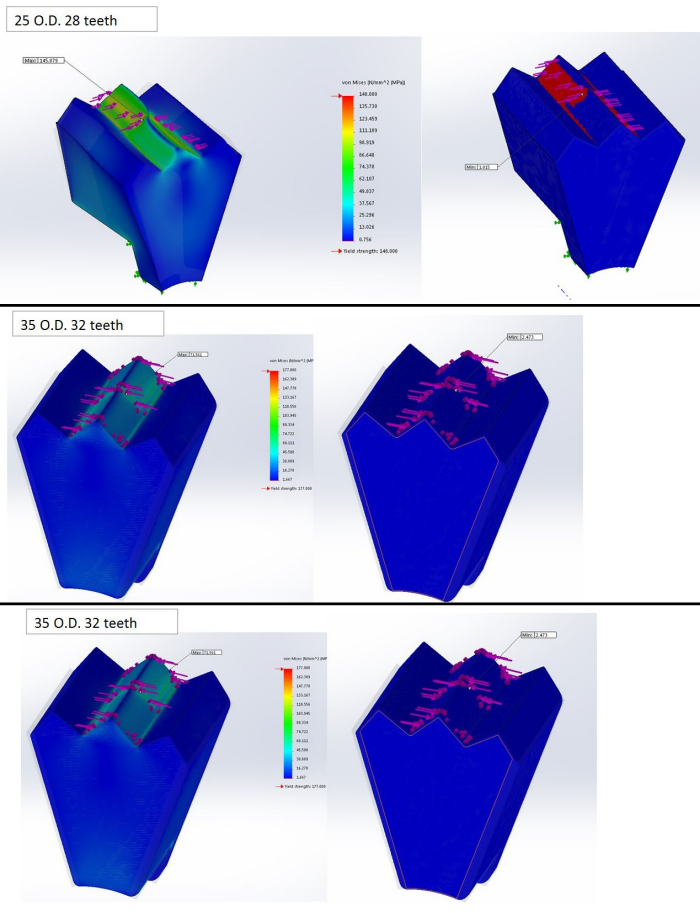

Gear design optimization
![](https://s3images.coroflot.com/user_files/individual_files/531733_vj4d_2xz7hvben8k5glnmx0y6.jpg)

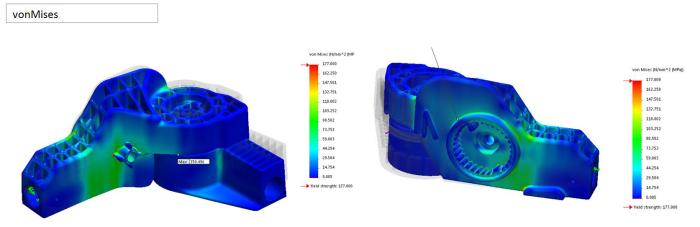

Stress plot of loaded joint at time of impact
![](https://s3images.coroflot.com/user_files/individual_files/531733_hhe0hj3nahrcgmdwjd0fonppp.jpg)

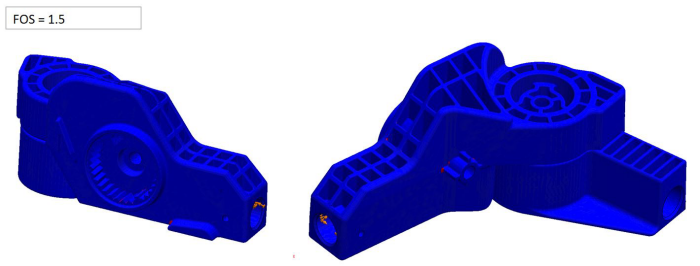

Factory of Safety Plot set to 1.5 of loaded joint at time of impact
![](https://s3images.coroflot.com/user_files/individual_files/531733_umuhff7ocpo56fqvqjz6bk9da.jpg)

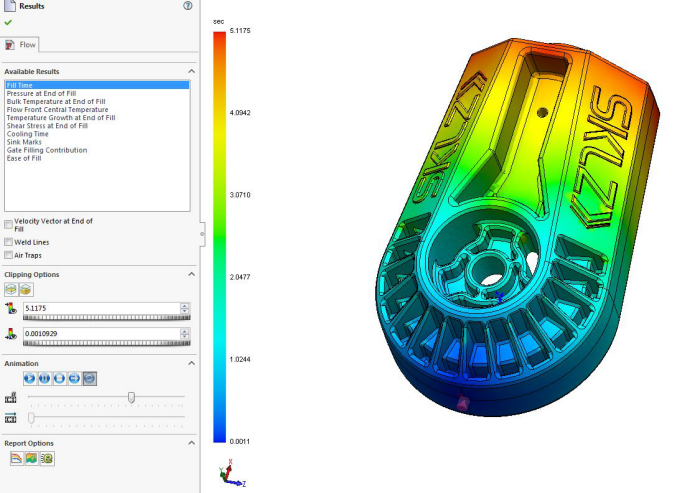

Plastics simulation result of fill time
![](https://s3images.coroflot.com/user_files/individual_files/531733_hdwujjfcw36nx0mgyzclhhypo.jpg)

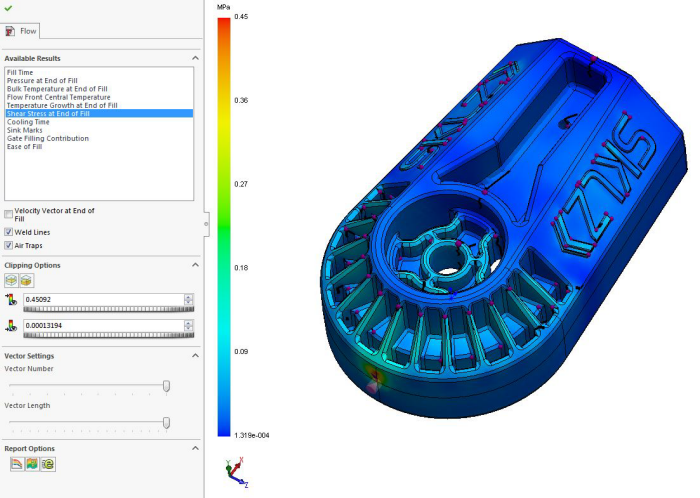

Plastics simulation result of stress at end of fill. Weld lines and air traps turned on and visible.
![](https://s3images.coroflot.com/user_files/individual_files/531733_6iivyxzx6mgkhk4c8jb7udtkw.jpg)

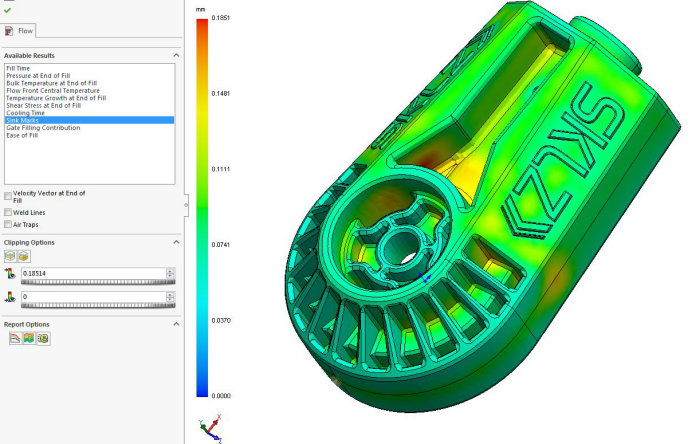

Plastics simulation result of sink marks
