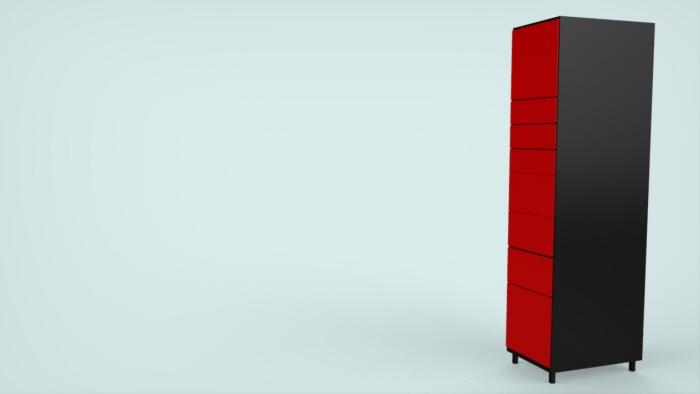

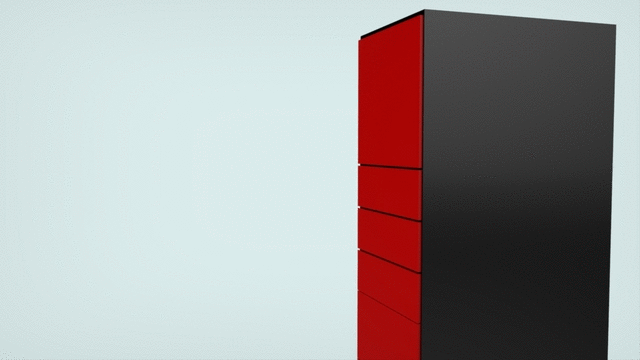

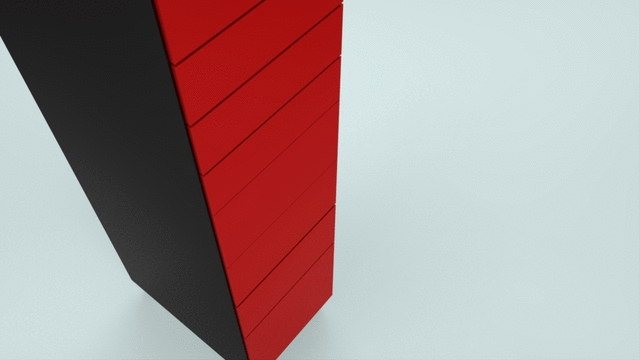

"R&D Drawer Solution"
Modeled in SolidWorks 2014
Rendered & Animated with KeyShot 5
Designed by Ridwan S
I designed this model for https://grabcad.com/challenges/the-parcel-delivery-system-challenge

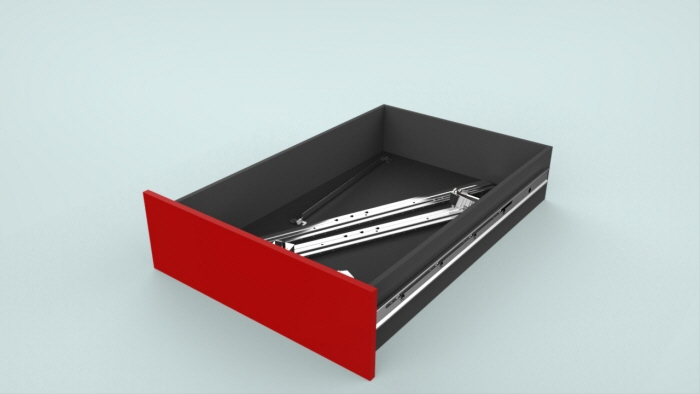

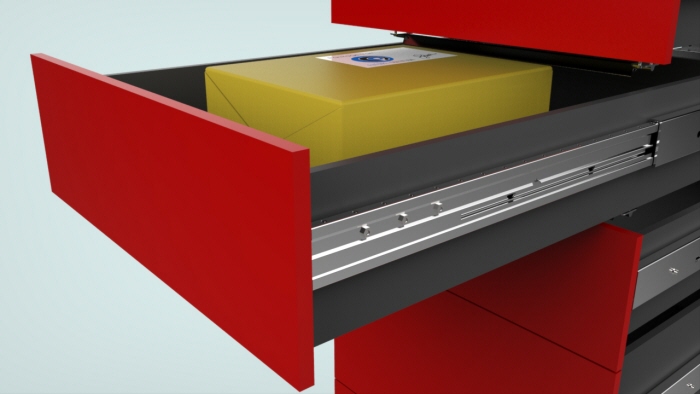

1. Ensure specification dimension of package can be included in the size of drawer
2. Sometimes the user will enter oversized package and forced her to get in on a smaller drawer slightly to save cost
3. If the package height is higher than specifications

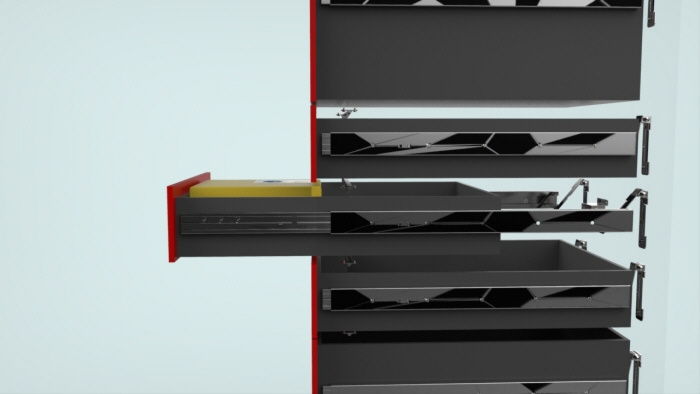

determined, but the user tries to enter it into the drawer. Then the package can not be entered because the top drawer (cabinet) are a kind of stopper to prevent this

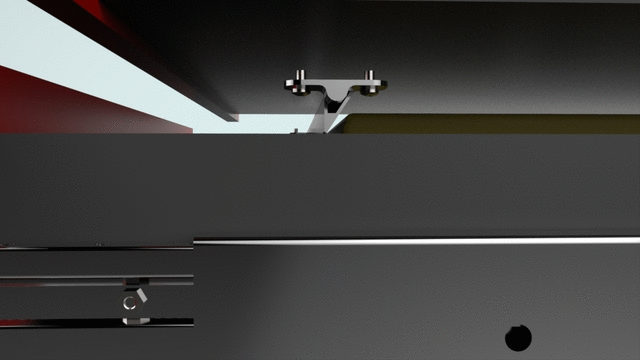

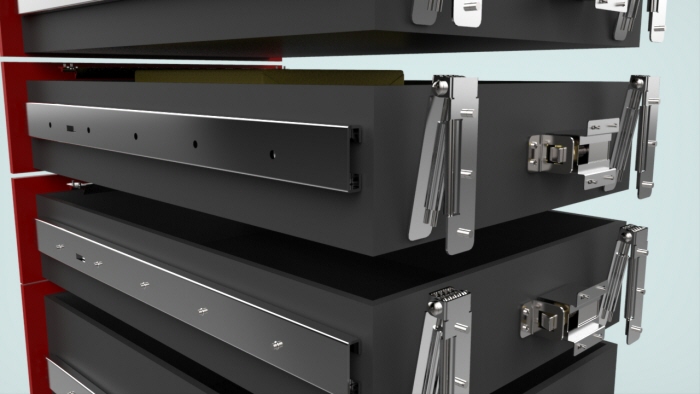

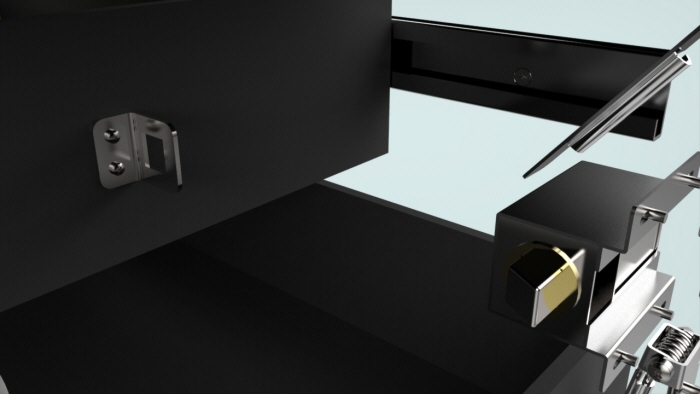

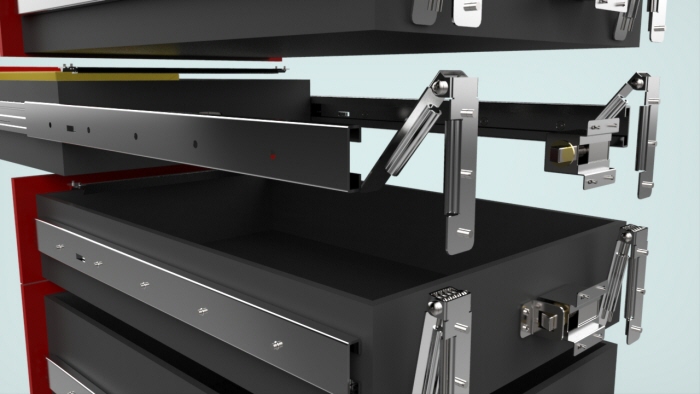

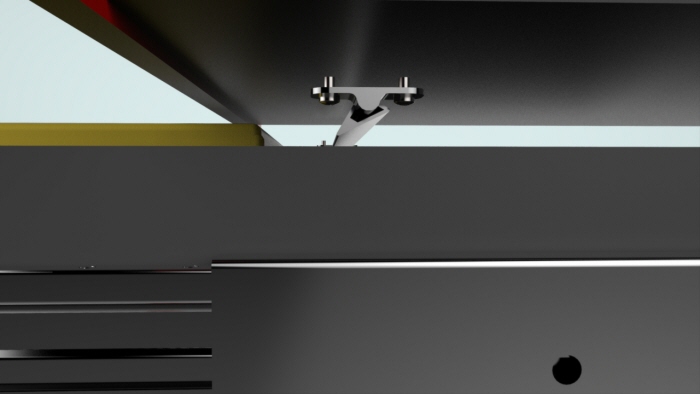

4. If the user successfully put it by force , and the drawer is closed . So with this mechanism oversized package (height) can come out easily without fear of damaging the terminal
