"Helix Casing"
Modeled in SolidWorks 2014
Rendered & Animated with KeyShot 5
Designed by Ridwan S
I designed this model for https://grabcad.com/challenges/universal-lateral-trainer-casing-design-challenge
My design concept is "Automotive, Futuristic, Marketable, Simple, Smooth, Aesthetic, Elegant, Good Looking & Matching The Trainers"

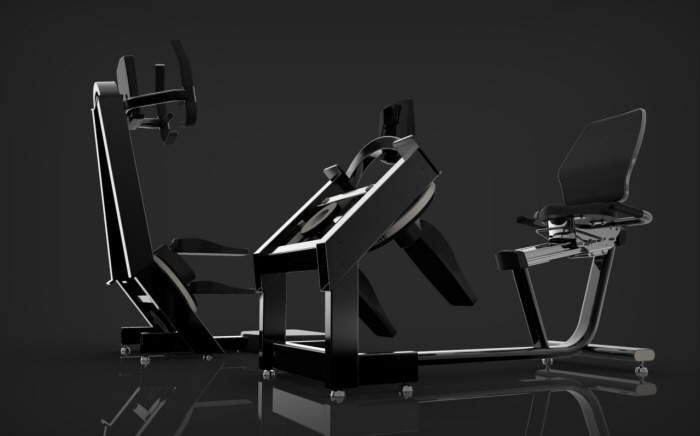

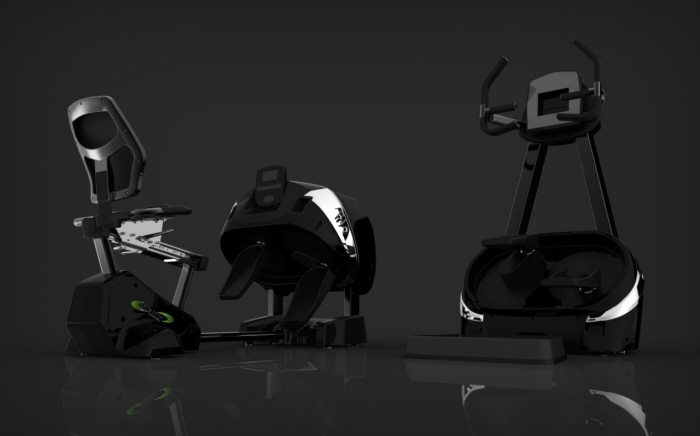

The model has two mode

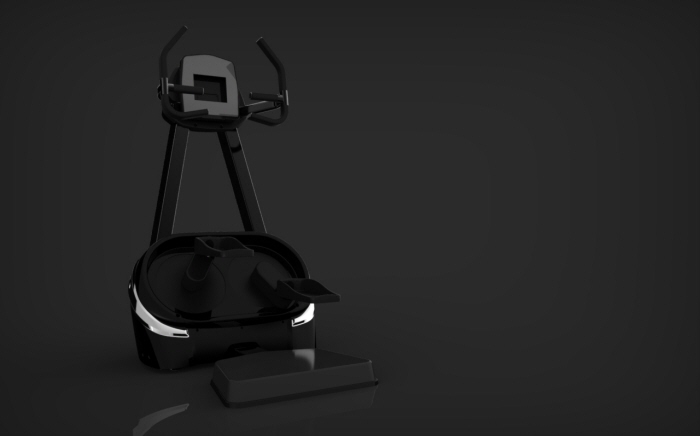

for stand mode "TILTED"

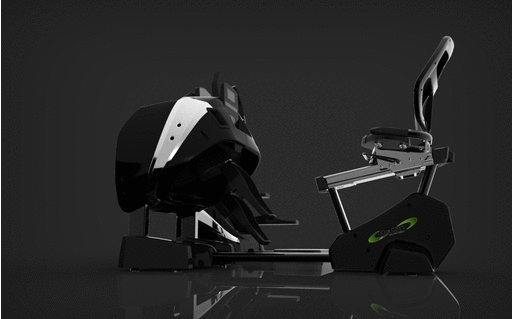

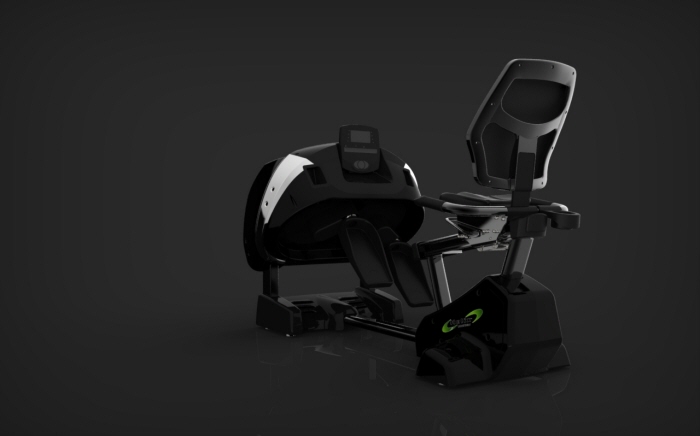

for sit mode "RECUMBANT"

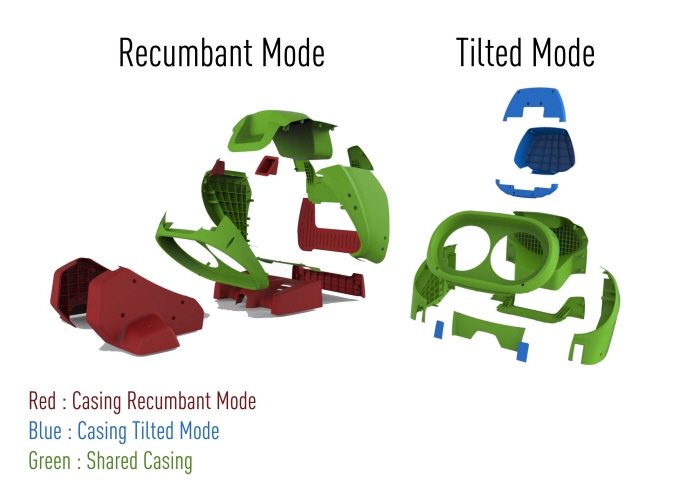

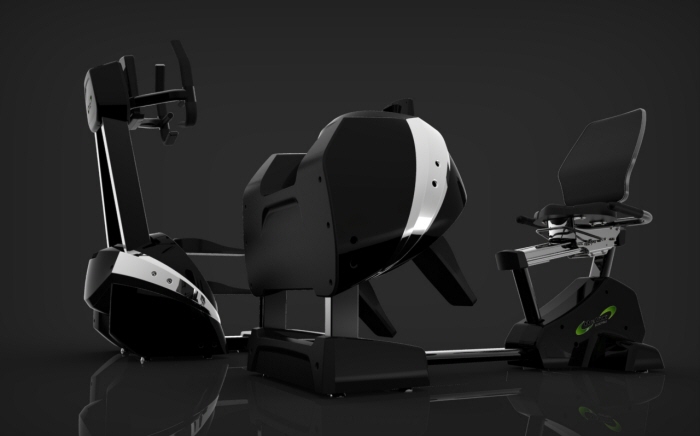

I just try to make same Main Casing for two Mode to decrease production process & reduce casing part numbers (easy cost).

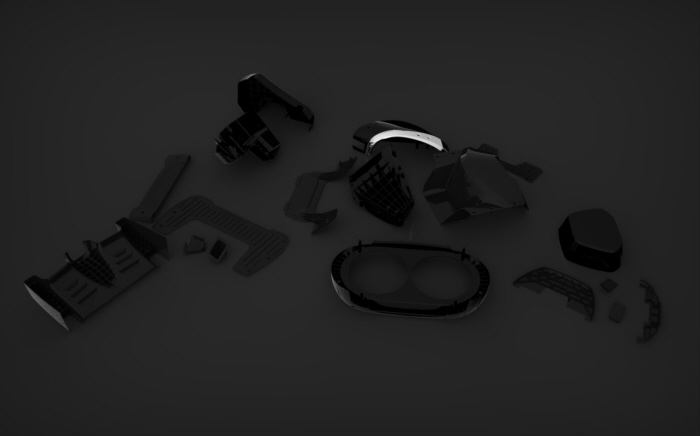

I try to follow the requirements "Specific parts of the casing will be easily removable for repair or service access". I use fastener (bolt and screw) locking system, I think that's make easy to release and attach parts to the construction but make it strong enough too
