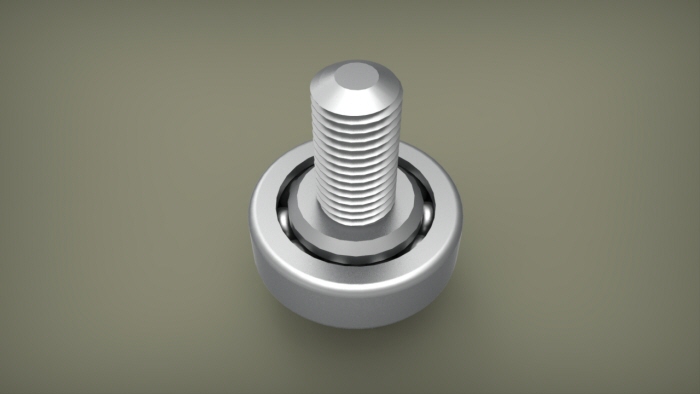

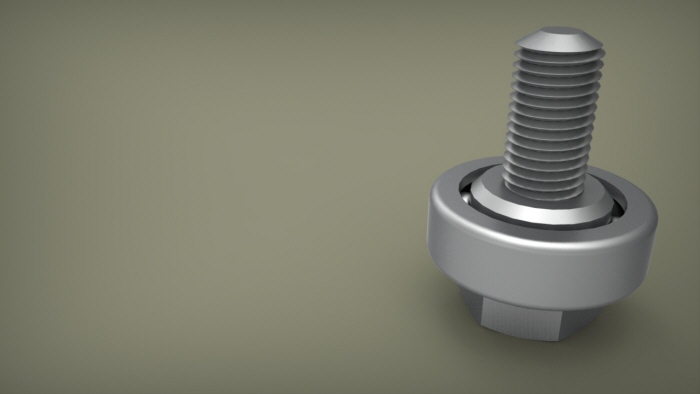

3D Printing Fastener (Bolt Bearing)

"3D Printing Fastener (Bolt Bearing)"

Modeled in SolidWorks 2014
Rendered & Animated with KeyShot 5
Designed by Ridwan S

I designed this model for https://grabcad.com/challenges/make-the-unmakeable-challenge-2

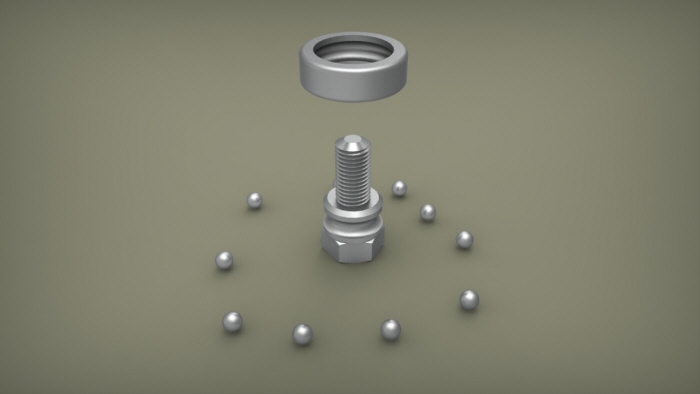

Here, I make a combination of several items that are often used together. For this case I combine "Bolt" with "Bearing".

For the furniture industry must be familiar with the use of plastic bearing drawer for the movement of their products.

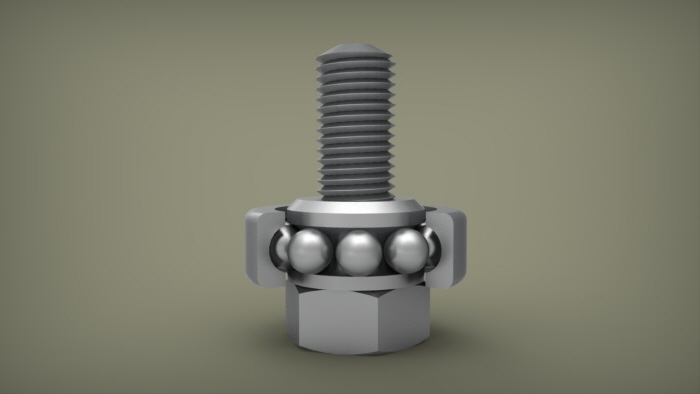

Bearing : ISO Angular Contact Ball Bearing 108
ID : 8 mm
OD : 22 mm
Thickness : 7 mm

Bolt : ISO Hex Screw 4017 M8 x 16

Material : ABS Plastic (or another recommended material from 3D Printer Manufacture)

Adittional feature :
I've add a hexagonal slot at bolt head, so we can tighten with Spanner or L key also.
