Furniture Layout
Electrical Layout
nurse station-elevation1

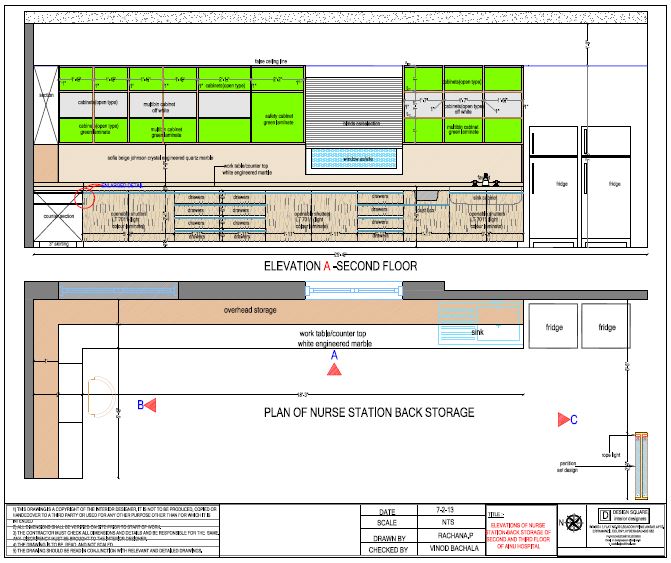

Nurse station-elevation2

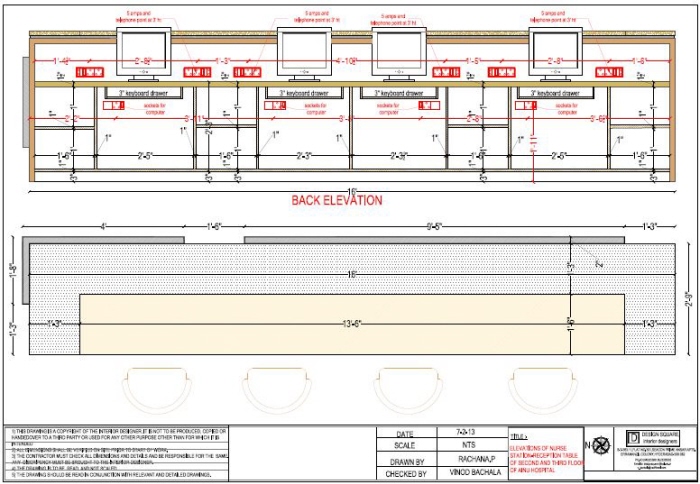

Nurse station-elevation

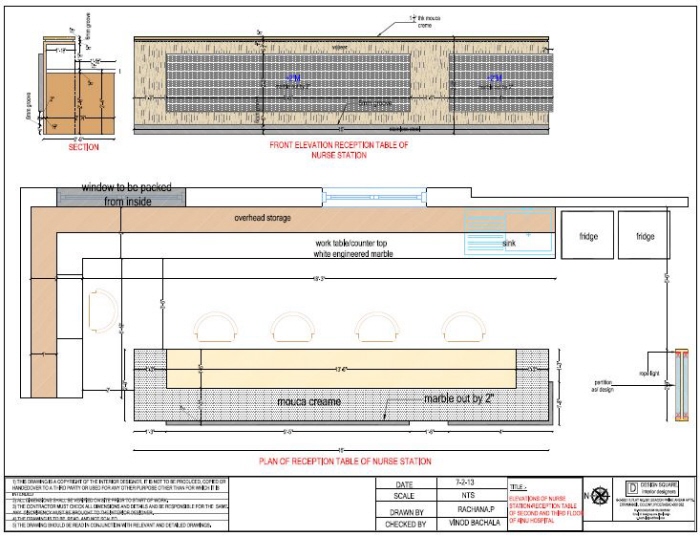

Nurse station-plan

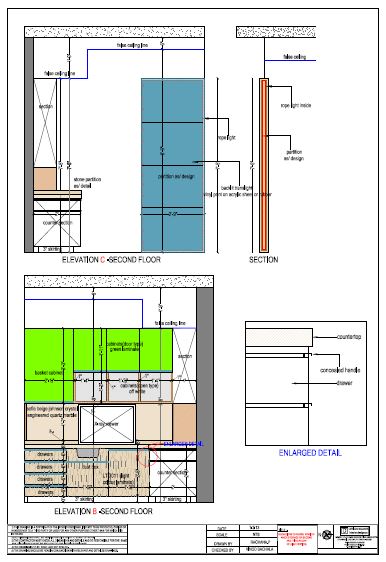

Section1
Detail of section1
Delux room-Furniture plan and False ceiling layout
Electrical layout
Elevation of delux room
elevation2 of delux room
Furniture layout
Elevation of consultant room
Elevation2 of consultant room
Furniture and electrical layouts
Elevation1 of the consultant room
Elevation2 of consultant room
gLike
Asian Institute of Neurolagy and Urology-Hospital
A collaborative project in Design square:
Detailed floor plans,sections and elevations are designed by considering the requirements of the clients.
My role is to detail few areas in the project.
