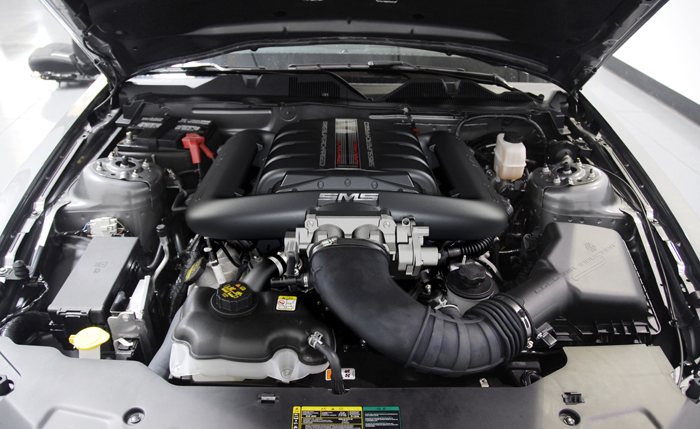

SMS Mustang Supercharger System - Complete 3D CAD design, development, engineering and sourcing.
SMS Mustang Supercharger System - Complete 3D CAD design, development, engineering and sourcing.
gLike
SMS Supercharger
The SMS Supercharger Systems were designed and engineered to be the pinnacle of high performance forced induction systems.
Each component in the system was designed for optimization; from the aerodynamic 100mm intake plenum and throttle body, to the multi-lobe compressor screws, to the internal intercooler system which utilizes a patented cartridge system with six cylindrical water to air intercoolers to control the air charge temperature.
