Concept 4 refined - Worn by miners at the rock face

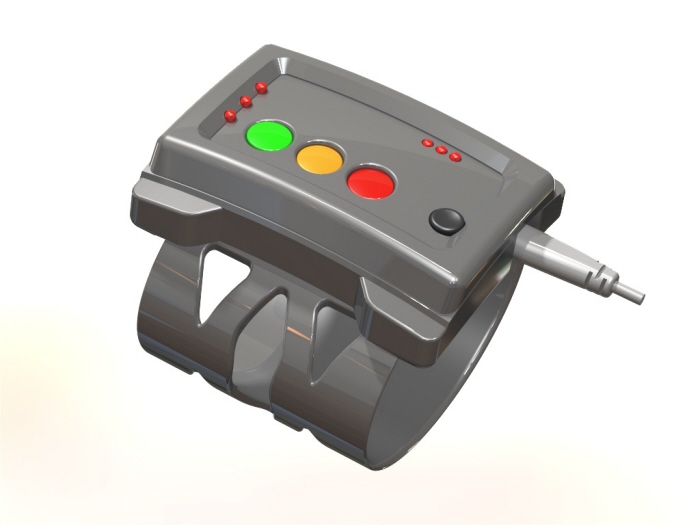

Concept 4 first CAD model

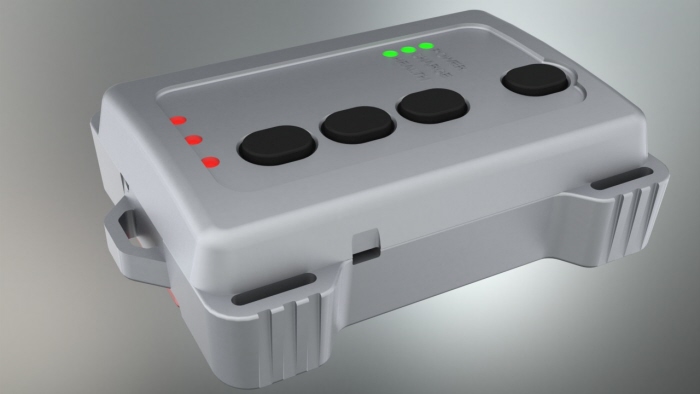

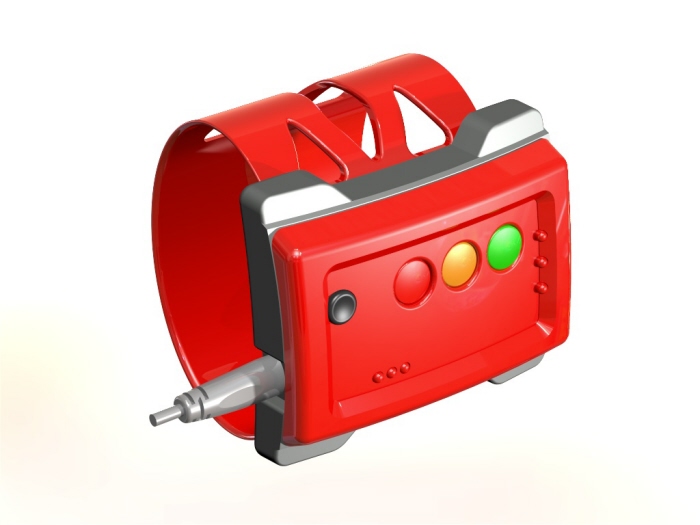

Concept 4 red

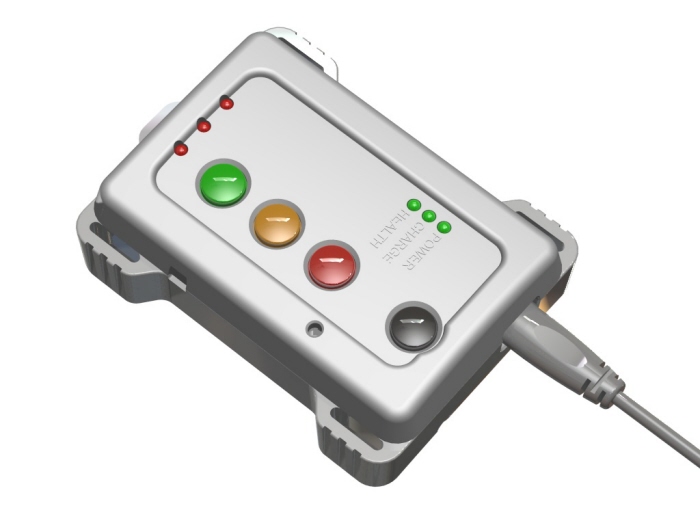

Final concept CAD model

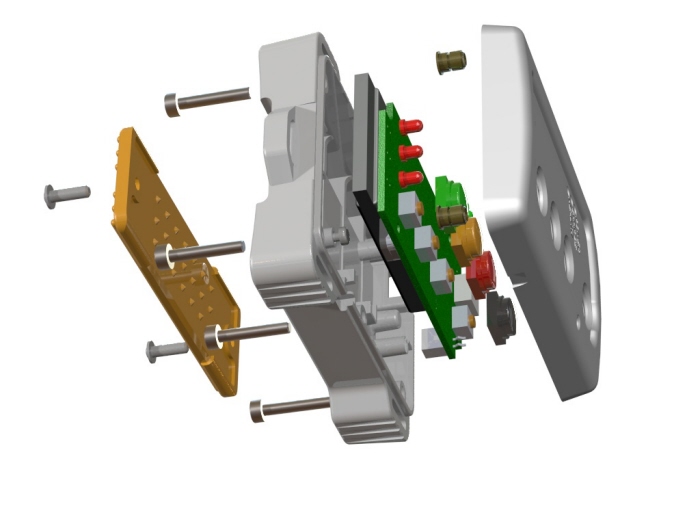

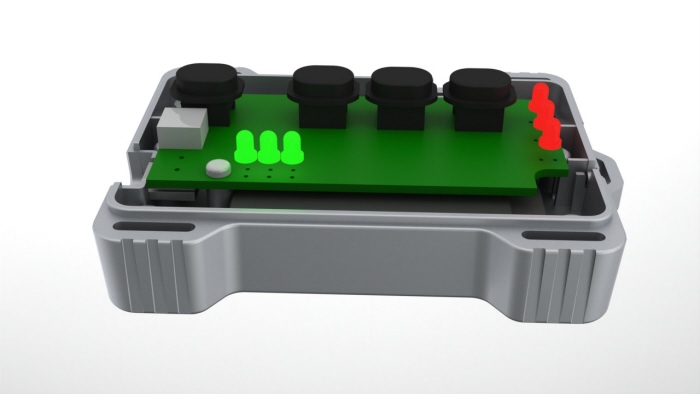

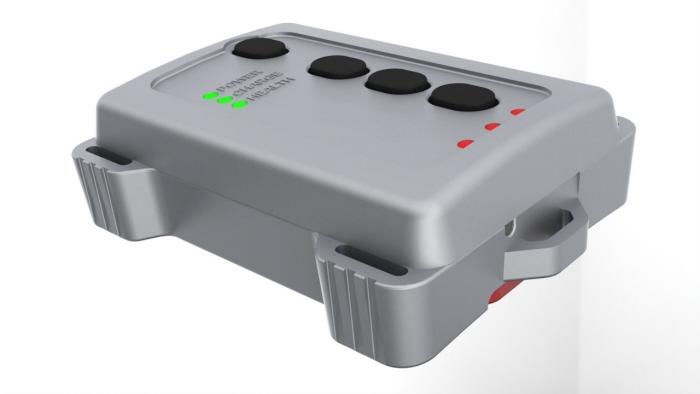

Signalman assembly - Worn by miners at the rock face

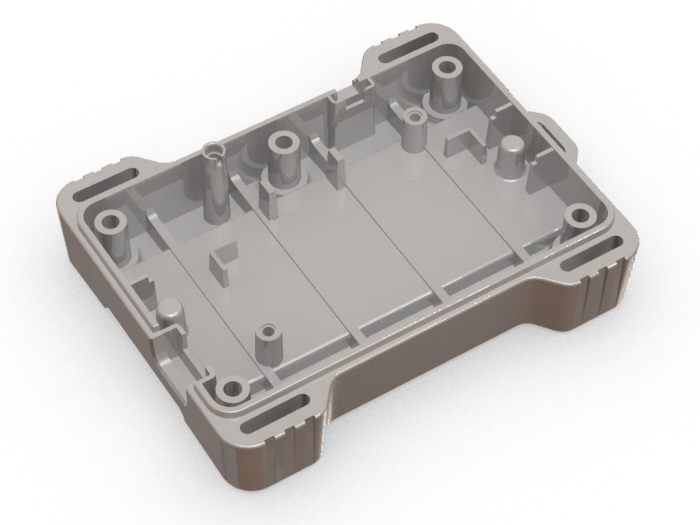

Signalman base - Worn by miners at the rock face

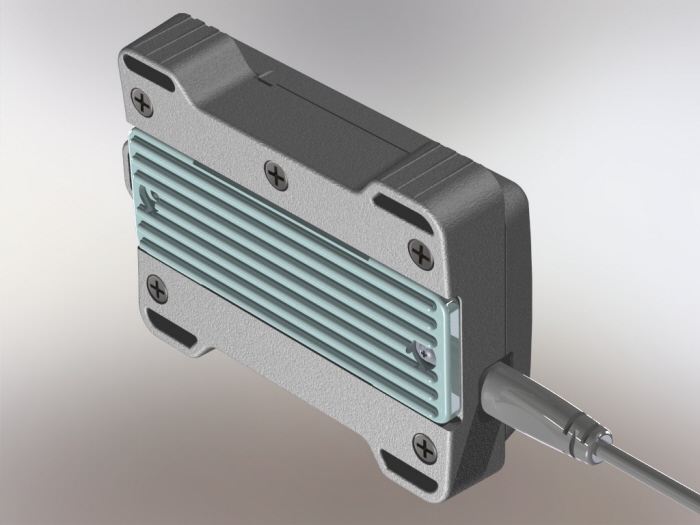

Signalman underbelly - Worn by miners at the rock face
SLA Model

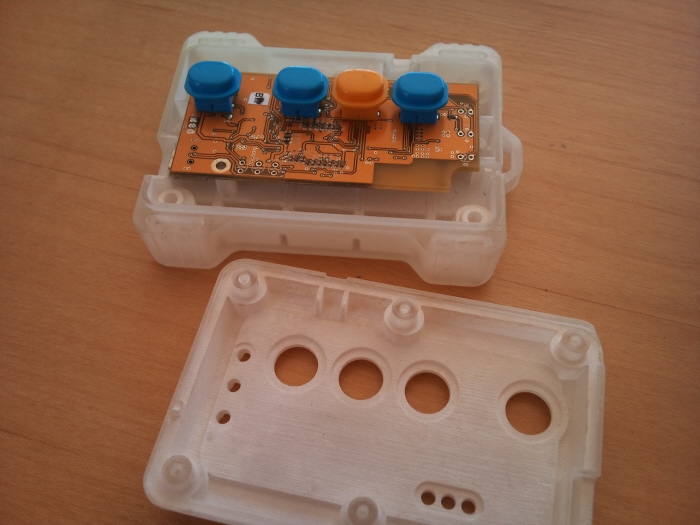

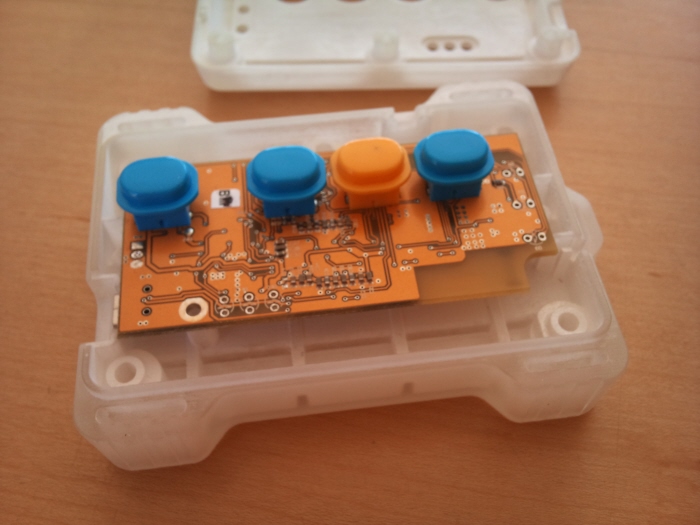

SLA Model with PCB

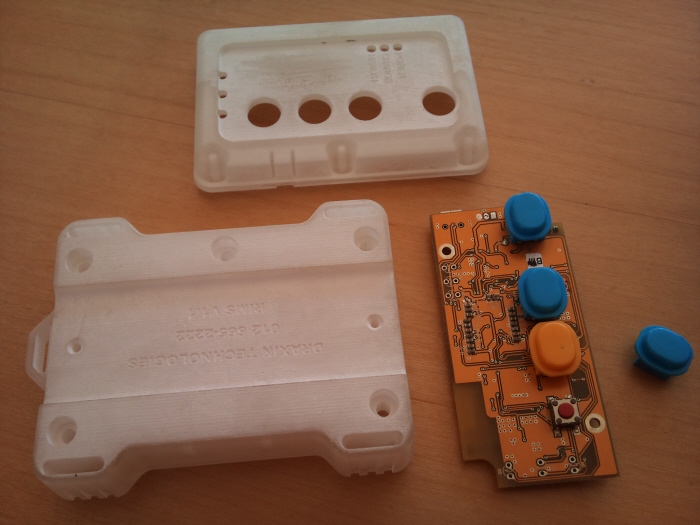

Prototype SLA
gLike
Signalman

Draxin Technologies Pty, Ltd. required the rapid design and development for a new technology developed for testing the integrity of overhead rock in mining situations.
The signalman is worn either around the miners neck on a lanyard, attached to clothing or wristband, an electronic 'ping' bounces off the rock, is then received by the signalman and inbuilt recognition software analyses the data - signalling the operator who then reacts accordingly.
