Initial concept sketching for the selected niche of low profile security cabinetry.
![](https://s3images.coroflot.com/user_files/individual_files/180142_uffov0bqa0ets0e4zgwcdpkov.jpg)

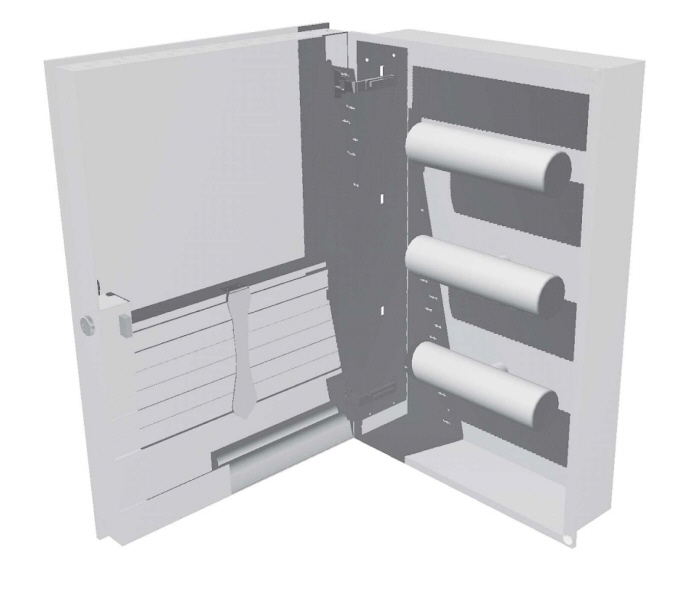

Early stages of development - CAD mockup. Completed in Solid Edge.
![](https://s3images.coroflot.com/user_files/individual_files/180142_y4mvxjdjhrvffqpnuffki9sik.jpg)

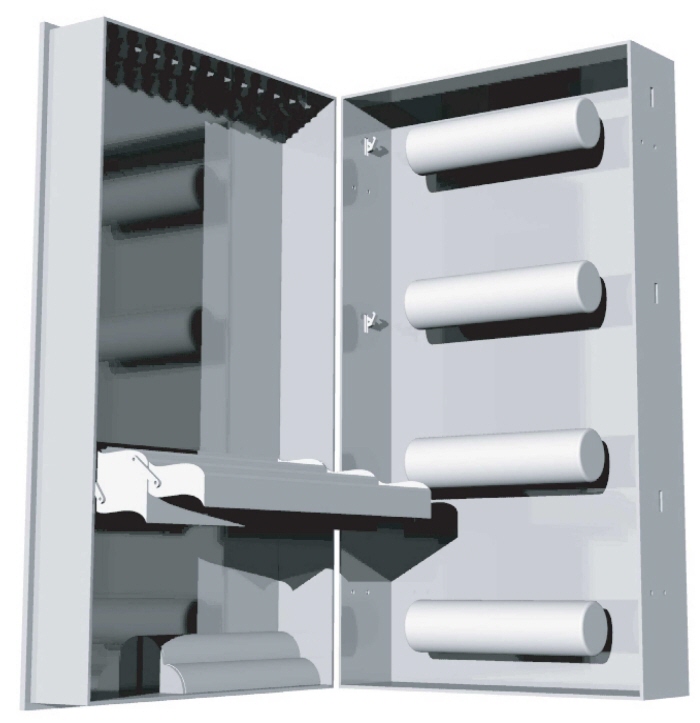

Advanced stages of development CAD detailed design and rendering to use as reference for prototyping stage. Completed in RHINO.
![](https://s3images.coroflot.com/user_files/individual_files/180142_mgsltner2uvbyph7_qkmqojz6.jpg)
Example of beveled mirror door option in-use.
![](https://s3images.coroflot.com/user_files/individual_files/180142_gbglnug2aejrq9v5n_kfezux0.jpg)
Example of decorate framed mirror door front option.
![](https://s3images.coroflot.com/user_files/individual_files/180142_seqjpzd5n6krbjvcx9mzoajoz.jpg)
Prototype with modular accessories in place. Includes jewelry arms, earring boards (specially designed for this project), and open area.
![](https://s3images.coroflot.com/user_files/individual_files/180142_9viw29bvpyt3oa6xzu9ztazji.jpg)
Developed this peg system that allows for various accessories to be attached non-permanently and easily accessible for use.
![](https://s3images.coroflot.com/user_files/individual_files/180142_avhob30g2zrd_ra5dwwkpe0qr.jpg)
Prototype in-use example
![](https://s3images.coroflot.com/user_files/individual_files/180142_bj_blctcpglhiyvgdzjq6e5al.jpg)
Prototype in presentation mounting column in Hartford, Wisconsin, at the Broan NuTone corporate headquarters.
![](https://s3images.coroflot.com/user_files/individual_files/180142_yaa6epkpj3ocpusujq2uyayih.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/180142_aeakytyyuziwodrxicldzsfhk.png)
Screen shot of Broan NuTone's website offering cabinet in full-production.
![](https://www.coroflot.com/user_files/individual_files/180142_aeakytyyuziwodrxicldzsfhk.png)
Screen shot of Broan NuTone's website offering cabinet in full-production.
![](https://s3images.coroflot.com/user_files/individual_files/180142_vefu52inkaao4chl3rtke7h8f.jpg)

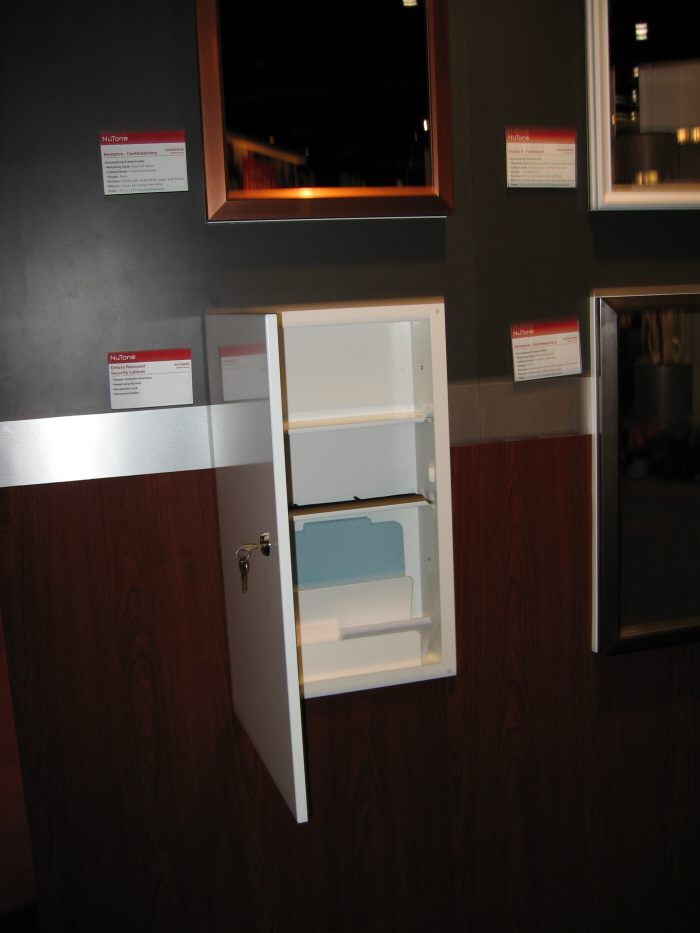

Cabinet made it's debut at the North America Home Builders "Big Show" in Florida just a few short months after my final presentation of concept.
![](https://s3images.coroflot.com/user_files/individual_files/180142_0ce2ij3lstrqsgaez7q_pisa7.jpg)

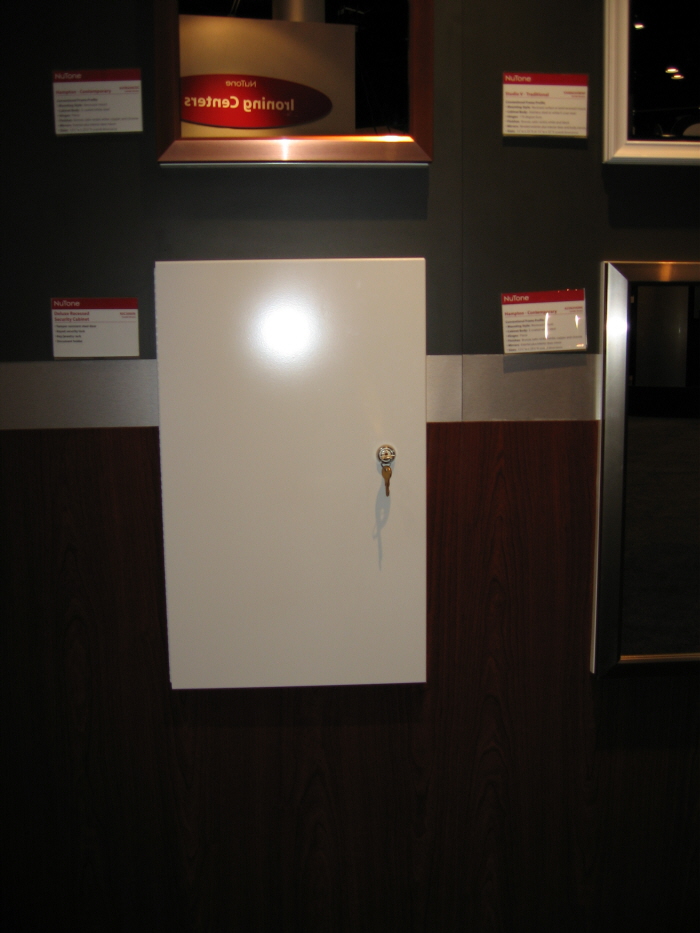

Cabinet made it's debut at the North America Home Builders "Big Show" in Florida just a few short months after my final presentation of concept.
![](https://s3images.coroflot.com/user_files/individual_files/180142_vwatmkshe63hwgijzsdekyd6t.jpg)

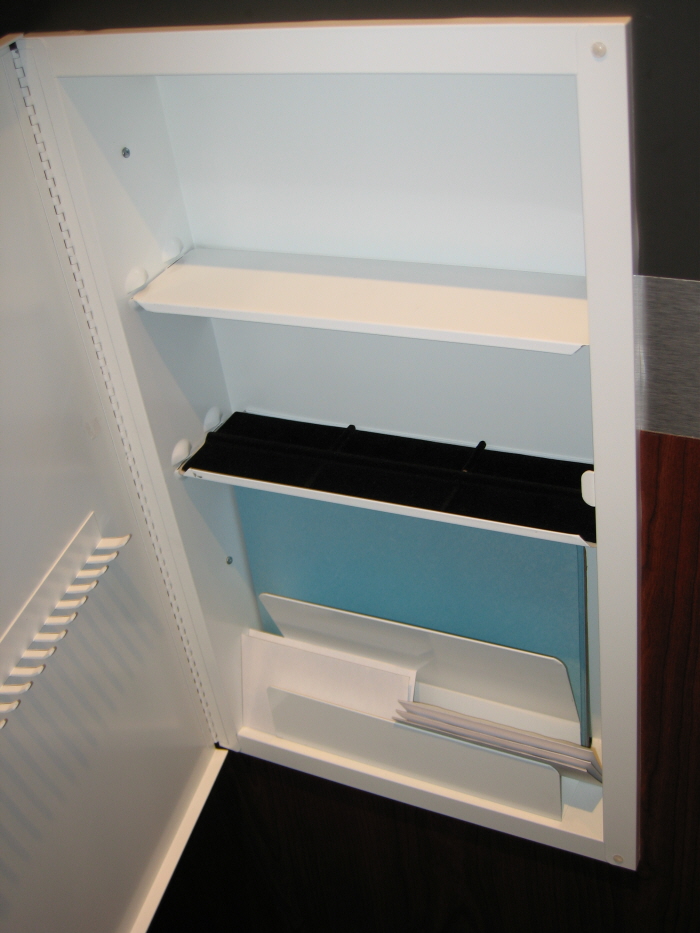

Cabinet made it's debut at the North America Home Builders "Big Show" in Florida just a few short months after my final presentation of concept.
![](https://s3images.coroflot.com/user_files/individual_files/180142_kdswyj_9gycrzgs53eqefxt_3.jpg)

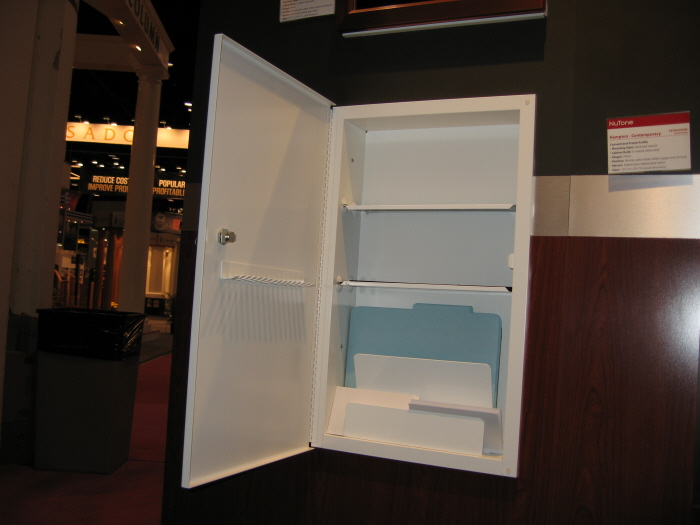

Cabinet made it's debut at the North America Home Builders "Big Show" in Florida just a few short months after my final presentation of concept.
![](https://s3images.coroflot.com/user_files/individual_files/180142_a_yo4tlrgbluaywpp0dwfsnuz.jpg)

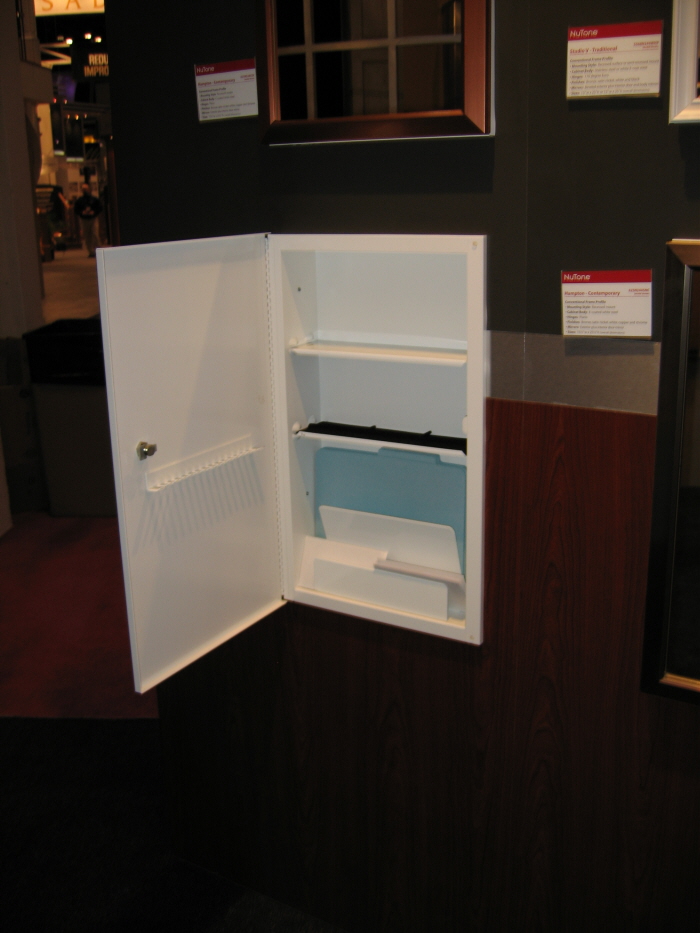

Cabinet made it's debut at the North America Home Builders "Big Show" in Florida just a few short months after my final presentation of concept.
![](https://s3images.coroflot.com/user_files/individual_files/180142_tvpd88cgxrg_fcpumtmnouprx.jpg)

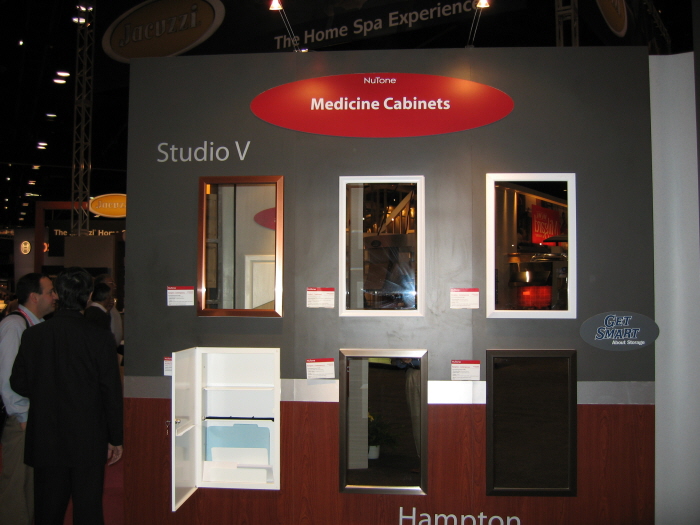

Cabinet made it's debut at the North America Home Builders "Big Show" in Florida just a few short months after my final presentation of concept.
