Jacob's Ladder Top Level Model

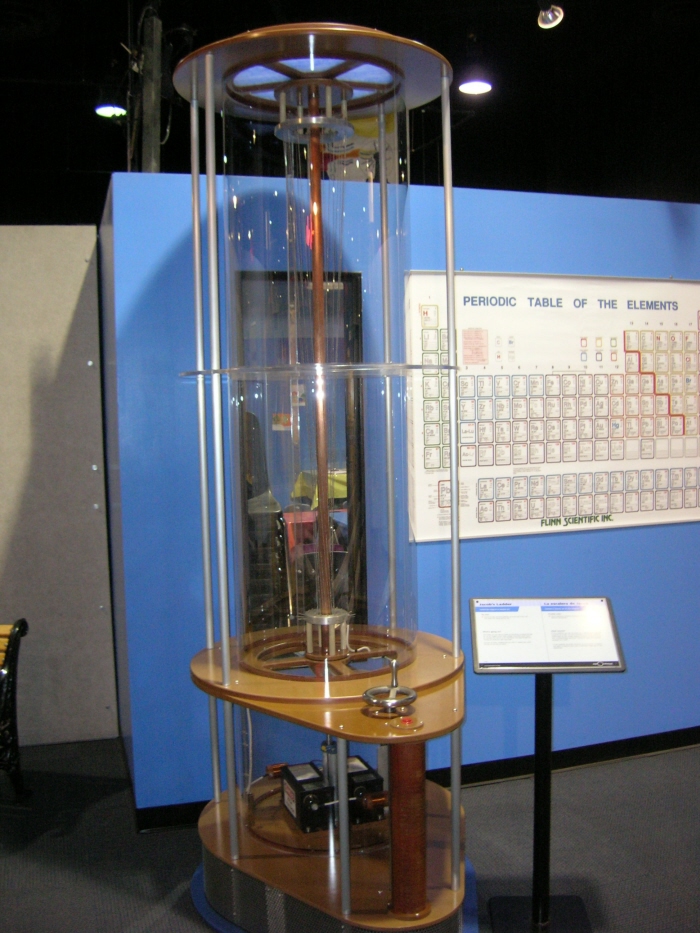

Jacobs Ladder - The Jacob's Ladder is a classic high voltage demonstration. This version incorporates a user operated fan and an electrode array of stainless steel cables surrounding a central copper electrode.

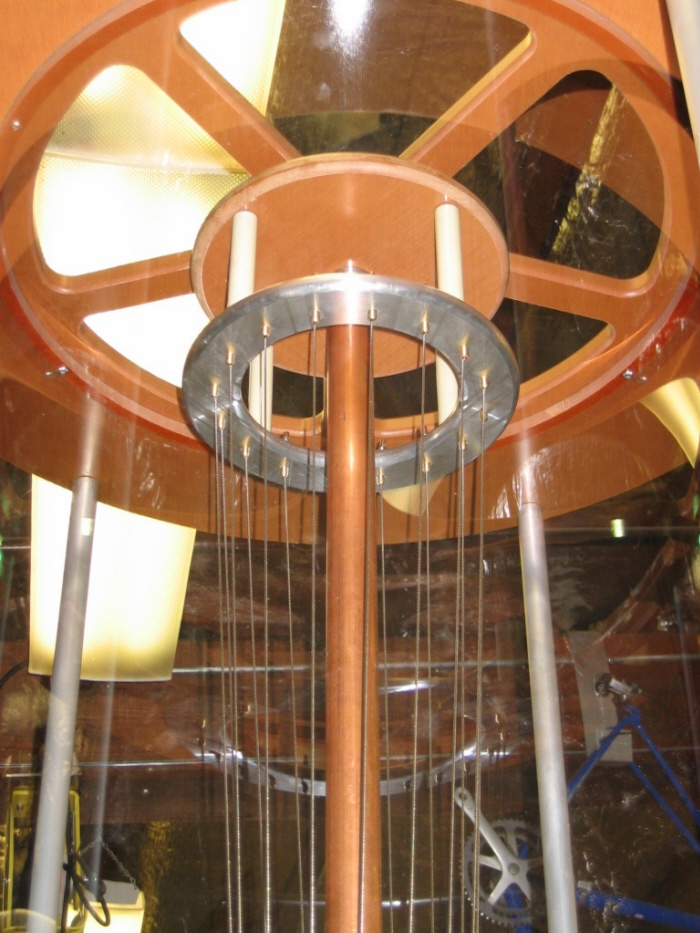

Upper Cable Hardware - A view of the cable attachment at the top and the central electrode

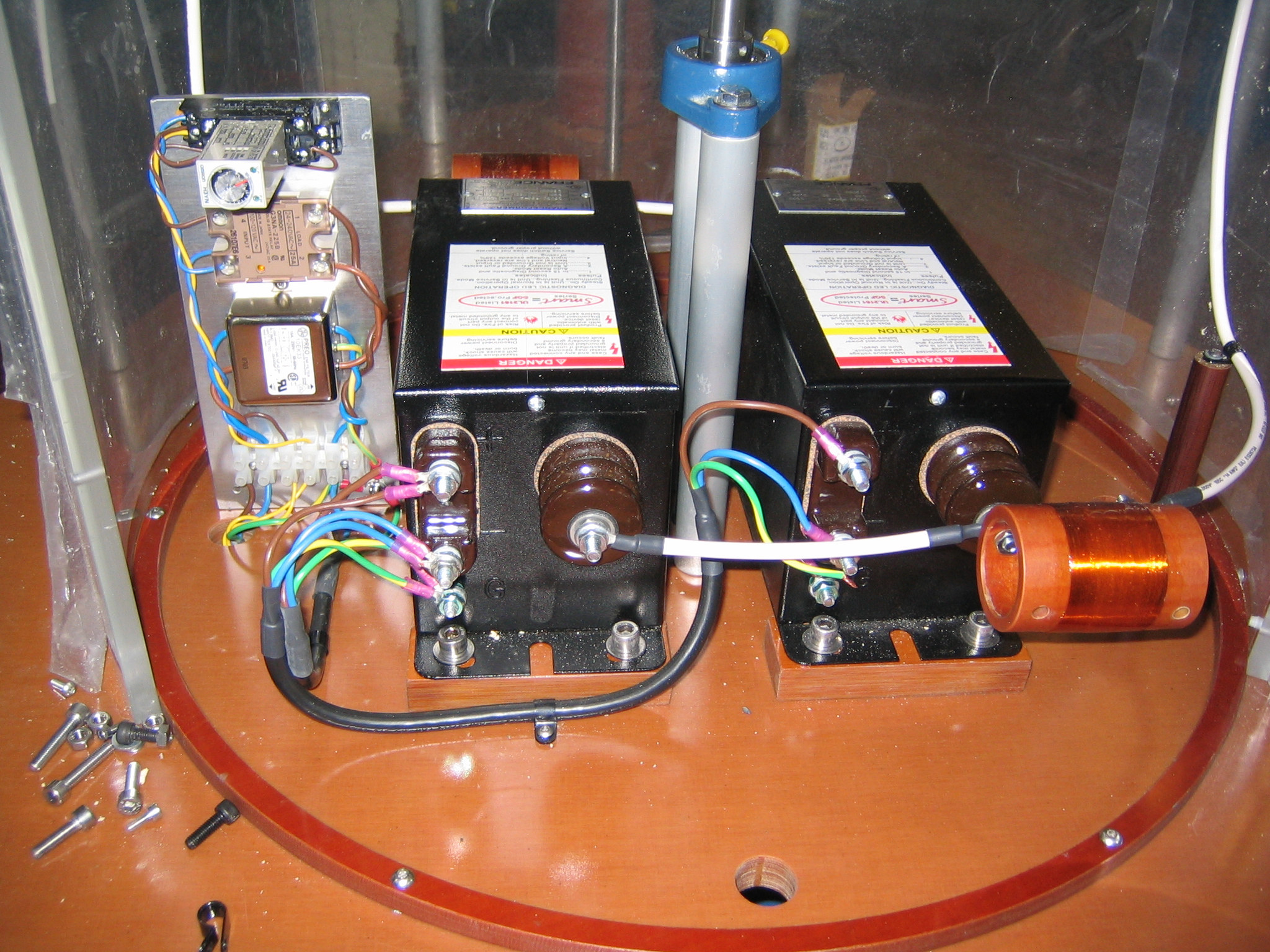

Jacobs Ladder Electronics - Two 15Kv neon sign transformers, line filter and user controlled time delay relay.
