The Final Concept with Show rail riser, Shower Head and Shower Hose fixed to the wall and Shower unit concept.
![](https://s3images.coroflot.com/user_files/individual_files/original_480389_5jxqbanSk_b6YLCdaTQrEIZ95.jpg)
Enter Concept development of CAD and Sketchbook (Designer) Ideas resulting in a final concept.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_480389_AZMDy6AURbEE0EPwffVJNXsPS.jpg)

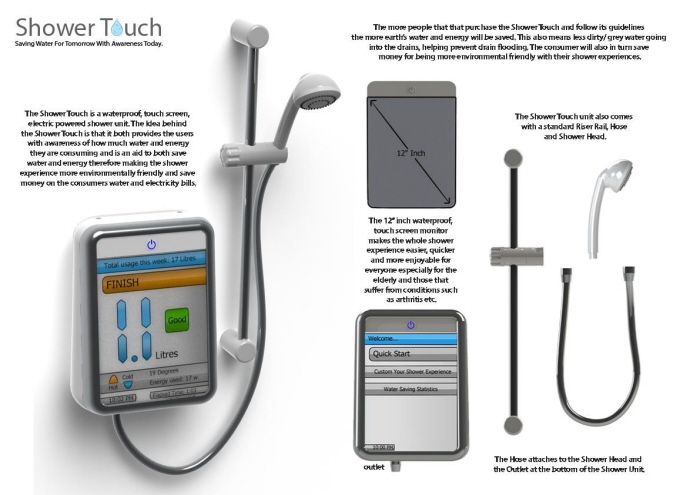

Display Board discussing the idea behind the product, what it aims to achieve with the effect it will have on the environment and the Products scale-ability.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_480389_BYVx_kag4LVjRUtMsipQOXcm7.jpg)
Developing the Concept idea.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_480389_ZWZ9mtMaogzuNbKY7DCOSkyjk.jpg)

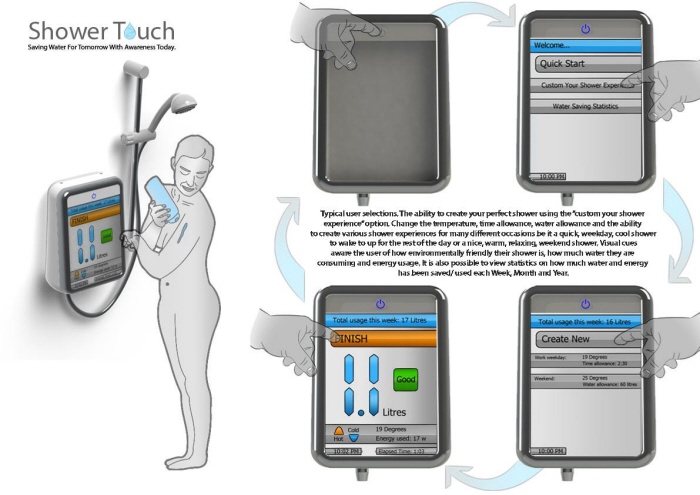

Development of the on screen selections and options available to the user.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/480389_xheuy_yemlyjnjjgtucglyc4x.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/original_480389_TksEkNvkhZ5WisM5wNY68d34q.jpg)
Display Board Showing the interface selections, ergonomics and scale of the Product.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/480389_nb33y20i_7iofnrozffy3dcaw.jpg)

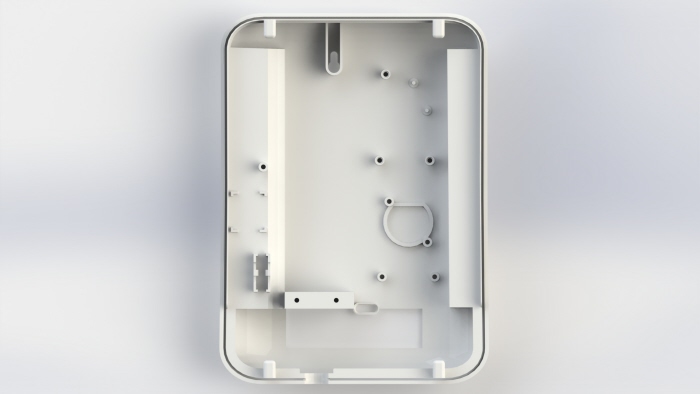

Render produced to show the fixings within the back of the product allowing the components to be located and fixed in place.
![](https://s3images.coroflot.com/user_files/individual_files/480389_7lf9zvjfh_yppbxgvlihok6r2.jpg)

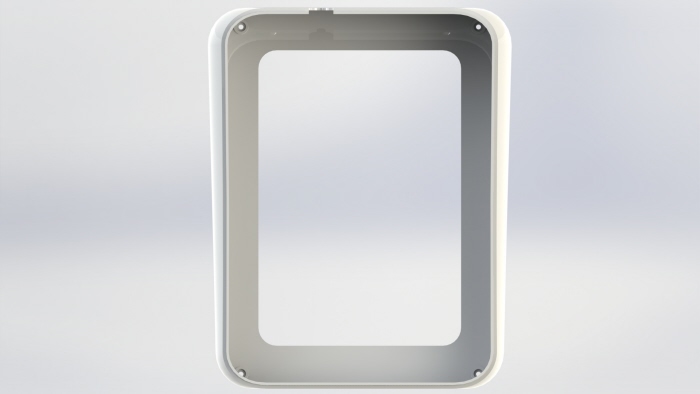

Middle section of the casing which is attached to the back and front sections. The Monitor rests on the top of this section.
![](https://s3images.coroflot.com/user_files/individual_files/480389_s780rq6dwilkcfsrdimbmftdc.jpg)

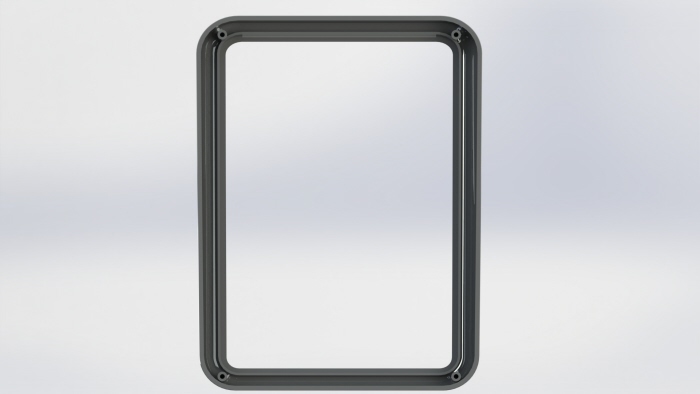

Front section of the casing which is screwed to the middle sections allowing the monitor to be fastened in place.
![](https://s3images.coroflot.com/user_files/individual_files/original_480389_mrZO3sMl_0cY8Nf3qemntw7Jo.jpg)
An Insight into how the product would function with the internal components, Split-line placement and research into manufacture of the concepts.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/480389_smrmqujvz57is2cibyuzve9mx.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/480389_bu86lka09zrjdfkijlbtzunvr.jpg)
Shower Internals. All components Modeled by myself.
![](https://s3images.coroflot.com/user_files/individual_files/original_480389_jaSekFiK8dqico_XxyqgnJnr_.jpg)

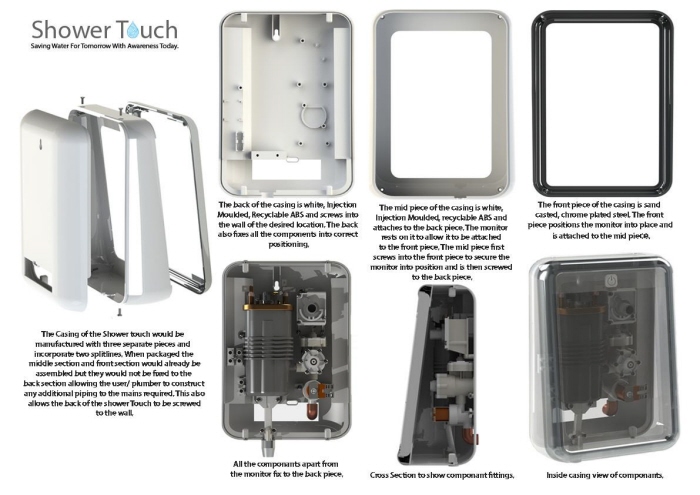

Display Board created using Photoshop discussing the manufacturing side of the Product.
