Josiah Ford

> Second university project of third year

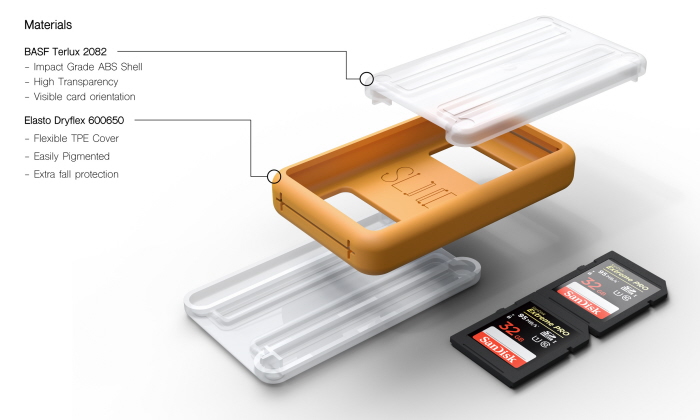

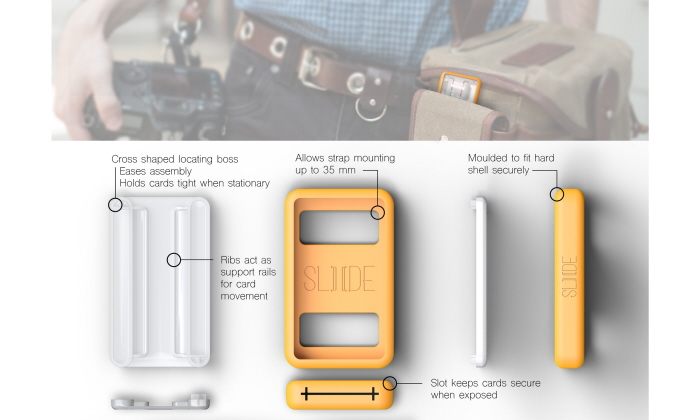

> Brief to design a carrying case for multiple SD cards, utilising no more than 3 components all produced through injection moulding process

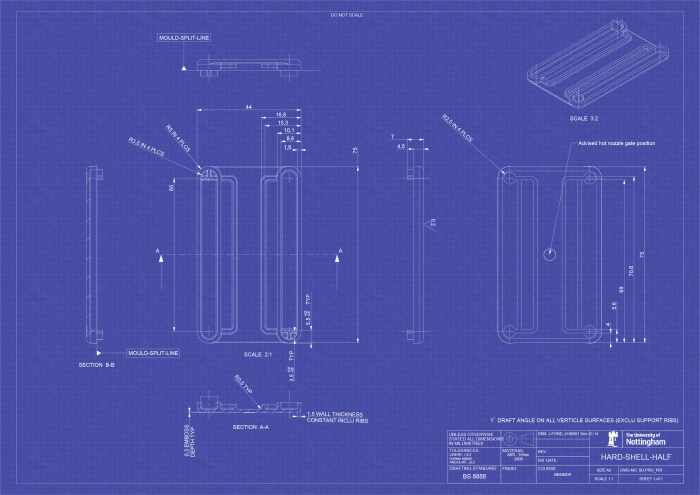

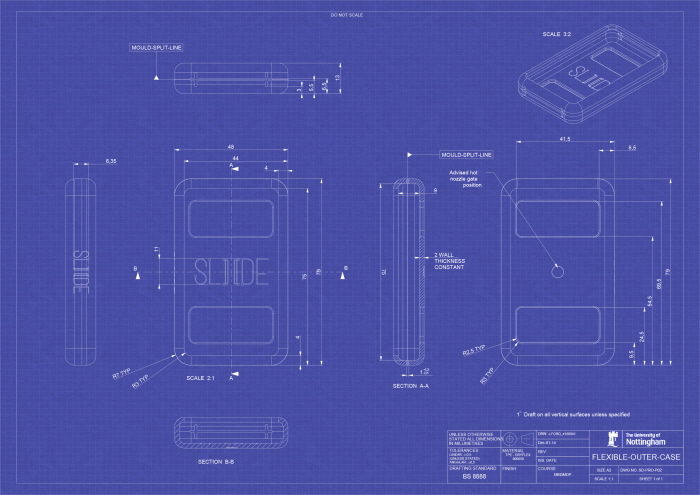

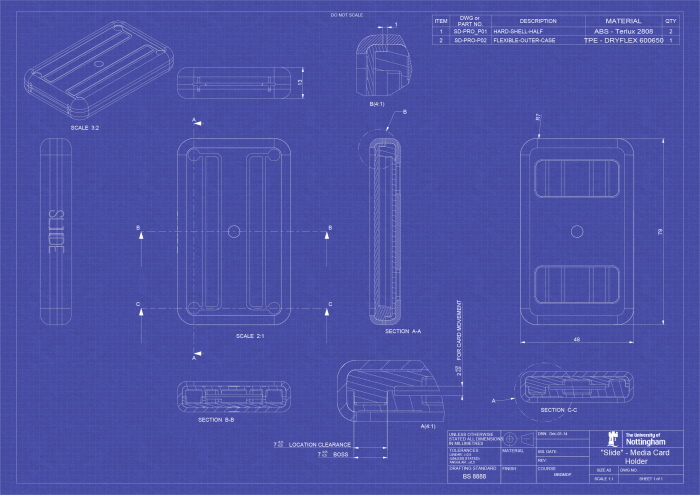

> The components were designed to cost and for the specific capabilities of a given machine

> Components were also analysed through MoldFlow to refine them for the specific machine parameters

> MoldFlow was also used to calculate shot weights, cycle times and cooling issues to be designed out

See link for larger images...
