Floor Plan of the church at 1:50 scale.
Hatched areas show stone massing.

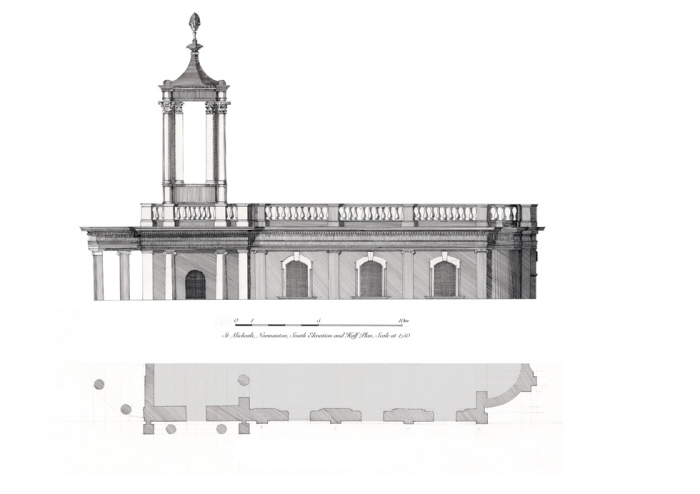

South Elevation with half plan. The elevation's shading demonstrates flat light.

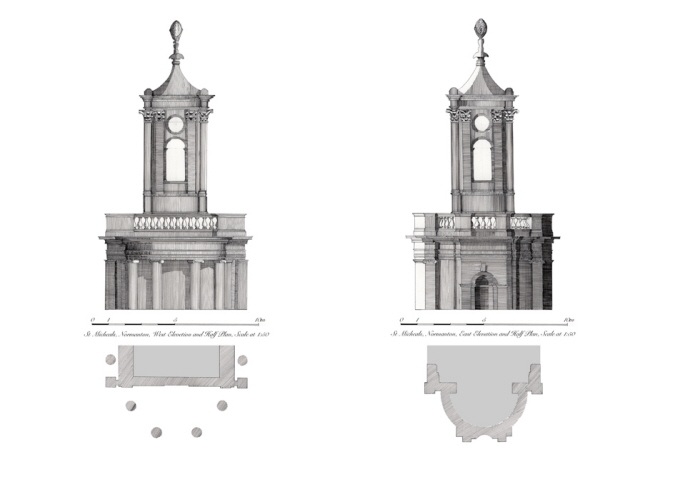

West and East Elevation with there respective half plans. demonstrating directional shading showing light from the south.

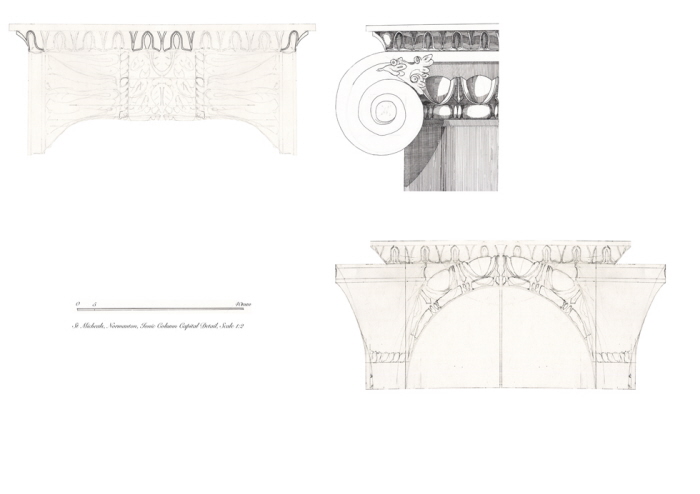

Details of the Ionic Column on the rotunda at the North Elevation.
gLike
St Matthew's Church, Normanton, Rutland
St Matthew's Church, Normanton, Rutland.
The church was built in in the 1820's. The tower and the western portico were built by Thomas Cundy Jr.
These are the only known measured drawings of the church. Rendered in Pen and Ink.
