After all necessary measurements are acquired, a model is developed in Inventor.
![](https://s3images.coroflot.com/user_files/individual_files/676529_mnzndkomftvdxwmjypplfw309.png)

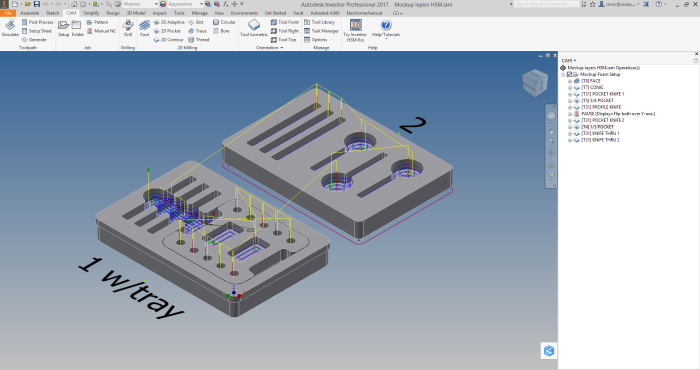

Toolpaths for CNC table are created and the .cnc file is posted to the specific custom foam folder.
![](https://s3images.coroflot.com/user_files/individual_files/original_676529_ugucHy6Mf_QPvNooWy2TzUIla.jpg)

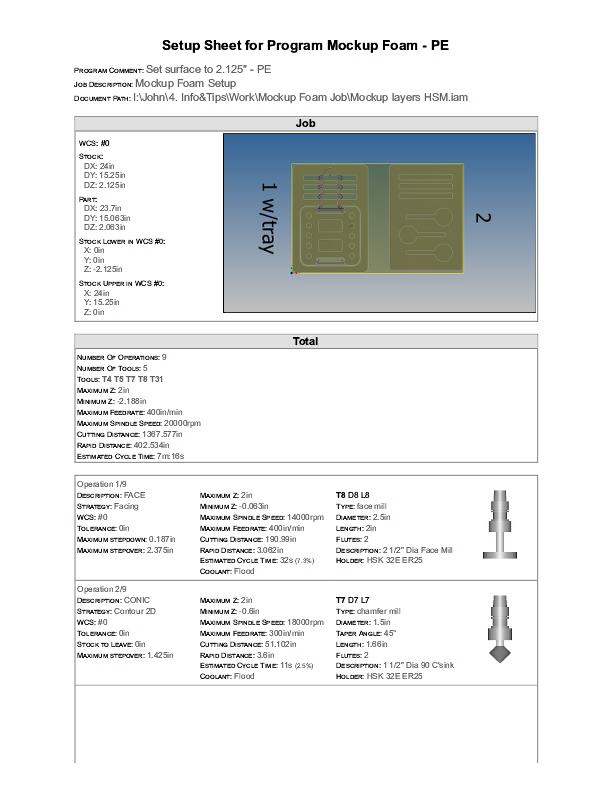

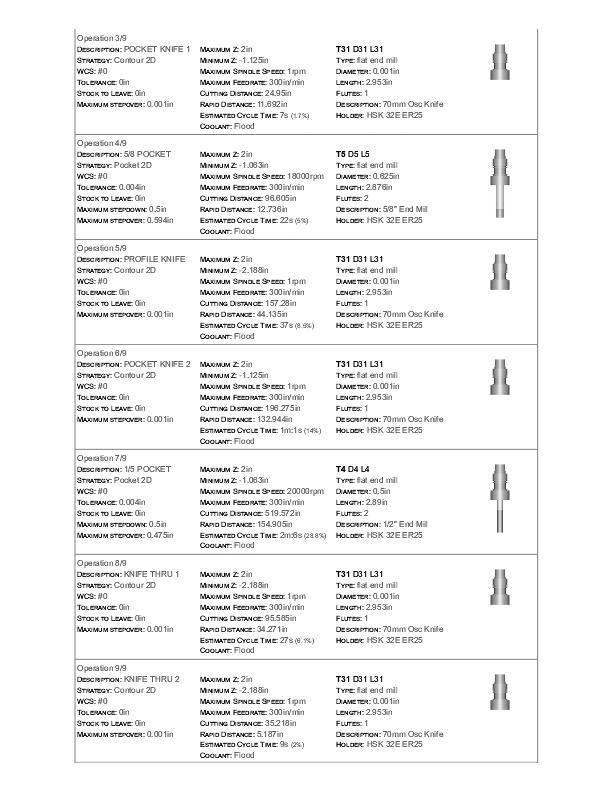

This is the first of two pages of the setup sheet given to the CNC table operator.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_676529_gfwb7GqO3zPwEj8V4UTkDDFLh.jpg)
This is the second of two pages for the CNC table.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/676529_xxdburwrvhnwefuu9ppqhkdrc.png)

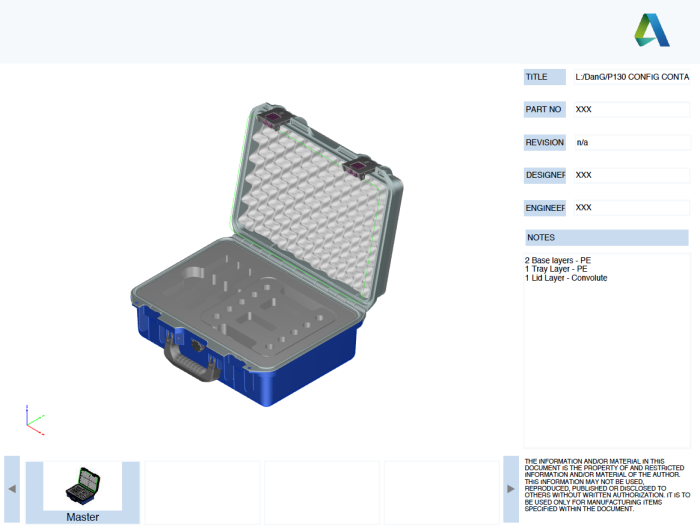

Here is a screenshot of an Inventor 3D PDF.

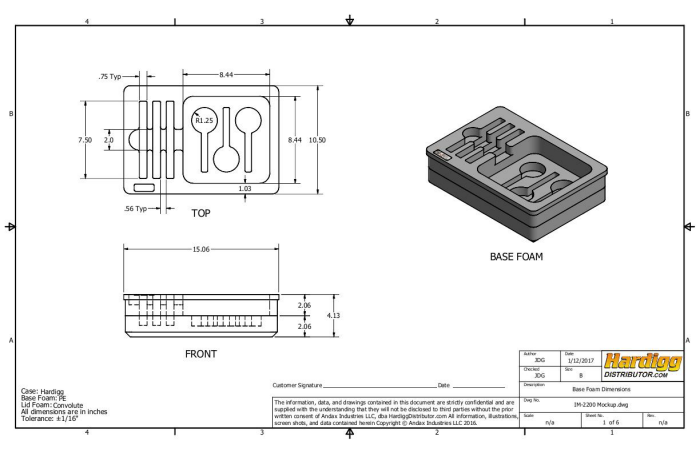

![](https://s3images.coroflot.com/user_files/individual_files/original_676529_z8i2M066tkyL8RdmJVtmLr9fB.jpg)
Enter Your Description Here
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_676529_6Brh0eOAW2d47yNOmbuyksc_w.jpg)

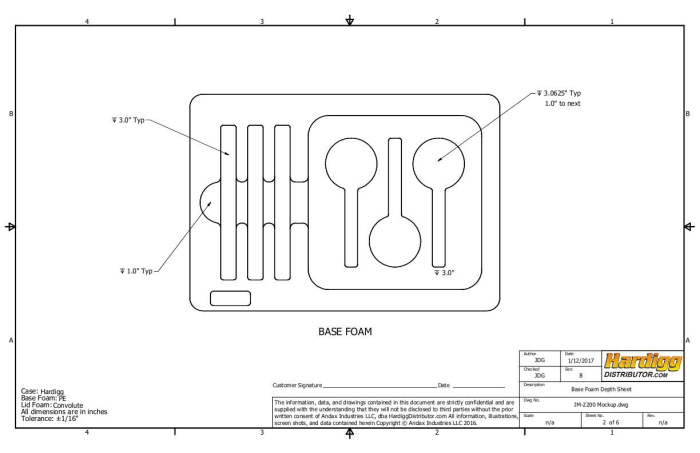

This Inventor drawing specifies the depth dimensions for the main body of foam; this will be used once the foam is cut to ensure the merchandise will fit correctly.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_676529_2yqsNYoNw3YmV_4Bm9Nc3qs7C.jpg)

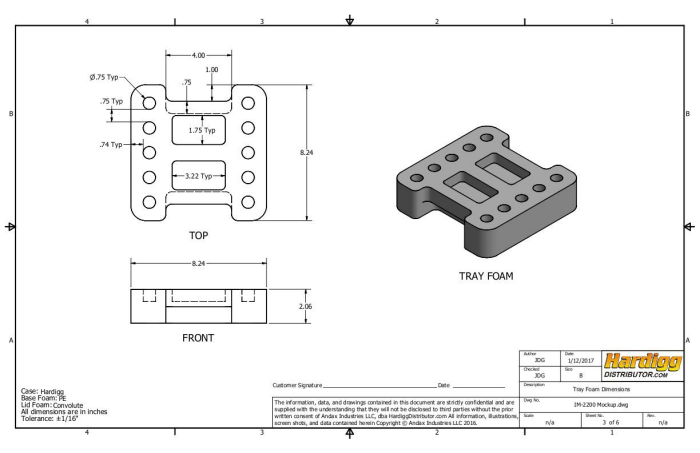

This Inventor drawing specifies the dimensions for the foam tray, which will not be glued and can later be removed by the customer.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_676529_BPNYk709hKkqxEhTISFoI7thd.jpg)

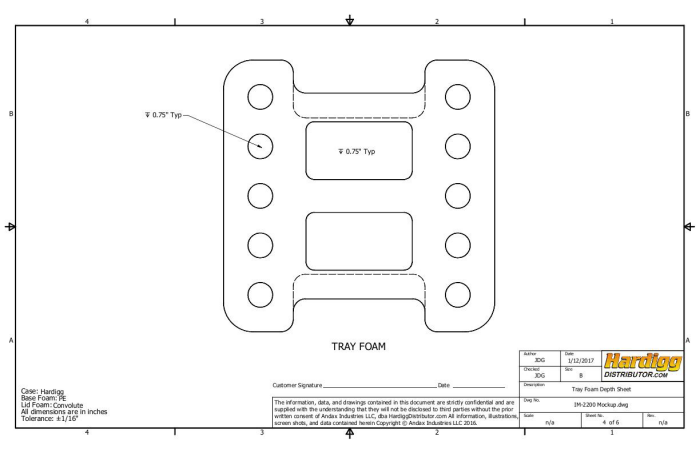

This Inventor drawing specifies the depth dimensions for the foam tray.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_676529_pPcUx3XBVfaeMF4Dq9VF0EG4K.jpg)

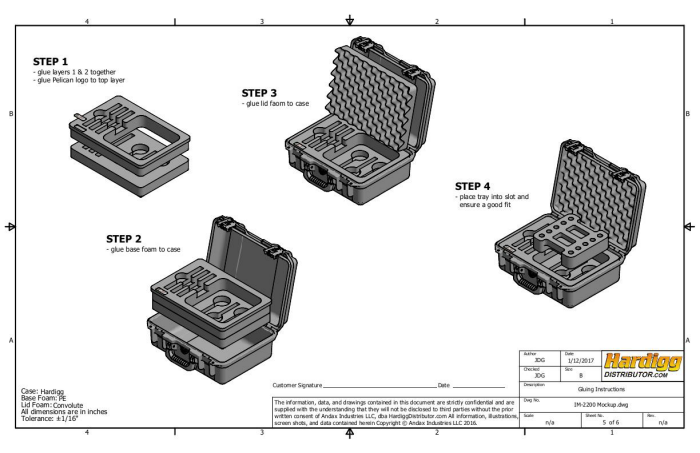

This Inventor drawing defines the proper order for gluing the foam to the ordered case. These instructions can become quite complex with much larger orders.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/original_676529_ugaK359CvLXL7n_sCznraOonI.jpg)

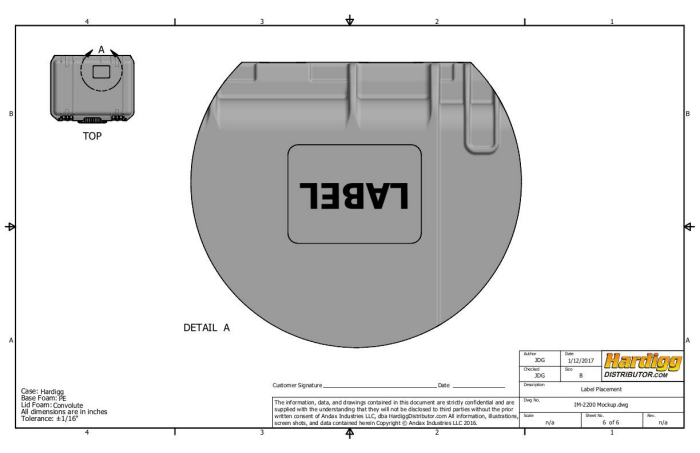

This Inventor drawing specifies the orientation of labels, if necessary.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/676529_uwhqxunup60nnaexzcsjdrjiw.jpg)

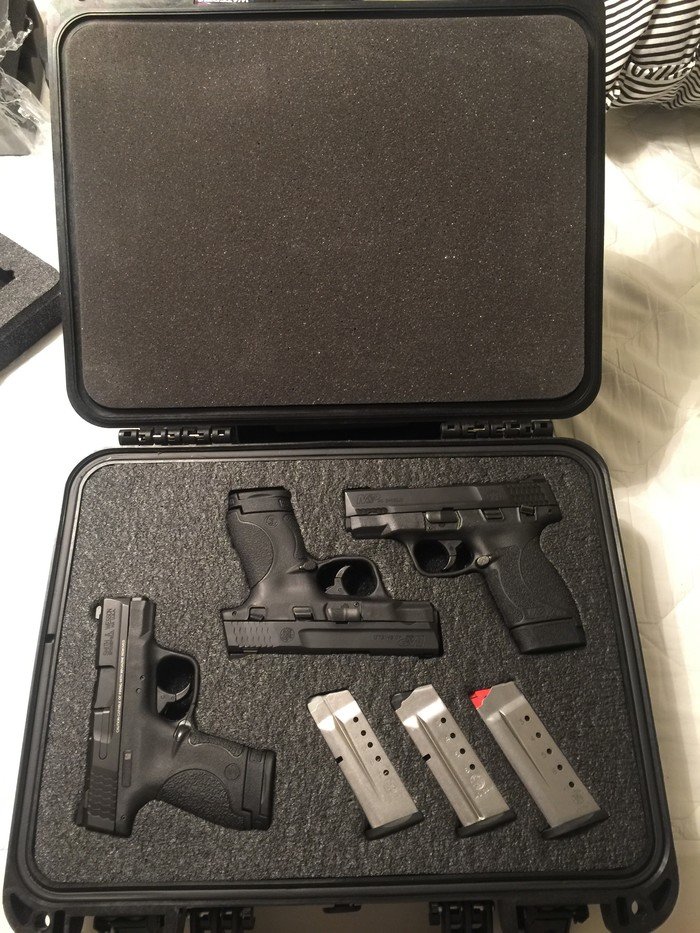

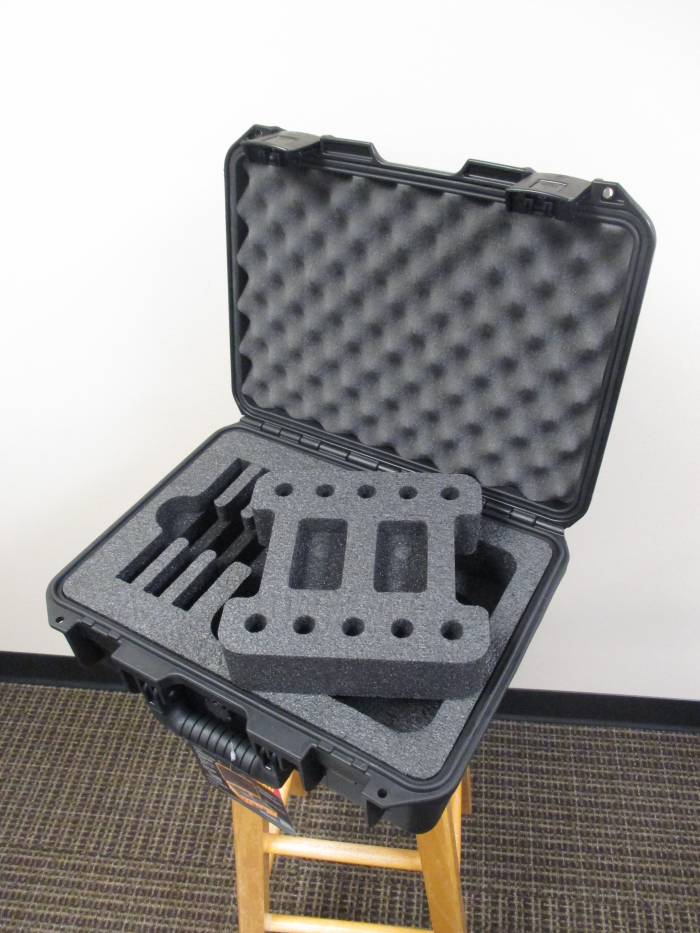

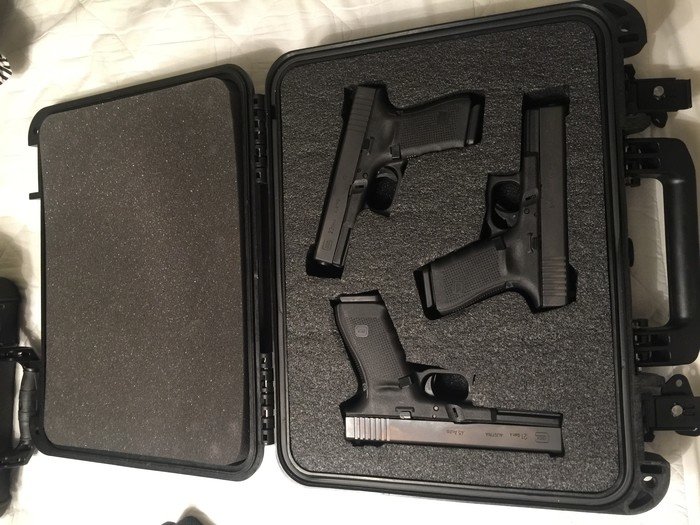

Here is the final product.

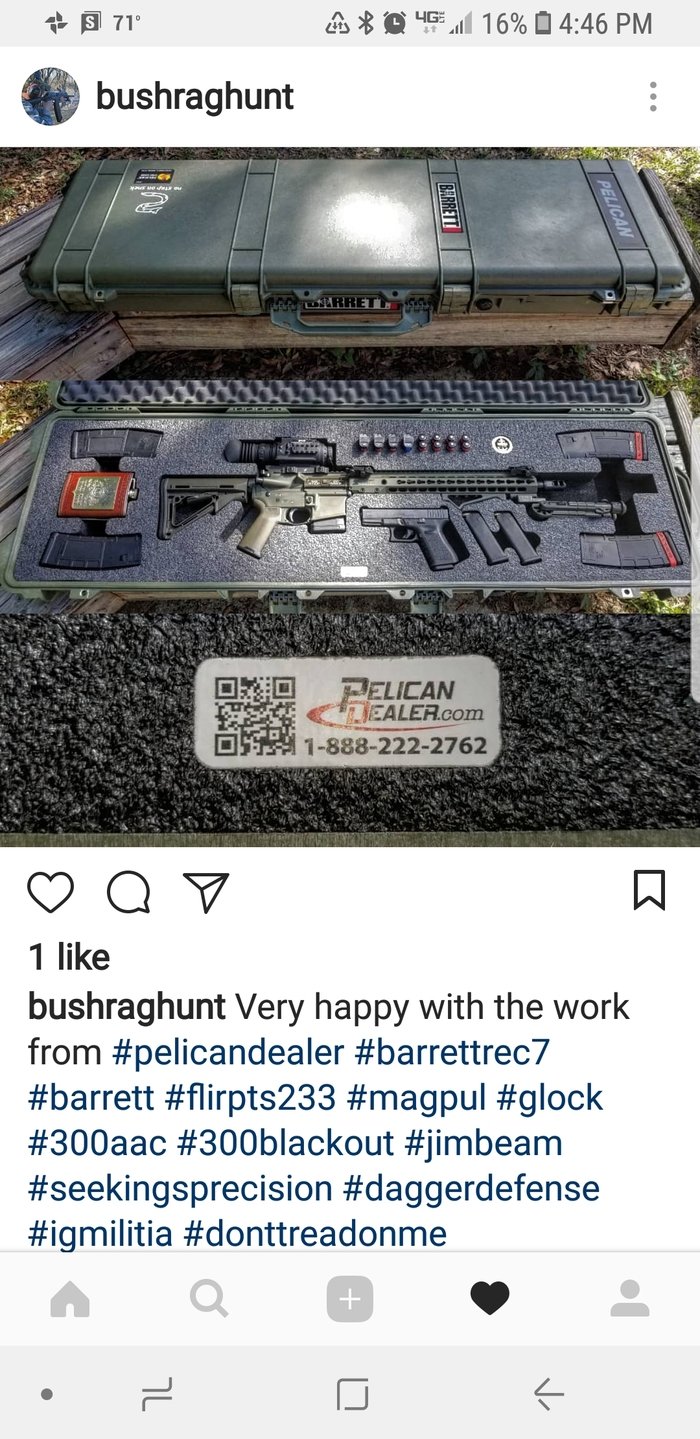

![](https://s3images.coroflot.com/user_files/individual_files/676529_arpuewytdxf0dhxgybmnz4h3o.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/676529_kndzlnnqgnwdzm00wra7p8_oc.jpg)

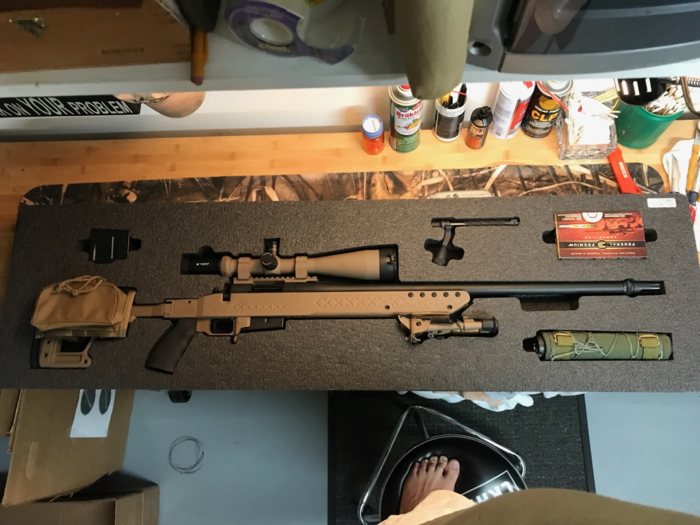

![](https://s3images.coroflot.com/user_files/individual_files/676529_lt9bnxly_lxcvjsjh4flqkgoj.png)
![](https://s3images.coroflot.com/user_files/individual_files/676529_dirqoehxg0qetuwbm87oyj0gi.jpg)

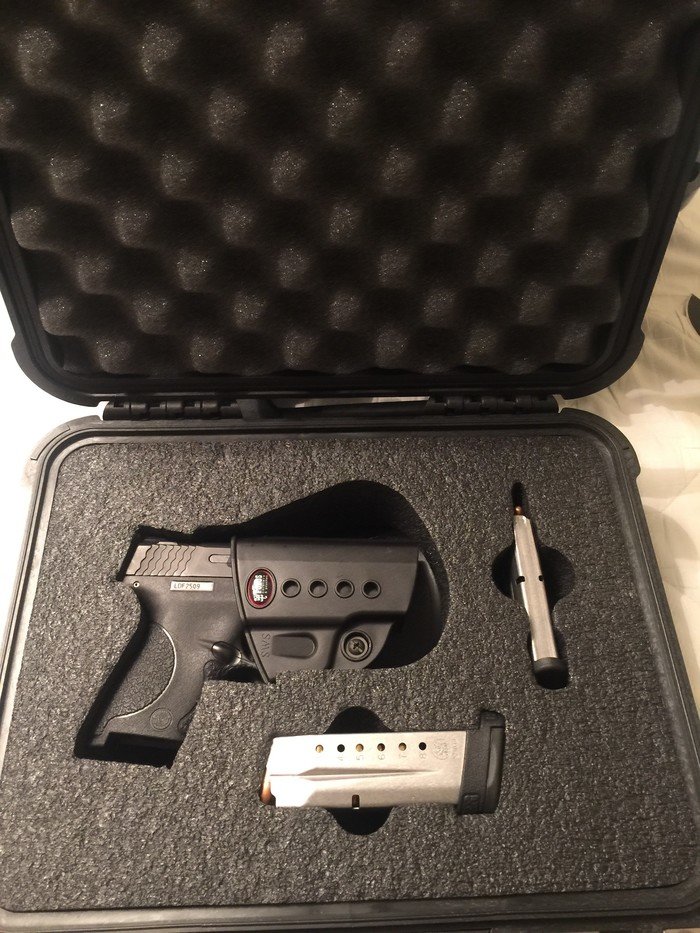

![](https://s3images.coroflot.com/user_files/individual_files/676529_mynjaivpe2xlxmcmyi4d6nnlq.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/676529_wuz4a85nrt8h9bwsutj0ri_uo.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/676529_uv3emjnjxkbpz_230yq82ixp9.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/676529_5aaugrvugdhgzzztfn4zobjzu.jpg)

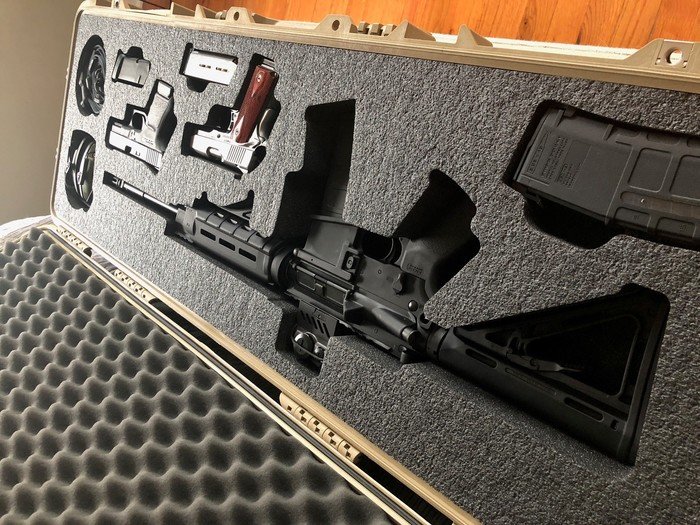

![](https://s3images.coroflot.com/user_files/individual_files/676529_b3ga4e4fftwwkf_zl2hvrdkap.jpg)
Thank you, Coroflot, for redoing your page and making my pictures upside down.
