Here are some examples of containers that I designed and engineered for concepts within the Food and beverage categories.

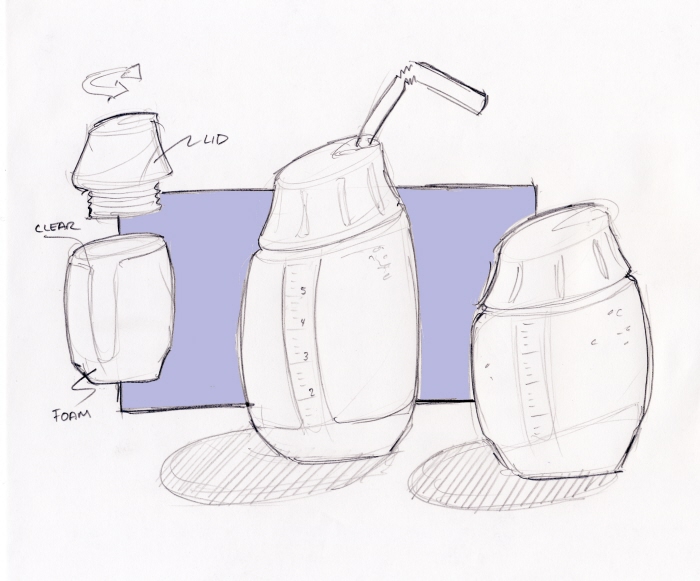

Kids Liquid Container - These are a few quick sketches of a kids beverage conatiner. It has a foam outer shell with a clear window on the side to show level of fluid in the cup.
Kids Cups - Modeled in NX and Rendered in Hypershot
Tubs - Sketches of Concepts
NX Model Storage - This is a screen shot of the model in NX. They are fully paremetric models with user expresions which allow the user to modify the tubs to adjust to the correct volume
Storage Containers - Built in NX and rendered in Hypershot Color Lid Study
Modeled in NX Rendered in Hypershot
Combo Tray - Storage for your drink and Lunch. Small ice pack sits in under hinge to keep beverage and food cool. Modeled in NX and rendered in Hypershot
Lunch 2 Go
Four compartments with removable hinge lids allows for easy cleaning and keeping food fresh. Center section allows for soup/beverage or ice to keep items cool.
Lunch 2 Go
Four compartments with removable hinge lids allows for easy cleaning and keeping food fresh. Center section allows for soup/beverage or ice to keep items cool.
Lunch 2 Go
Four compartments with removable hinge lids allows for easy cleaning and keeping food fresh. Center section allows for soup/beverage or ice to keep items cool.
Electric Knife - Powerful motor
Stainless steel blades
One-touch pressure-activated on/off trigger
Ergonomically designed handle

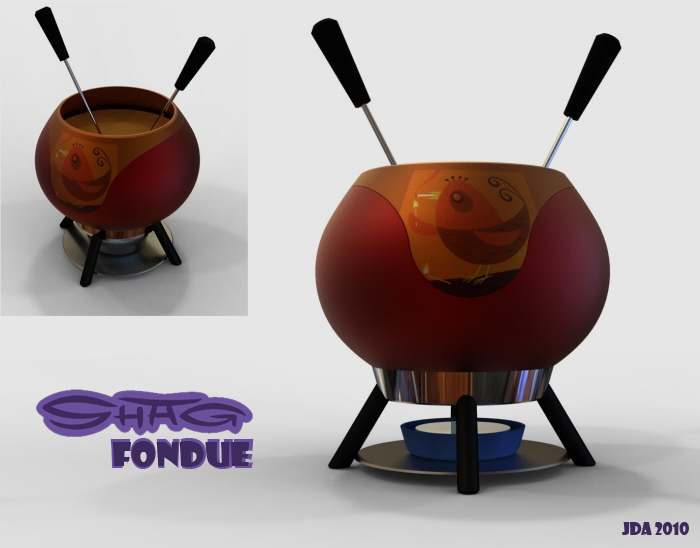

Shag Fondue Set Birdie - Modeled in NX and rendered in Hypershot. This is a Fondue set with the bowl in a metal finish. The base holds a sterno can for easy use.
Tea Infuser Concept
Shag Fondue Pices - Modeled in NX and rendered in Hypershot. This is a Fondue set with the bowl in a metal finish. The base holds a sterno can for easy use.
Towel Dispenser Option B - This is a motorized towel dispenser that sprays anti bacteria lotion to the towel. This would be used in commercial kitchens. This design was inspired by 1930's retro radio's. The dark finish gives it a high quality look. This is a 3D model created in Unigraphics and rendered in 3D StudioMax
Towel Dispenser Option A - A modern design with color breaks which allows for color choices. This design has a larger window viewing area to allow for checking the life of the roll inside the housing.
Towel Dispenser Option C - This design is the next generation of design A. The design is modern with the viewing window above rather then in-front. The (blue) area is a door that opens for easy replacement of the paper towels.
