Airbox Cover Inserts - One (1) common forging, machined as various shown.
Cam Cover Inserts - One (1) common forging, machined as various shown.
Clutch Covers - One (1) common forging, machined as various shown.
Rear Cowl - Cowl is RIM molded part, with formed metal components as in mold inserts.
Exploded View, Rear Cowl - Cowl is RIM molded part, with formed metal components as in mold inserts.
Dual Seat - Dual Seat, Indian Roadmaster model. Thermoformed base, leather cover, various metal bracketry.
Solo Seat - Solo Seat, Indian Classic, Darkhorse, Bomber, and Vintage models. Thermoformed base, leather cover, multiple colors and configurations, various metal bracketry.

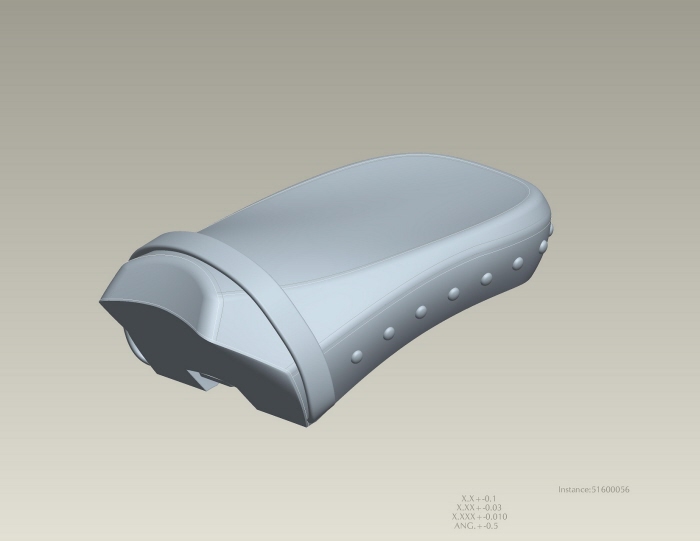

Passenger Pillion - Passenger Pillion, for use with Indian Motorcycle products utilizing solo seats. Thermoformed base, leather cover, various metal bracketry.
Quick Detach Backrest Kit - Backrest Kit including, backrest pad, backrest support, compression springs, with stamped and logo'd pad bracket.
Quick Detach Solo Rack - Over the Fender - Steel tublar construction, utilizes quick detach system.
Mini Fairing Assembly - Fairing is RIM molded part, with machined metal components as in mold inserts.

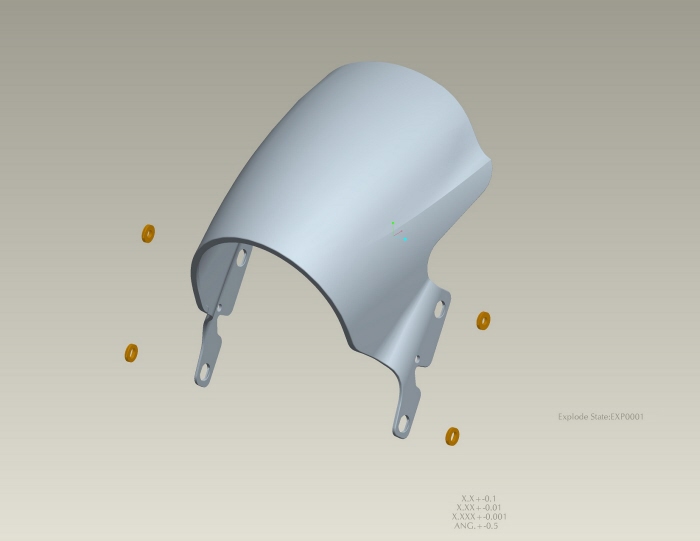

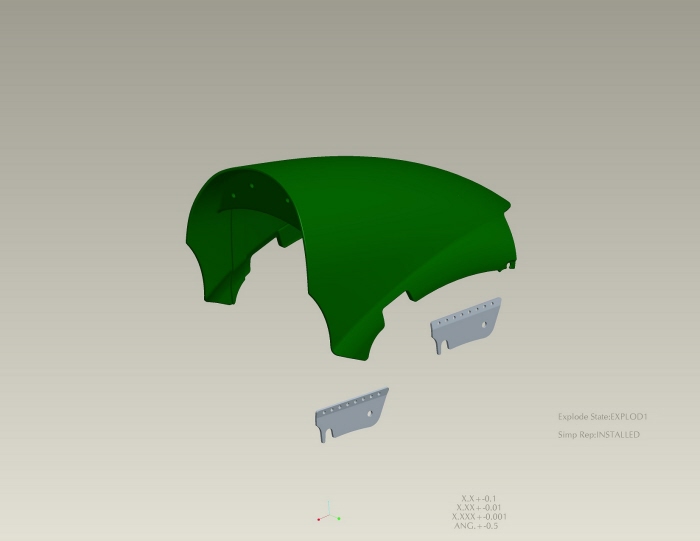

Mini Fairing Exploded View - Fairing is RIM molded part, with machined metal components as in mold inserts.

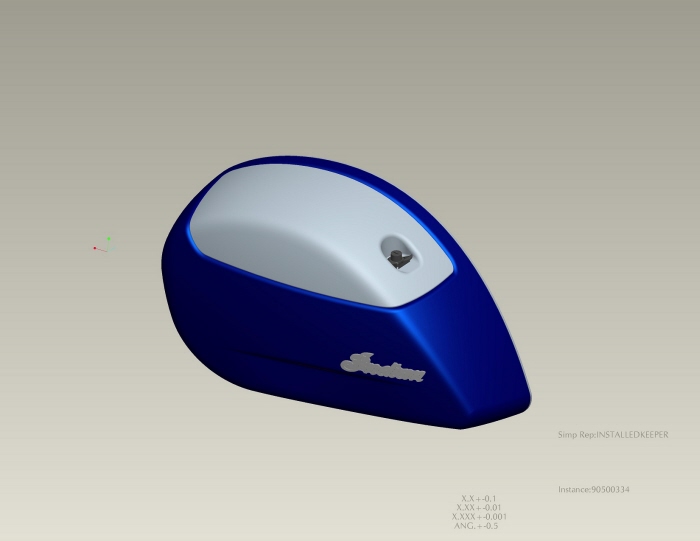

LeftSide Hardbag - Initially handlaid fiberglass construction, moving to RTM molded component.

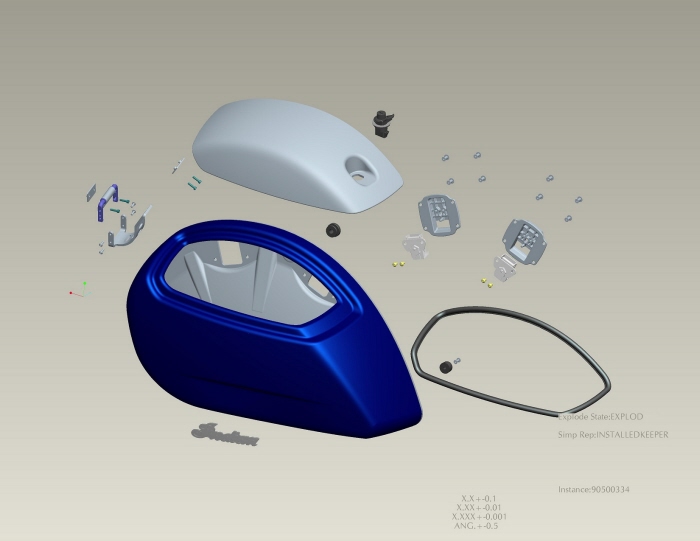

Leftside Hardbag Exploded View - Showing various components of hardbag exploded, cast hanger brackets, formed hinge bracket, rotary latches, seal, lockset, and Indian Logo.
Hardbag Leftside Box Exploded View - Showing box front/back split construction.

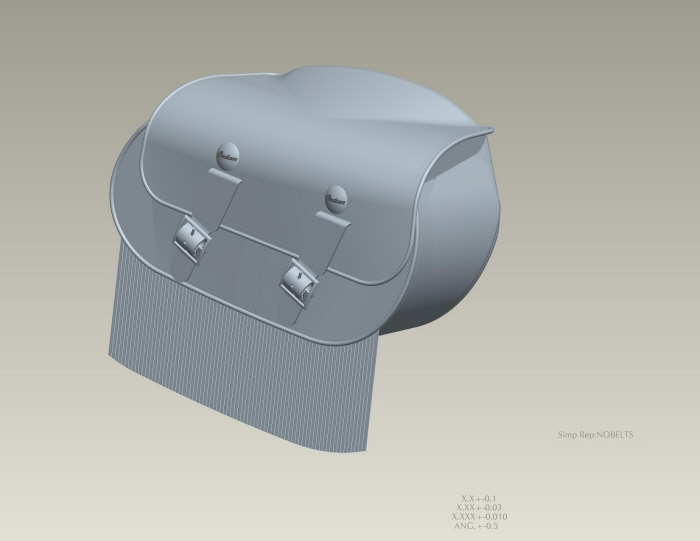

Roadmaster Rightside Soft Saddlebag - Leather construction, thermoformed sub structure.

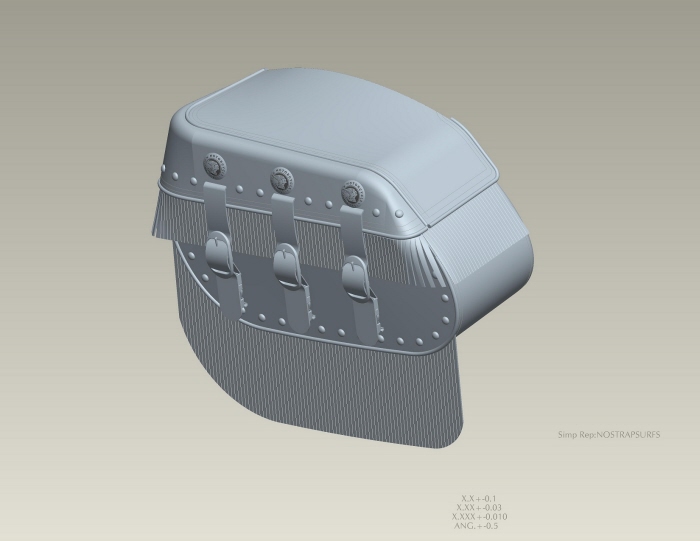

Vintage Leftside Soft Saddlebag - Leather construction, thermoformed sub structure.

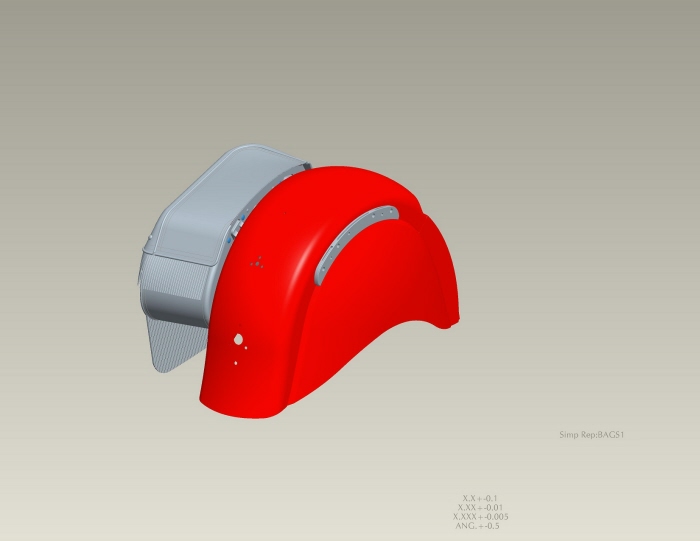

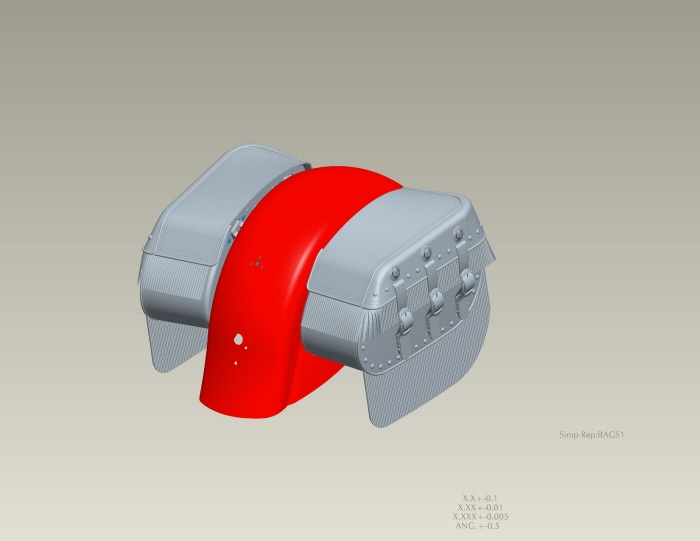

Saddlebags Mounted to Rear Fender - Saddlebags are mounted using patented quick detach mounting system.

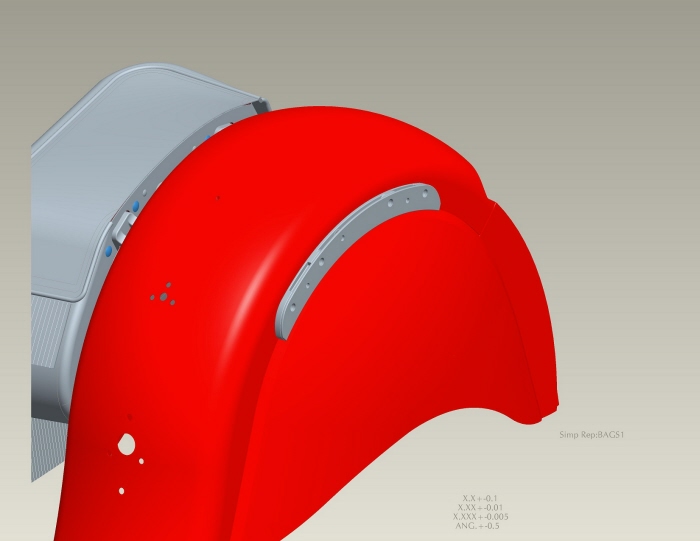

Rightside Saddlebag removed - Saddlebag removed to show cosmetic "eyebrow" mounting interface.
Brow detail 1 - Brow detail showing "spacer brow", which captures and mounts rear fender to chassis subframe.
Brow Detail 2 - Showing spacer brow and cosmetic "fender trim eyebrow". Assembly as shown is basis for all Indian Quick Detach components, including all bags, racks, and supports.

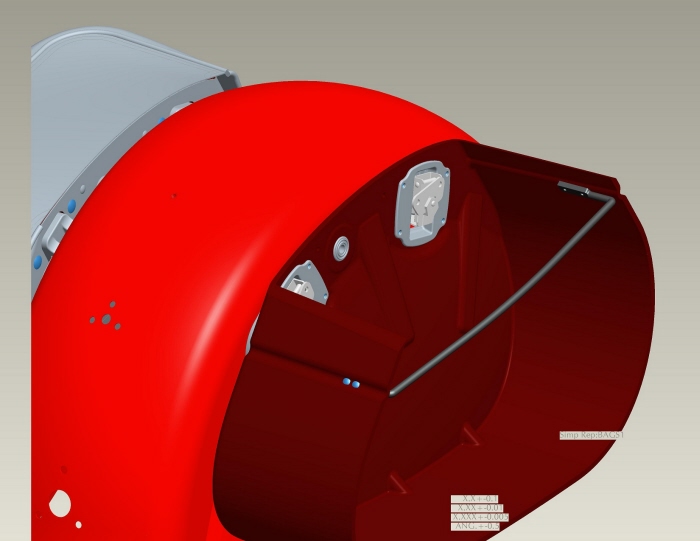

Bag Install Detail - Showing saddlebag installed on brow, with cover removed to illustrated rotary latch attachment mechanisms.
Backrest Install Complete - Detail of backrest installed using quick detach mount system.

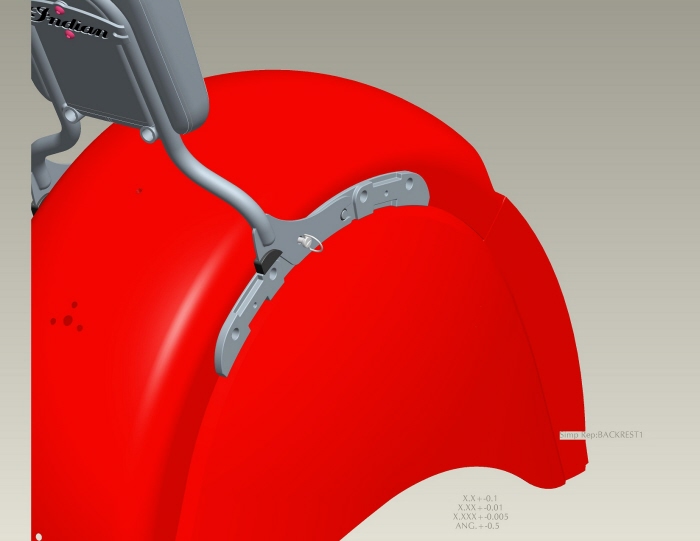

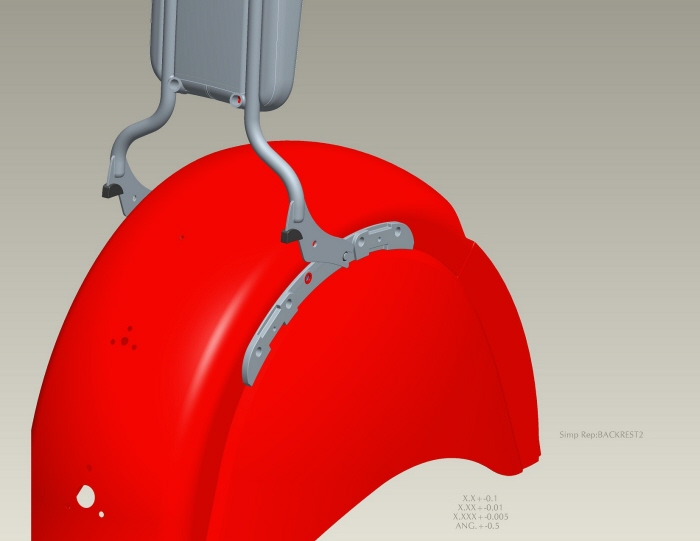

Backrest Install Detail 2 - Showing installed backrest with fender trim eyebrow removed to illustrate underlying interface.
Backrest Install Detail 3 - Showing "rotational" installation means for the backrest.

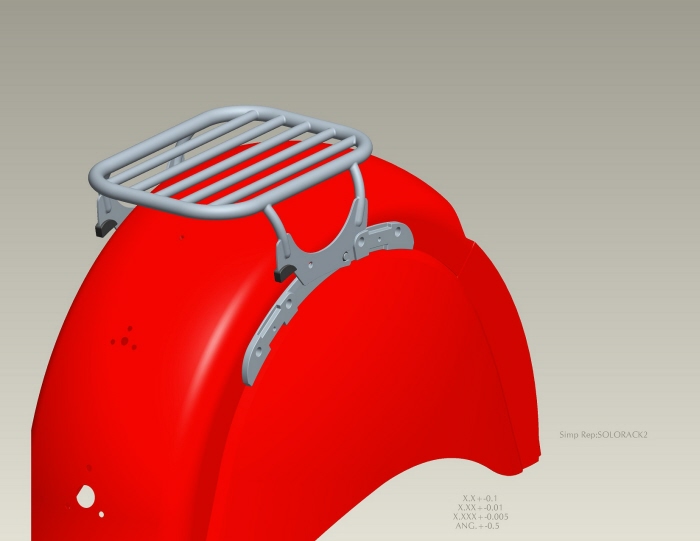

Solo Fender Rack Install Detail - Showing rotational installation method of solo rack.
Solo Fender Rack Install Detail 2 - Solo Rack in full installation position.

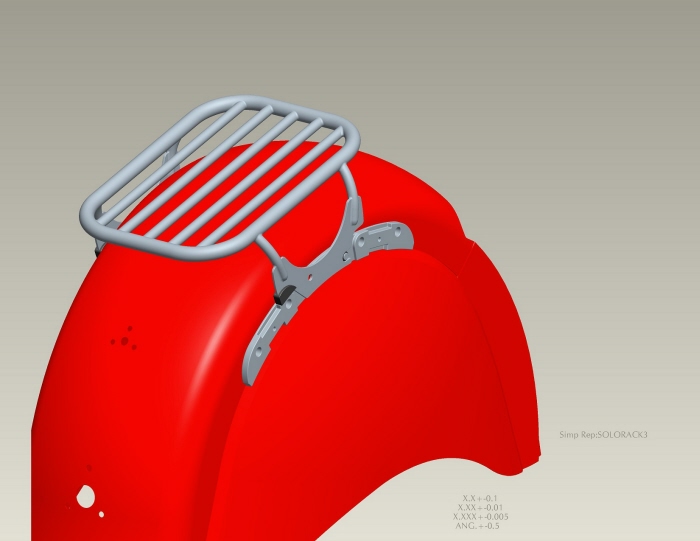

Solo Fender Rack Install Detail 3 - Showing Solo Rack installed on rear fender complete, with trim eyebrow installed.
