![](https://s3images.coroflot.com/user_files/individual_files/512725_ikeqsqa3bcntflman0tfym5f0.png)
The customer's old display with old branding. A redesign was needed to match the new logo & label I designed.
![](https://s3images.coroflot.com/user_files/individual_files/512725_zxctvfhy_mr0rug8ofo7kvjwn.png)

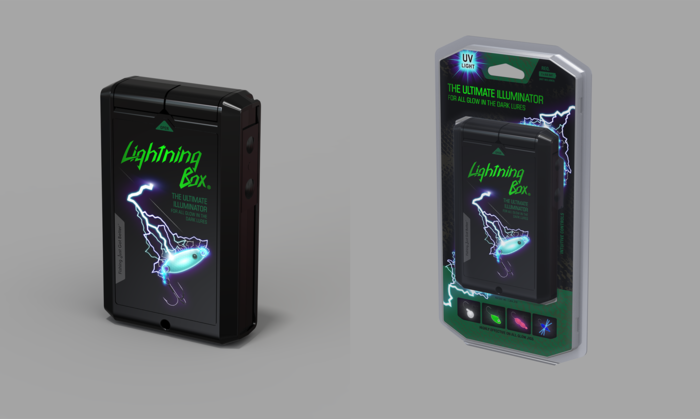

Lightning Box updated product, label, & packaging for reference. I designed the label & packaging.
![](https://s3images.coroflot.com/user_files/individual_files/512725_eg96lgwlh5hfqoyityzfnwrya.png)

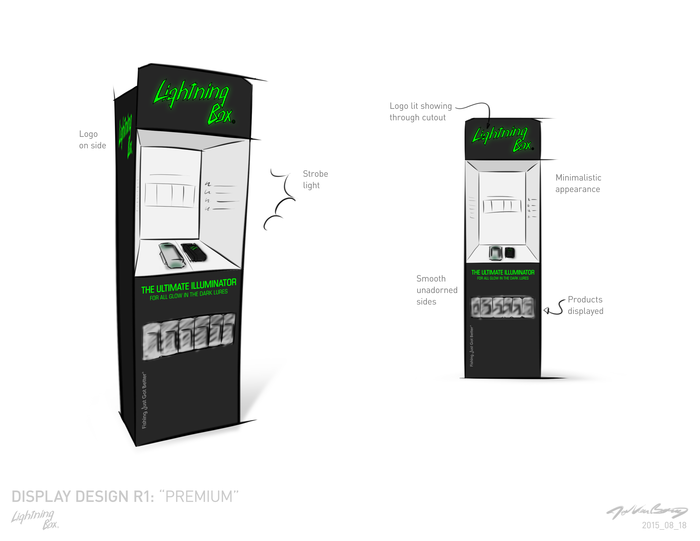

I generated multiple display concepts. This concept emphasizes quality & premium presentation.
![](https://s3images.coroflot.com/user_files/individual_files/512725_oif8yz0kmbqluswztp0vhwaxn.png)
This concept draws on similarities to the product packaging
![](https://s3images.coroflot.com/user_files/individual_files/512725__qqwmxb_j0tglybqyu0smjpho.png)
This concept focuses on the environment glow lures are used in
![](https://s3images.coroflot.com/user_files/individual_files/512725_txq8r_m3fvtd7qwyuwtndnujc.png)
The client selected the "Graphical" concept. I modeled the design in 3D CAD to generate exact dimensions for layout & manufacturing.
![](https://s3images.coroflot.com/user_files/individual_files/512725_b_g3wrmiqjdv5tlus8mftsvmb.png)
The client decided to assemble the display themselves from printed & cut corrugated plastic sheeting, which included some small dimensional changes. I designed the graphics for printing & cutting.
![](https://s3images.coroflot.com/user_files/individual_files/512725_hc6_gaifo0pyyqdajnjkwwj45.png)
Rough mockup constructed by the client of corrugated paperboard
![](https://s3images.coroflot.com/user_files/individual_files/512725_twtijnyacrdlg6ysti7eyqhga.png)
Final display in use
