Ingersoll Rand power tools brand
![](https://s3images.coroflot.com/user_files/individual_files/512725_jzpwfo4hcvouesjzun2zavd_b.png)

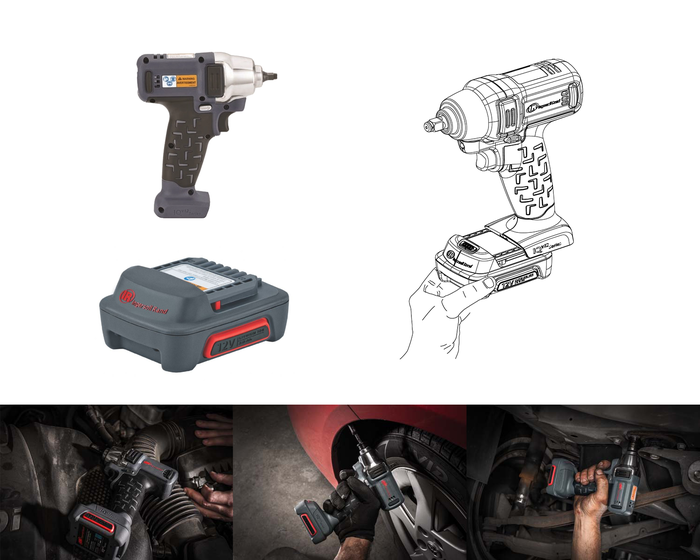

The IQv12 Series product line was in development at the same time as this project (the charger). The battery & impact driver were effectively design-complete at the time. Other products would be added to the line later.
![](https://s3images.coroflot.com/user_files/individual_files/512725_agcrpjkedzyezrhbg06fezaum.png)

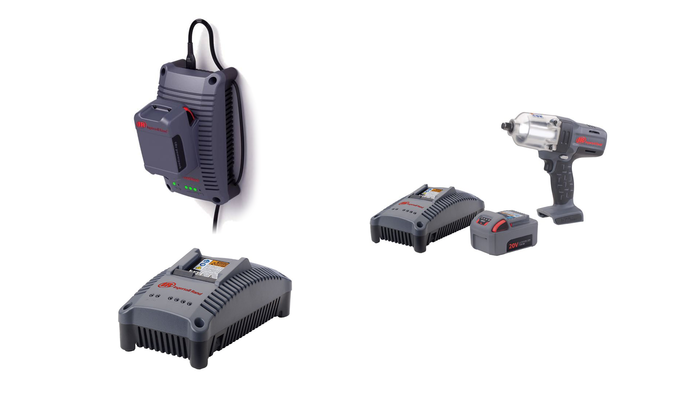

Other design influences included the already-existing larger IQv20 Series charger (BC1120), battery, & tools. The 20v charger features included a slide-locking battery insertion method, wall mountability, & an auxiliary USB charge port.
![](https://s3images.coroflot.com/user_files/individual_files/512725_6hlkg0vyt4hqgmqhtmrstjoff.png)

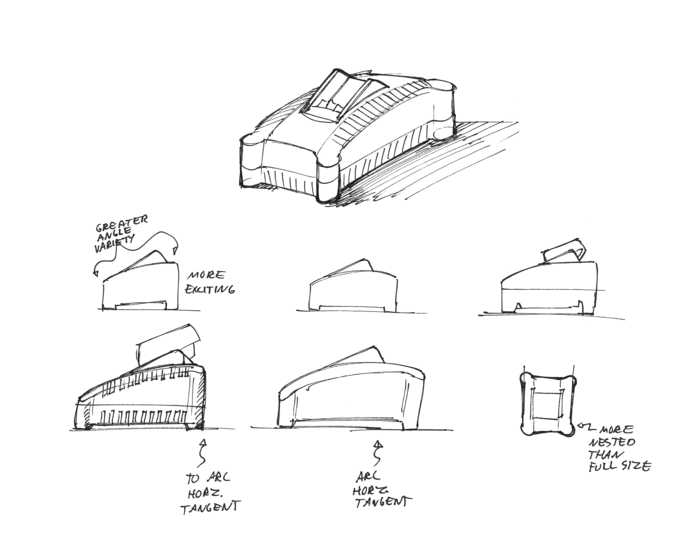

Ideation began with the IQv20 Series charger & how it could be adapted to a smaller form factor
![](https://s3images.coroflot.com/user_files/individual_files/512725_ynzxq7dcewasqny4gtef3u4tp.png)
Further exploration of adaptations
![](https://s3images.coroflot.com/user_files/individual_files/512725_hnz9kkzufsmtzwgbrvudnibm3.png)

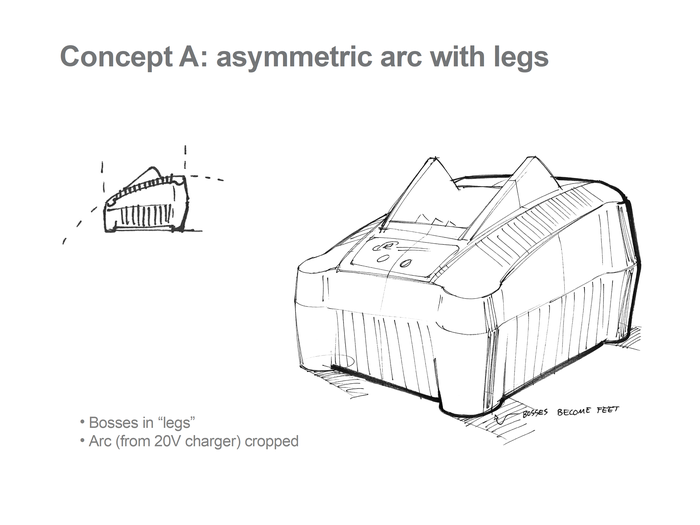

Initial design concept A
![](https://s3images.coroflot.com/user_files/individual_files/512725_ntb9pdxj7izc8d3d6lukpx_oy.png)

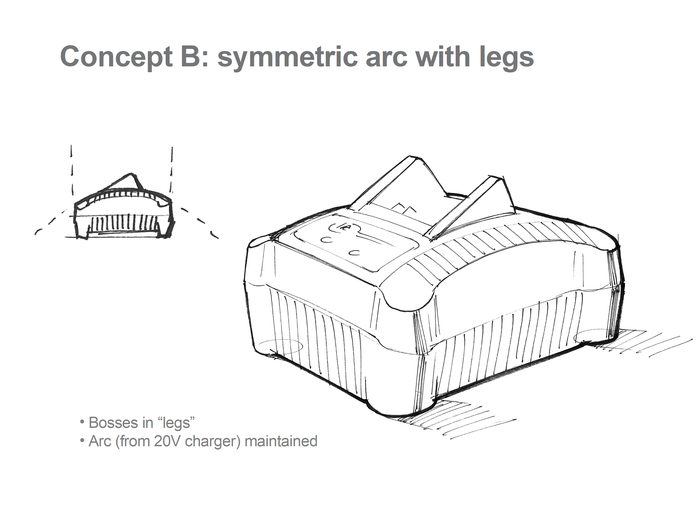

Initial design concept B
![](https://s3images.coroflot.com/user_files/individual_files/512725_ll9phcplprdp2jqaacivp0_em.png)

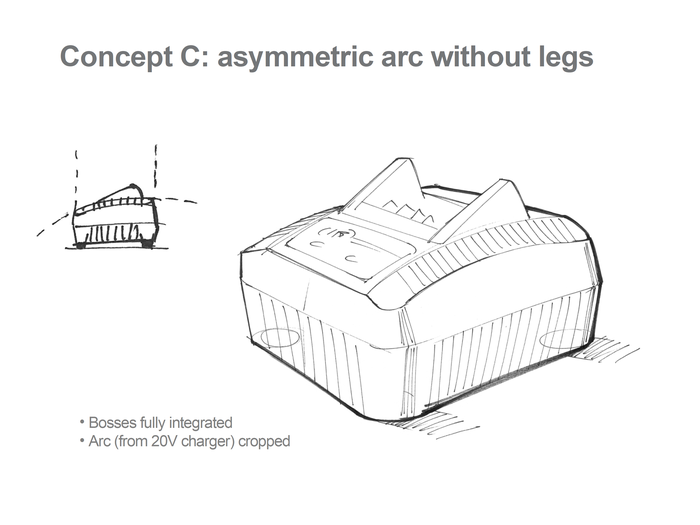

Initial design concept C
![](https://s3images.coroflot.com/user_files/individual_files/512725_wozxnhjx7wox5qakaccpnnn20.png)

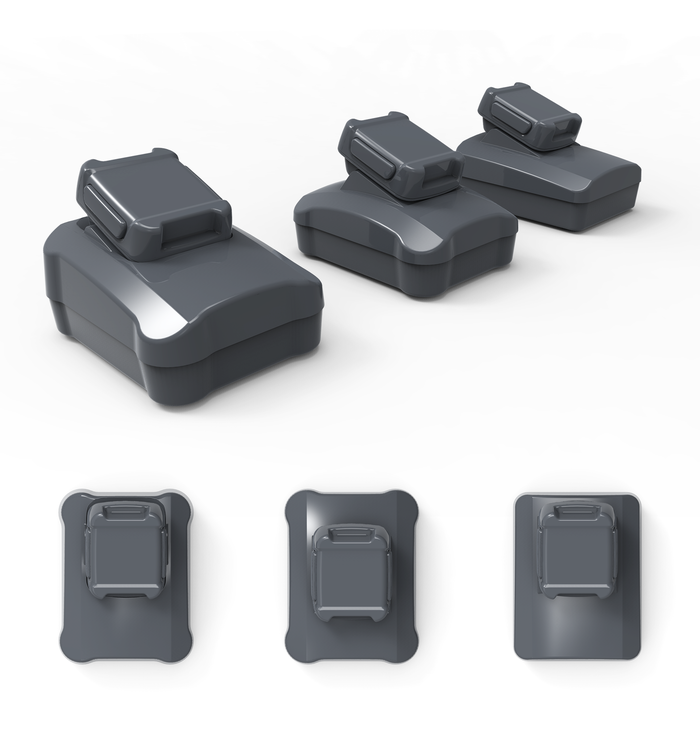

I made basic 3D CAD models of the 3 sketched concepts.
![](https://s3images.coroflot.com/user_files/individual_files/512725_reock6ywpzbzb6niucd2fs293.png)

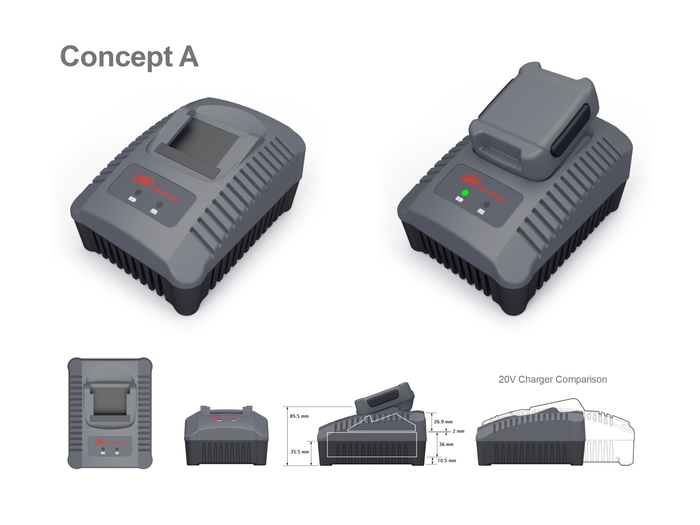

Concepts A & B were chosen for me to develop further in 3D CAD. Here are renderings I made of concept A based on internal components. It also explored a label with translucent windows for LED indicators & the logo. This was my preferred concept aesthetically.
![](https://s3images.coroflot.com/user_files/individual_files/512725_yqnqjg_vjmfzvin2pdq0babhk.png)

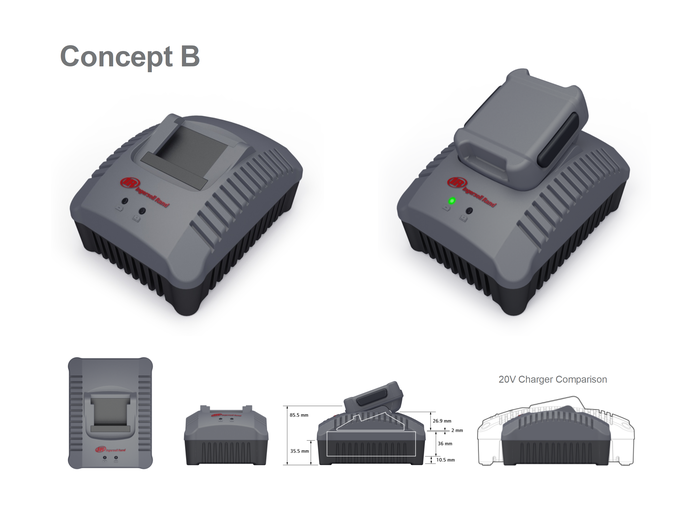

3D CAD development of concept B by me. It also explored using just ports for LED light pipe indicators & a raised colored logo instead of a label. This concept was preferred by the product team overall for having a smaller perceived size. This was the end of my direct involvement in the project as my coop period was finished & I returned to the University of Cincinnati as planned.
![](https://s3images.coroflot.com/user_files/individual_files/512725_r_pf5ed3qmx4oxnmdrlttskif.png)

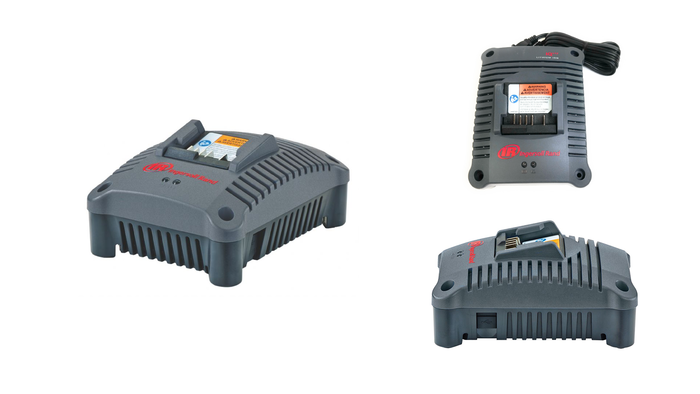

The final product as completed by others after my coop period at Ingersoll Rand was finished. The work of others included by was not limited to details of the cord & integration of features including wall-mountability & the USB charging port. The overall form is based primarily on the concept B that I developed.
