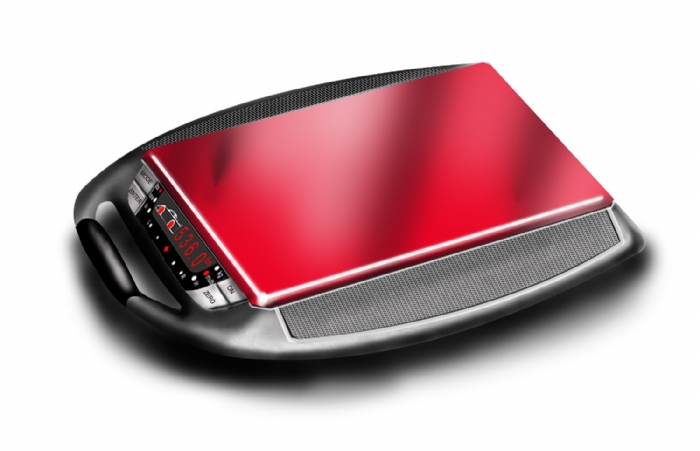

Small Rendering - This is a rendering showing the overall shape of the scale.

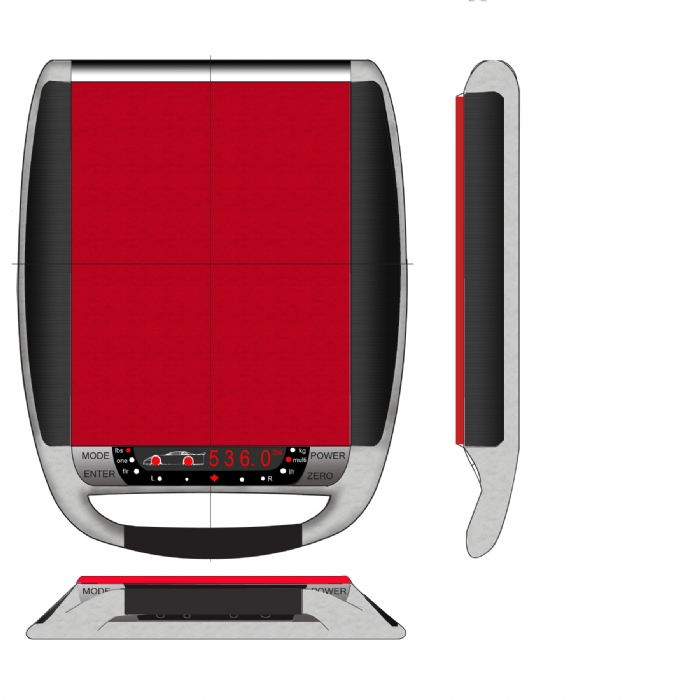

Ortho - The scale project was an interesting one in which I pushed the scale away from the square box and tried to simplify the manufacturing process with zinc die castings.

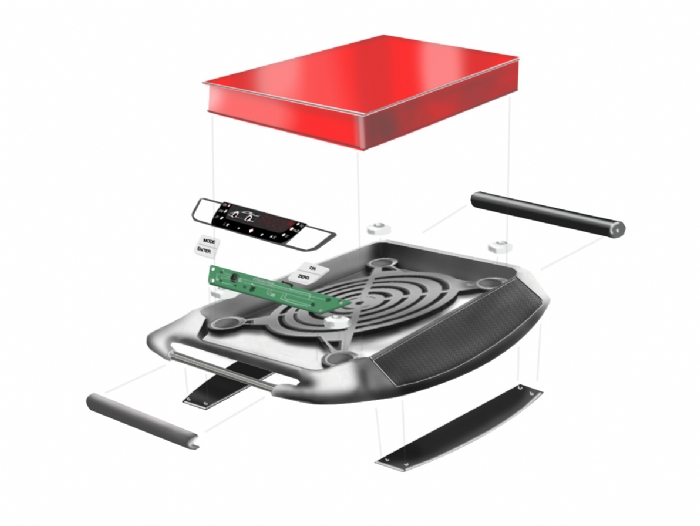

Exploded View - Learning how an electronic scale operated and rendering it was a bit more difficult that I anticipated. Afterwards, I was impressed with how much I learned about the product. This was especially true when dealing with materials and manufacturing techniques.
gLike
Dirt Racer Scale
