![](https://s3images.coroflot.com/user_files/individual_files/201767_xclejsf6rszturf2zkl5licxx.jpg)
Concept render created in 2013 to demonstrate how glass panels would be transported on custom pallets into elevators for the Apple Spaceship in Cupertino, CA.
![](https://s3images.coroflot.com/user_files/individual_files/201767_zt3jonbgu7h7i3xvxgygrdjyf.jpg)
Vintage handset model built in Solidworks and rendered in Modo601 in 2012. This model is based off a retro styled wireless handset that I received as a gift.
![](https://s3images.coroflot.com/user_files/individual_files/201767_ndvx9spuyjoij8tflmcsllz4e.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/201767_fpit6wb4w7zrh9fdboxmprtes.jpg)
Wireless handset dock designed to my old iPhone4s. The phone handset was reverse engineered and modeled in Solidworks, whereas the dock is an original concept that I created specifically for the handset and iphone. The iPhone model as shown was modeled by following a GrabCad tutorial.
![](https://s3images.coroflot.com/user_files/individual_files/201767_dnxn0vtgexsfj_tgccws9eqty.jpg)

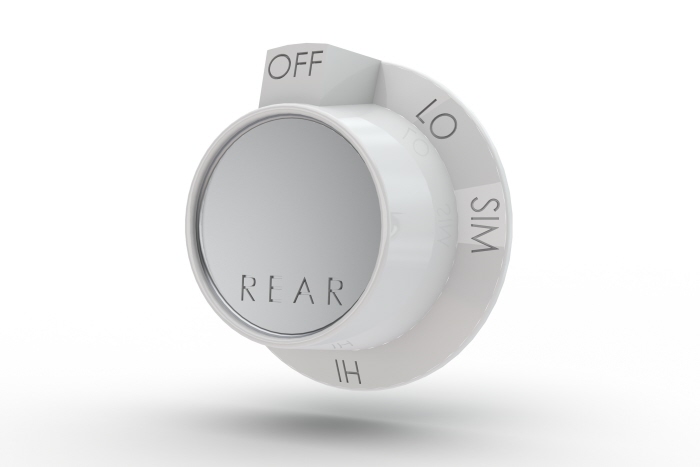

1950s stove knob reverse engineered to be 3D printed as a stand in for a friends stove until a genuine replacement could be found.
![](https://s3images.coroflot.com/user_files/individual_files/201767_m8RvxPTLJWj3xaswiKl8khdo6.jpg)
Castle Sterilizer Cabinet Faceplate - Reverse engineered faceplate for a client looking to restore a salvaged cabinet. The faceplate is based off the OEM part but the switch was created as a placeholder as the cabinet is non operable.
![](https://s3images.coroflot.com/user_files/individual_files/201767_ztorhnpmsm2fdjq0k7cgyctiq.jpg)

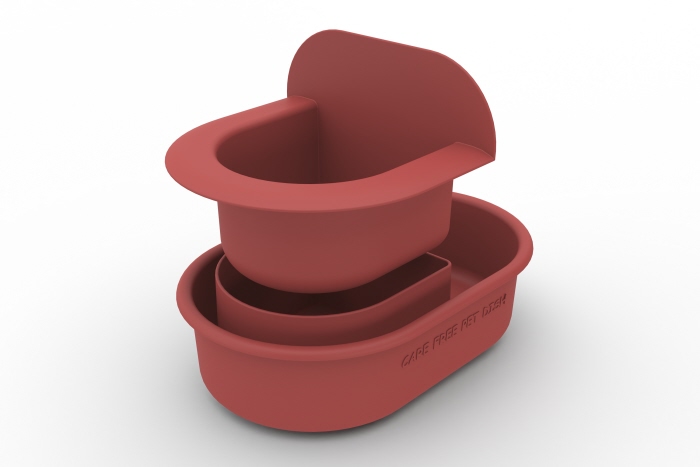

Modular Dog Bowl - Solidworks model created from the clients 3 view Autocad file.
![](https://s3images.coroflot.com/user_files/individual_files/201767_wsWbx7EVQQM9mruHEz9yKeeCU.jpg)

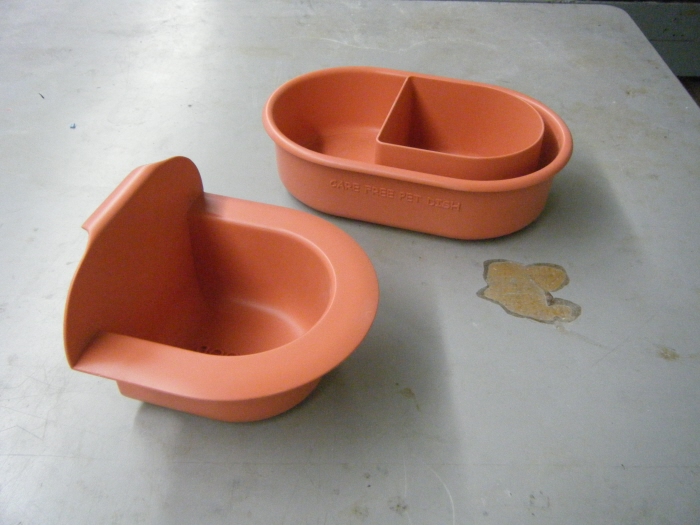

Once the 3d model was approved, the prototypes were tooled and cast in house using an SLA master.
![](https://s3images.coroflot.com/user_files/individual_files/201767_E1yiMh5929ZR85MaKlfnZj1Hj.jpg)
Nixon Icon Stamp - I was approached by Brand ID to create a SLA prototype for a catalog shoot of the Nixon Icon stamp with a 10 hour turnover time.
![](https://s3images.coroflot.com/user_files/individual_files/201767_rxgBX63xv7dUbN8LJlnF78mOj.jpg)
Nixon Icon Stamp Prototype
![](https://s3images.coroflot.com/user_files/individual_files/201767_3d3DhmgUiVKAz4xl2YgBDrWfw.jpg)

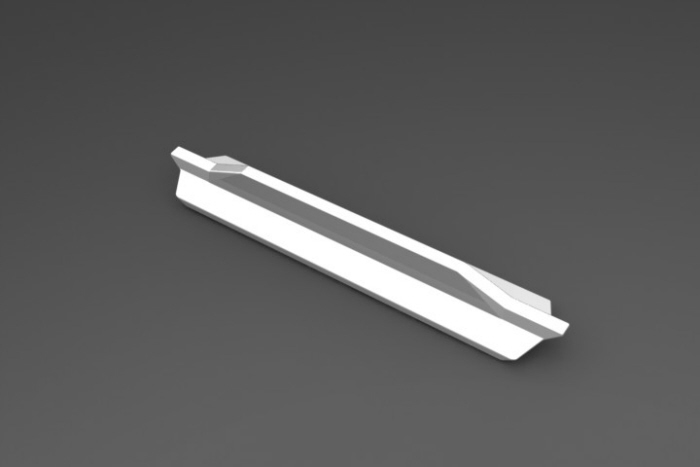

1960s Ford Falcon Trim - 1960s Ford Falcon fuel door trim, reverse engineered from the OEM part.
![](https://s3images.coroflot.com/user_files/individual_files/201767_RgDBCQ9C5FUvxsCHTZVXcqusE.jpg)

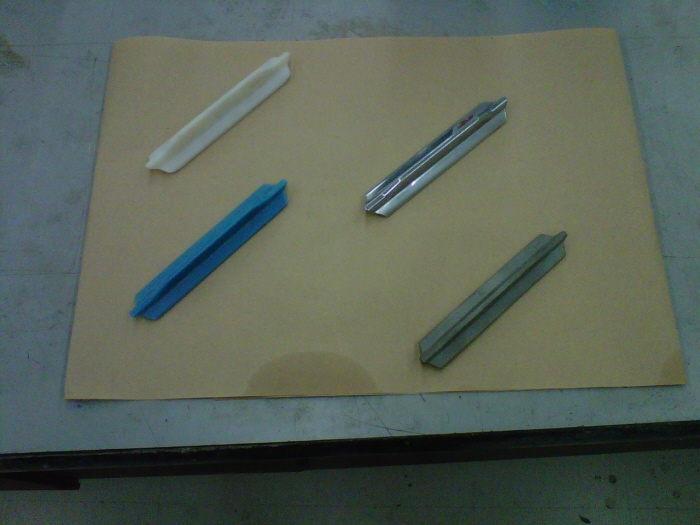

L-R: Objet Prototype, Wax Master, OEM Part, New Sand Cast Part.
![](https://s3images.coroflot.com/user_files/individual_files/201767_fTJO4KwKCNb5xLGc_W99FPjud.jpg)

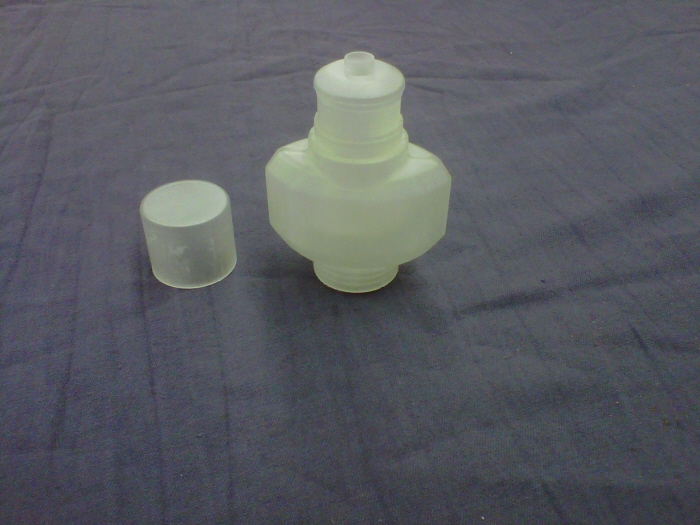

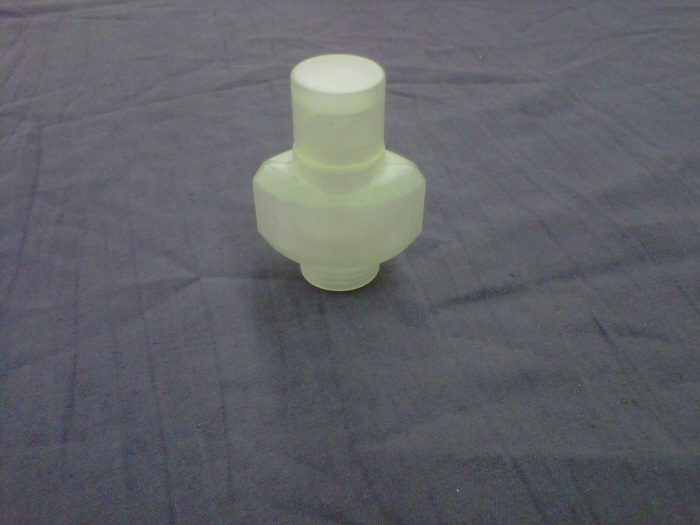

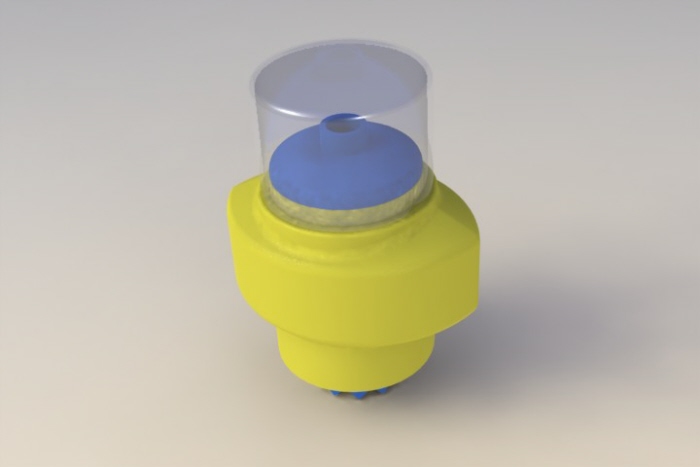

Drink Topper Concept - Concept for a vitamin dispensing drink topper.
![](https://s3images.coroflot.com/user_files/individual_files/201767_rA1Pu1q6WJffu7gaVccmIN3UM.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/201767_TKAGD0kihUZsXJM_2WykFhC6M.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/201767_nUCIBBdbjV4OPW6OPkwXEmeC4.jpg)

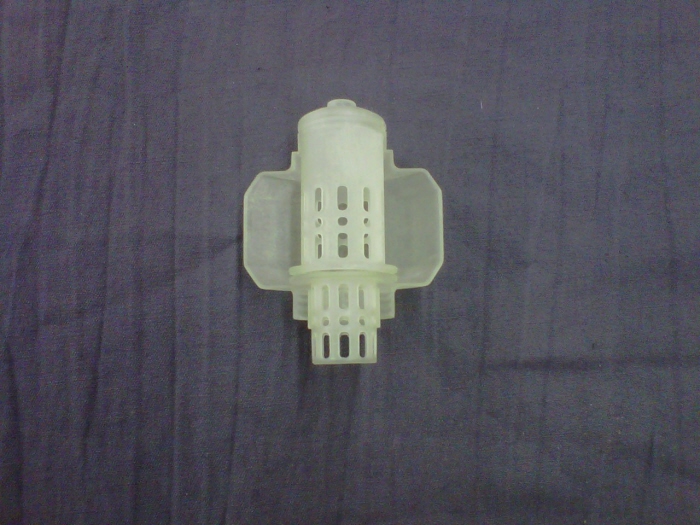

Second Generation SLA Prototype
![](https://s3images.coroflot.com/user_files/individual_files/201767_4Io6Y8kJ4IHfI7i0iNX46Bbg7.jpg)
Volvo excavator designed at 1:1 scale as the final project for my Solidworks course taken in 2007. The model has 24 parts, and the boom, cab , wheels and stabilizers can all move independently of one another.
