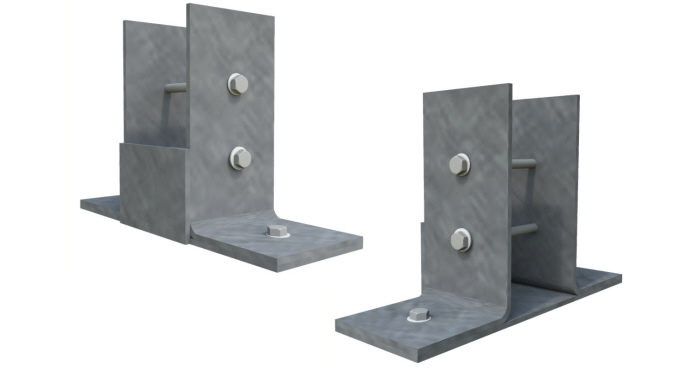

Bespoke Galvanised Mild Steel Brackets located to a concrete base - location is used for period drama filming occasionally and consequently the structure needs to be temporarily removed.

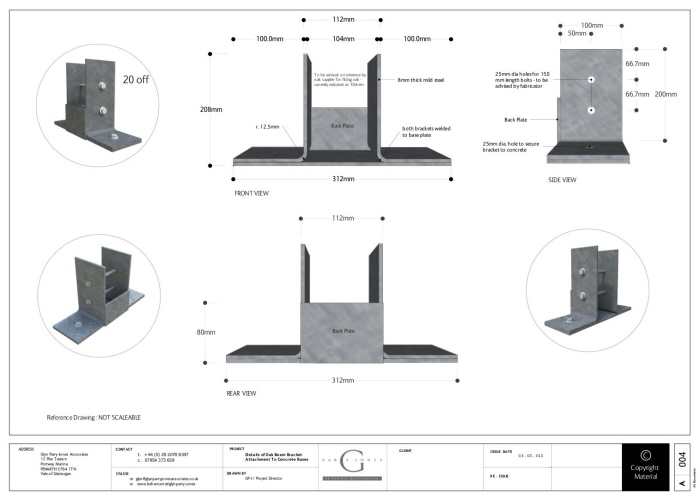

Fabrication Drawing
gLike
Ext. Interpretation Panels and Reconstruction Drawings

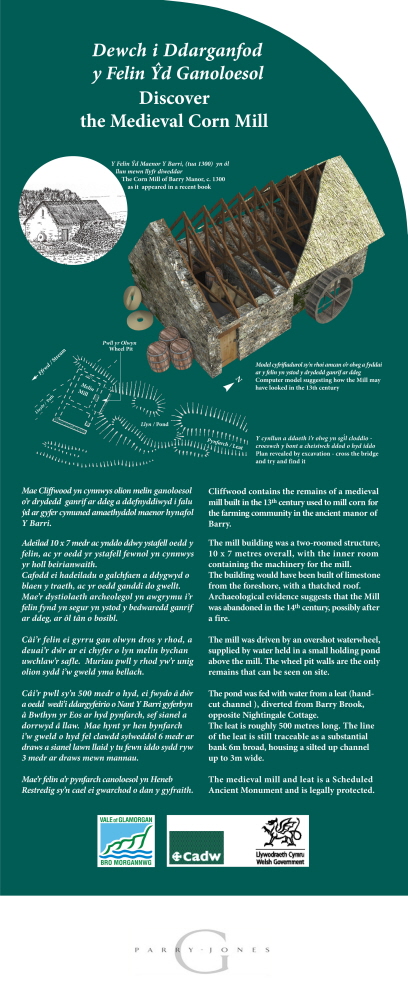

Exterior Interpretation Panel located within the landscape of Cliffwood in a South Wales Country Park and fabricated from GRP ( Glass Reinforced Plastic ) Dimensions - 1000mm x 450mm x 5mm with a 250mm curved radius to the top right-hand corner. Design and Reconstruction Drawings by Glyn Parry-Jones.

In this instance the information was extremely limited, but nevertheless the computer model serves as an engaging image to suggest how the Mill may have looked in the 13 century to provide a focal point to interest
the visitor to actively seek out further information.

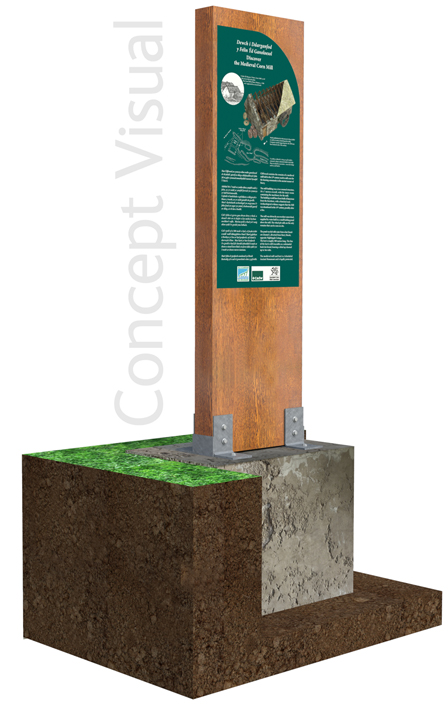

The Panel is mounted directly to a well seasoned joinery quality oak beam, part of a shipment sourced from Northern France and as an element in several other Interpretation Projects using similar display techniques.
Dimensions - 1700mm x 500mm x 100mm

We offer a full visualisation facility for architectural and reconstruction projects, together with many years experience of producing bilingual Interpretation Panels.
