![](https://s3images.coroflot.com/user_files/individual_files/422914_qMZeuuoqgwZflFZ0ijg_V3fdS.jpg)
Title page of the whole project. The Whynolight? name and logo is a small pun on the alcoholic side of the project!
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/422914_dzQOqzadBHdrNGcLzErcdPnUF.jpg)

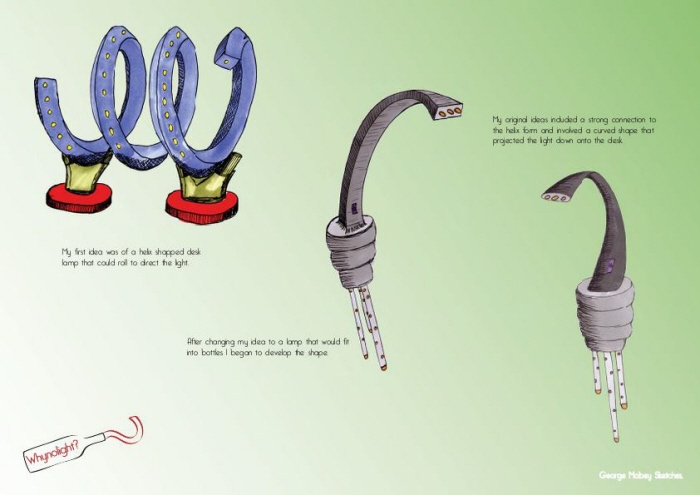

My very first idea was the helix lamp but this would prove far to difficult to manufacture!
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/422914_J6GDUt_Ghw6tHJ6IQ7n_qbwQg.jpg)

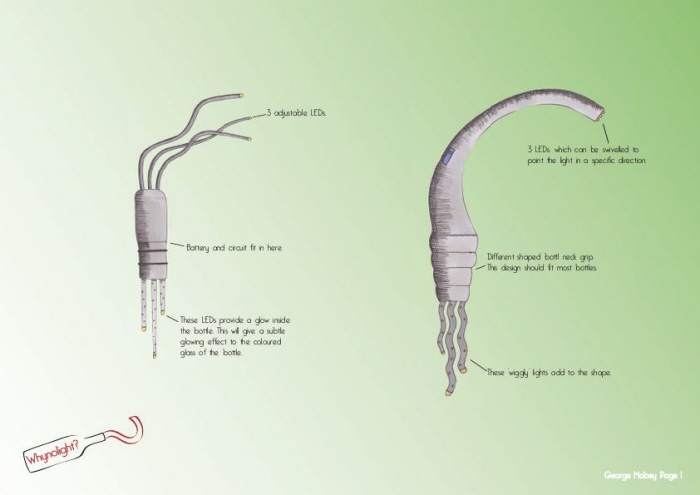

A few quick renderings of what form it could take. I also developed the fitting which can fit into any glass bottle.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/422914_xkMbzubEOIwlR4sAsk9wCq8wQ.jpg)

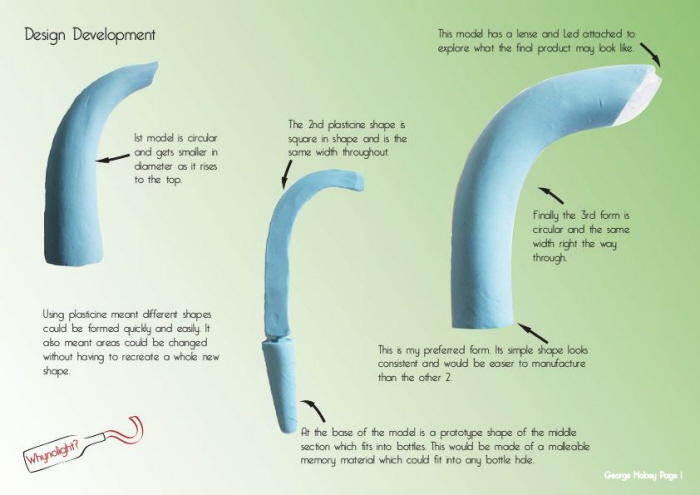

More experimentation with the way the light would stand out of the bottle.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/422914_hLGwZ7hJnqujxJtRFLuWwNh0V.jpg)

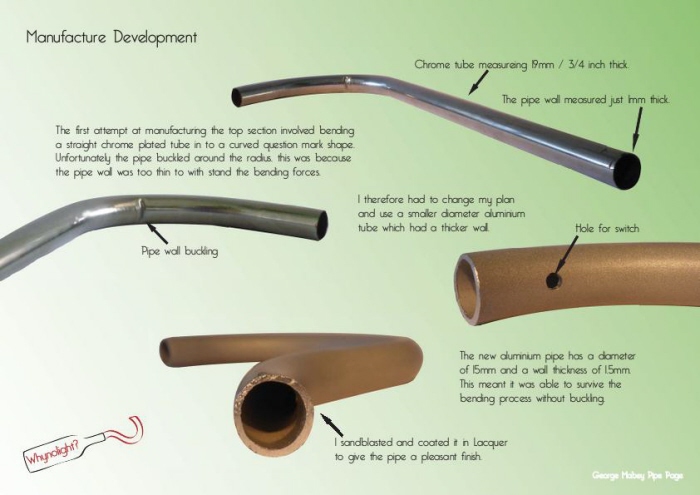

The trials and tribulations of design work. Here you can see I had a few problems with bending pipes to get the right shape.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/422914_BVdbc8crt5Ah_oGyNsTBStiMN.jpg)

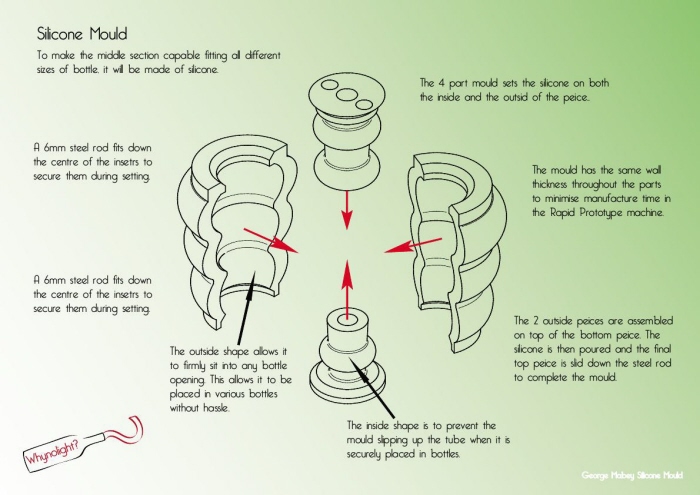

The mould which I designed for the casting of the silicone.
