![](https://s3images.coroflot.com/user_files/individual_files/31862_WhJSlVZwlUy2_T3pnuedhOvqC.jpg)
This is the Kutol Counter Mount Foaming Soap Dispenser. It is designed to work with a standard foaming soap pump engine, similar to the pumps used in disposable foaming soap dispensers.

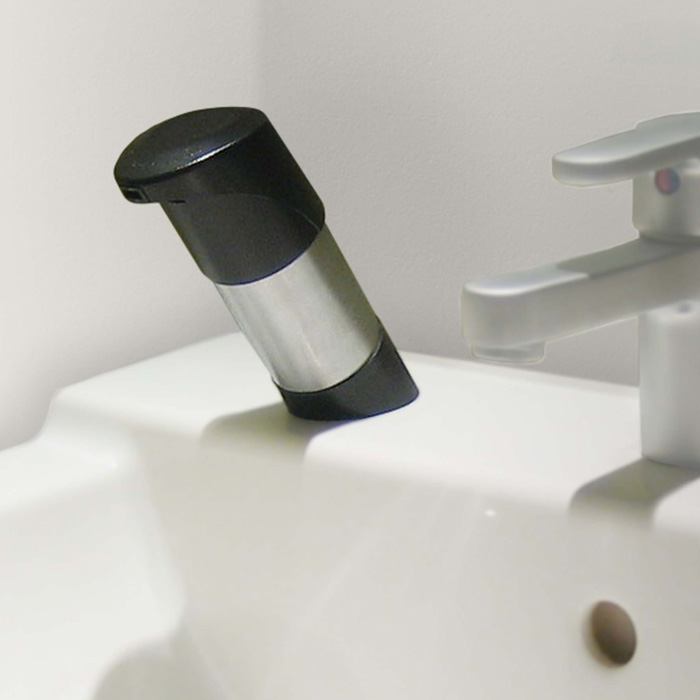

![](https://s3images.coroflot.com/user_files/individual_files/31862_a1reGdIePtePx4yI2qty32uS9.jpg)
The design criteria for this dispensor was to utilize the foaming pump above the counter or sink, so it was easier to service.

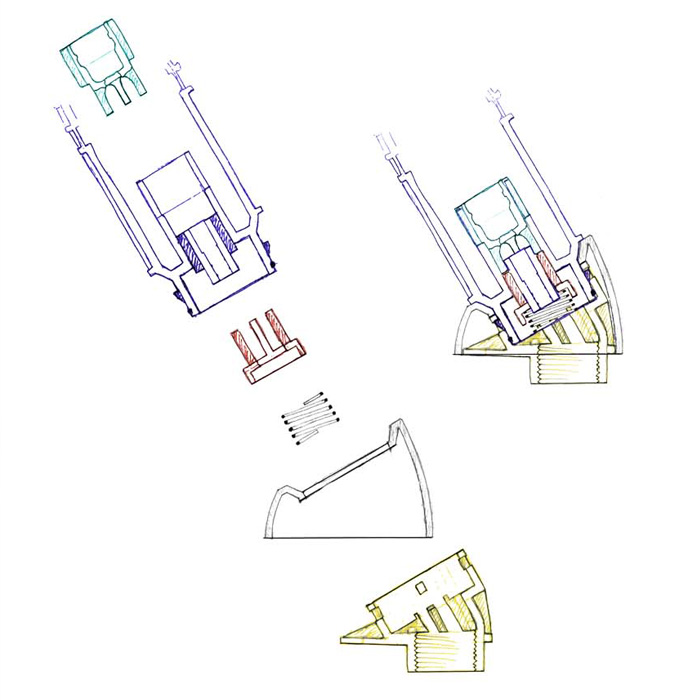

![](https://s3images.coroflot.com/user_files/individual_files/31862_HoyDT26kUY9yrWFqq1kjQoqFk.jpg)
Through the final design process, it was necessary to visualize many parts moving and working in conjunction with one another. One way I did this was to sketch out the interacting parts before modeling them.
![](https://s3images.coroflot.com/user_files/individual_files/31862_1cyXTR8VWiJEeWXmc0KcjD7YM.jpg)
As the ID was being finialized, the operational function of the product was not verified. I created this breadboard mock up to verify the behavior of the soap in a closed-system re-filling scenario.

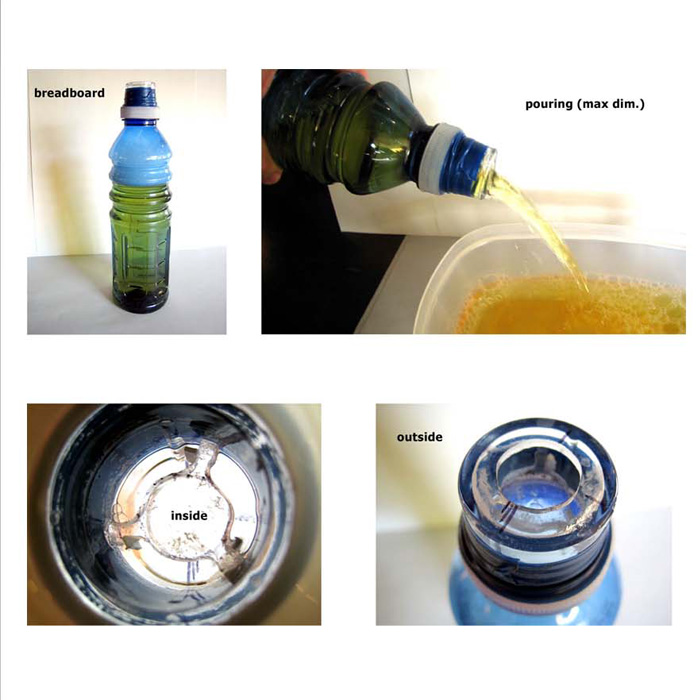

![](https://s3images.coroflot.com/user_files/individual_files/31862_9EjK1StjYtcdj1crcskd82Naz.jpg)
The filling system required some structure in the way of the soap flow during refill - this breadboard of that structure was to verify the behavior of the soap while filling.
![](https://s3images.coroflot.com/user_files/individual_files/31862_w96Gdz565C4RMYbAHiXPk6O4K.jpg)
Here the molding condition was being discussed for the wide threads that drive the filler cap (which seals like a dish soap container). Draft and part-line were crucial to the efficient molding of this part.
![](https://s3images.coroflot.com/user_files/individual_files/31862_ptxsyagPMXYr7JPzvZsFU2Gw3.jpg)
Here is a pre-production representation of the filler system in use. The pump engine housing has been removed for filling.
![](https://s3images.coroflot.com/user_files/individual_files/31862_kTkyuHi4lQL0kwf_7OvdKdh5t.jpg)
A drawing package was required in order to provide inspection dimensions, as well as a bill of materials. Exploded views aided in assembly and revision notes were kept for parts and assemblies.
