TOM SP Brand - Geometric FIgures generated the visual pattern for the board.
![](https://s3images.coroflot.com/user_files/individual_files/298748_abz0klt0lh90zhdzhccwn9tzp.jpg)

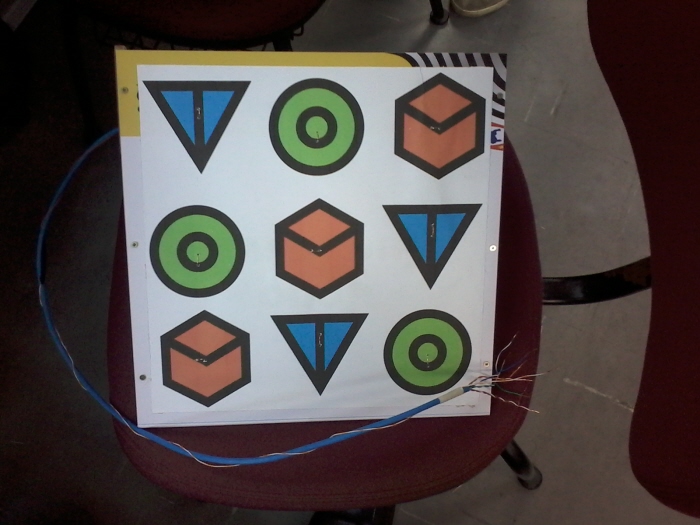

The board featuring the geometric figures. Size 30 cm x 30 cm
![](https://s3images.coroflot.com/user_files/individual_files/298748_kllkhnj6nkmbz0kom63nbwbdo.jpg)

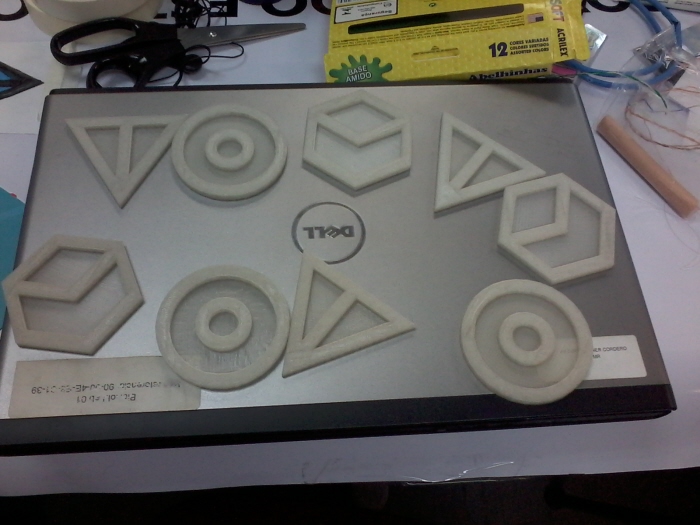

3D printing of the figures to be glued at the board. The printing allowed visual disabled kids to feel texture, size and shape. The Design Hackathon had 3D Printers available at the facilities to support teams.
![](https://s3images.coroflot.com/user_files/individual_files/298748_mmqsdh_5dljd2oaifebgmocko.jpg)
How each figure generated sound? The sound was generated by a conductive paint connected added to the surface of each figure (black lines - spots), under each figure you have a metalic filament connected to a raspberry board.
![](https://s3images.coroflot.com/user_files/individual_files/298748_gsvuo8cbm9ixm4pw98blcnesx.jpg)
Ready to test. The initial idea was to use a rug. However, due to the short time (48 hours Design Hackathon) and the absence of a rug, we decided to start with a small sample.
![](https://s3images.coroflot.com/user_files/individual_files/298748_yffyolqhqp8v2wl7migjibdbg.jpg)
Ready, actual size. Physical prototype done at the Design Hackathon.
![](https://s3images.coroflot.com/user_files/individual_files/298748_zi7ylwzvdy6wjdsxruccqwwn7.jpg)
Industrial Designer Marcio Dupont with the board during Design Hackathon, team table at his right side.
![](https://s3images.coroflot.com/user_files/individual_files/298748_6rcsp9iywn0messfnwwjmuxip.jpg)
Inclusive Game for visual disabled kids for TOM SP 2014. "Jogo Inclusivo" means Inclusive Game.
![](https://s3images.coroflot.com/user_files/individual_files/298748_lrvma9tzu5cejxsdqb52kdquy.jpg)
The Raspberry board and the conductive paint (black) on the board to conduct electricity signals to produce musical sounds.
![](https://s3images.coroflot.com/user_files/individual_files/298748_6ocj_sqztq2_hxtj3wgtso6qh.jpg)
Time 4 developing the Inclusive Game- Engineers, designers, programmers and developers.
