This became "Wingman," a two-piece case with a PC outer shell and silicone liner. We wanted the case to look/feel like a one piece case, so I put much thought into how the two parts would interlock. The corner bumpers provided a terrific lock in addition to their visual statement of drop protection.
![](https://s3images.coroflot.com/user_files/individual_files/67808_fl98jmlhp3q6wauanunas3jj5.jpg)

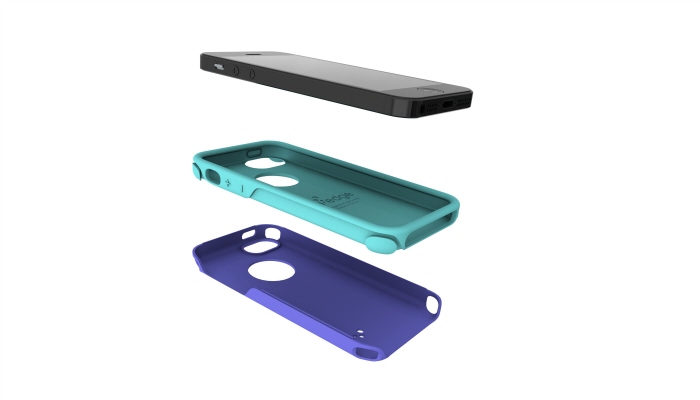

Exploded view of Wingman
![](https://s3images.coroflot.com/user_files/individual_files/67808_mabkew6xgnzysuzdqkshilezv.jpg)

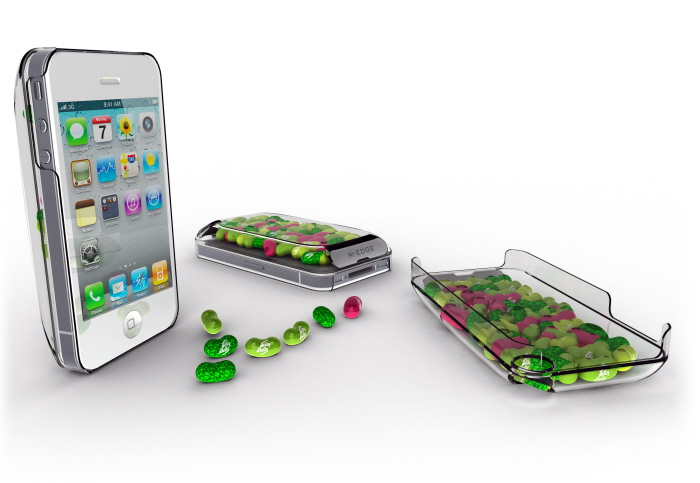

The Candy Case, not to be confused with CandyShell...hehehe. I did this project for fun because I thought it would be cool to model a Jelly Belly in Solidworks.
![](https://s3images.coroflot.com/user_files/individual_files/67808_erjpaj0qpd7aod0xgeruidcxu.jpg)

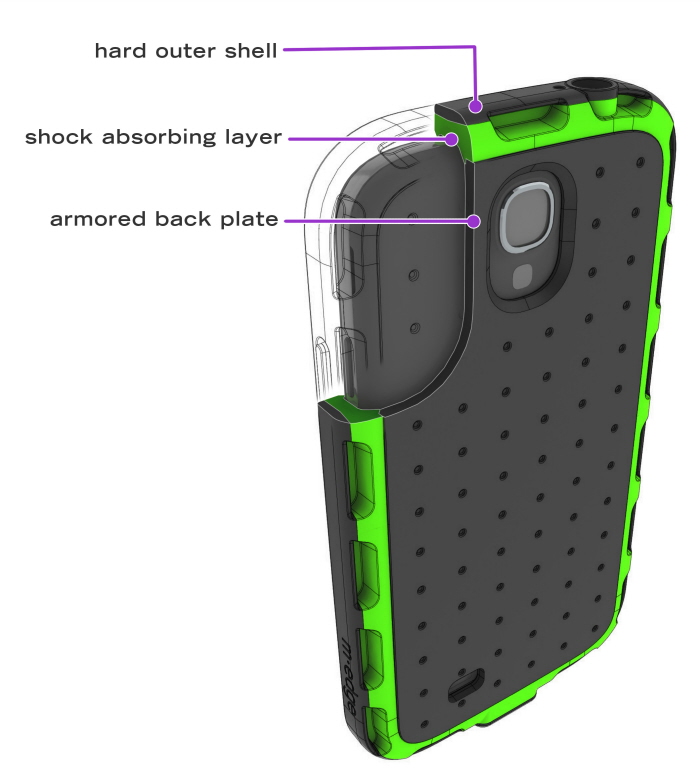

Cutaway View of ShellShock showing the patent pending perimeter suspension.
![](https://s3images.coroflot.com/user_files/individual_files/67808_8ij4uzbpw8eelion5f5szcpag.jpg)

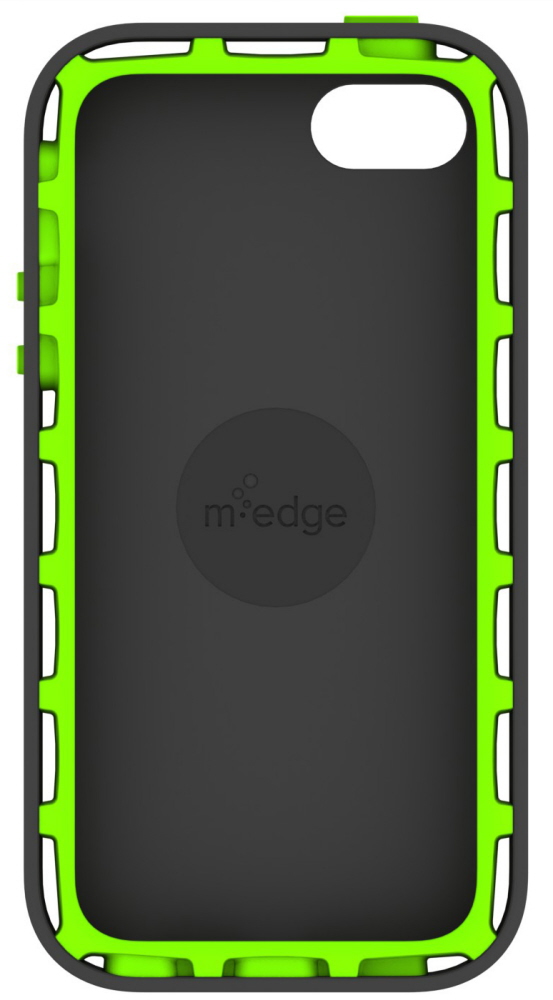

Perception is reality and this often true of protective cases. For the light impact category, we wanted a design that would visually communicate protection in a big way. Inspired by Nike Shox tennis shoes, we created a case where the outer shell was isolated from the phone cavity with a perimeter suspension. We called it ShellShock. Several elements of the perimeter suspension are patent pending.
![](https://s3images.coroflot.com/user_files/individual_files/67808_6mhim9yp9e8kdxb3fhsfakicq.jpg)

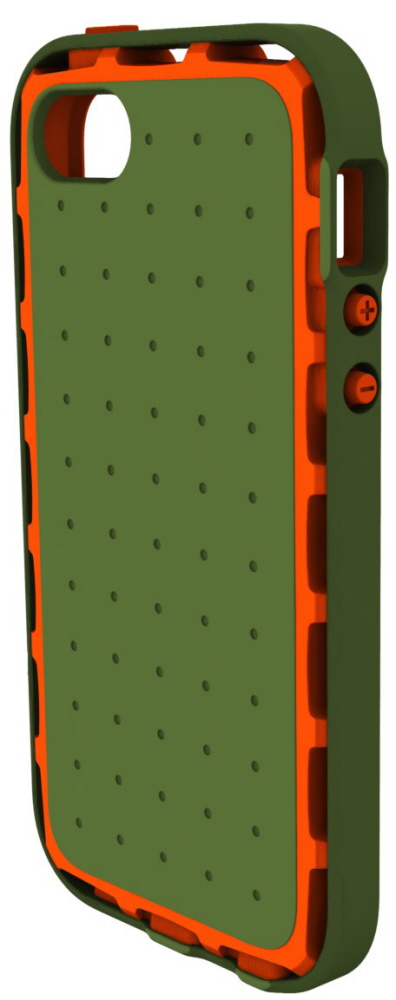

ShellShock in "Outdoorsy" colorway
![](https://s3images.coroflot.com/user_files/individual_files/67808_fbbutij5dpmmentnhvddhlzon.jpg)

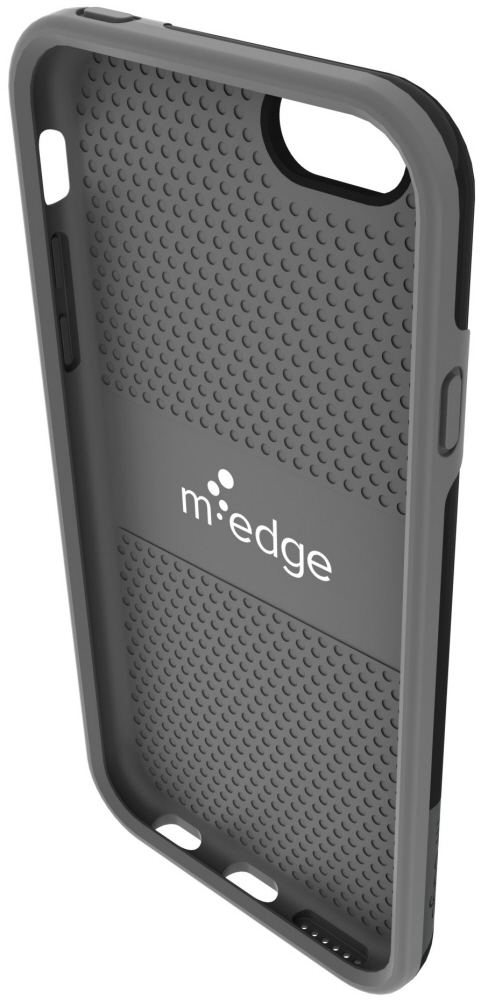

The Echo. One of the first ever co-molded cases with IML graphics. This style of case was challenging to develop and is now commonplace. It has been a solid performer for M-Edge.
![](https://s3images.coroflot.com/user_files/individual_files/67808_hztv_dkgg5izawjuvrrylu5q_.jpg)

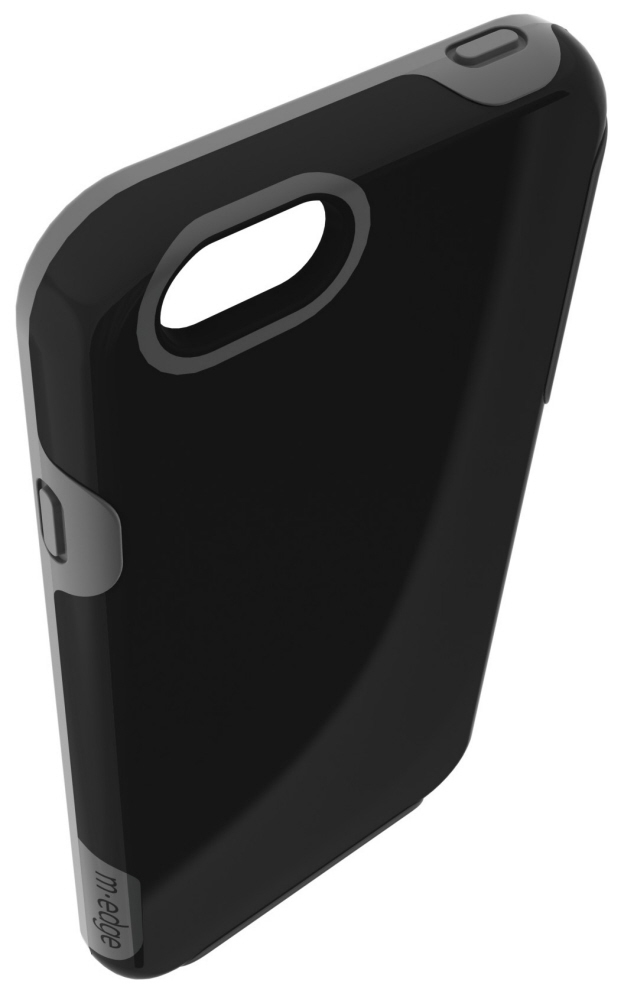

Rear view of the Echo.
![](https://s3images.coroflot.com/user_files/individual_files/67808_jxtggfcfroib2yvwvhvnfvbut.jpg)

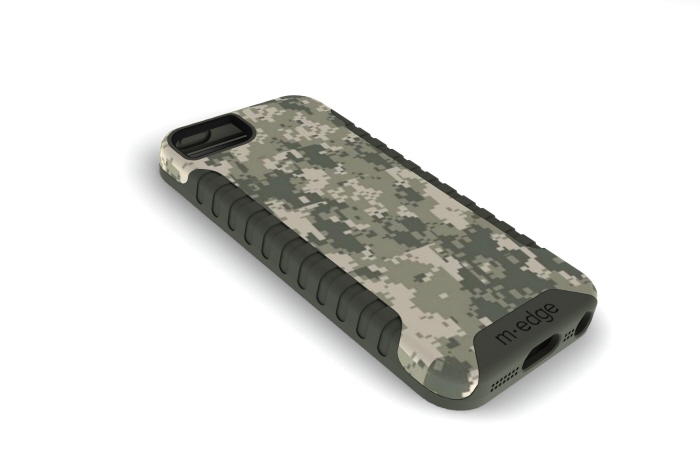

Echo Tough. A version of Echo with aggressive overmolding and graphics for folks who want a little more protection.
![](https://s3images.coroflot.com/user_files/individual_files/67808_9olgycrvlwgc9fh8us63cbiow.jpg)

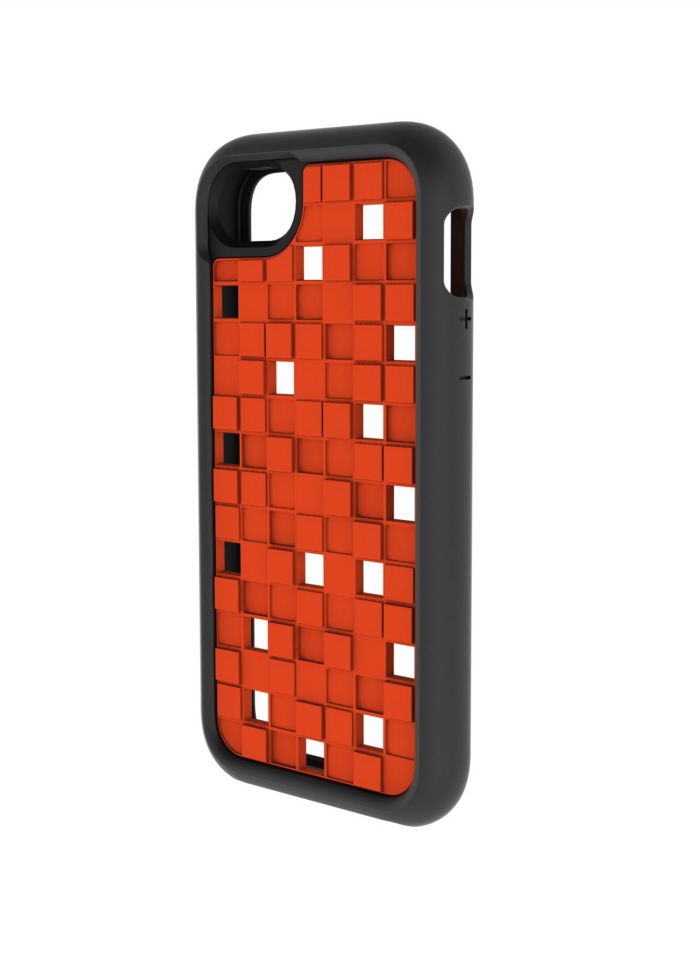

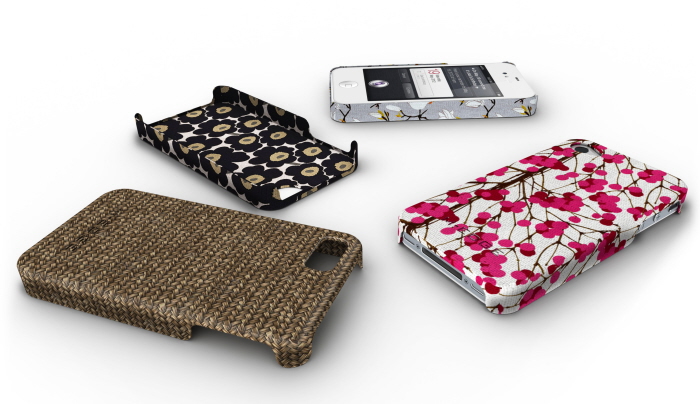

Cases made of textured fabric and resin.
![](https://s3images.coroflot.com/user_files/individual_files/67808_ofosr0o2capqzjzuoir7j3ist.jpg)
The Maverick, a snap case with removable bumper. It was offered with several different 3D textures on the back. This one was by far the most fun to model in Solidworks.
![](https://s3images.coroflot.com/user_files/individual_files/67808_wlgmmfig6qdlswbhgicapl0o5.jpg)

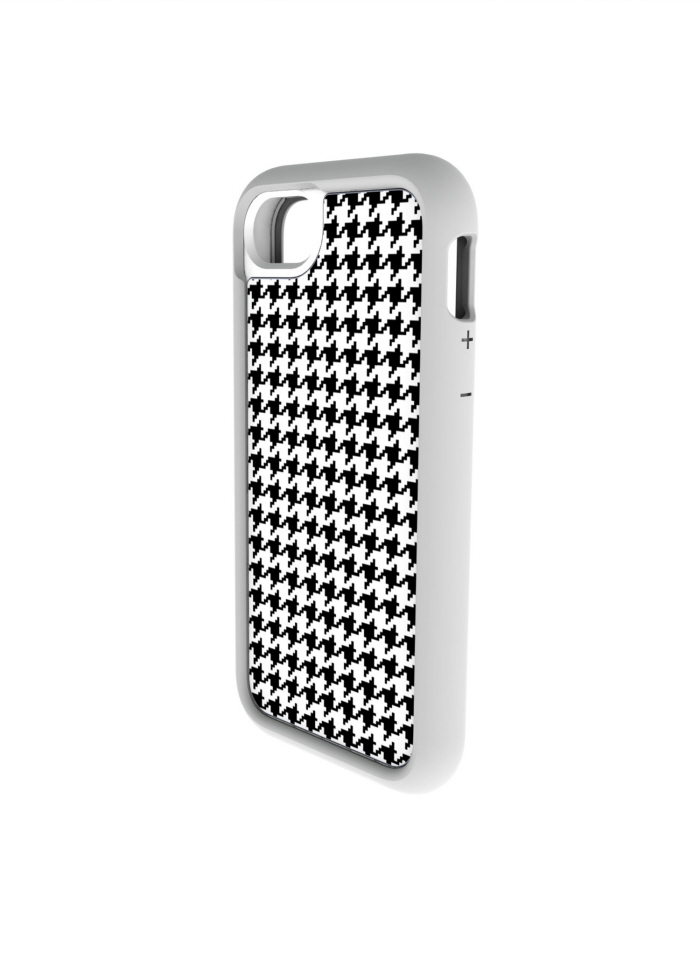

A graphical version of Maverick.
![](https://s3images.coroflot.com/user_files/individual_files/67808_zjr4kw3eqrdcigxqwtfsxi4xd.jpg)

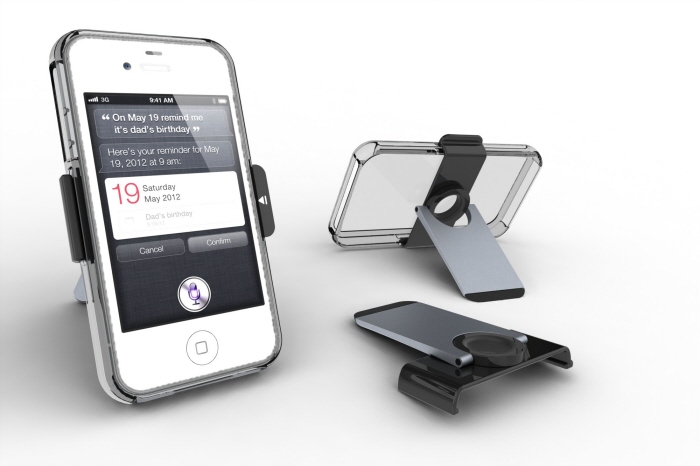

Case with suite of snap on accessories. 360 degree stand shown.
![](https://s3images.coroflot.com/user_files/individual_files/67808_hlfrzeddavrj_idbjx6mvgjcf.jpg)

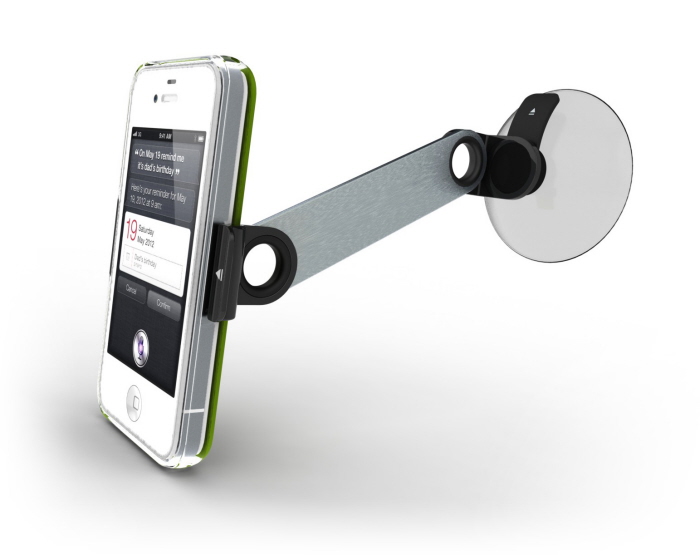

Case with suite of snap on accessories. Car mount shown.
![](https://s3images.coroflot.com/user_files/individual_files/67808_pc_3ia7lgff3ah2cfvoqox7ak.jpg)

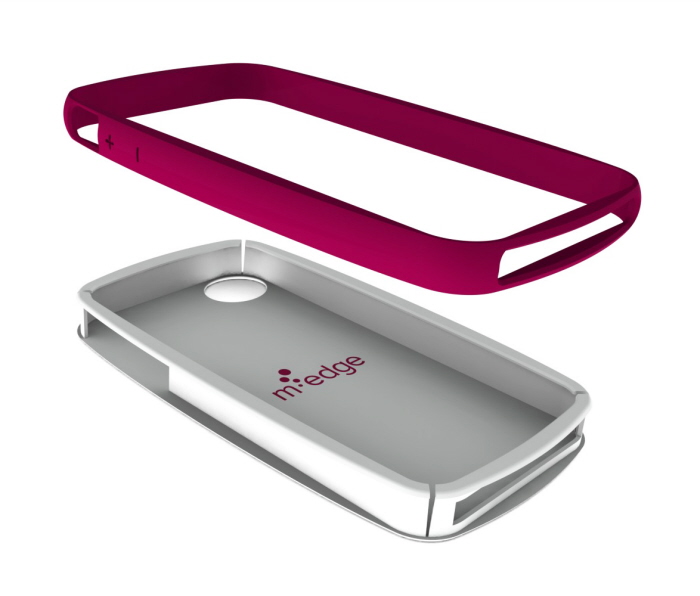

Two piece concept with flexible sides for a better snap fit.
![](https://s3images.coroflot.com/user_files/individual_files/67808_0lgaqqxdyqm60twfdexsisy5c.jpg)

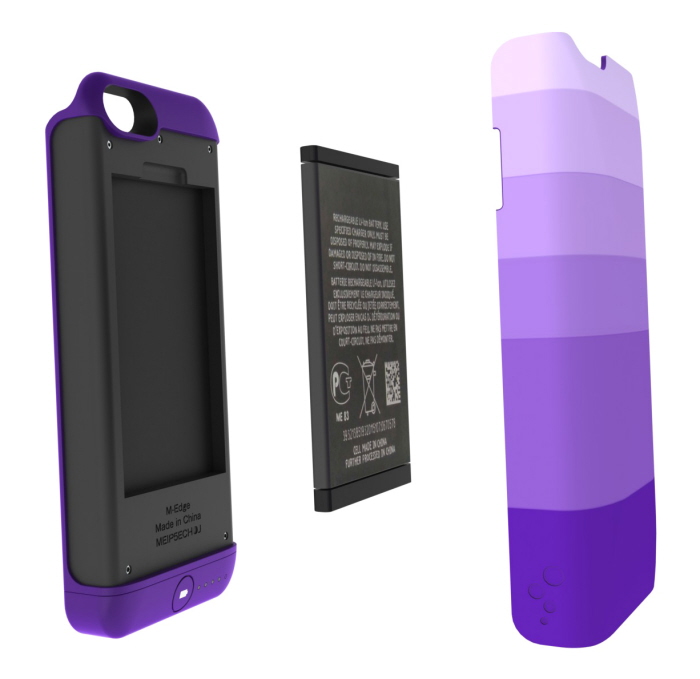

Battery charging case concept with replaceable battery.
![](https://s3images.coroflot.com/user_files/individual_files/67808_rdqyhr4pzdswosjfa5s75hkjr.jpg)

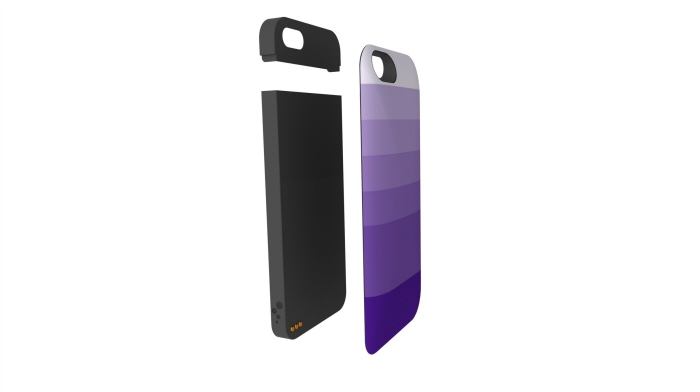

Battery case concept with magnetic attach battery.
