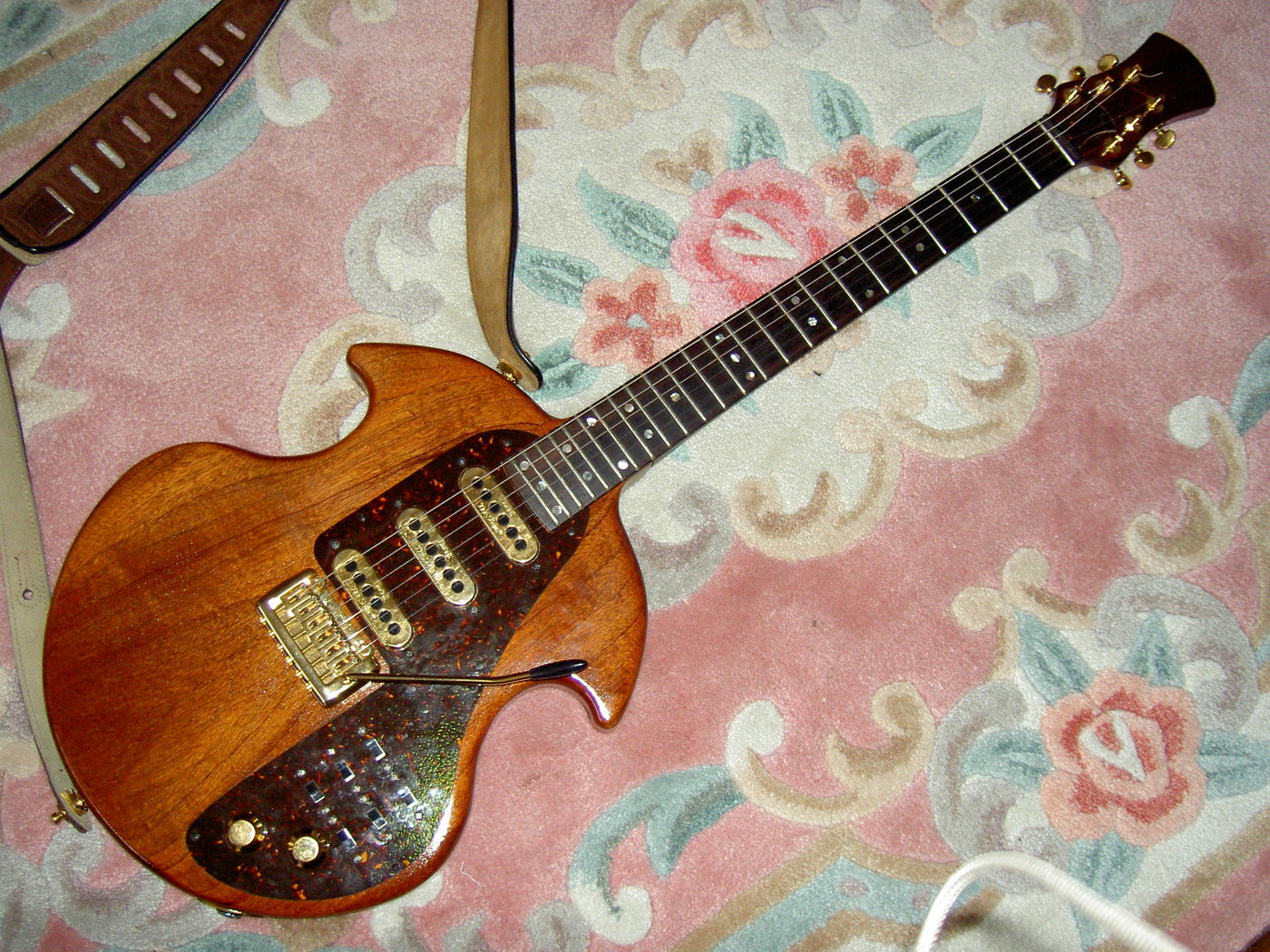

The Completed Guitar built in loving memory of my Grandfather; not a guitarist, but an extraordanary Engineer.
![](https://s3images.coroflot.com/user_files/individual_files/251102_CfNPVXg2LEA320jdgGVAemy6H.jpg)

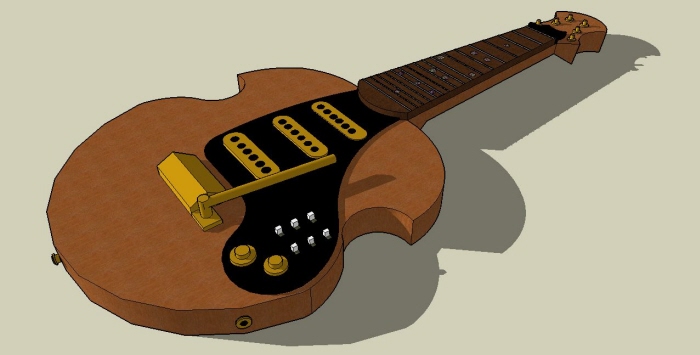

CAD drawings using Google Sketch-up of my electric guitar that I built in my A2 year when I was 18.
![](https://s3images.coroflot.com/user_files/individual_files/251102_SrzLuQpR5pzzUdbCptNY4fssu.jpg)

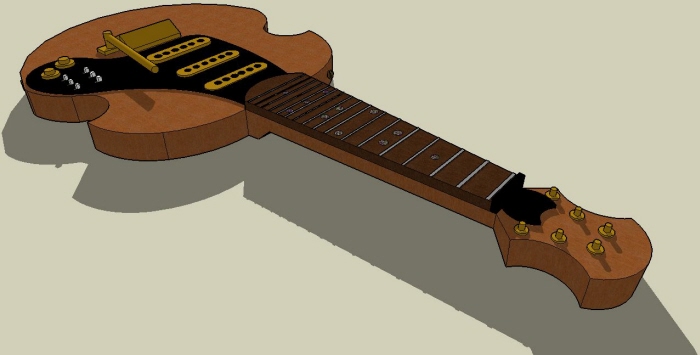

CAD drawings using Google Sketch-up of my electric guitar that I built in my A2 year when I was 18.
![](https://s3images.coroflot.com/user_files/individual_files/251102_WQ9cQl0ktBkdVfaYb5aAD1VRZ.jpg)

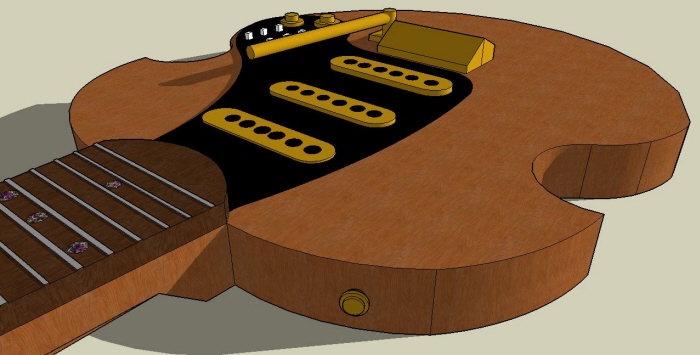

CAD drawings using Google Sketch-up of my electric guitar that I built in my A2 year when I was 18.
![](https://s3images.coroflot.com/user_files/individual_files/251102_DQILe4jFdJjIZRkDAvk0gYafP.jpg)

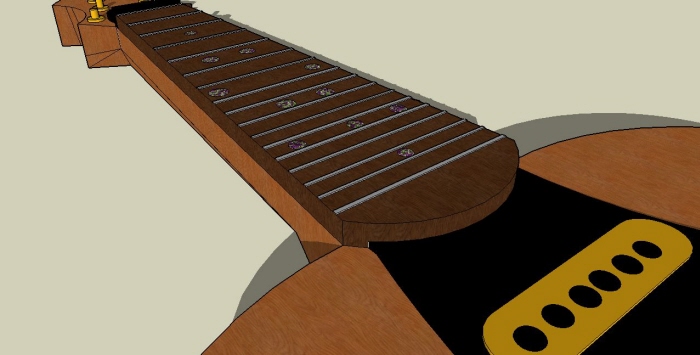

CAD drawings using Google Sketch-up of my electric guitar that I built in my A2 year when I was 18.
![](https://s3images.coroflot.com/user_files/individual_files/251102_cVwmZCN3C6VVQoRgFcTSWFS9u.jpg)

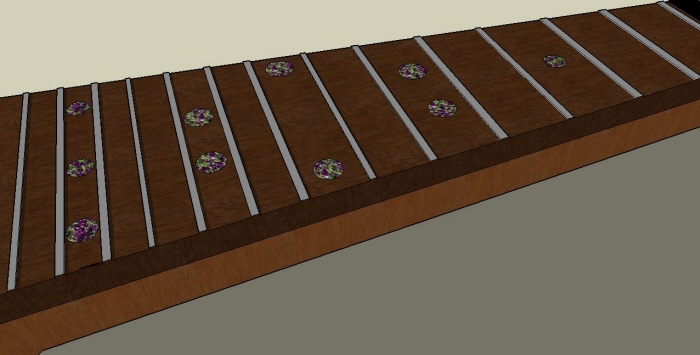

CAD drawings using Google Sketch-up of my electric guitar that I built in my A2 year when I was 18.
![](https://s3images.coroflot.com/user_files/individual_files/251102_RD8NjXu4n68vqRx5h5k1JCbwM.jpg)

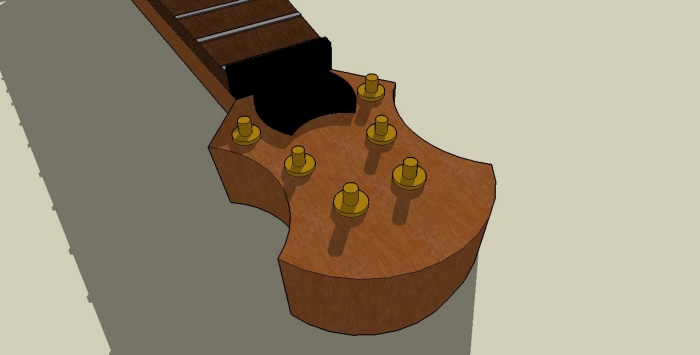

CAD drawings using Google Sketch-up of my electric guitar that I built in my A2 year when I was 18.
![](https://s3images.coroflot.com/user_files/individual_files/251102_vBsrToOIH6dYn2cNEEcn7XCps.jpg)
Some pictures of how the guitar neck was built:

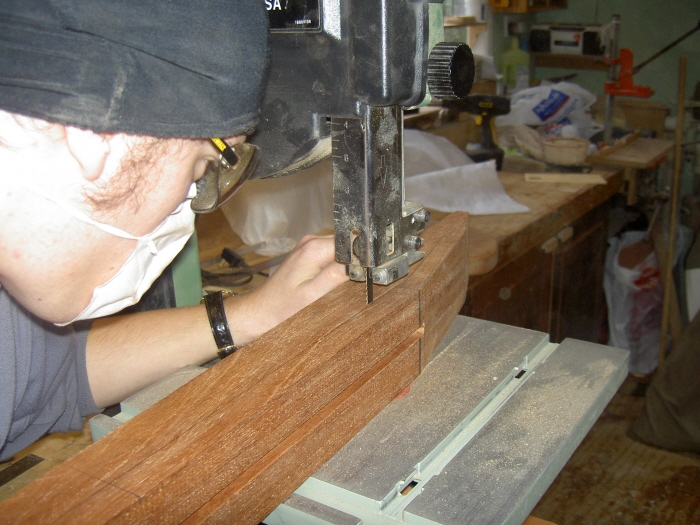

1. Cutting the main shape
![](https://s3images.coroflot.com/user_files/individual_files/251102_u2xxcmFewklBNTamc2RrcUuI7.jpg)
Some pictures of how the guitar neck was built:
2. Ensuring the Truss Rod cavity was easily accessable
![](https://s3images.coroflot.com/user_files/individual_files/251102_MA4PSSk1zAxYBPzOzBMM5EUVG.jpg)
Some pictures of how the guitar neck was built:
3. Drilling holes in fret board for Inlay
![](https://s3images.coroflot.com/user_files/individual_files/251102_l2qhfkZCMJ3Jex7cZw50mzBLx.jpg)
Some pictures of how the guitar neck was built:
4. Placing inlay in holes
![](https://s3images.coroflot.com/user_files/individual_files/251102_2s5hkkTb_J58YZuAG06zvBMGz.jpg)
Some pictures of how the guitar neck was built:
5. Radiusing the fingerboard
![](https://s3images.coroflot.com/user_files/individual_files/251102_UoDXqQa_6xRSomKxCHymbZs44.jpg)
Some pictures of how the guitar neck was built:
6. Shaping the neck
![](https://s3images.coroflot.com/user_files/individual_files/251102_R1UM3cnUwMWa1OtSovmeqEsV0.jpg)
Some pictures of how the guitar neck was built:

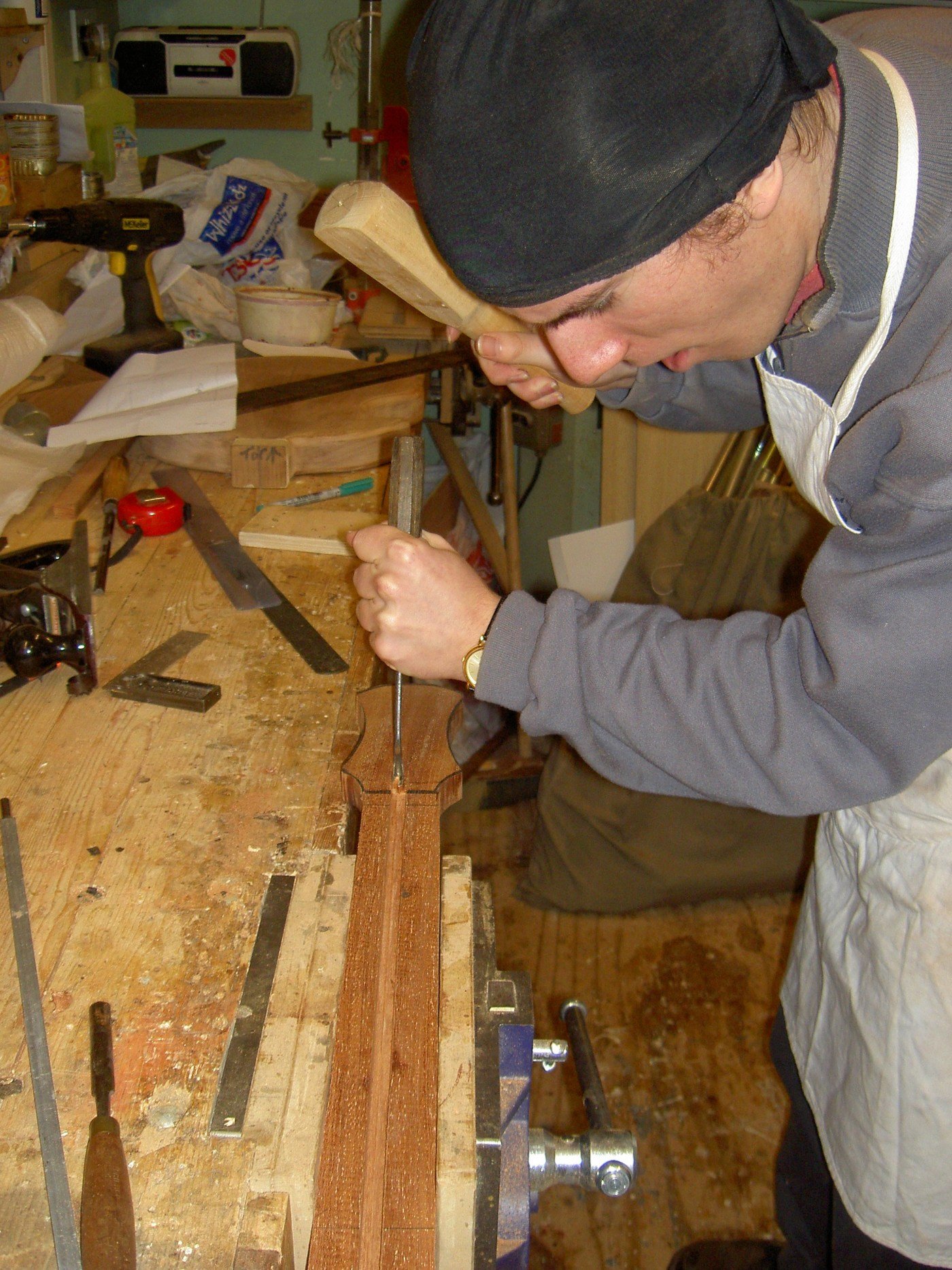

7. Hammering in the fret wire
![](https://s3images.coroflot.com/user_files/individual_files/251102_C7gYpHIT_EHHbfawIrNd2JEdh.jpg)
Some pictures of how the guitar body was built:
1. The body template
![](https://s3images.coroflot.com/user_files/individual_files/251102_z7d8MdLLuhHJoomgQwhLS5nbG.jpg)
Some pictures of how the guitar body was built:
2. Cut out the body and round off the edges
![](https://s3images.coroflot.com/user_files/individual_files/251102_98JJjipC9Ubk6DwUwcDRp4qrx.jpg)
Some pictures of how the guitar body was built:
3. Create the neck cavity
![](https://s3images.coroflot.com/user_files/individual_files/251102_h_QOF6GoQTcX77tRR9yw75egq.jpg)
Some pictures of how the guitar body was built:
4. Create the tremolo bridge cavity
![](https://s3images.coroflot.com/user_files/individual_files/251102_9tvPvKNrIHaLigiBk888odhF7.jpg)
Some pictures of how the guitar body was built:
5. Drill holes for the input jack and strap bolts
![](https://s3images.coroflot.com/user_files/individual_files/251102_XekoPQP7vw17m4llQa5LL59tm.jpg)

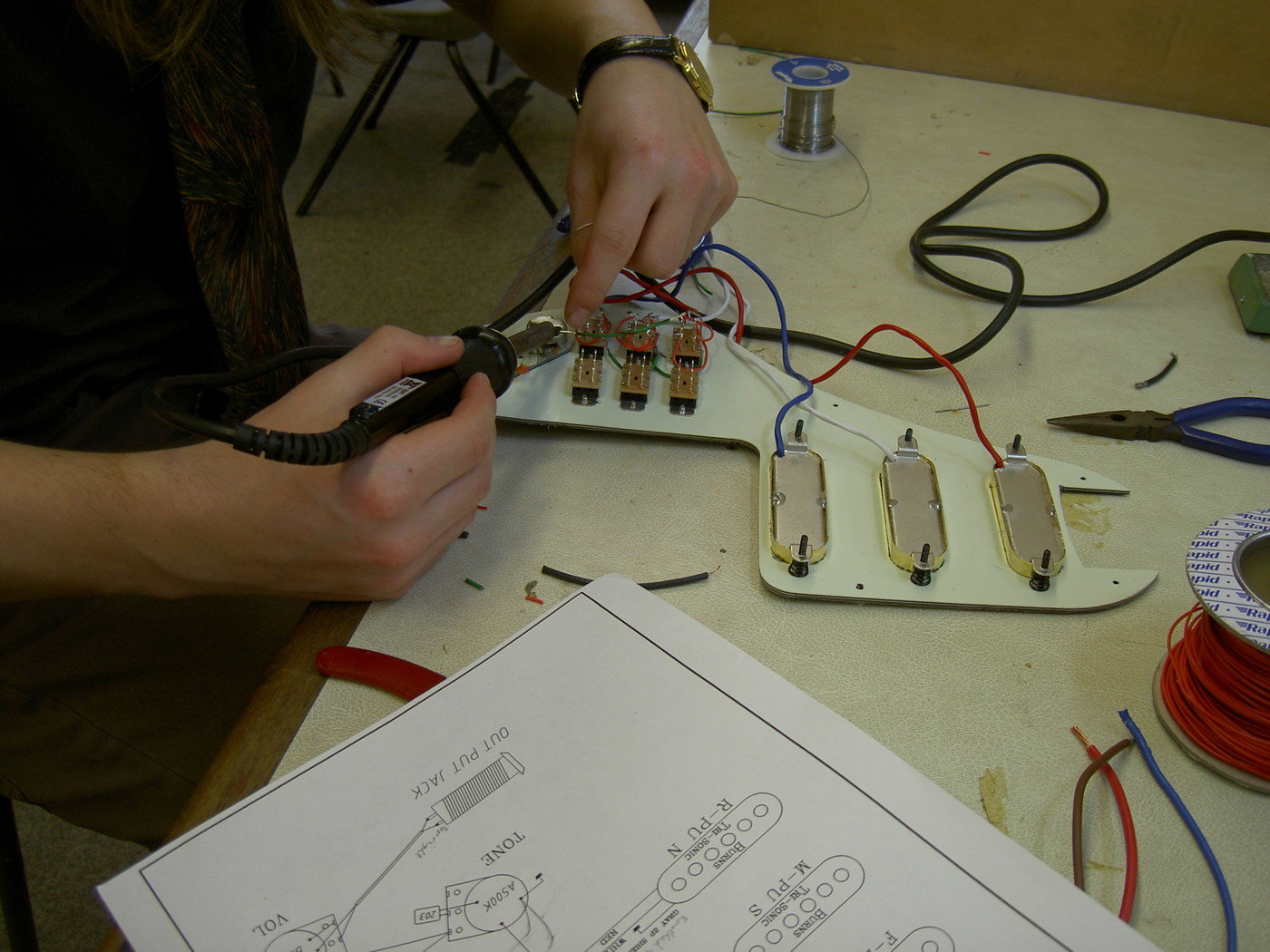

The Wiring for my Guitar, which uses the same electronics and configuration used by Brian May of Queen and his famous Red Special guitar
![](https://s3images.coroflot.com/user_files/individual_files/251102_GA7IykjfN9n4lYEuvFpGgc14P.jpg)

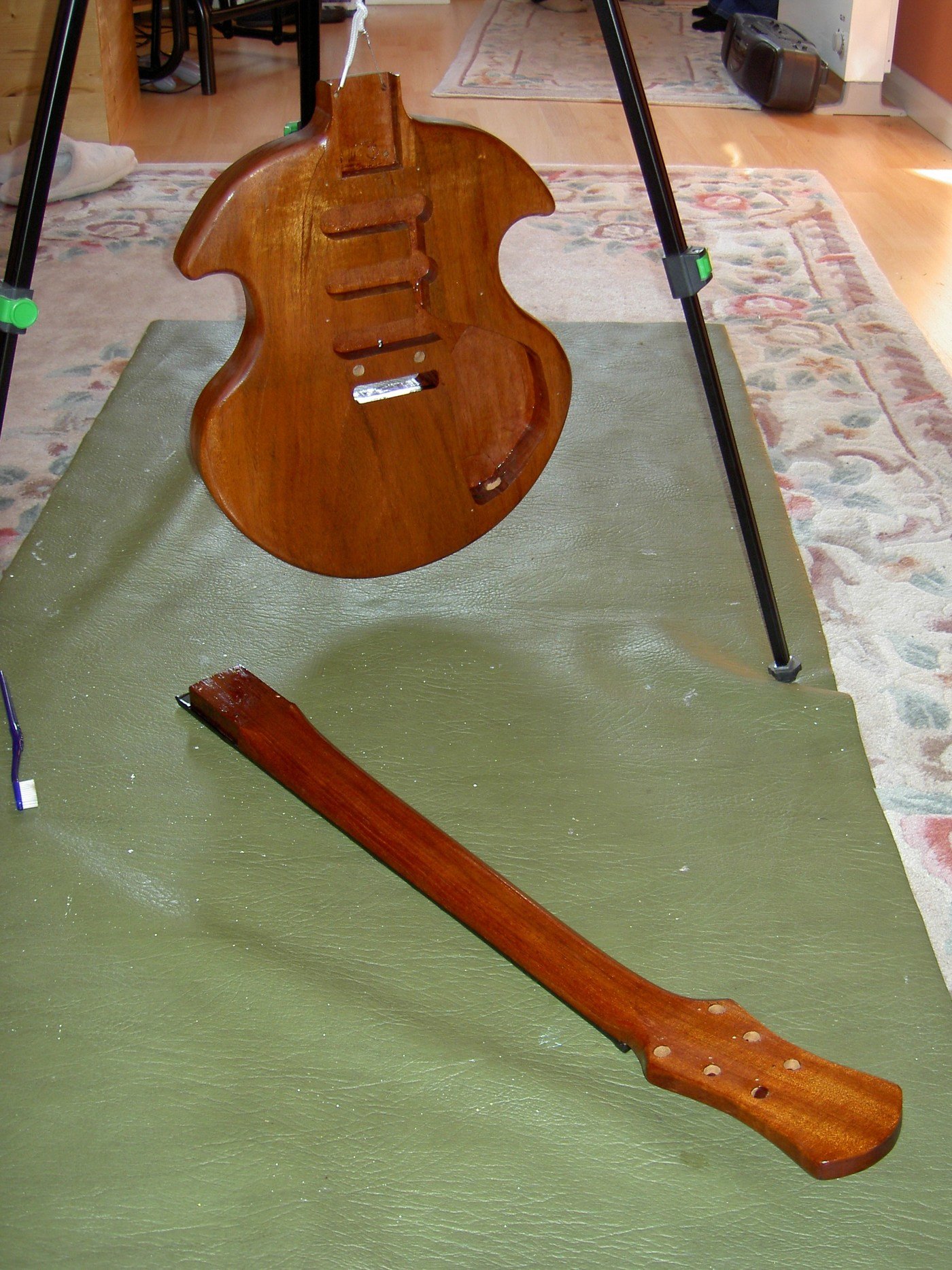

Gun Oil was coated on the neck and body, giving out a really dark colour really bringing out the grain
![](https://s3images.coroflot.com/user_files/individual_files/251102_jpbmgtxKRZKFle8zZSGD8Ha5M.jpg)
The Completed Guitar built in loving memory of my Grandfather; not a guitarist, but an extraordanary Engineer.

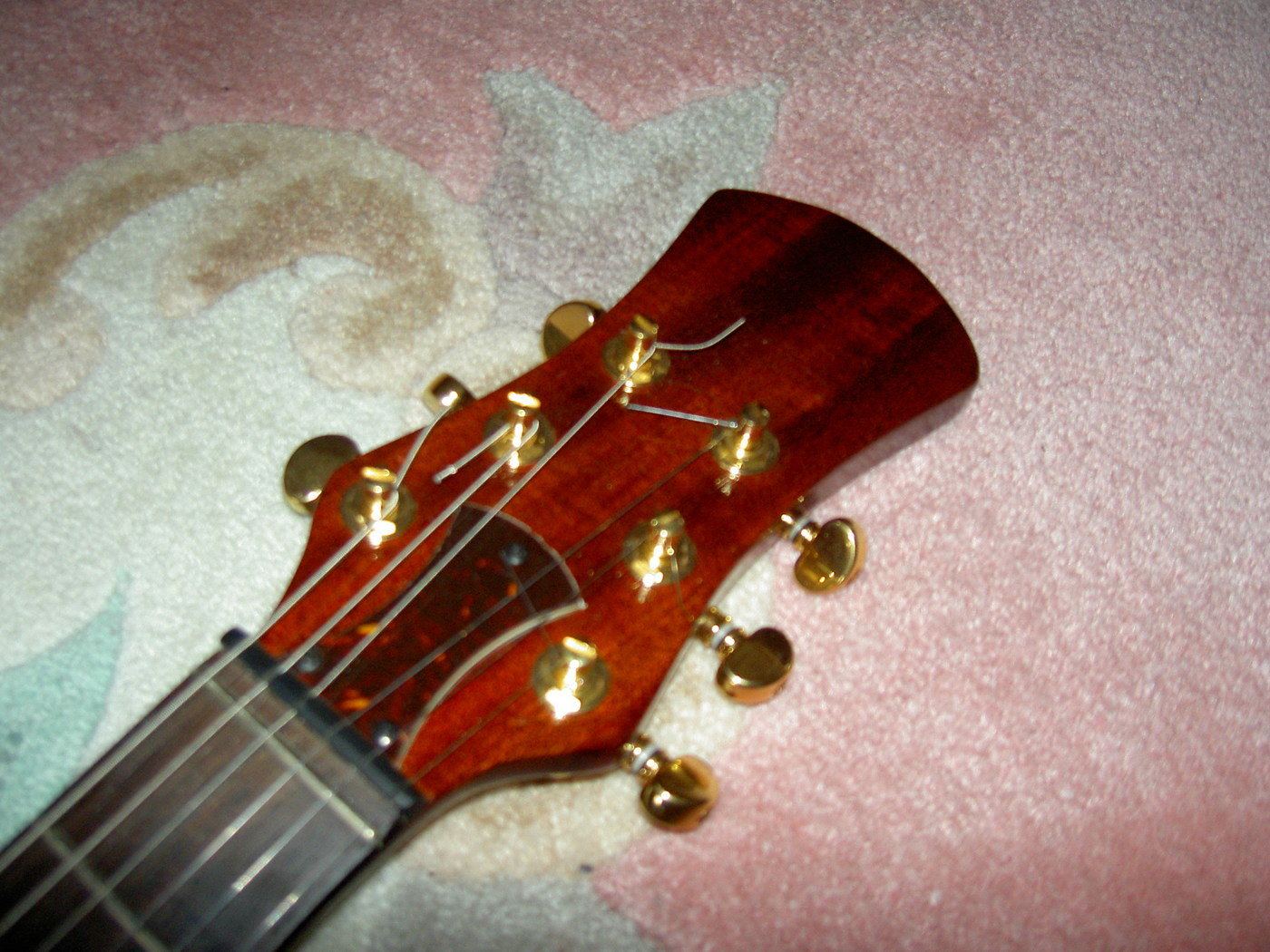

The Headstock, Mahogany Neck complete with gold Grover Locking Tuners
![](https://s3images.coroflot.com/user_files/individual_files/251102_CyjEWZShT_XbYaWbxcBia2AHW.jpg)
The Completed Guitar built in loving memory of my Grandfather; not a guitarist, but an extraordanary Engineer.

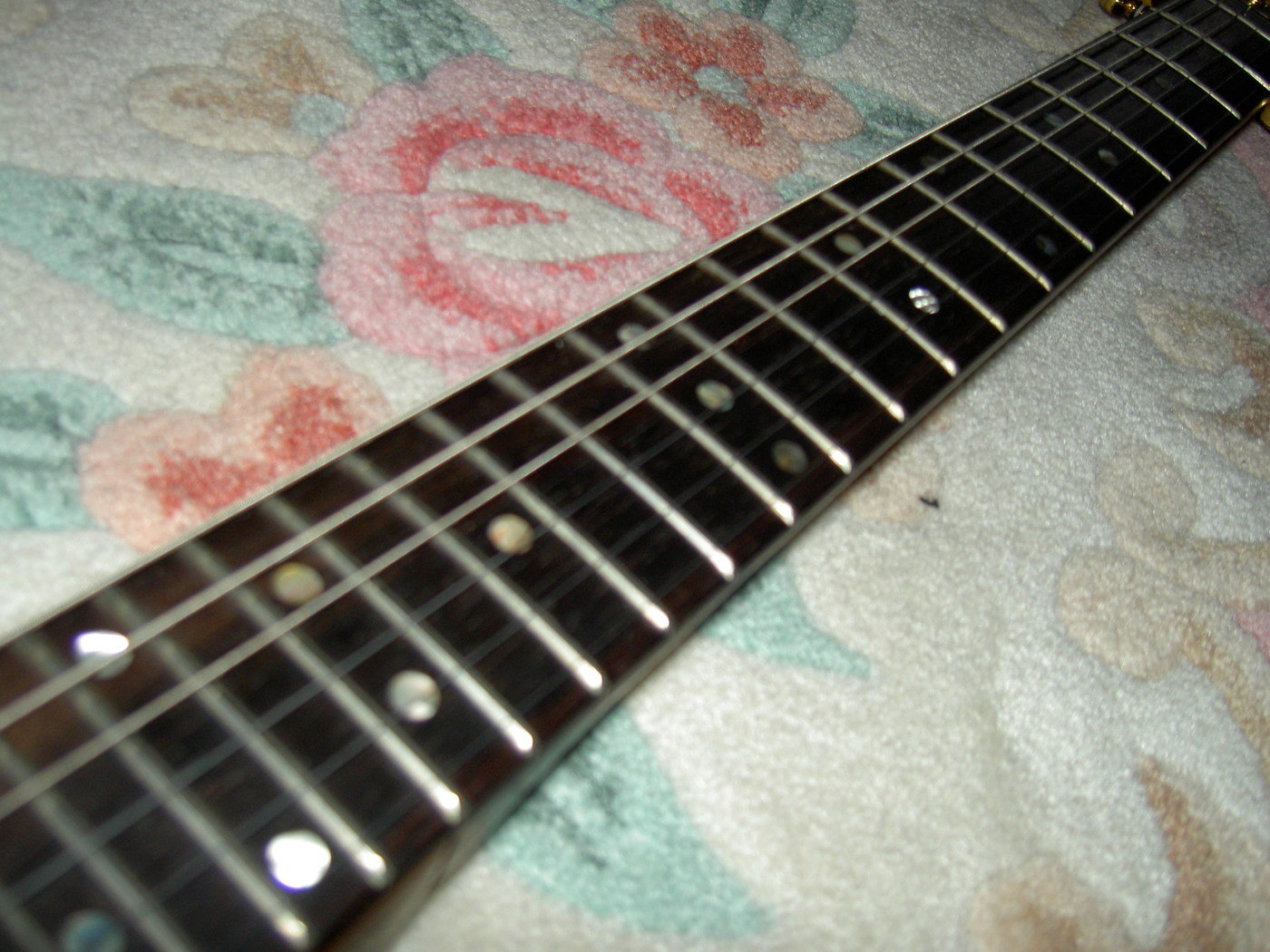

The Fretboard, Rio Rosewood with abalone inlay and 24 frets
![](https://s3images.coroflot.com/user_files/individual_files/251102_Hh4GFFFO4VkRVbO_gsV7B1KAi.jpg)
The Completed Guitar built in loving memory of my Grandfather; not a guitarist, but an extraordanary Engineer.

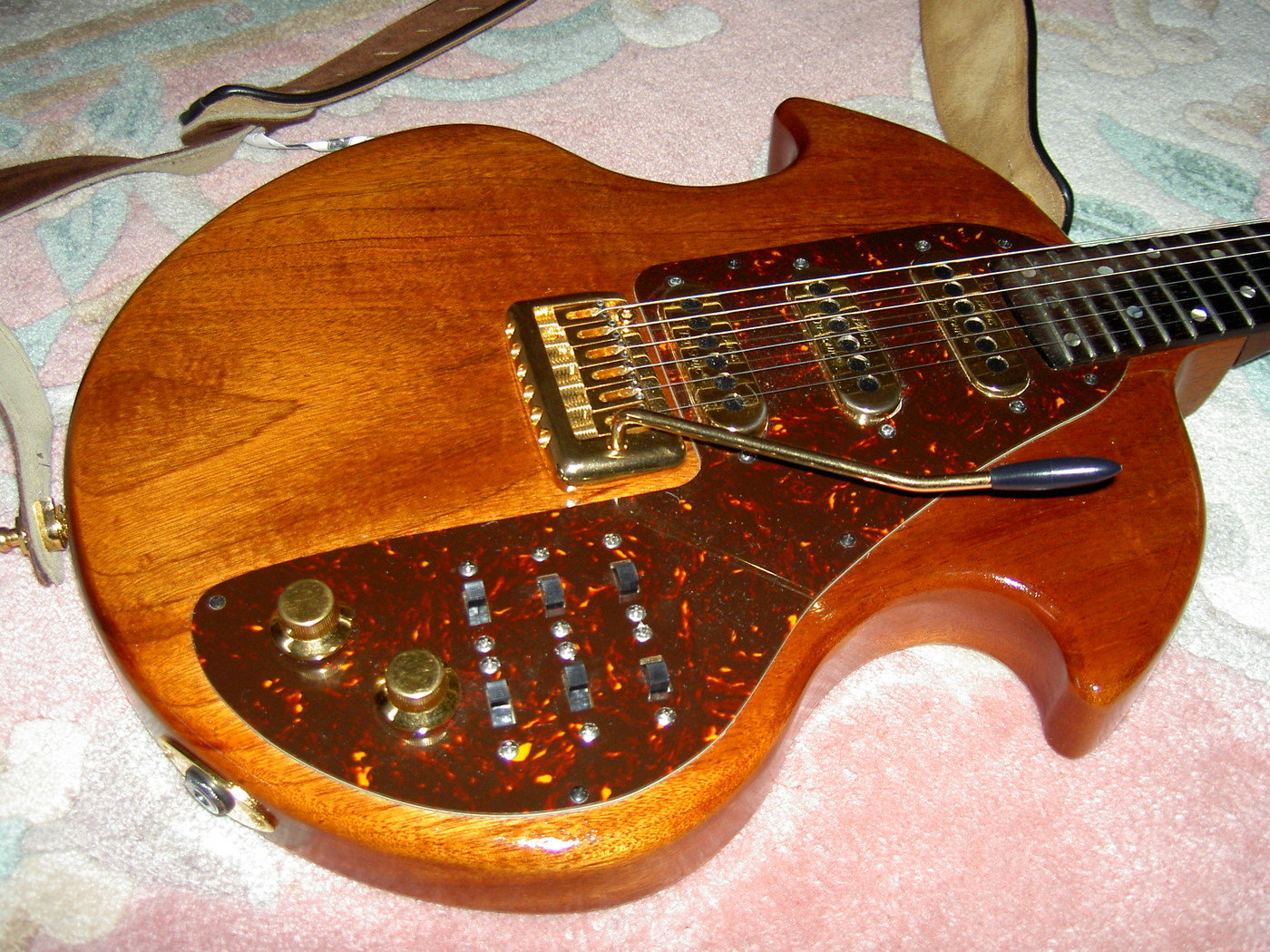

The Mahogany Body, with a gold Wilkinson floating tremolo bridge, three gold Burns Tri-Sonic Pick-Ups mounted on a 'tortoise shell' pickguard.
![](https://s3images.coroflot.com/user_files/individual_files/251102_WJXZ0CoGkhvP4gGeleUsgIX_g.jpg)
The Completed Guitar built in loving memory of my Grandfather; not a guitarist, but an extraordanary Engineer.
Taking the guitar for a spin!
![](https://s3images.coroflot.com/user_files/individual_files/251102_fY9IvydqS763SYd3nmdKN_C5u.jpg)
The Completed Guitar built in loving memory of my Grandfather; not a guitarist, but an extraordanary Engineer.
A very happy chap and a special guitar called 'Brian'
