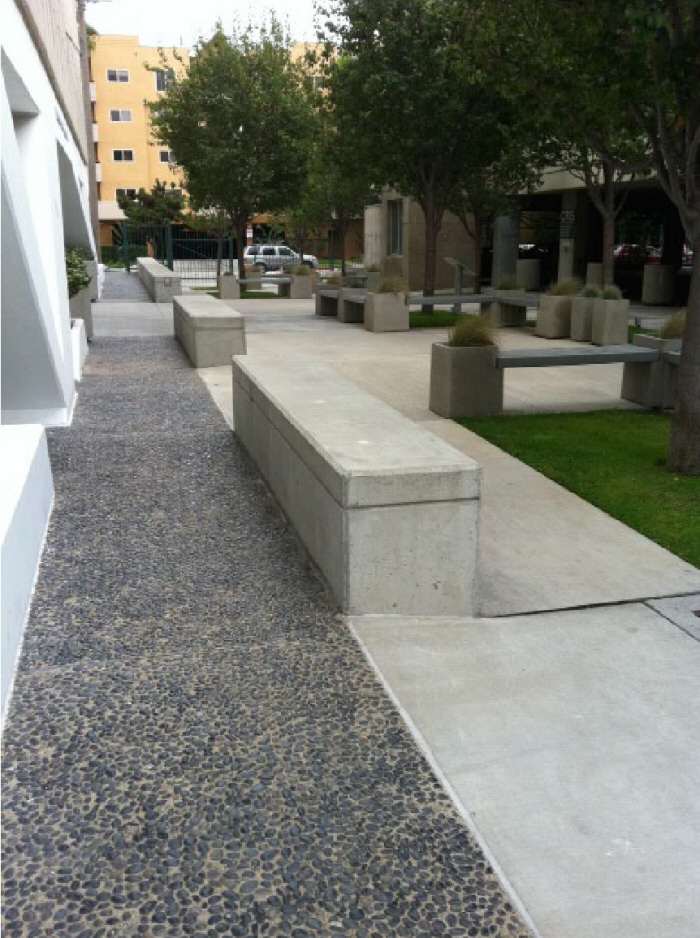

East view of the courtyard. This building used to be an IBM building designed by Eliot Noyes. The facade of the building has its windows punched out to resemble a "punch card"

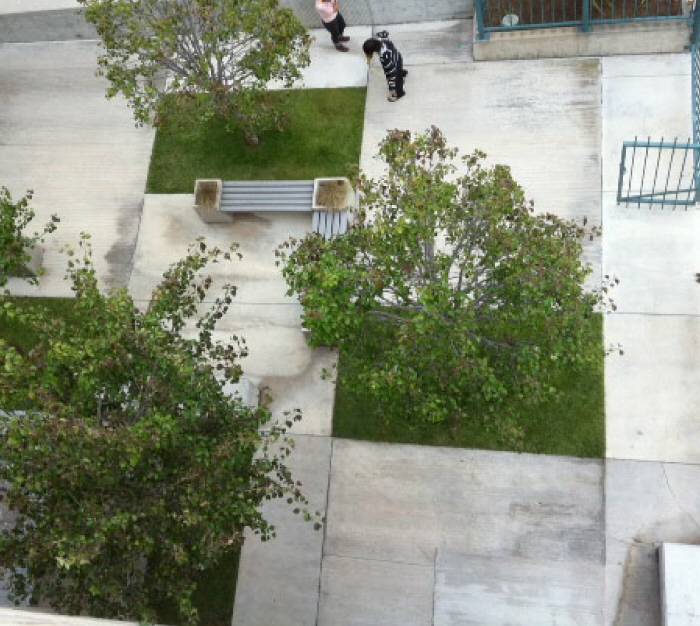

Aerial View of the Courtyard. As you can see in the previous photos the building has rectangular windows punched out to resemble a time punch card. The designer continued the rectangular idea to the patches of grass in the courtyard.
gLike
Otis Courtyard 2010 - Modeling
Otis Courtyard 2010 - Modeling

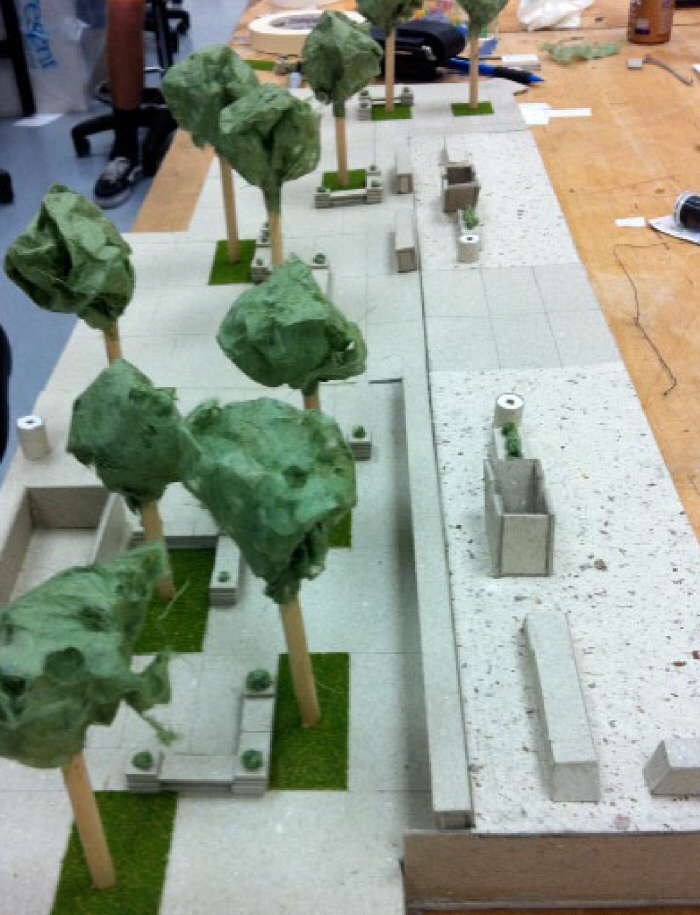

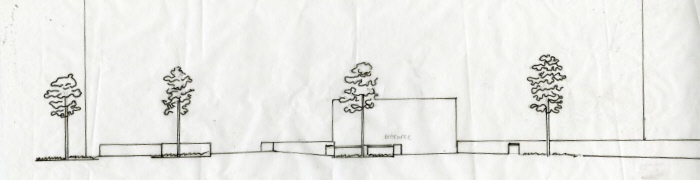

This was an exercise to recreate the courtyard at OTIS. Hand drawings with pen and chipboard model at 1/8" = 1'0"
