Color Scheme

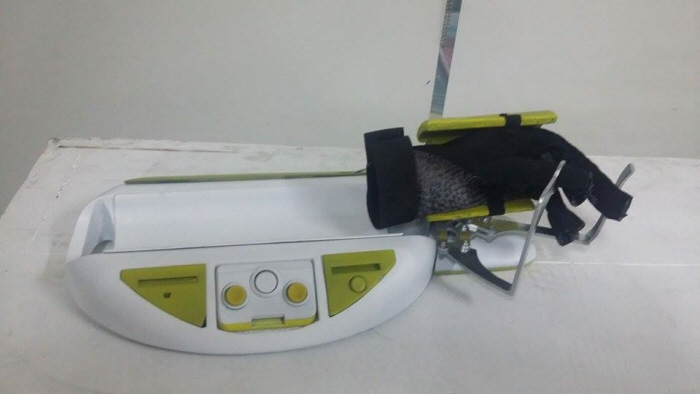

Regarding the controls of the Remote, there are three buttons:
1. White Button is the START function to use the device. Once done, pressing the button will turn off the device.
2. Left Yellow Button is the automatic movement of the Gripper which supports the disabled fingers and thumb, letting the gripper perform close - open motion of the hand continuously.
3. Right Yellow Button is the manual movement of the Gripper. First press will let the gripper make a closing movement of the hand. Second press lets the disabled hand open again, as in the relaxed position.

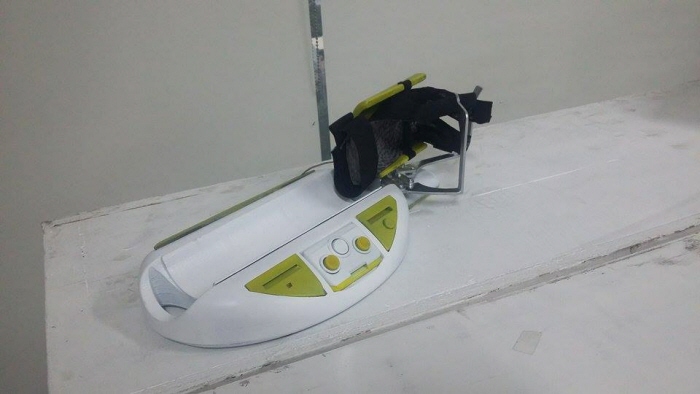

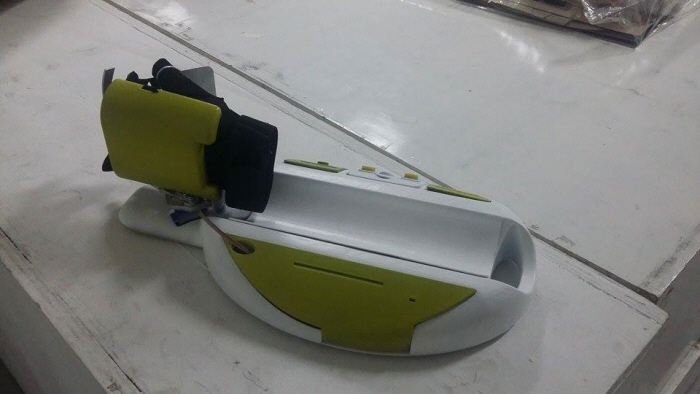

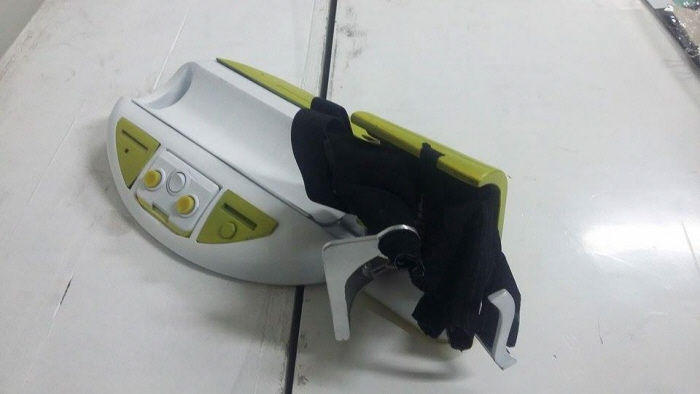

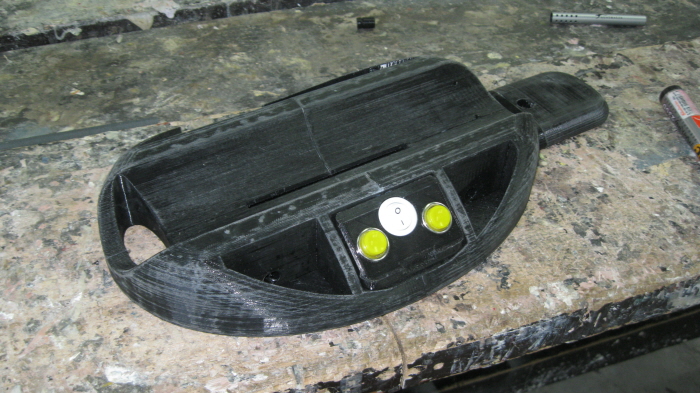

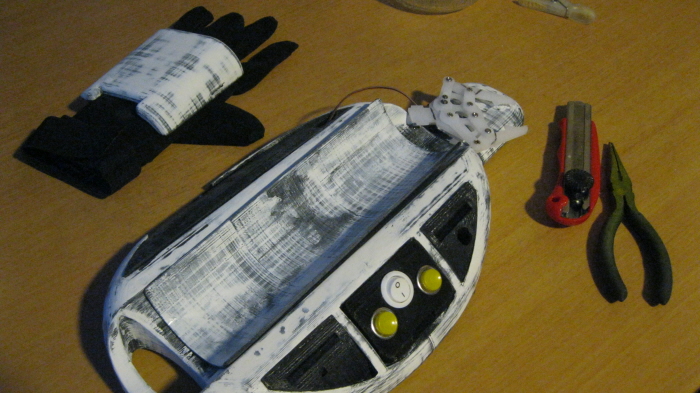

3D printed prototype for final defense presentation.

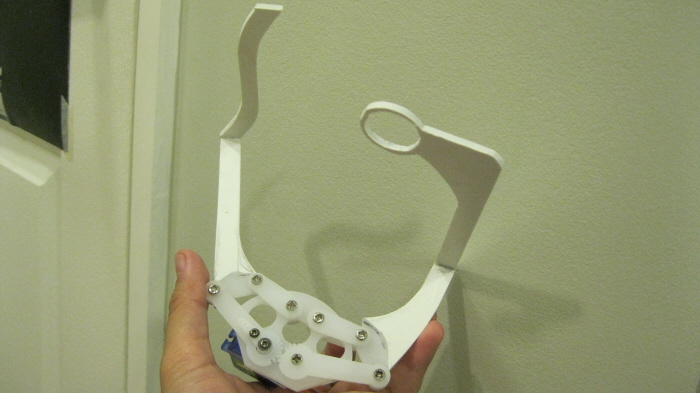

Joints are made of PVC and installed with Guizduno gripper.
gLike
THERA HAND
This is my College Thesis, a specific exercise device for the disabled wrist, thumb and fingers. Especially designed for Hemorrhagic Stroke Victims.
3D Program: SolidWorks 2013
