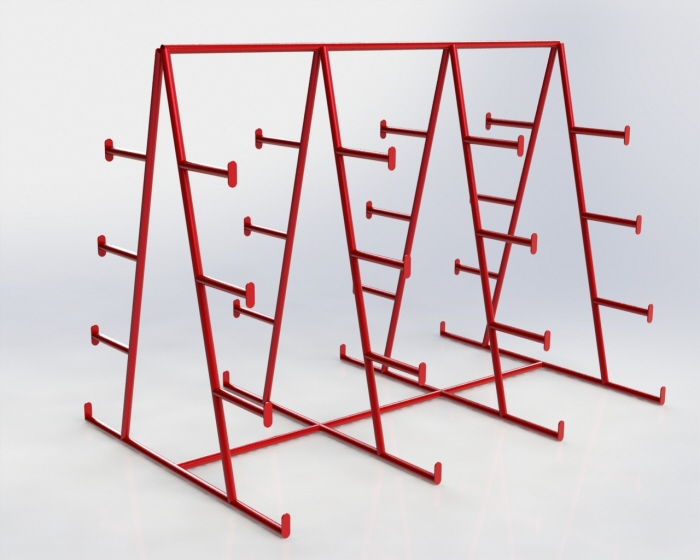

Weldment Project

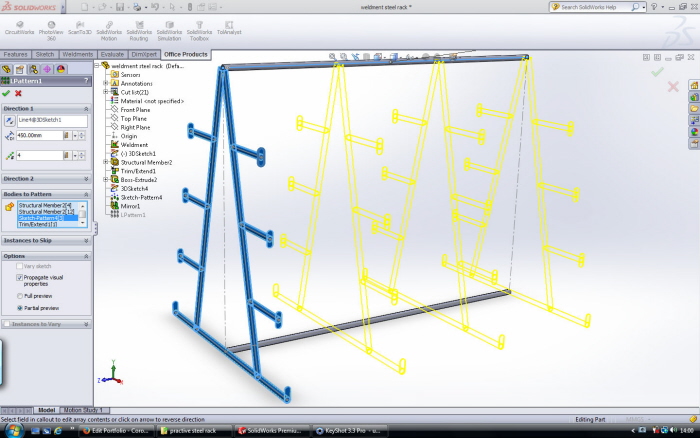

Weldments functionality enables you to design a weldment structure as a single multibody part.

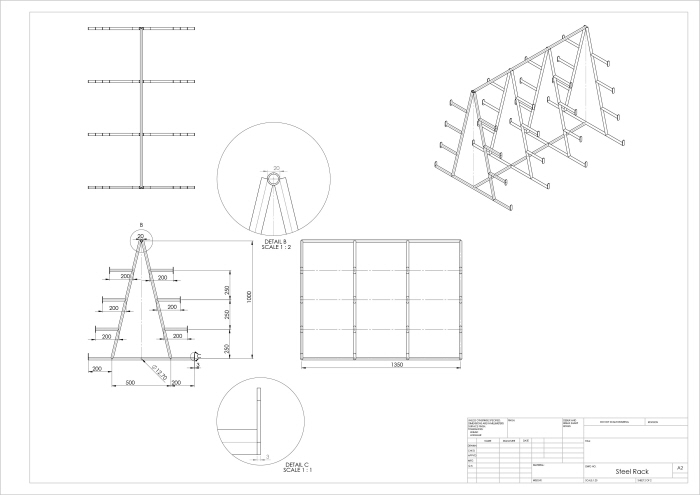

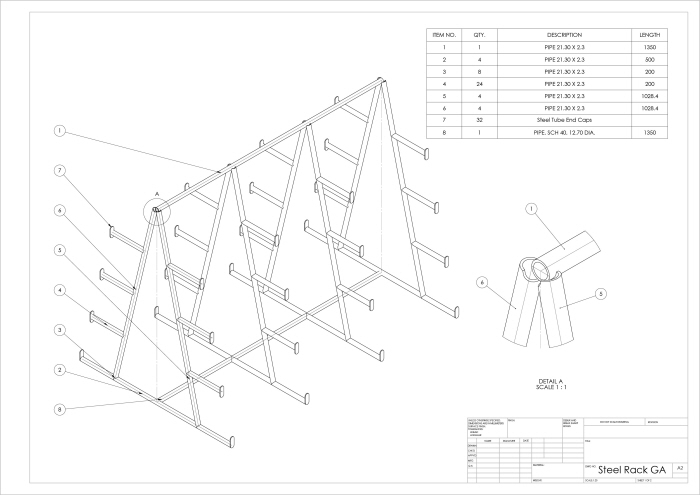

i used 2D and 3D sketches to define the basic framework. Then you create structural members containing groups of sketch segments. i also add items such as gussets and end caps using tools on the Weldments toolbar. And after i am happy with my model. A drawing of the Cuts list will be made.
