![](https://s3images.coroflot.com/user_files/individual_files/613050_uqhgszunwyjernfszge4vftmq.jpg)
Before seeing any image display upon my monitor, I first need to format a MicroSD card with a FAT file system and copy a version of BerryBoot v2.0 - bootloader universal operating system installer to the card. BerryBoot will allow me to run my OS from a USB memory stick. The 1st gen Pi board doesn't have enough on-board memory to do otherwise.
![](https://s3images.coroflot.com/user_files/individual_files/613050_pwny7g9fpsmmpfx9duuwqizvv.jpg)

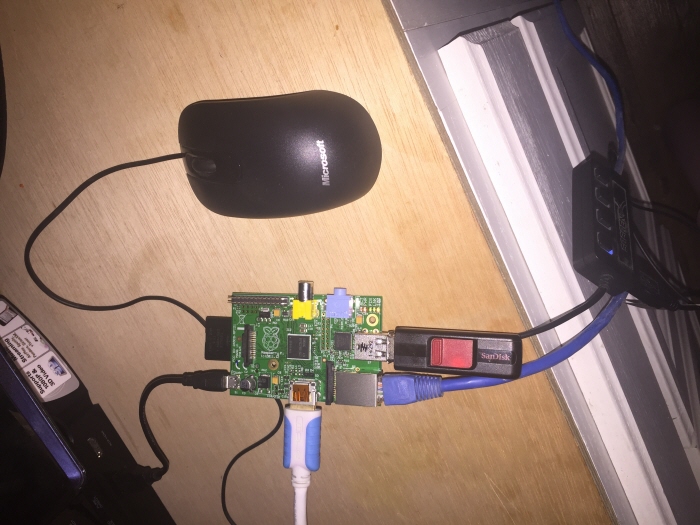

No WI-FI yet. Moving to the TV room, where I have a network cable to connect to for downloading the Raspbian Linux based OS from the IP. I can specify this download to install directly to the USB stick. The MicroSD card with still be required for booting the board though.
![](https://s3images.coroflot.com/user_files/individual_files/613050_e7oyfqoip9vr3oefovu8hydjo.jpg)
Simultaneous download and install of OS to USB memory stick.
![](https://s3images.coroflot.com/user_files/individual_files/613050_tsyn76resfyacupoprwvecx_l.jpg)
Next, it's time to see if I can find some driver support for this usb sound card. Otherwise I'm stuck using the PCM mini plug output directly from off the board. A less than desirable audio will result from using the later.
![](https://s3images.coroflot.com/user_files/individual_files/613050_zqmfjpxp9jfd7alldqr8wpl_c.jpg)
Microphone Input, and Stereo Output is supported on this device. The drivers come up within Raspbian whenever device is connected. No problems here.
![](https://s3images.coroflot.com/user_files/individual_files/613050_xxncjb4zxshxzvi_o44jz70k8.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/613050_qq2t_rydpng9ixakx2u3obhak.jpg)
I have used Putty to install a VNC server onto the Raspberry PI. A bash script is deployed at boot to start the server whenever the Pi is running. Next I install Pure Data successfully, and begin to create a Pure Data patch over my local network using a VNC client from my Windows PC.
![](https://s3images.coroflot.com/user_files/individual_files/613050_7spzdrtdekfao3con5_r_rynz.jpg)
Pure data is installed and up and running. I have created a 16 step saw wave sequencer patch to begin designing and testing against. The next step will be to get the GPIO pins working. My aim, for starters, is to be able to send gate/trigger symbols out of those pins.
![](https://s3images.coroflot.com/user_files/individual_files/613050_mnj8wf7cvtravycua57ma9r42.jpg)
I've made a nifty little enclosure for my pi.
