![](https://s3images.coroflot.com/user_files/individual_files/original_613050_c8RaAeDm7rZLmC6SXcm_CAKEd.jpg)
Circuit trace courtesy of YuSynth.net. I will transfer this to transparency sheet by printing the image in monochrome on a Laser printer.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/613050_t0chgkrlve9s6l2y7kebtmzm2.jpg)

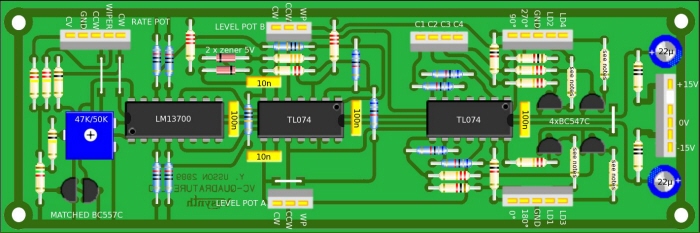

Components and layout reference.
![](https://s3images.coroflot.com/user_files/individual_files/613050_verqcwkpe97kchuwextbhollj.jpg)
I have etched the pcb and coated it with resin. It's now time for those resistors and diodes. Experience has taught me that It's best to solder in the flat components first.
![](https://s3images.coroflot.com/user_files/individual_files/613050_nqrr__akei5f6mmob2hgqqcgp.jpg)
Starting with resistors.
![](https://s3images.coroflot.com/user_files/individual_files/613050_zxay8cvg6ltpjtshfbucdzxrl.jpg)
Moving on to capacitors, IC sockets, diodes, and headers. I've decided to try out using some female headers for a change. I'm hoping it makes the wiring of pots and jacks a little less tedious for future builds.
![](https://s3images.coroflot.com/user_files/individual_files/613050__bmezapgjf_osqifyipqtczga.jpg)
The 1st build was a flop. Turns out the etch wasn't good, so I etched a 2nd board and this one works great.
![](https://s3images.coroflot.com/user_files/individual_files/613050_3ddsiwgzlczieyasrxbyy7rau.jpg)
This module looks fantastic with the circular rotating lights.
![](https://s3images.coroflot.com/user_files/individual_files/613050_dbuabshumft9kdp3gc0ihw8fj.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/613050_5lazgx4jwrtycu6ponklbajbi.jpg)
