![](https://s3images.coroflot.com/user_files/individual_files/473552_JaV9ae2ZeZCbRWkgvogkZzazz.jpg)
Master plan of entire development. the first phase of the development is to include 4 mixed use retail/multi-family structures in the middle of the pier. Infrastructure has been installed to bring the working docks up to 2012 standards with fibre optic communication, new working docks, new gatehouses and landscape around the whole pier. Buidlings have been cleared and now 'pad ready' for construction.
![](https://s3images.coroflot.com/user_files/individual_files/473552_j_IJUVCnt9zVBe2u6b3fsSx6_.jpg)

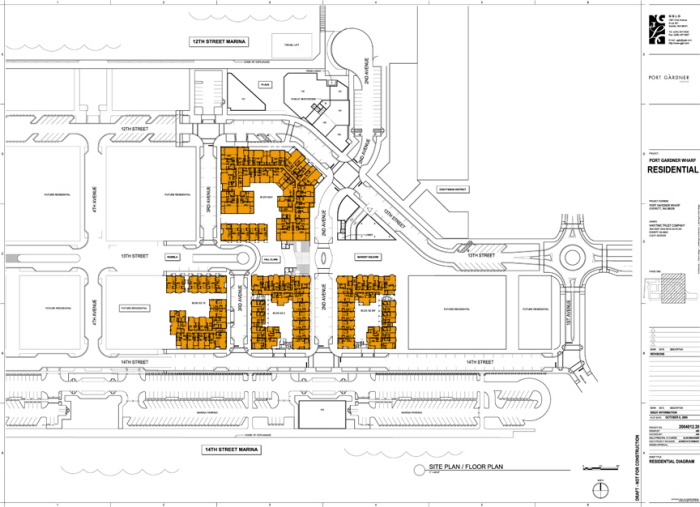

Phase I Residentail
![](https://s3images.coroflot.com/user_files/individual_files/473552_5cXbl8NYTbYvehGKD6RoPT5Zb.jpg)

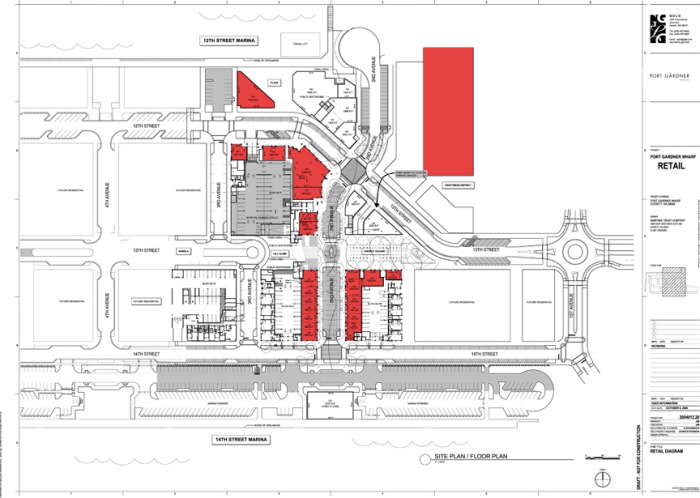

Phase I Retail
![](https://s3images.coroflot.com/user_files/individual_files/473552_46lNjZs2wOdPrgSuyXZ5DdwP9.jpg)

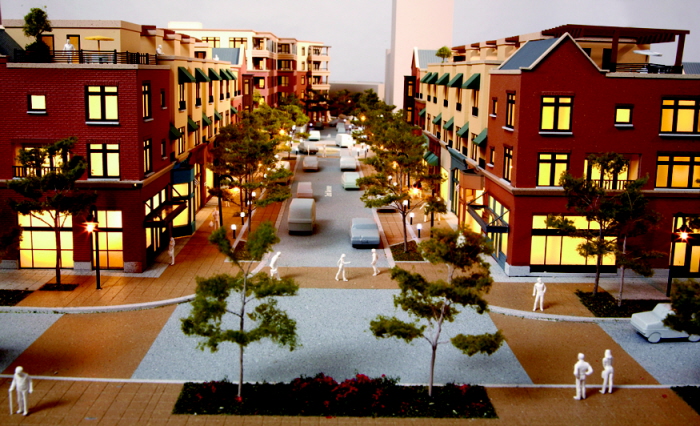

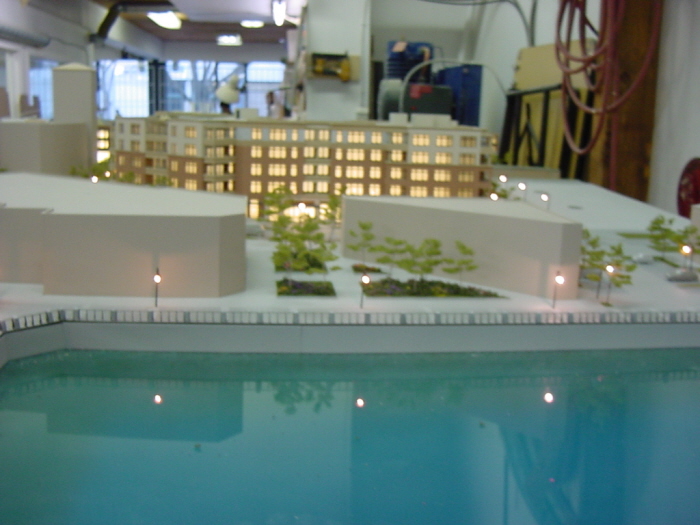

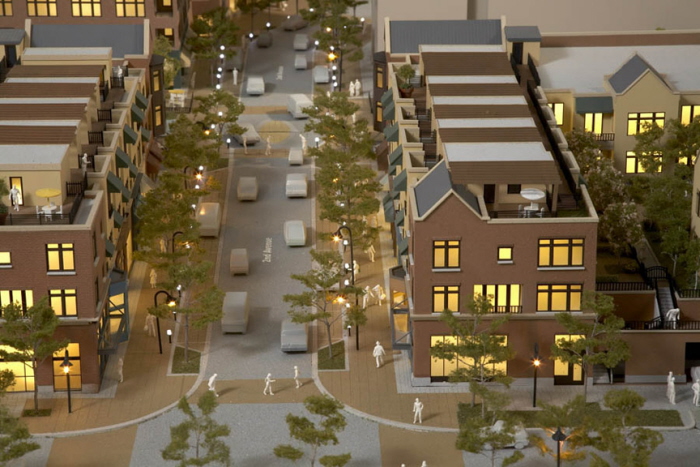

Professional model of Phase 1 Retail/Residential.
![](https://s3images.coroflot.com/user_files/individual_files/original_473552_z38wUPjLWsr5gE_ijlprY9GUp.jpg)

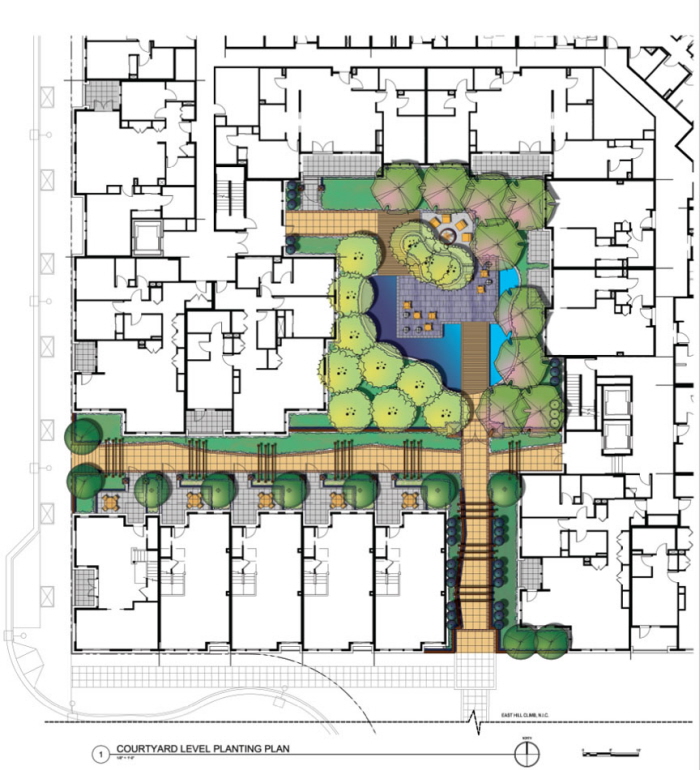

Integrated Landscape design with ipe pathways, trellis, firepit and water feature. All units, including internal courtyard units have a view to the sea or interconnected courtyard.
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/473552_fLjXcHSlVzR0TLCEcTFOwnbGx.jpg)

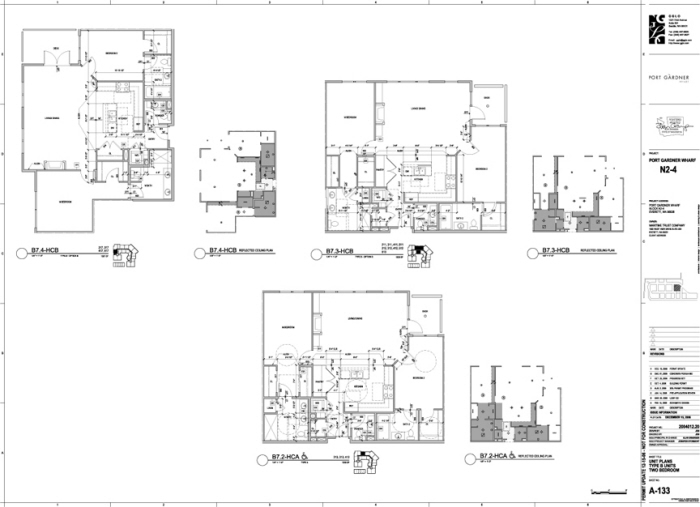

Typical unit pland and RCP diagram.
![](https://s3images.coroflot.com/user_files/individual_files/473552_OZeFdxGL8hV_bwVbKnQqb5SkS.jpg)

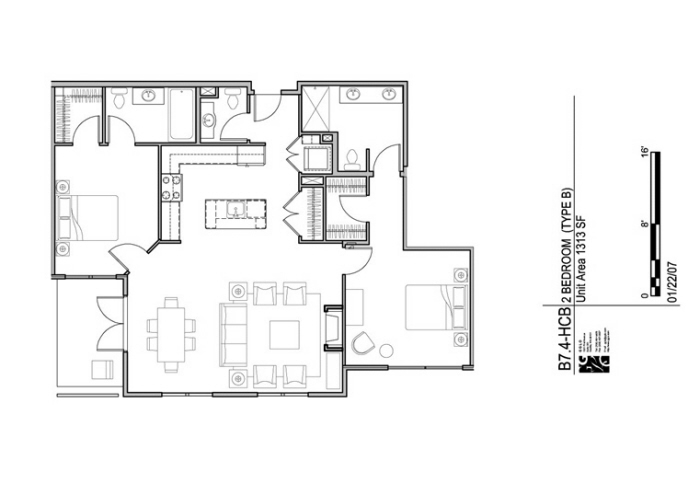

Typical 2-bedroom unit plan.
![](https://s3images.coroflot.com/user_files/individual_files/473552_u3mXnR0uYAHMKvVOv0eHdecgL.png)

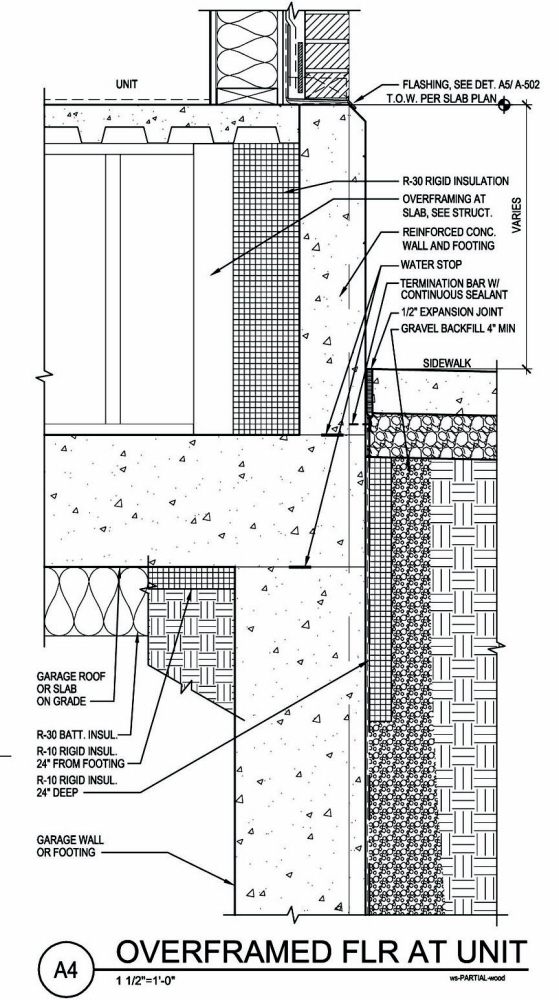

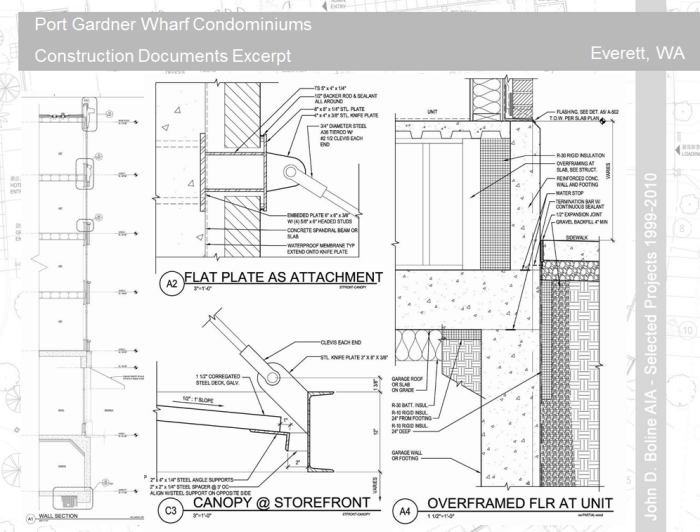

Architectural detail at structural overframing and curtain wall connection.
![](https://s3images.coroflot.com/user_files/individual_files/473552_ZPnBXytFEOXNQuSIJudEK0Zwc.jpg)
The challenge was to create a commercial community that is easily accessible to automobiles and at the same time is comfortable and inviting to pedestrians. To accomplish this we created a very clear pattern of circulation around the site and minimized visibility to parking. To enhance the pedestrian scale, streets are kept narrow, the blocks are modeled after Portland ’s intimate 200’ blocks, storefronts and live/work units line the sidewalk and numerous vistas and access ways are opened to the water.
![](https://s3images.coroflot.com/user_files/individual_files/473552_qrEk4tFvYywhR3z7d7T7thL2w.jpg)
Architectural elevation of Phase 1 anchor building.
![](https://s3images.coroflot.com/user_files/individual_files/473552__HMcL9YBsTiwFdO9CCG6_T_Rr.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/473552_I5oueucccYiK_aB20vescKkPf.jpg)

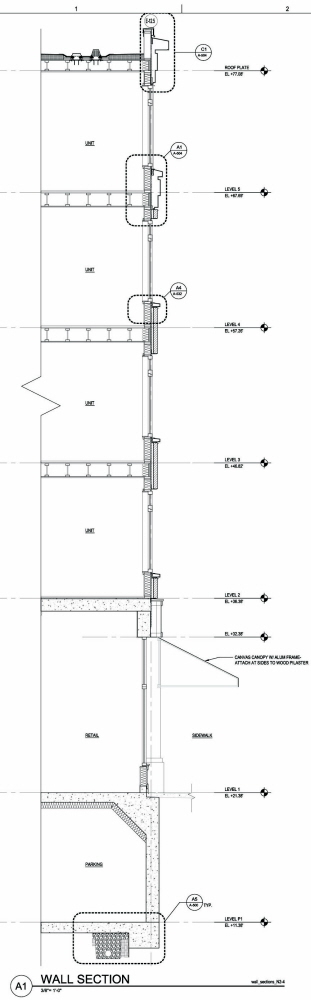

Technical wall section illustrating wood construction over concrete podium.
![](https://s3images.coroflot.com/user_files/individual_files/473552_BnrpmkLKwSDUDKC2DpToxNkCq.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/473552_XLlnLsHFYti08T3OZpc9vBDap.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/473552__ZTSewZXzb_ObrSgDUDy8FJRS.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/473552_rINt5jOfwNzwtkEI0Ydp_rdlj.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/473552_isJCjUxMcBINcrpmXQrA4f5Jc.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/473552_wKR3BtChQNXTwa4w00qeI6Pts.jpg)
