EQUINOX PORTABLE OXYGEN CONCENTRATOR
SeQual's engineering team provided us with a box containing all of the internal components. Our task was to explore new internal architecture configurations and create a new design that provided a decreased product footprint, improved usability, improved functionality, & improved service-ability. The result was 3 different product architectures that provided 3 unique form factors. This also provided 3 different battery configurations for each concept. Foam models were then created for evaluation in focus groups. Concept 3 was the preferred configuration & further developed.
Product Description:

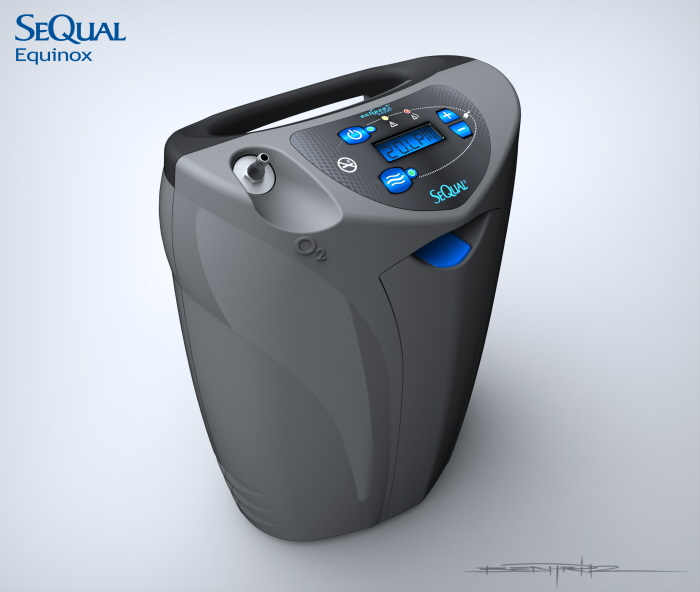

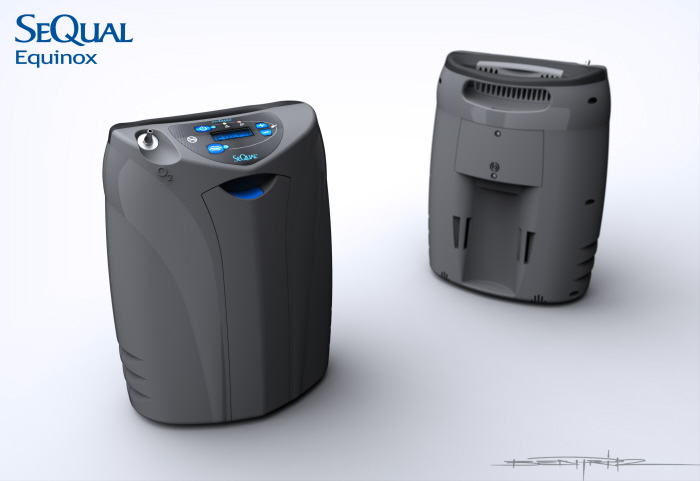

The eQuinox Oxygen Concentrator is the smallest transportable concentrator on the market.
Designed while at MFD
>> Design Research
>> Concept Ideation
>> Mechanism Design
>> Model Making
>> Color, Material, Finish
>> 3D CAD
>> Focus Group Experience
>> Human Factors
>> Photo Realistic Renderings
>> Client Presentations
