The 7th semester project was a multi-storey building with 5 levels and 4 fire categories.
The basement hosts 4 technical rooms, a car park, a gym, a fire safe room and storage facilities for the upper apartments.
The basement is tanked-up due to the fact that the building is designed next to other building.
A round elevator similar with Visilift, connects the basement floor with the ground floor and other elevator connects the ground floor with the upper floors.
The ground floor has commercial usage and the 1st and 2nd floor are residential.
The roof terrace is shared and all floors besides the 2nd floor is accessible for disabled people.
The glass dome on the roof terrace is scoped to refract the sun light during the winter solstice perpendicular on the atrium floor (gym ceiling) which is made of borosilicate glass for fire, architectural and structural reasons.
The structural design is defined by steal beams, columns and C profiles for the floors.

Cover page
View PDF
Render from Klosterbakken.
Interior render from the atrium floor in front of the stairs
The 22 of December (winter solstice) is the shortest day of the year meaning that the sun cannot go to a sharper angle compared with the Earth. Due to the Odense latitude, the smallest angle between the Sun and the Earth is 34 degrees. Having the southeast glass wall tilted at an angle of 56 degrees creates a sharp 90 degree angle with the atrium floor. On winter solstice, the sun lights perpendicular on the atrium floor. In the rest of the year, after the light enters in the atrium, is being refracted by the glazing walls which separates the hallways from the 1st and 2nd floor from the atrium. The floor of the atrium which is the ceiling of the gym is made of borosilicate glass in order to respect the danish fire regulations and to allow people circulation on it. The tilted glas panels should have in their component a metamaterial which allows the refraction of light to such a sharp angle. Please see https://en.m.wikipedia.org/wiki/Metamaterial for more details.

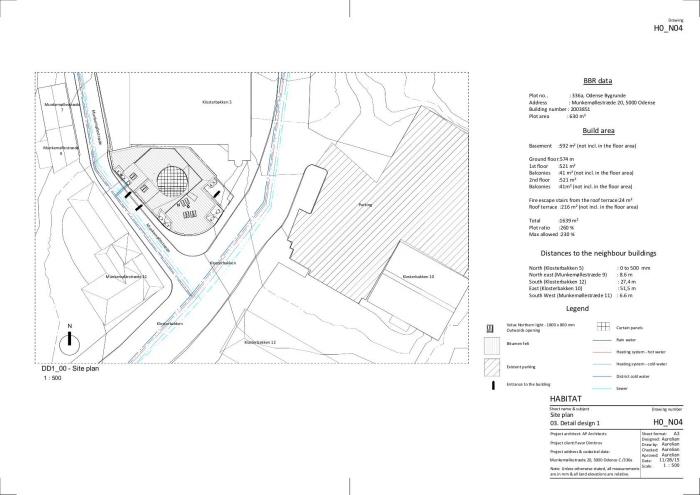

Site plan
View PDF

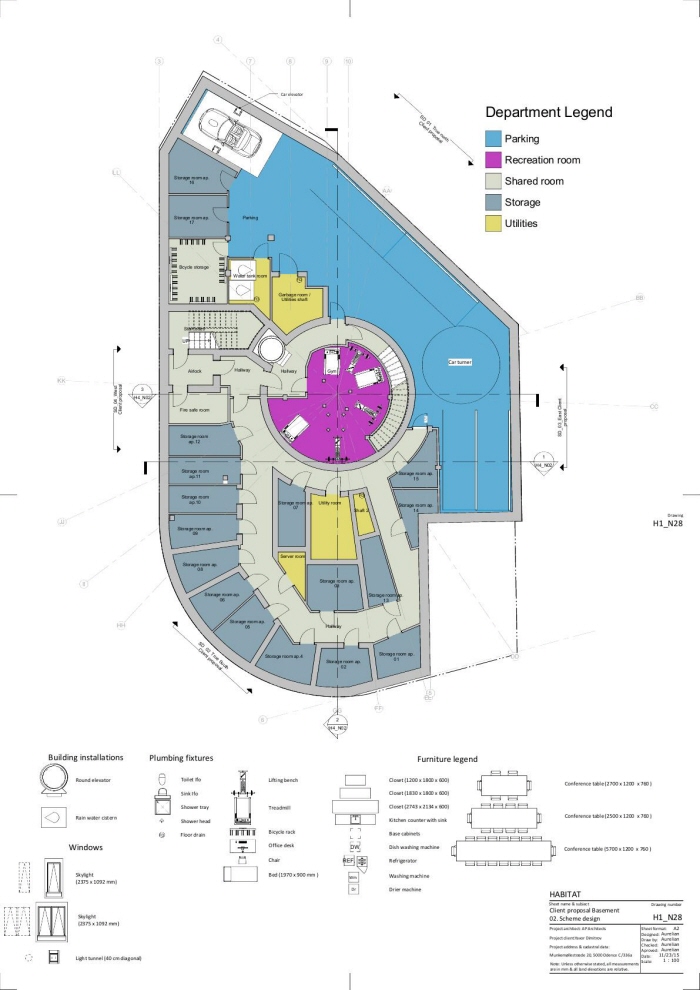

The basement hosts: -a car park with access to the street level via a car lift. - 4 rooms for utilities from which , 1 contains 2 storage cisterns for rain water and 2 has access to the utilities shafts. - a gym accessible to disabled people via a round lift to the ground floor. - storage units for apartments accessible to disabled people. - airlock and a gathering room in case of fire with connection to the emergency staircases.
View PDF

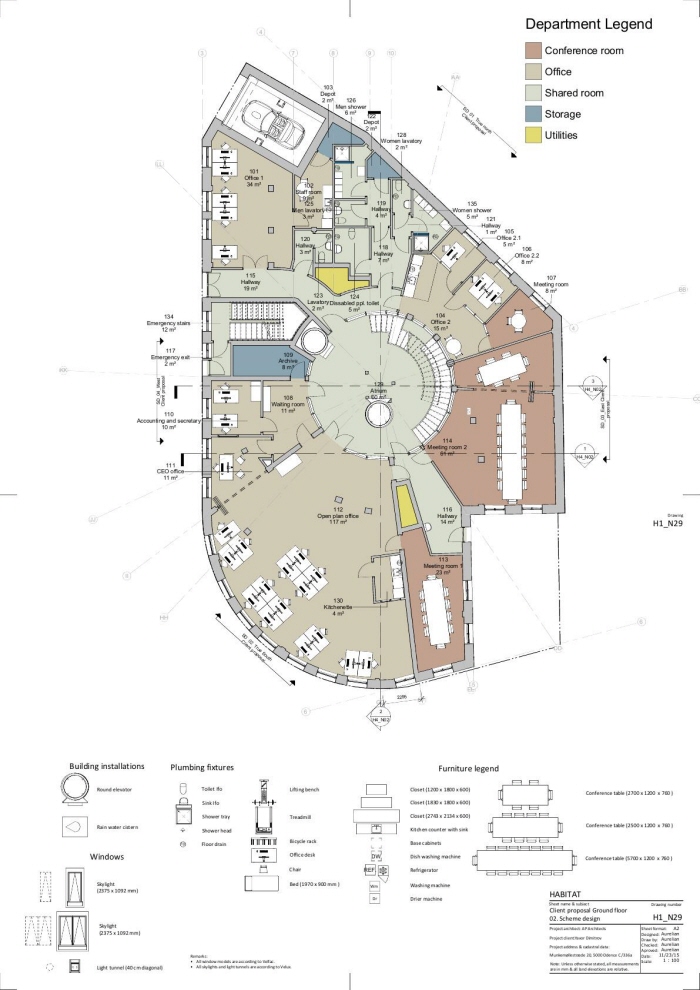

The ground floor contains: - 3 offices with food preparation possibilities; - 1 meeting room expandable using the folding wall and fitted for dining usage by having a sink in the nearby hallway; - 1 private meeting room for the biggest office; - showering and toilets for all commercial tenants and their clients; - a central atrium which allows the light to flood in from the roof; - emergency staircases; - 2 hallways, from which, 1 allows the fast access of disabled people from the parking fit for the usage of a van;
View PDF
1st floor
2nd floor

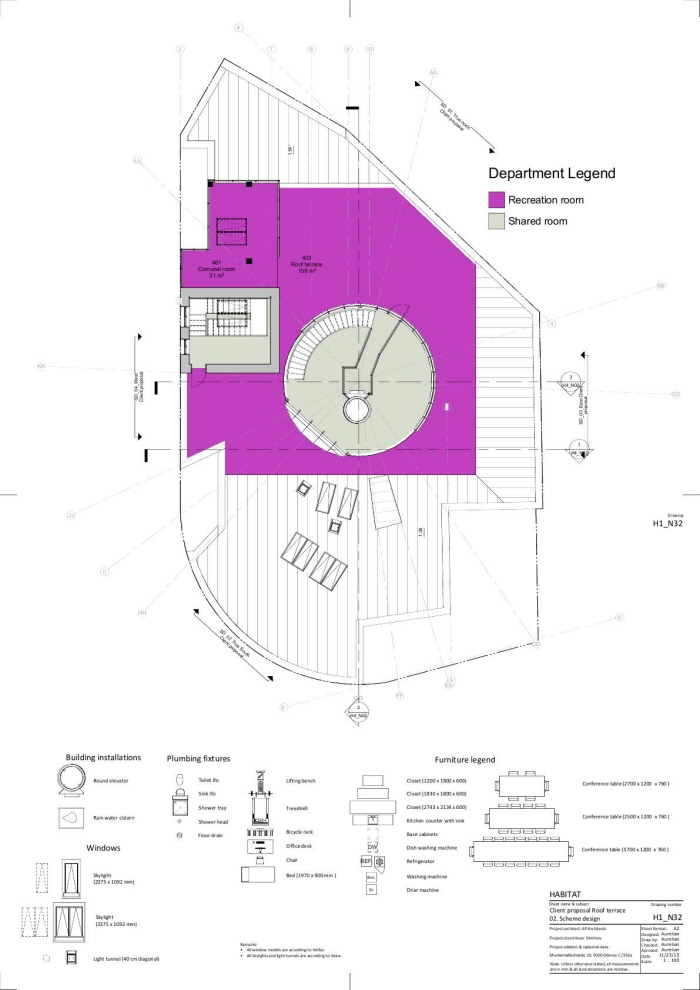

The roof terrace contains: - a communal room which is not enclosed in order to be avoided from the floor area calculation; - a roof terrace usable by all tenants for recreational activities and barbecues; - the emergency staircases which has automatic skylights that can allow the smoke eviction from the building;
View PDF

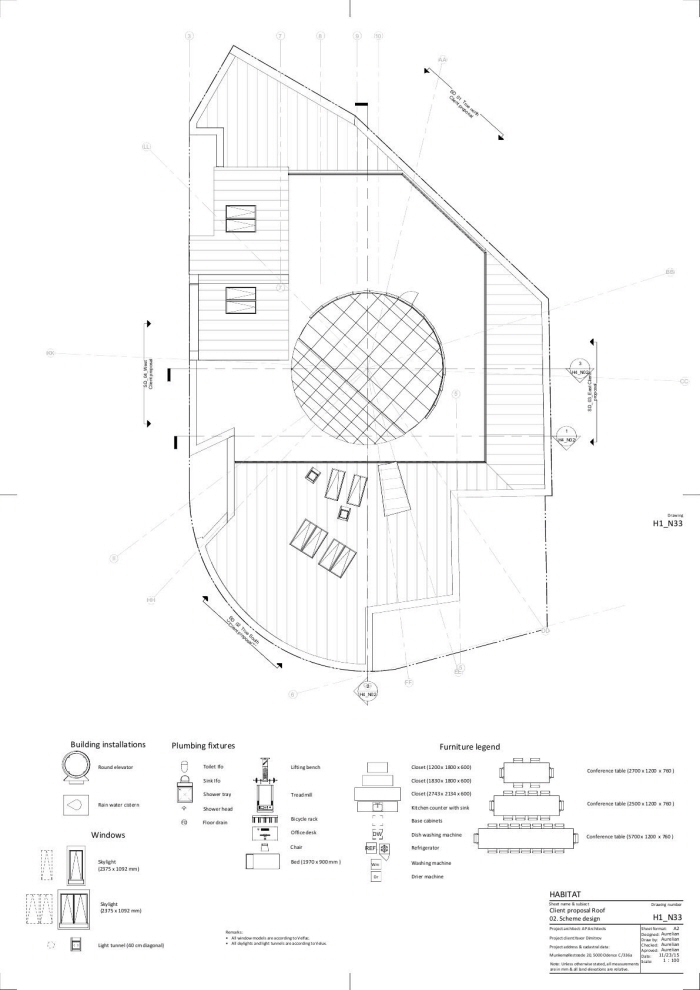

The roof contains: - the atrium's dome; - some skylights for allowing the light to penetrated the deeper parts of the longest apartments form the 2nd floor; - some light tunnels for allowing the light to penetrate the deeper parts of the longest apartments from the 1st floor;
View PDF
North and east elevation. The gray walls represents the sand-blasted glass screen between the shared balconies for privacy reasons;
View PDF
South and west elevation. The blue walls represents the sand-blasted glass screen between the shared balconies for privacy reasons;
View PDF

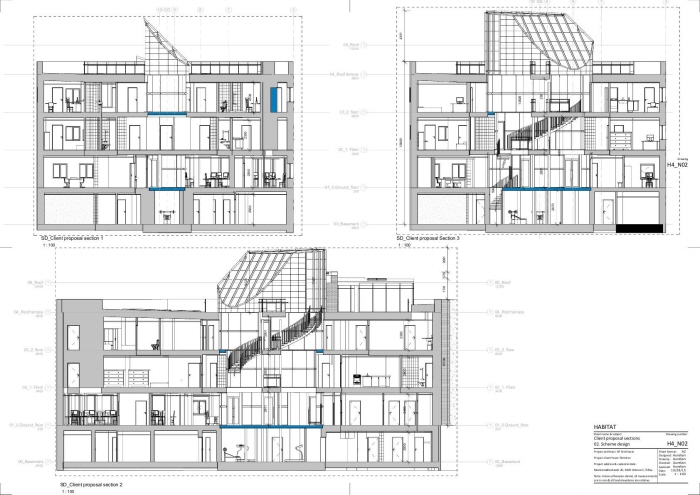

This sheet contains 3 sections through the building. You can notice that the light dome has a tilted roof for directing the flow of the rain water.
View PDF
This document contains: -Heating Ventilation Air Conditioning layout. The system is defined as HSRS - HVAC Smart Relay Switch which is better than windows/ doors sensors. The ventilation ducts contains dampers which are devices that shuts down the ventilation when windows and doors violates the normal condition of closed. - Mechanical Electrical and Plumbing layout. The building incorporates a rain water recycling system which is used for toilets and laundry. - estimations of the sewer pipes and ventilation ducts.
View PDF
This document contains some engineering calculations: - self load; - imposed load: - snow; - wind; -Thermal indoor climate for and apartment; - Heating budget for an apartment; - Reverberation (sound);
View PDF
This document contains: - the fire documentation - the site drawing for the fire brigade - the floor plans and sections regarding the wall types and the minutes which they should withstand in fire. Due to the fact that most of the external walls are designed on the property plot line, they should withstand 120 minutes in fire.
View PDF
The construction site plan The budget includes the fees demanded by authorities for renting a part of the parking area adjoining the park. There shall be a container used only for plaster boards near the building, due to the big amount needed to fire proof most of the external walls 120 minutes.
View PDF
In Detail design 2 (Main project) I undertook the balconies. This sheet contains the overview plans and the sections location for balconies trade.
View PDF
Section 1. You can notice the sand-blasted glass screening on the balconies.
View PDF
Section 2 with both type of railing and the glass screen.
View PDF
Connection of the balconies with the external wall.
View PDF
Connection of the balconies with the down pipes, gutters and railing support.
View PDF
This detail shows the connection with the down pipe, a beam that has shearing function (wind, non-structural of the balconies) and the edge of the balconies from the 2nd floor.
View PDF
Connection of the balconies with the external doors towards the balconies.
View PDF
Connection of the balconies with the glass screen.
