![](https://s3images.coroflot.com/user_files/individual_files/620863_pk_fgffxft4lqzxsxokagzagn.jpg)

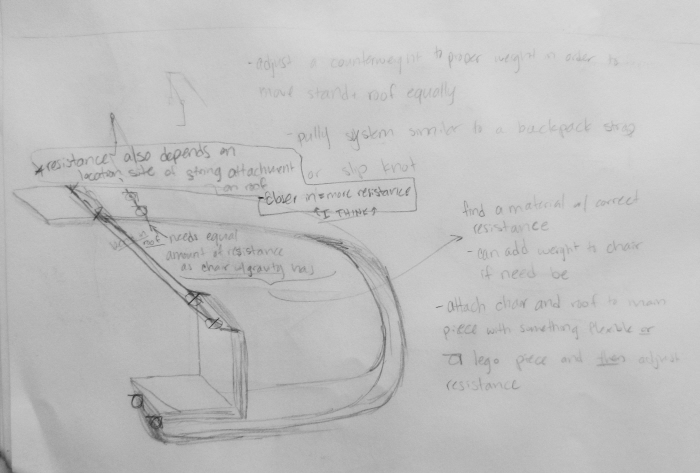

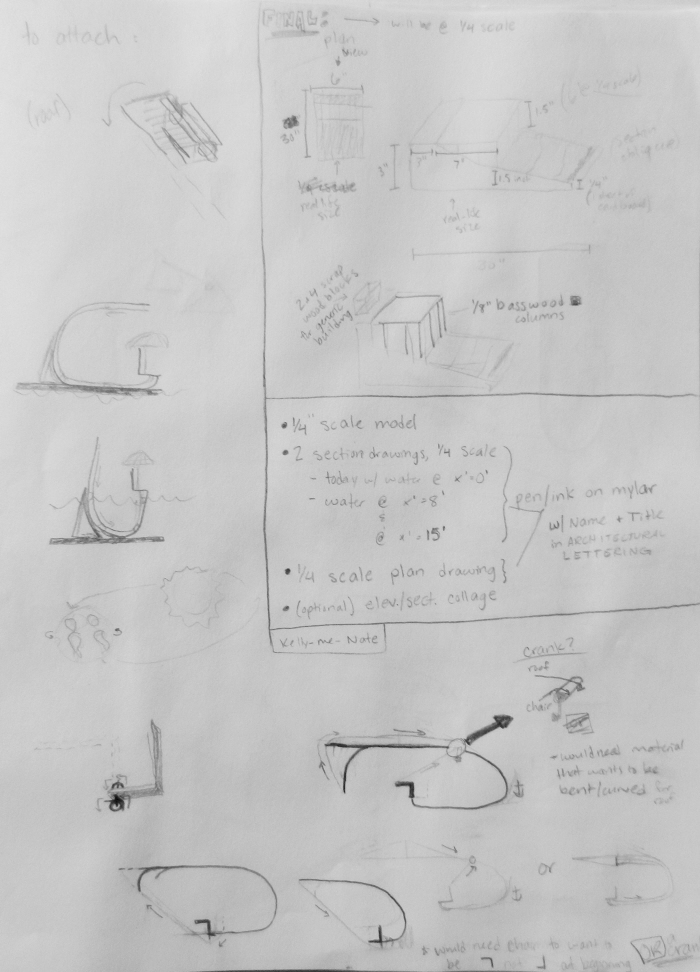

Initial sketches.
![](https://s3images.coroflot.com/user_files/individual_files/620863_vljc_gahzwbj60w9ufrtfhhjx.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/620863_qvgrege8sbrf3wl_kauavu74w.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/620863__lzfnufh8jm3gembuffrw6rxy.jpg)
Final Drawings.
Plan and Section.
Medium: rapidograph technical pens.
![](https://s3images.coroflot.com/user_files/individual_files/620863_69hsfkfeyrwf5ivdlzndoexv4.jpg)

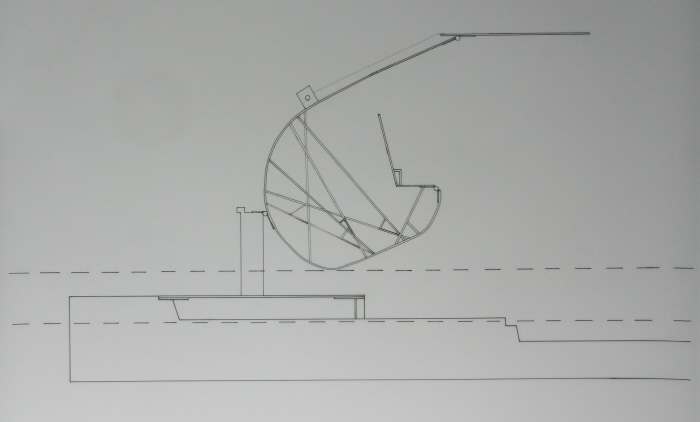

Final Drawings.
Section with sea level at 15 feet above the current level.
Medium: rapidograph technical pens.
![](https://s3images.coroflot.com/user_files/individual_files/620863_jpxd8npkd_rmtri33nyfq_0xc.jpg)

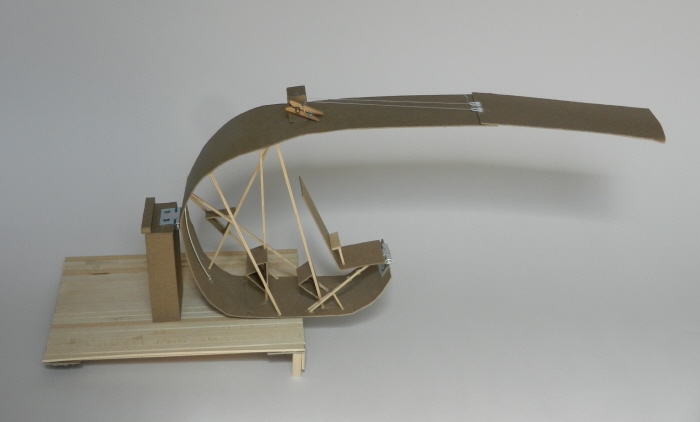

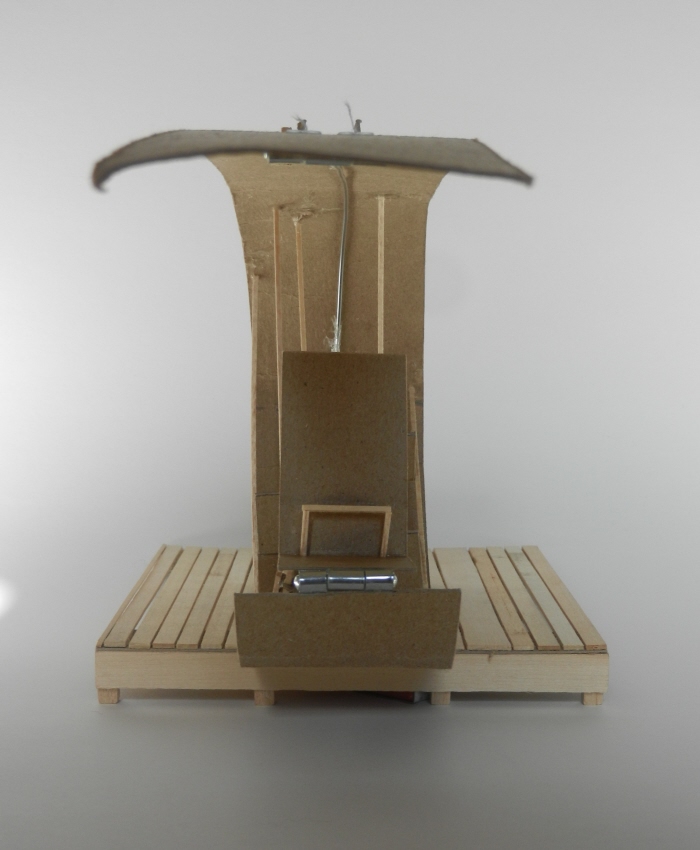

Final Model.
Initial position, current sea level.
![](https://s3images.coroflot.com/user_files/individual_files/620863_9ps78dwoih9u9hkvwl53hxzgf.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/620863_c7tj83kzudmqmnym_cvcjiqac.jpg)

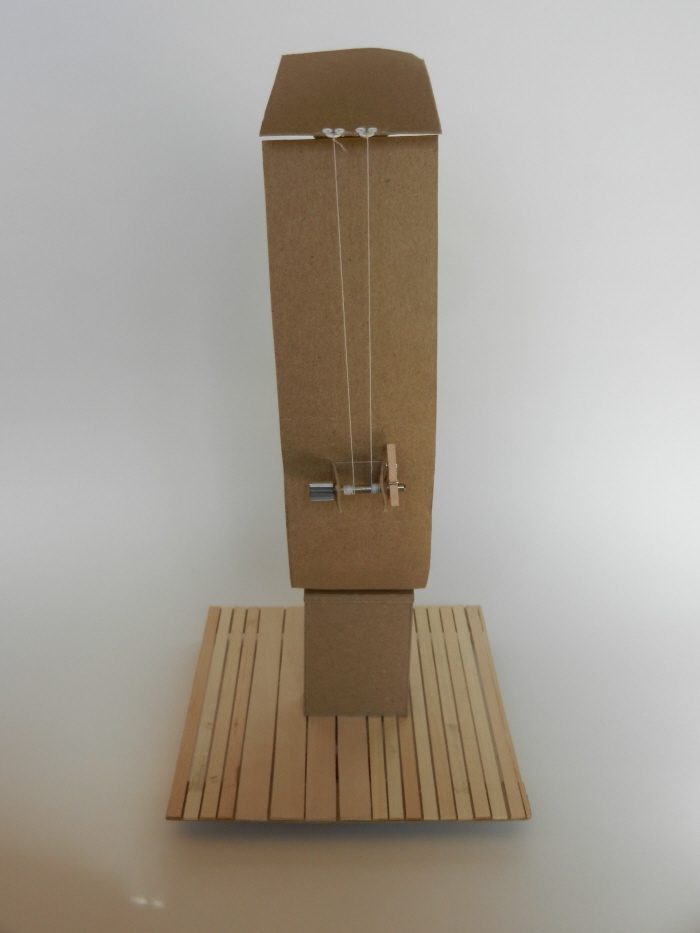

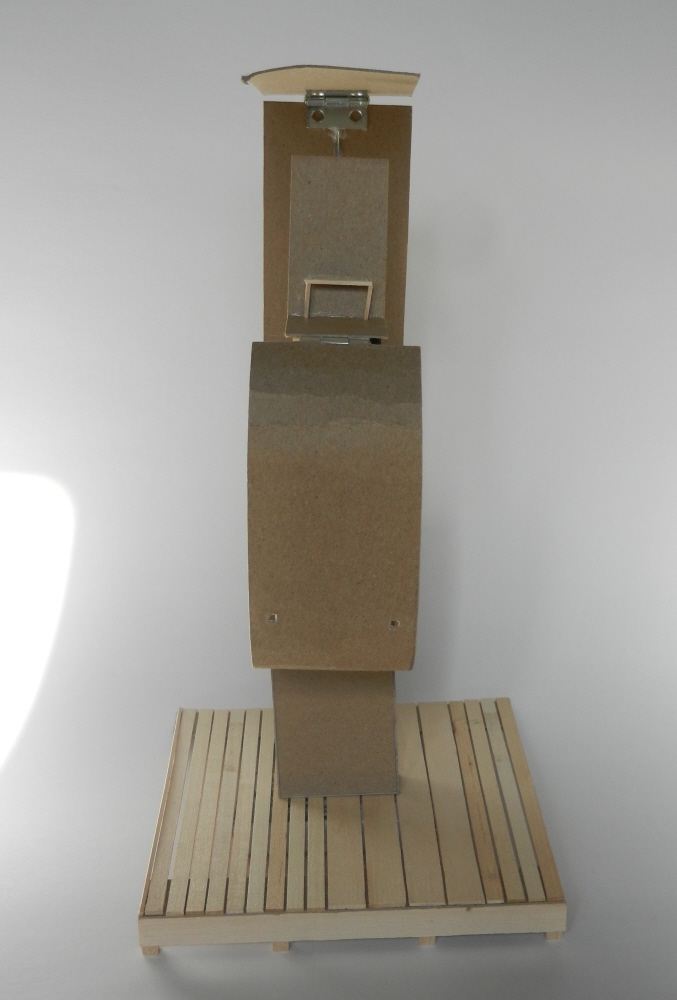

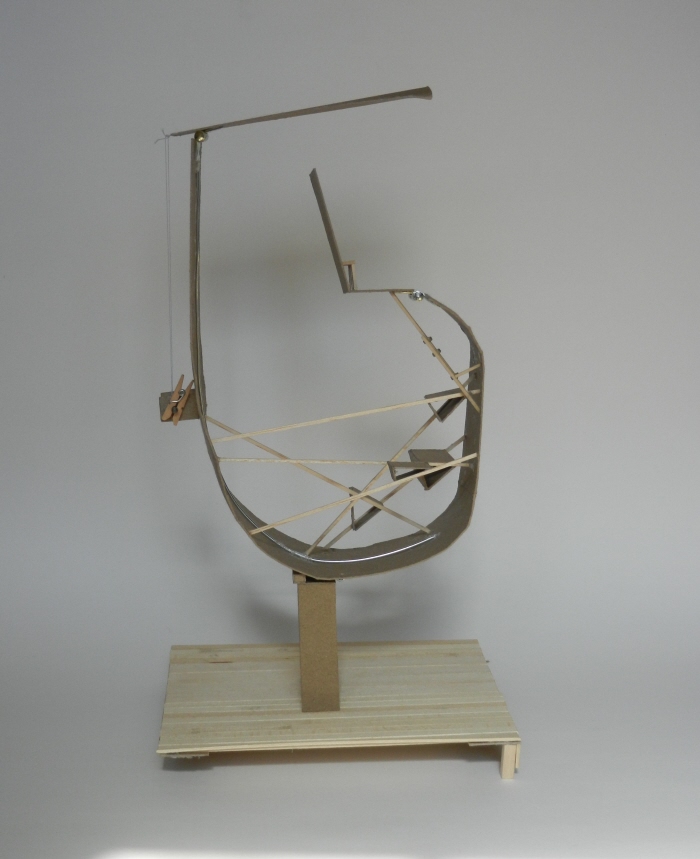

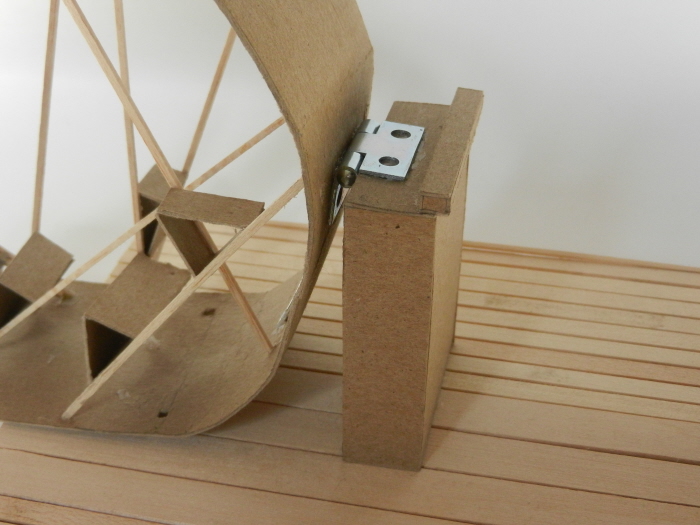

Final Model.
Final position. Sea level at 23 feet at base of curve. 22 more feet to base of chair.
1/4 scale.
![](https://s3images.coroflot.com/user_files/individual_files/620863_veyq429ssuqypkewgbkqcnsta.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/620863_xt4ug327rpaoxqixjqfqs6gim.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/620863_ylczrpzqgkx0q7nx4aahc38iu.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/620863_ahnzk0kncqhv4p2dv24v3jftg.jpg)

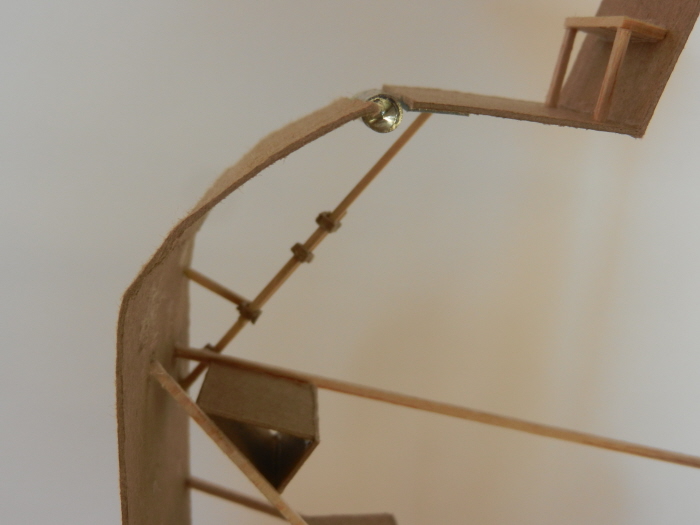

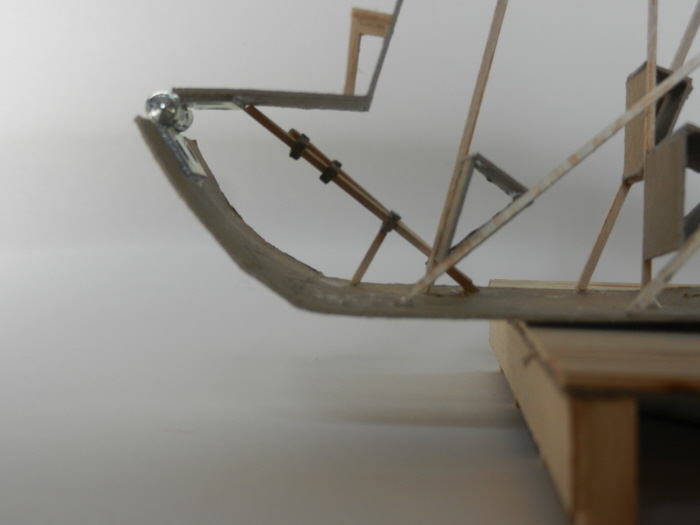

Adjustable slide to prop up chair.
Materials: chipboard and super glue
![](https://s3images.coroflot.com/user_files/individual_files/620863_virvpilrks2ej2shqhrpclvxl.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/620863_ofcmrglsjghgv2h_hl0zfcifj.jpg)

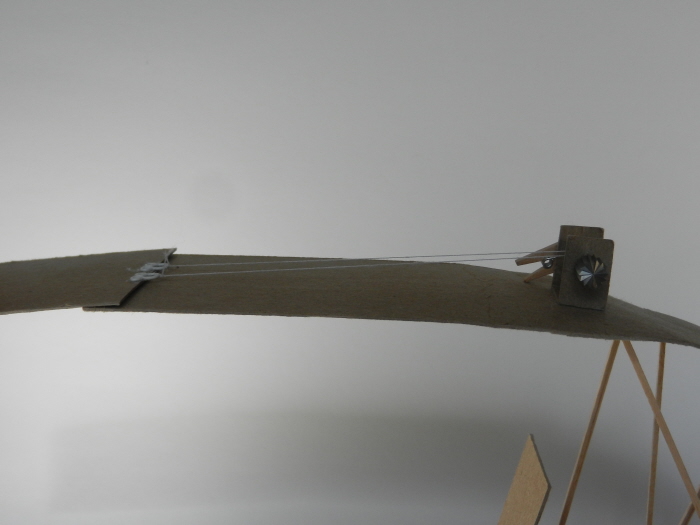

Crank to adjust roof.
Materials: dremmel bit, chipboard, string, sewing eyes, and a clothespin to lock it in place.
![](https://s3images.coroflot.com/user_files/individual_files/620863_dm72fz_5nn0yzwthq3xnrqmzx.jpg)
