Key sketch-the most important view in my development process
![](https://s3images.coroflot.com/user_files/individual_files/332626_uZhJD9fgX9_uMOH6zKLYxaKeo.jpg)

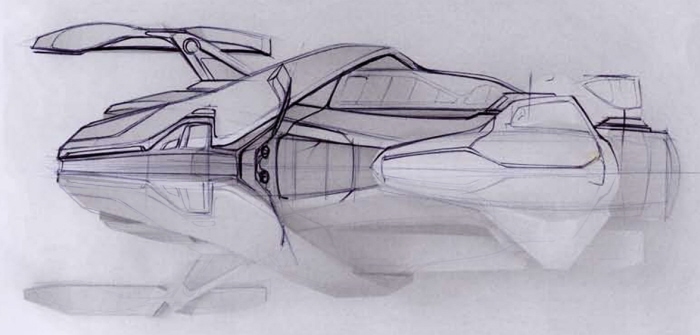

Designing from the top view - to achieve front to back flow. ( Sketch over Maya soft model) - The Ockelbo Poro is part of a sponsored assignment for Swedish company Ockelbo. The aim - to present a series of full scale foam and 1/3 scale clay models to present to investors.
![](https://s3images.coroflot.com/user_files/individual_files/332626_q74Jwp6_peSernblC2D1IOM9Y.jpg)
Fine tuning - Maya poly model underlay proved extremely valuable in speeding up my visualisation process. Particularly since I had never sketched a sled before.
![](https://s3images.coroflot.com/user_files/individual_files/332626_gDfsfBJTGJKVFQ4PXoStNmL3i.jpg)

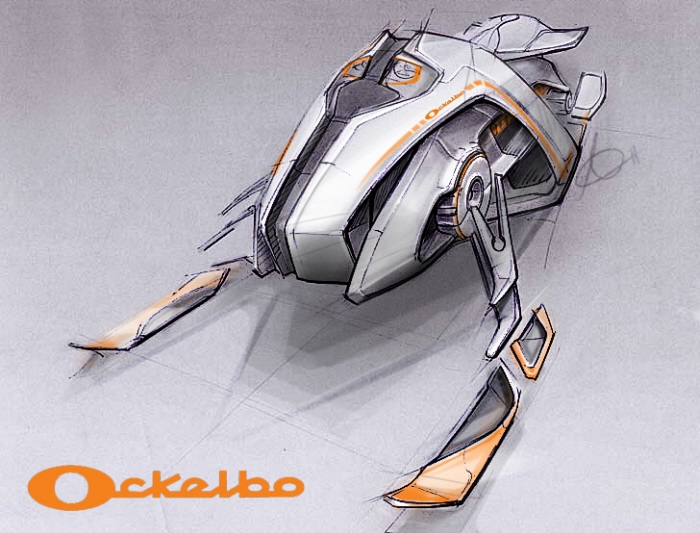

Pre-clay mid- review - presentation 3D - The Ockelbo Poro is part of a sponsored assignment for Swedish company Ockelbo. The aim - to present a series of full scale foam and 1/3 scale clay models to present to investors.
![](https://s3images.coroflot.com/user_files/individual_files/332626_DIQQu420OmUGnYRhx0nYyVj1x.jpeg)
Rear 3/4 with track and bogey reference template - Heres a glimpse into the filthy innards of the clay design process
![](https://s3images.coroflot.com/user_files/individual_files/332626_daymRHhS7WdxuQCZLbRmDhCW3.jpg)
Profile - Balancing the stance and visual weight of my wrapping surface - Heres a glimpse into the filthy innards of the clay design process
![](https://s3images.coroflot.com/user_files/individual_files/332626_EqAjTSau3lmDfW1FfRizBwEgU.jpg)
Mirrored top view, where you find out how inaccurate building a half model is! - Heres a glimpse into the filthy innards of the clay design process
![](https://s3images.coroflot.com/user_files/individual_files/332626_UbpcGxsPJlv4Cl8Crp7yhDQmE.jpg)
Rear suspension integrating with seat - Heres a glimpse into the filthy innards of the clay design process
![](https://s3images.coroflot.com/user_files/individual_files/332626_ruLgSfdOmVuSDaltHfz4KywoV.jpeg)
Early clay 3/4 - Heres a glimpse into the filthy innards of the clay design process
![](https://s3images.coroflot.com/user_files/individual_files/332626_0mHLPhnK5zJph6MqUNfioxiWf.jpeg)
Rear 3/4 overlay review - Heres a glimpse into the filthy innards of the clay design process
![](https://s3images.coroflot.com/user_files/individual_files/332626_PiIZKCBtWMp1PBAiEGX_TRVvc.jpg)

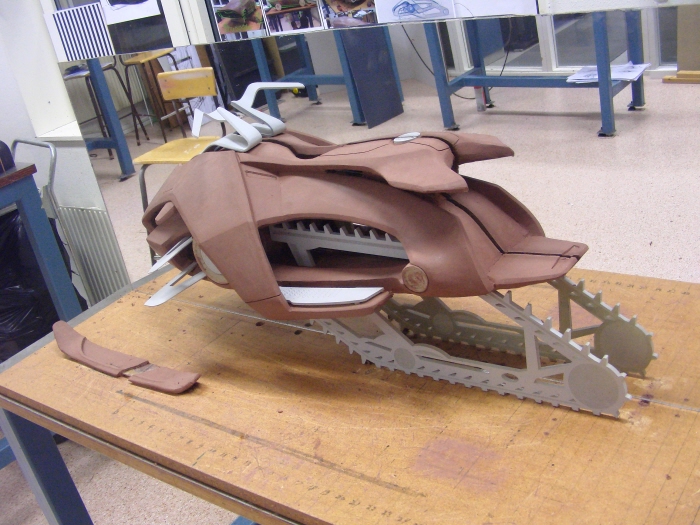

Mid- review - 1/3 clay model. - To be evaluated for full scale testing. A work in progress as I scan and move into Alias.
![](https://s3images.coroflot.com/user_files/individual_files/332626_tfEOE1EWmpigu2eQ93ebNJ9RA.jpg)

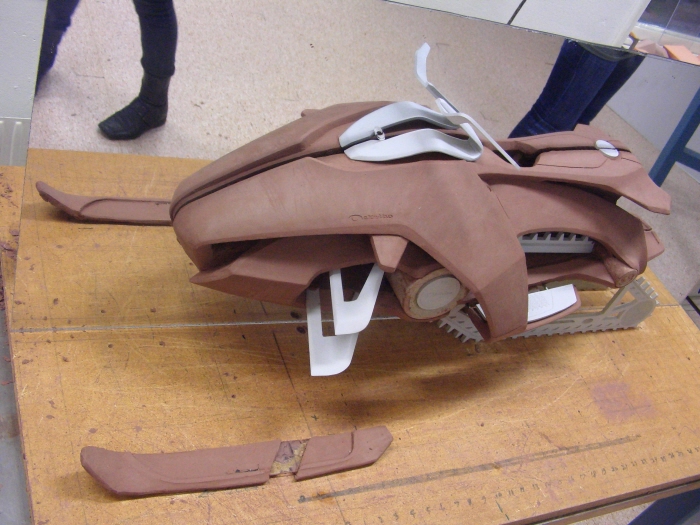

Mid- review - 1/3 clay model. - To be evaluated for full scale testing. A work in progress as I scan and move into Alias.
![](https://s3images.coroflot.com/user_files/individual_files/332626_c0vSTtzfvcwiMqmtx1ivYIpr9.jpg)
Mid- review - 1/3 clay model. - To be evaluated for full scale testing. A work in progress as I scan and move into Alias.
![](https://s3images.coroflot.com/user_files/individual_files/332626__BkqclrCk4Blfk4bydJIkwgiD.jpg)

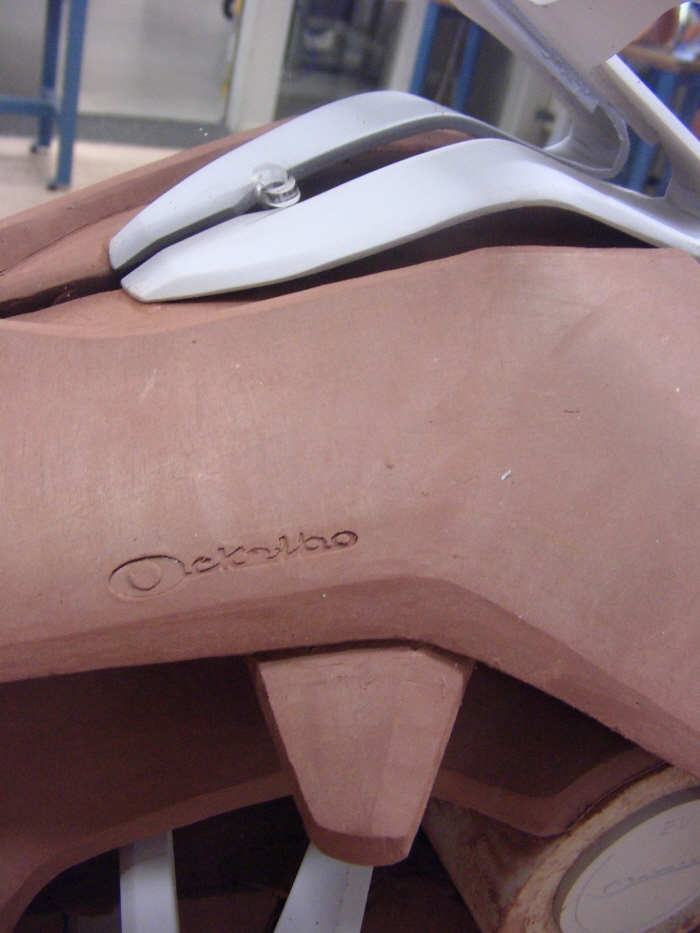

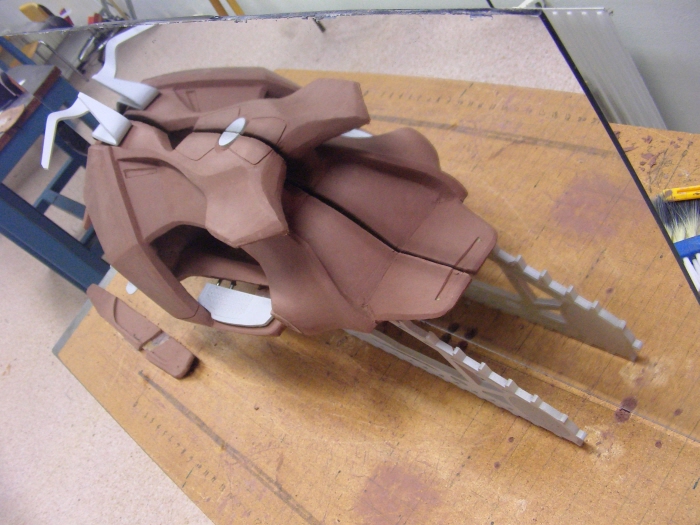

Mid- review - 1/3 clay model. - To be evaluated for full scale testing. A work in progress as I scan and move into Alias.
![](https://s3images.coroflot.com/user_files/individual_files/332626_1Zx8JUzqun7cTii_s2Q_l6Owa.jpg)

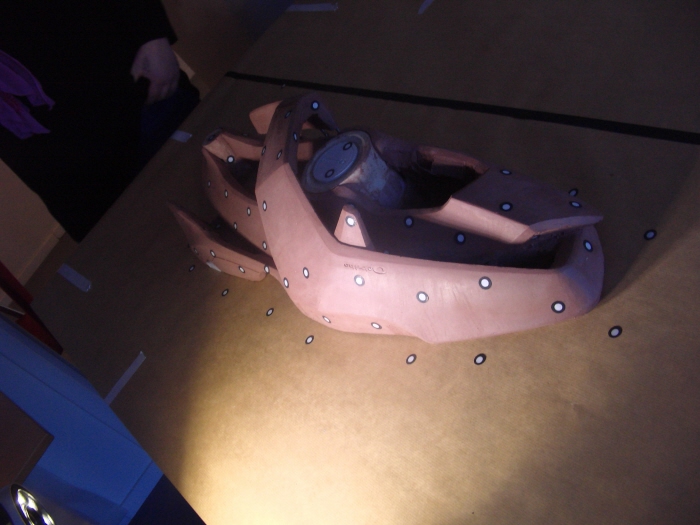

Mid- review - 1/3 clay model. - To be evaluated for full scale testing. A work in progress as I scan and move into Alias.
![](https://s3images.coroflot.com/user_files/individual_files/332626_MPV_qHIe5FS0nbFZS0A0o16CZ.jpg)
In action - My first try at rendering an in-context scene. Alias model rendered in Keyshot 2 with backplate and then attacked in Photoshop
![](https://s3images.coroflot.com/user_files/individual_files/332626_wkJHD1IAF0WqYYdpt3wrIXW8Y.jpg)
A shot showing the separation of surfacing including wrapping around one of the electric motors.
![](https://s3images.coroflot.com/user_files/individual_files/332626_qPLTZHlMifUpcGysMjptkNaci.jpg)

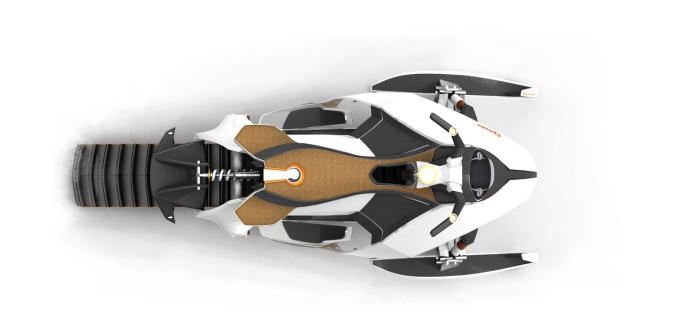

Top view - perspective - The most important view for me in the design process. Describing the harmony from front to rear in a teardrop form.
![](https://s3images.coroflot.com/user_files/individual_files/332626_9Jjpw8tnyTqFxhqRvIg9QB1P6.jpg)

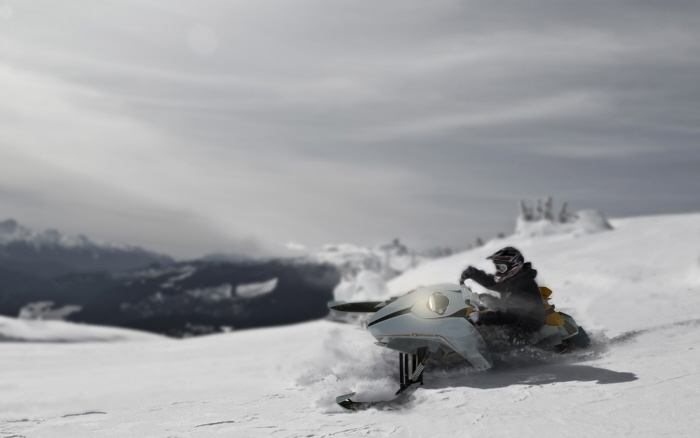

Carving in dry powder - The beauty of riding an electric snowmobile- - the ability to hear the crackle of new snow as you carve it up.
![](https://s3images.coroflot.com/user_files/individual_files/332626_9h4GOjl2pXOE7JPQ6tObQYW7b.jpg)
Showing long-track and rear suspension treatment.
![](https://s3images.coroflot.com/user_files/individual_files/original_332626_sylsycH6CRSsBgLZEVHnhqIzi.jpg)
Presentation board for viewing by potential investors in the Ockelbo Company
View PDF
View PDF
![](https://s3images.coroflot.com/user_files/individual_files/332626_7k7iS6riJAWeNU0YEgHI_5HMF.jpg)
Serious hang-time!!!
