Concepts - Based on the 1960's McLaren CanAm racers
Development
Final hand-renderings - copic markers/photoshop

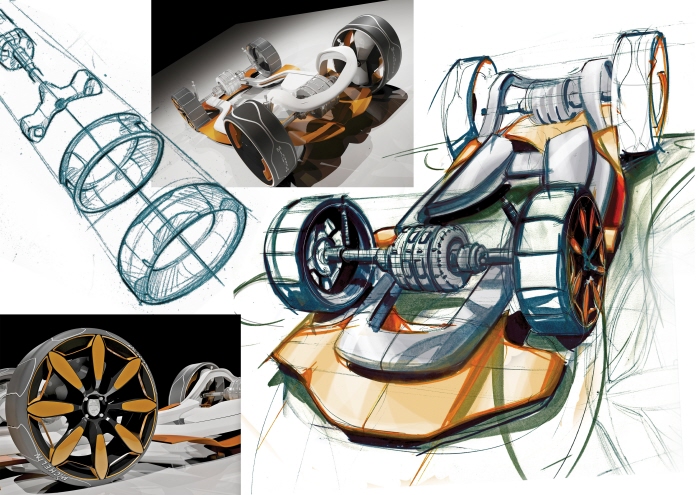

Aerodynamics and powering incorporated into the chassis. Development into elliptical rear wheels! - Elliptical rear wheels run like a tank track. Enabling the driver to rotate them on a central axis to increase or decrease the car's footprint, and subsequently the car's traction.

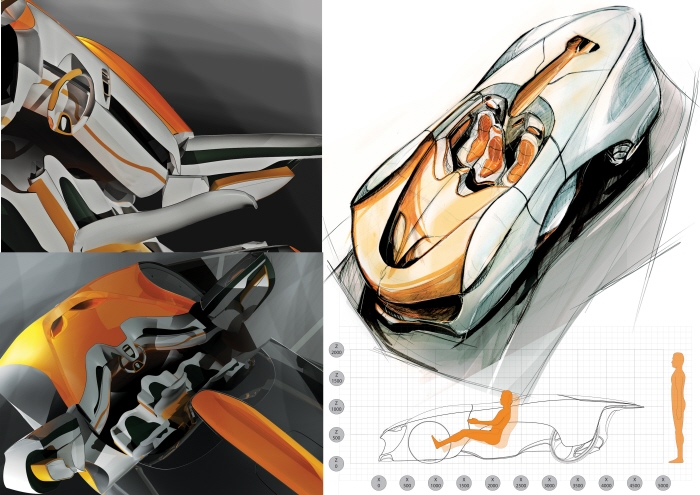

Interior Design - Designed to hold up to three 95th percentile men in a McLaren F1 inspired 3-seat configuration.
Over all render - 3DS Max render/photoshop
Exterior final form

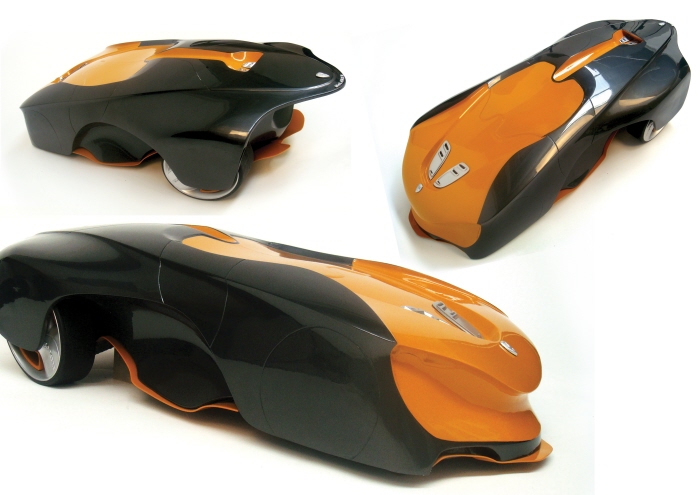

Final model - Built out of a solid block of MDF wood at 1:4 scale.
Presentations - My graduate shows at the Alingi Yacht Base in Auckland 2009 and representing the Bruce McLaren Trust at the New Zealand Festival of Speed 2010. Top right picture is myself and Bruce McLaren's sister Jan McLaren
Classic car meet. - Placing my vehicle in a scene to give an understanding of my user group.
Tearing it up
gLike
McLaren Tribute 2020
Anton Garland
Mobility and Industrial Designer Shanghai, China
