Model 1
Model 2
Model 3
Model 4
Model 5

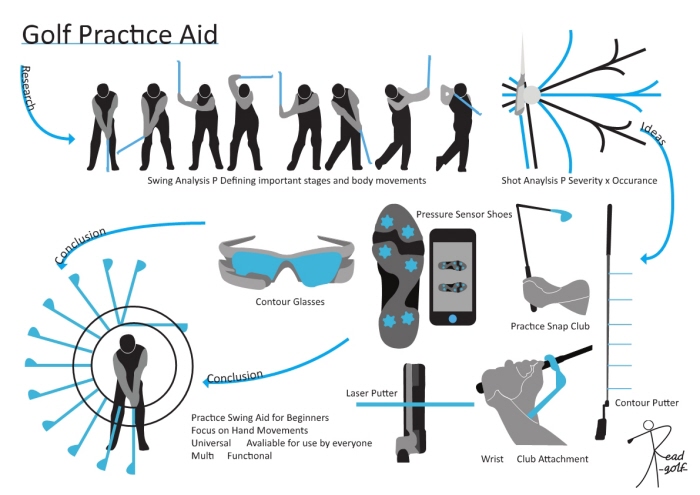

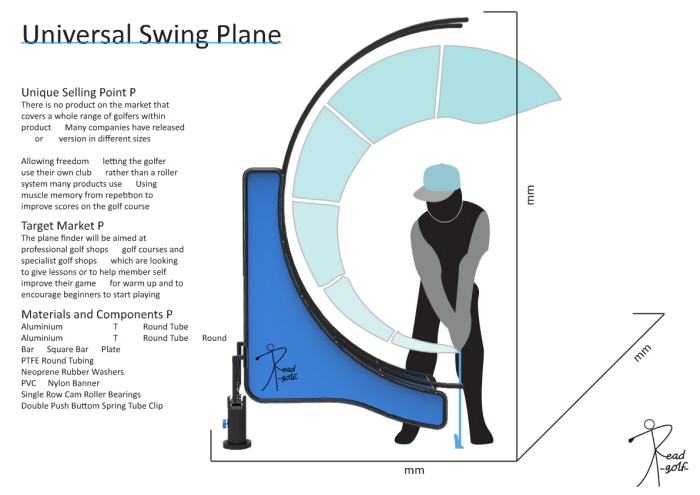

Criteria 2 Hand In - Presentation Boards Research.

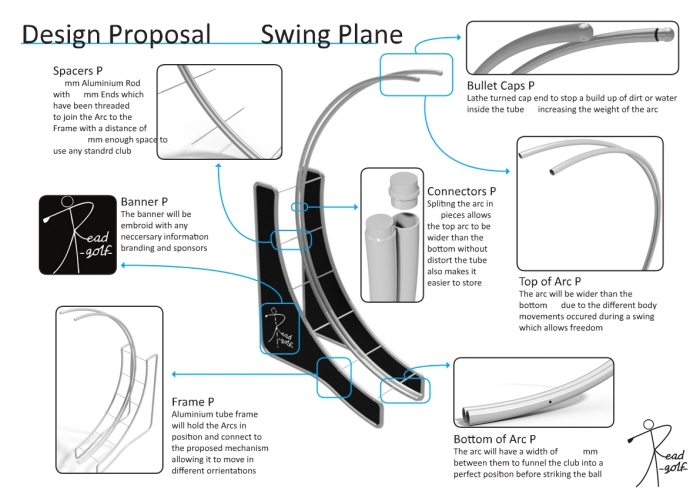

Criteria 2 Hand In - Presentation Boards Arcs.

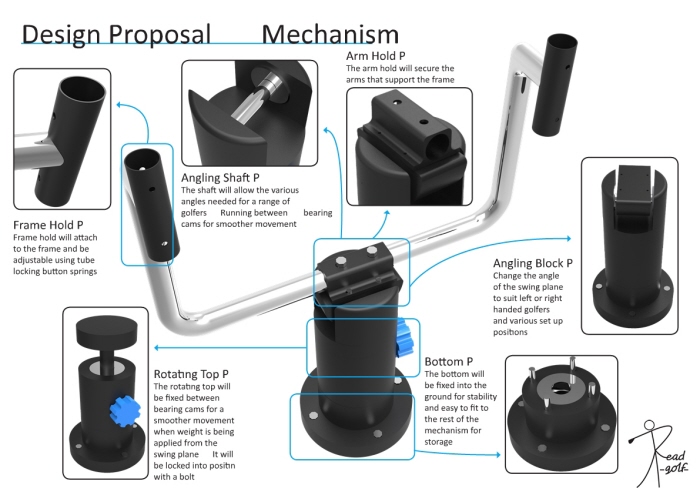

Criteria 2 Hand In - Presentation Boards Bottom Mechanism.
Criteria 2 Hand In - Presentation Boards Specification Points

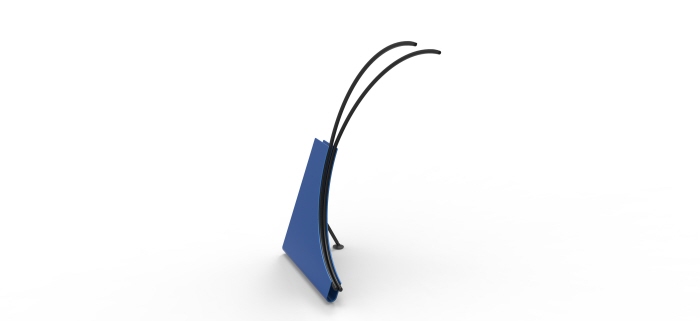

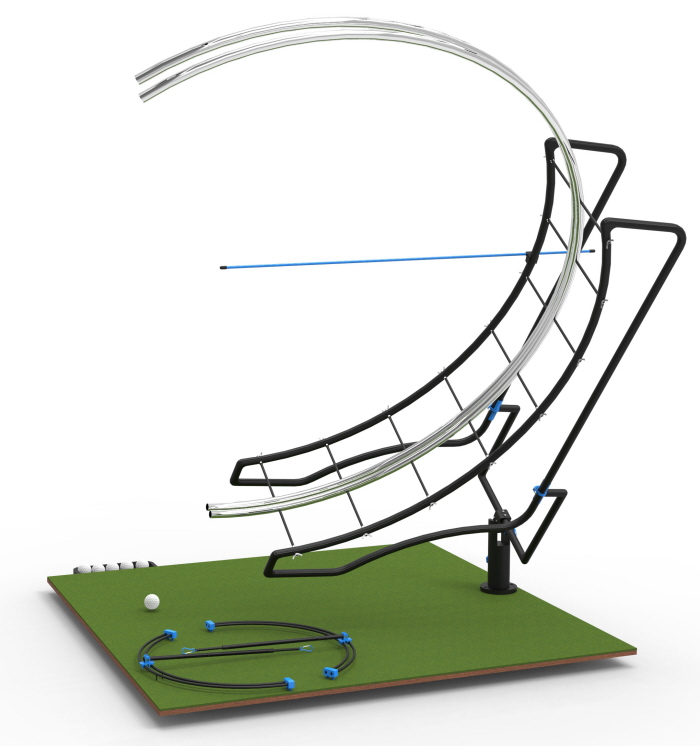

Final Model

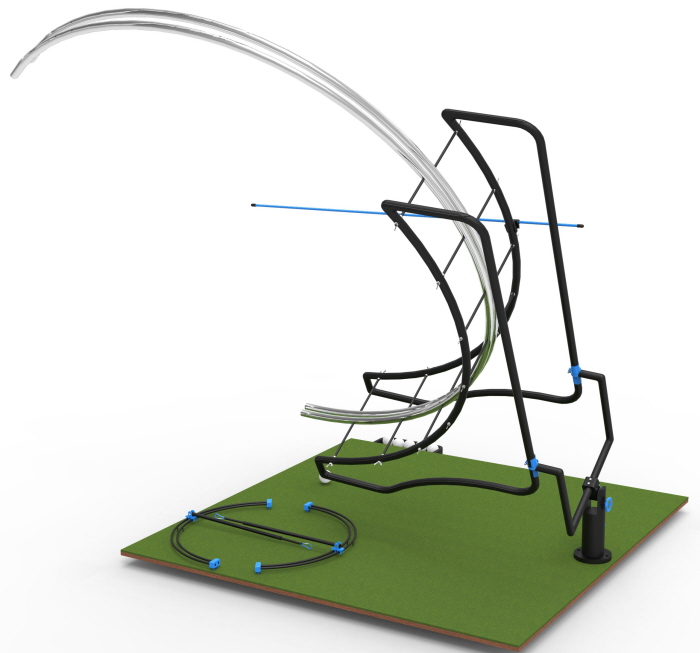

Final Model

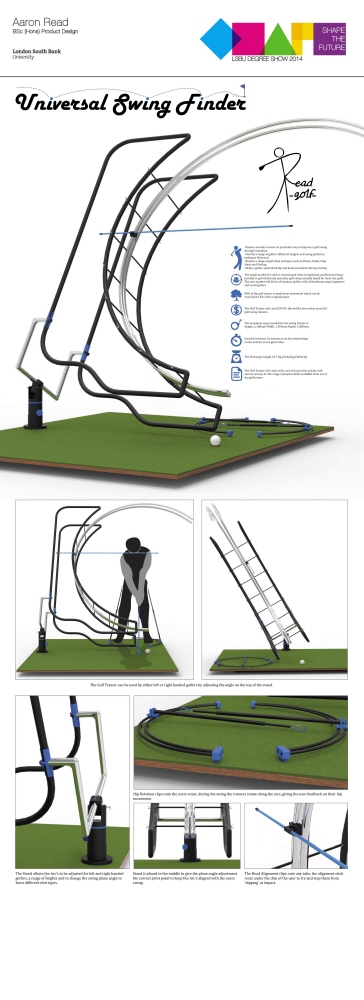

Degree Show Banner
View PDF

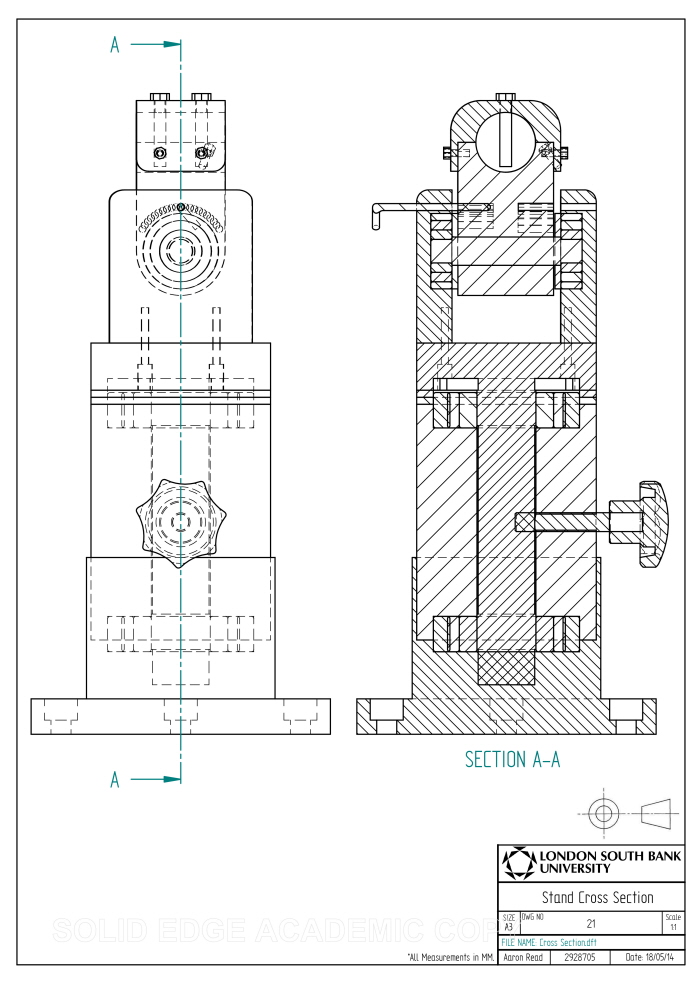

Cross Section of the Mechanism

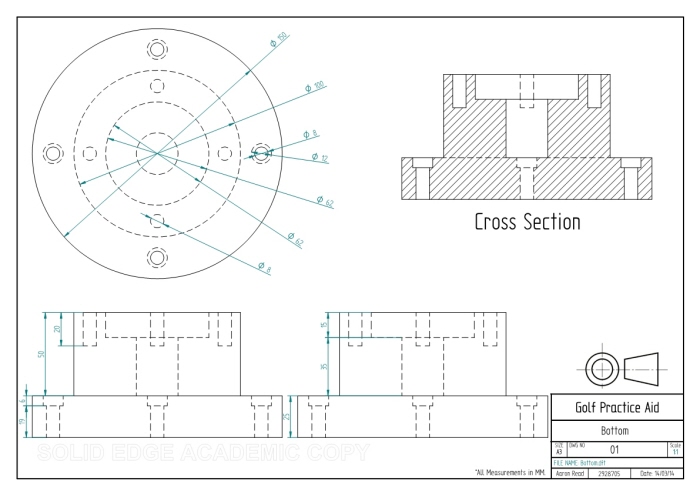

Engineering Drawing - Mechanism. Bottom

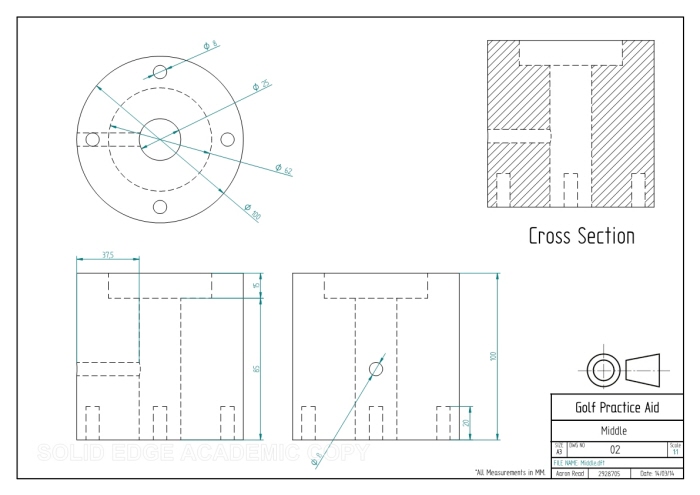

Engineering Drawing - Mechanism. Middle.

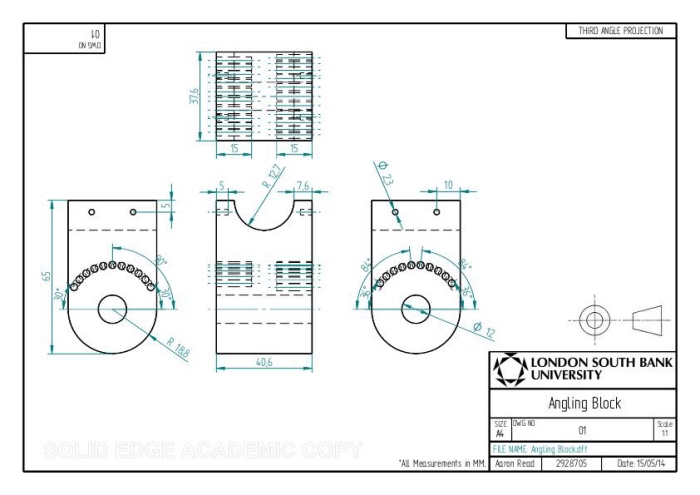

Engineering Drawing - Mechanism. Angling Block.
View PDF

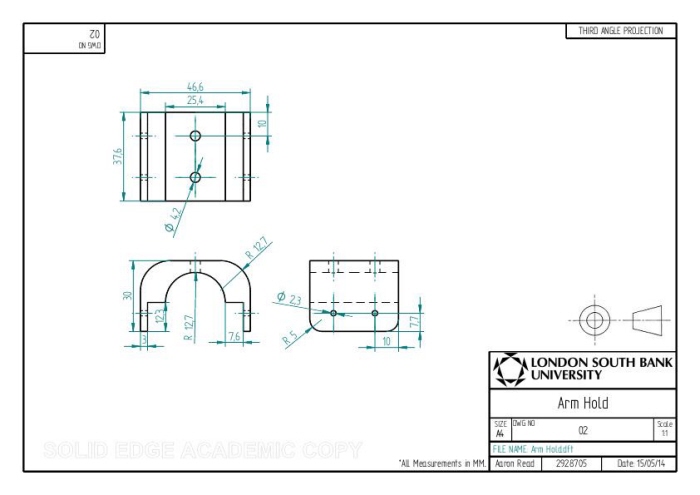

Engineering Drawing - Mechanism. Arm Hold.
View PDF

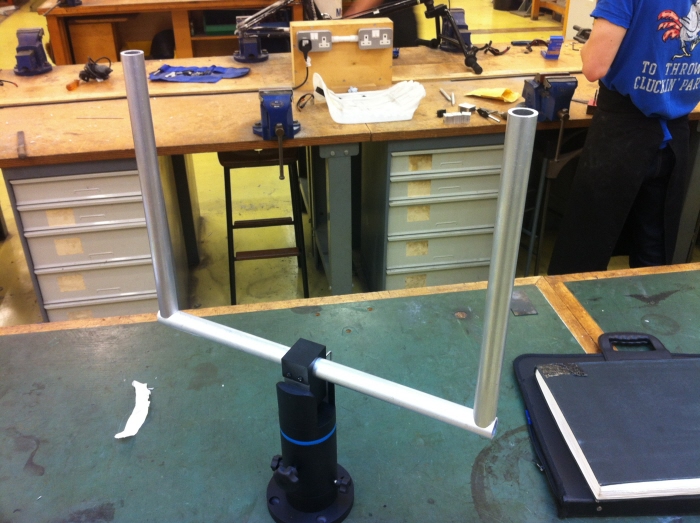

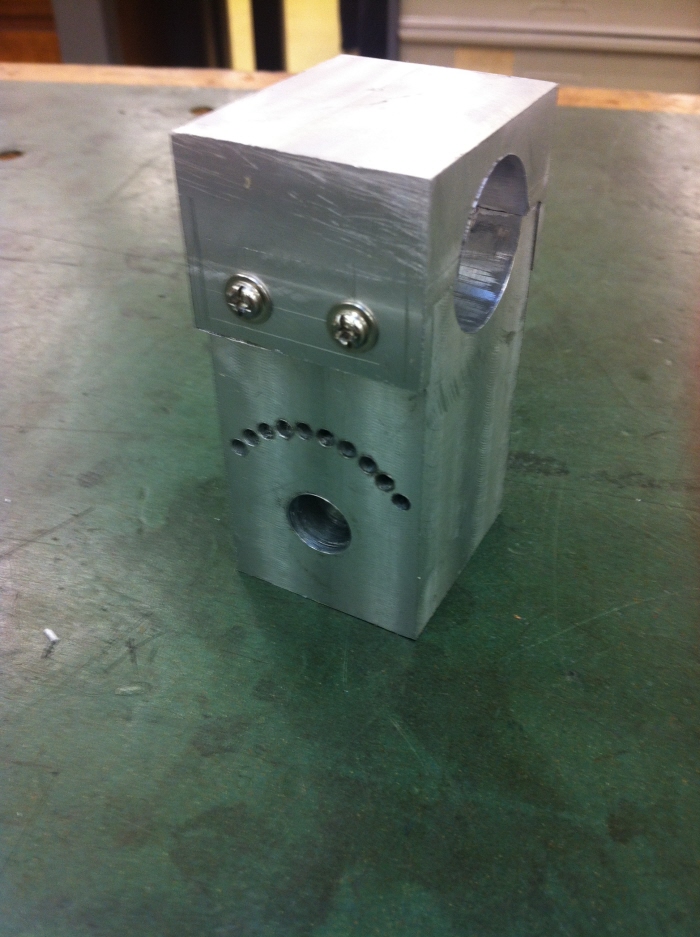

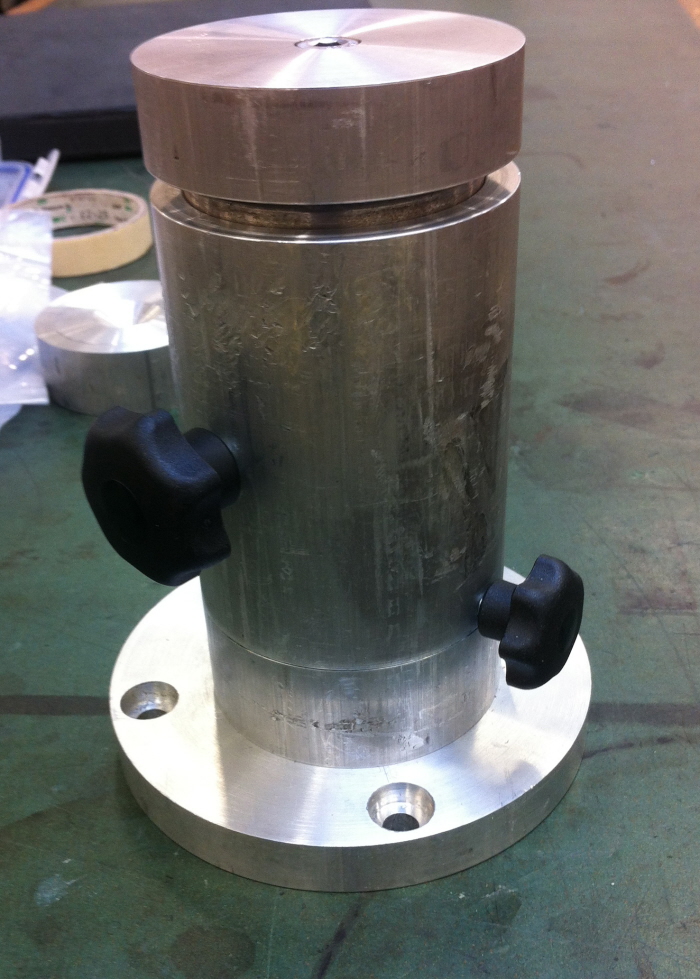

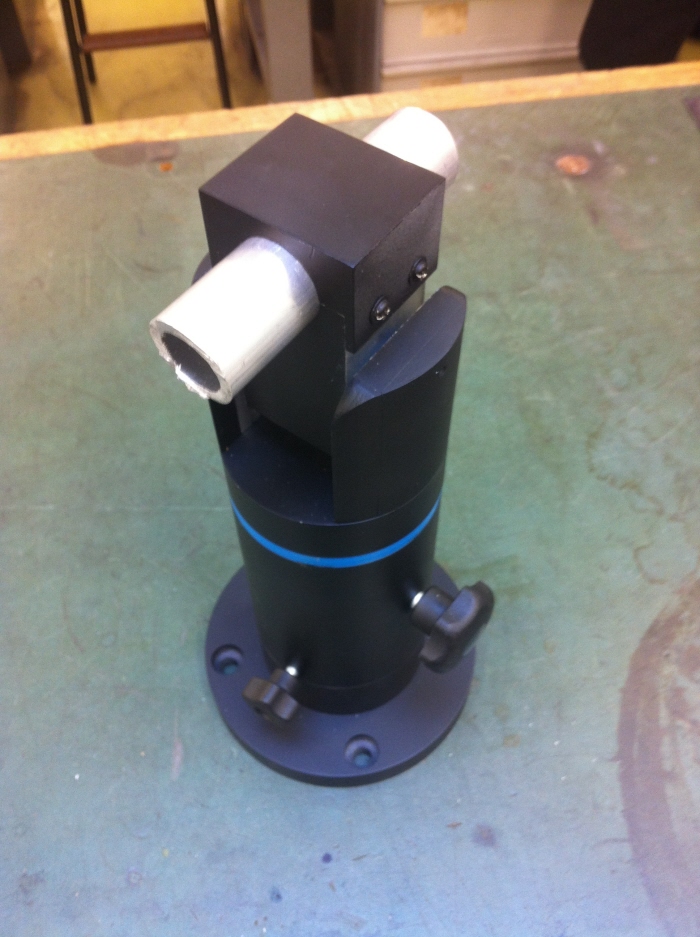

Prototype of Mechanism

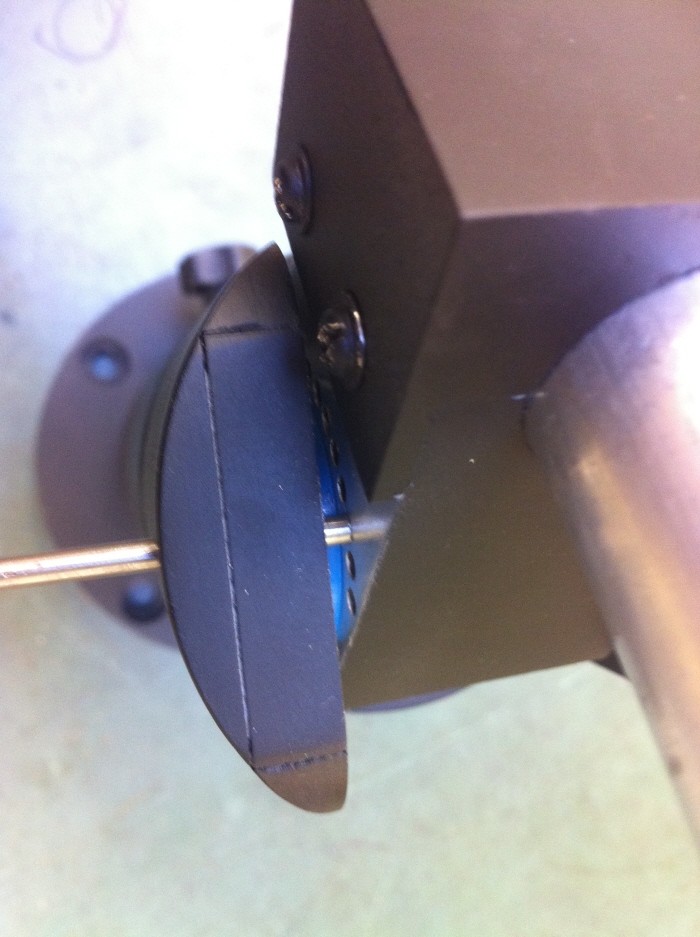

Prototype of Moving Mechanism.
Prototype of Angling Top.

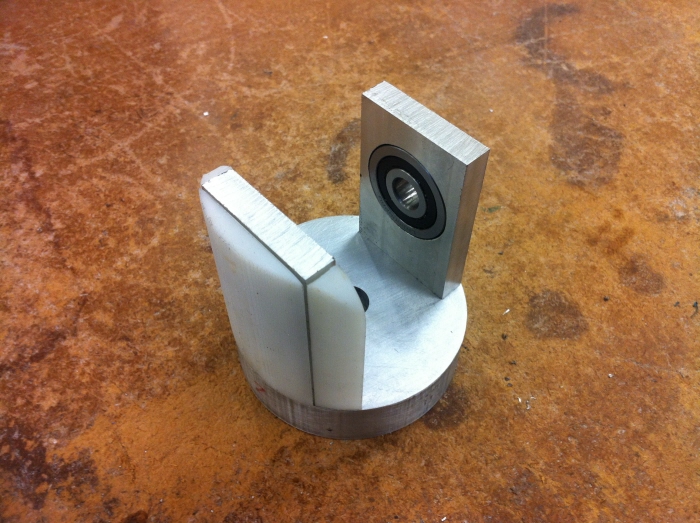

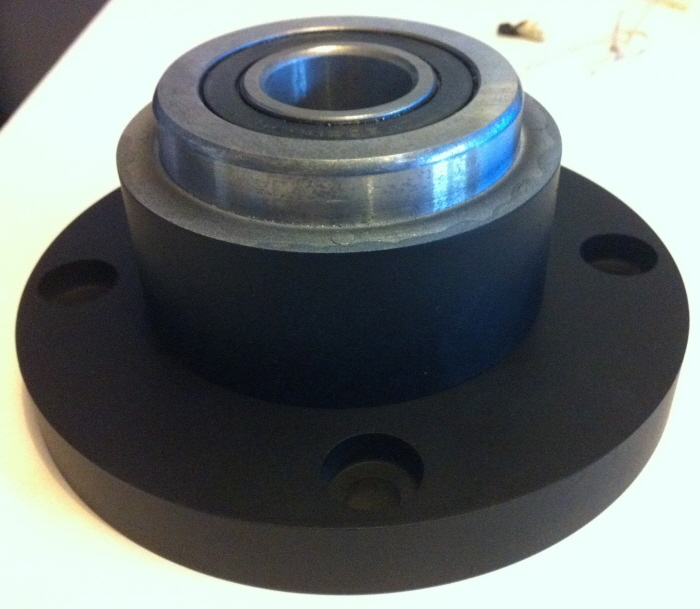

Prototype of Bottom.
Prototype of Mechanism.
Prototype close up of Angling Top.
Prototype of Mechanism.
CAD Model of Angling Top using a gear system.

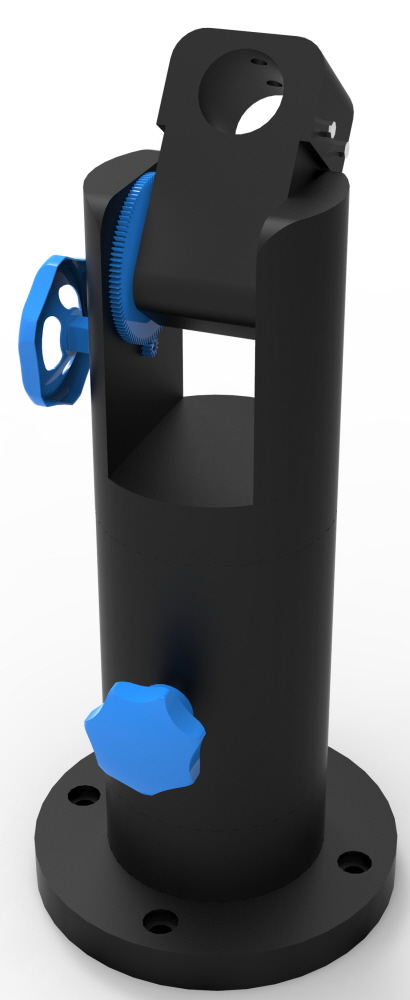

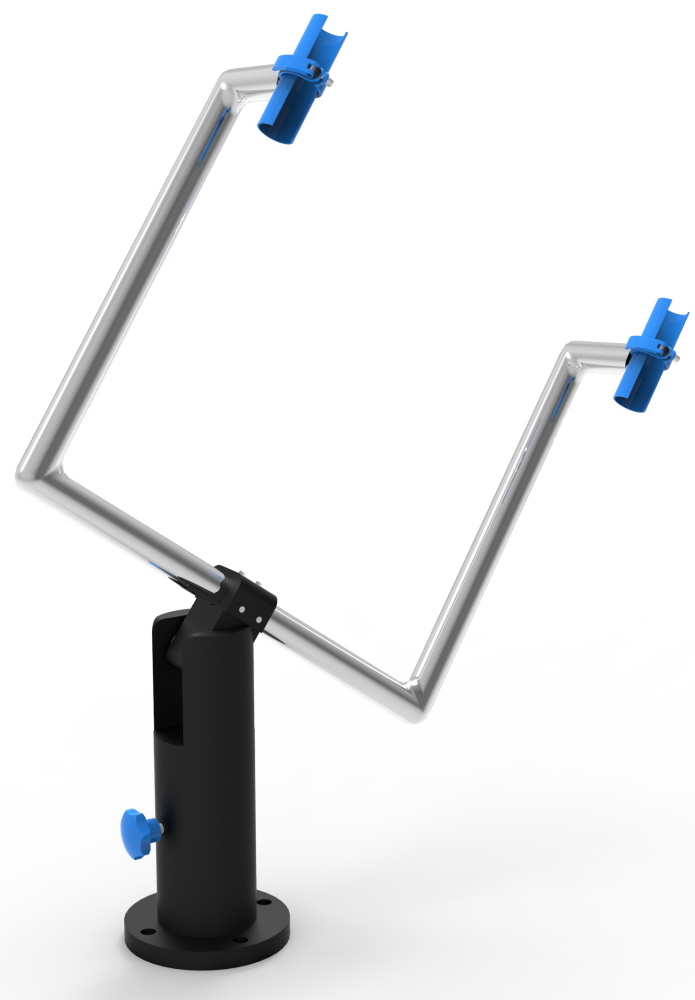

CAD Model of Mechanism.

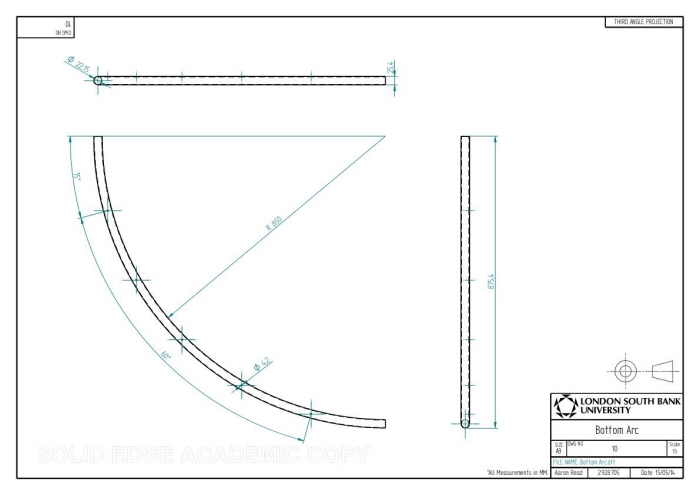

Engineering Drawing - Arc. Bottom Arc.
View PDF

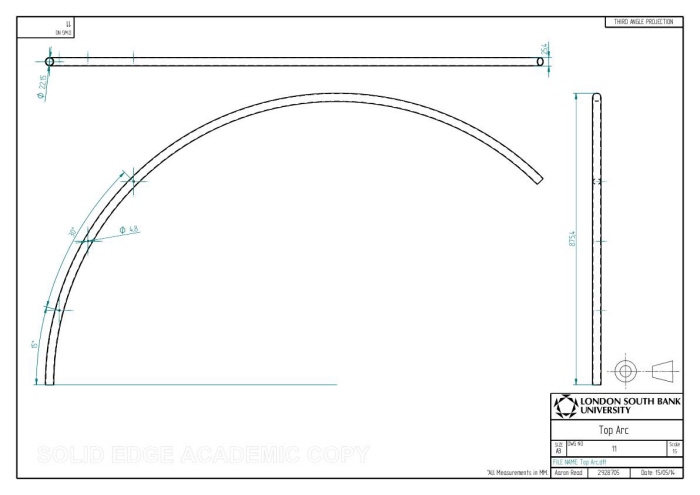

Engineering Drawing - Arc. Top Arc.
View PDF

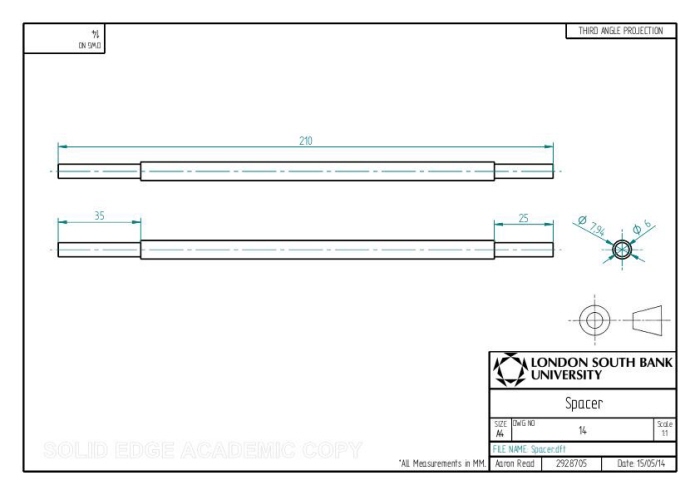

Engineering Drawing - Arc. Spacers.
View PDF

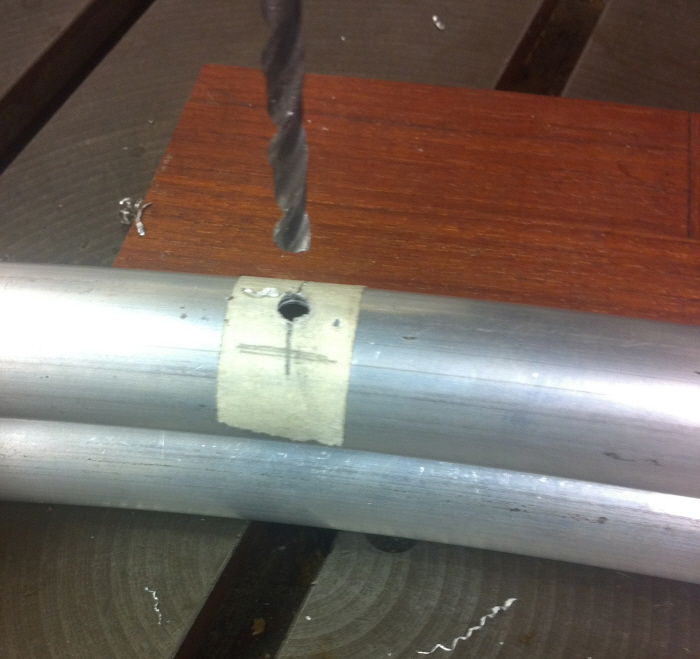

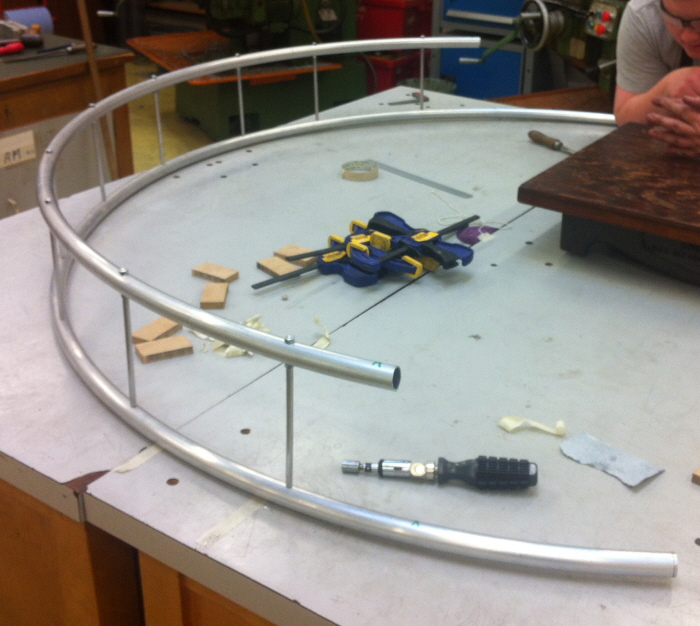

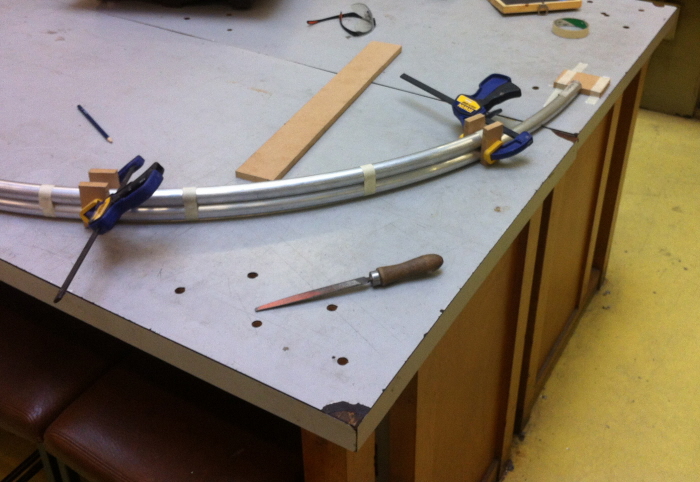

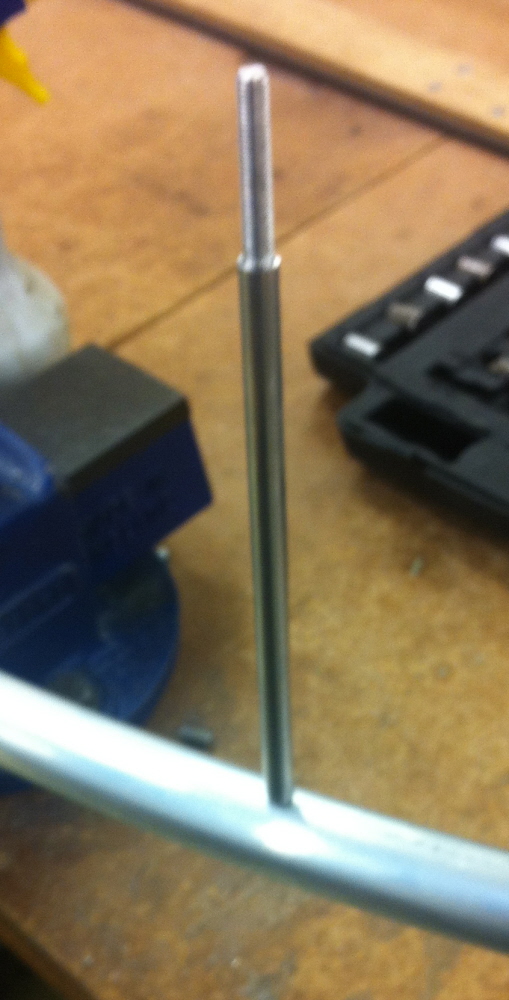

Prototype of Arc.
Prototype of Arc.
Prototype of Arc.
Prototype of Spacer.

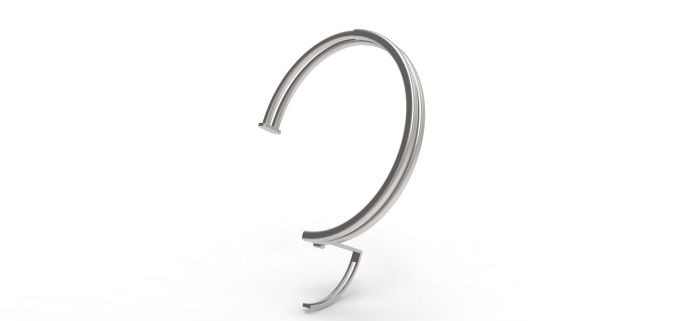

CAD Model of Prototype.

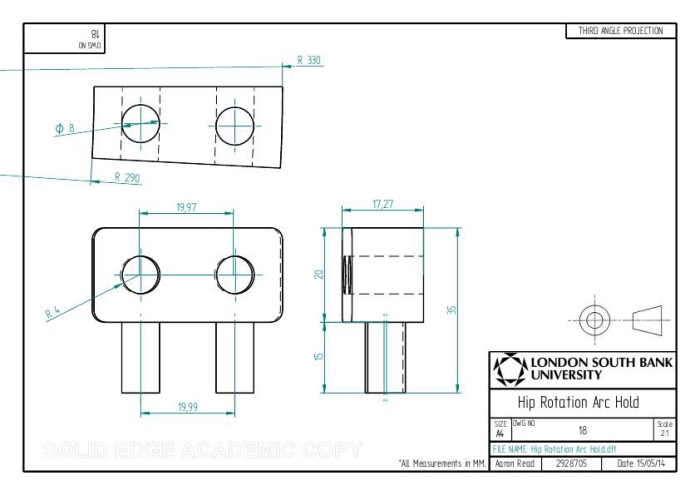

Engineering Drawing - Hip Rotation Arc Hold.
View PDF

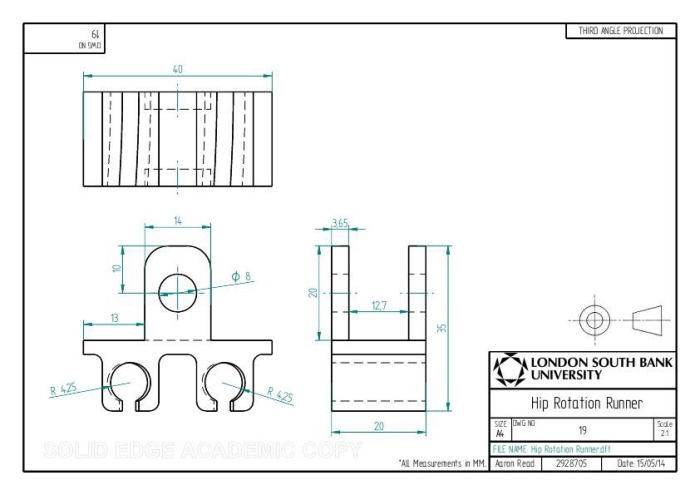

Engineering Drawing - Hip Rotation Runner.
View PDF

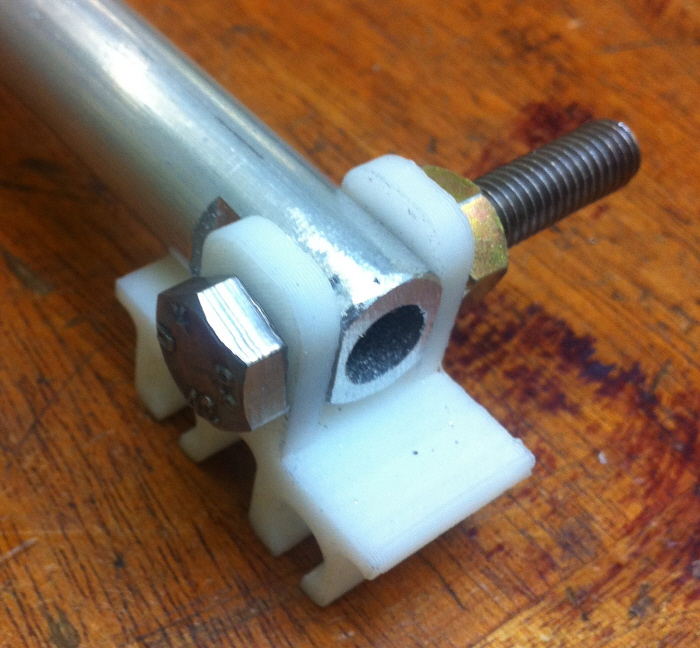

Prototype of Hip Rotation Runner.
CAD Model of Hip Rotation Runner.

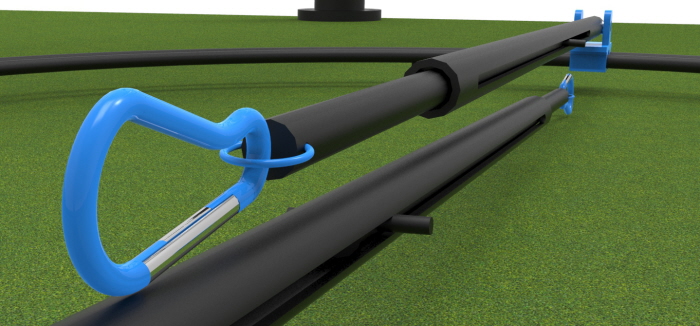

CAD Model of Hip Rotation Extensions and Clip.

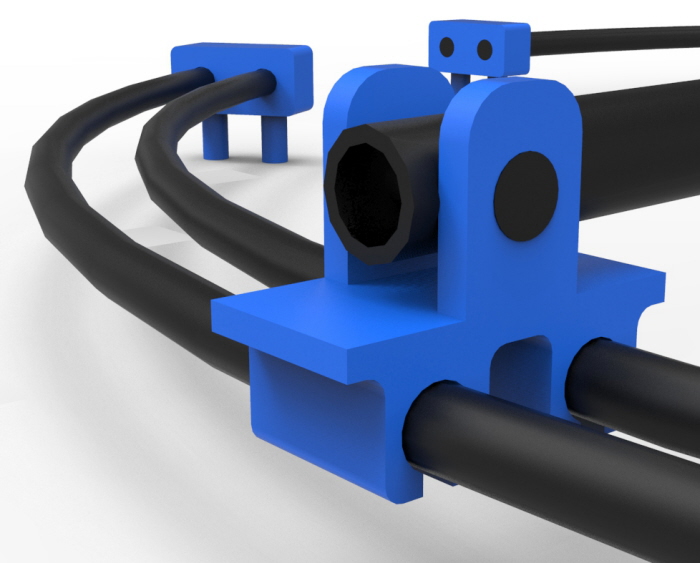

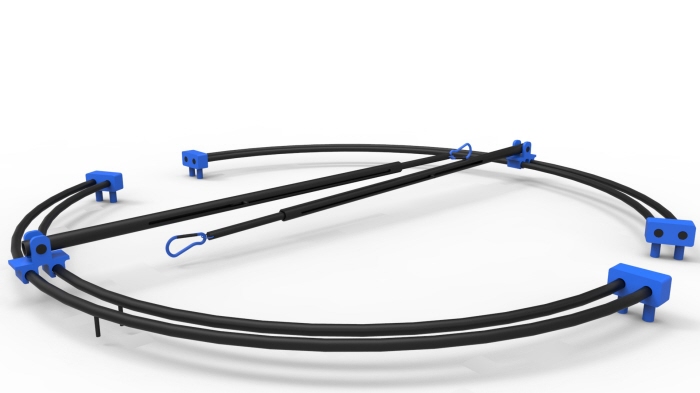

CAD Model of Hip Rotation Device.

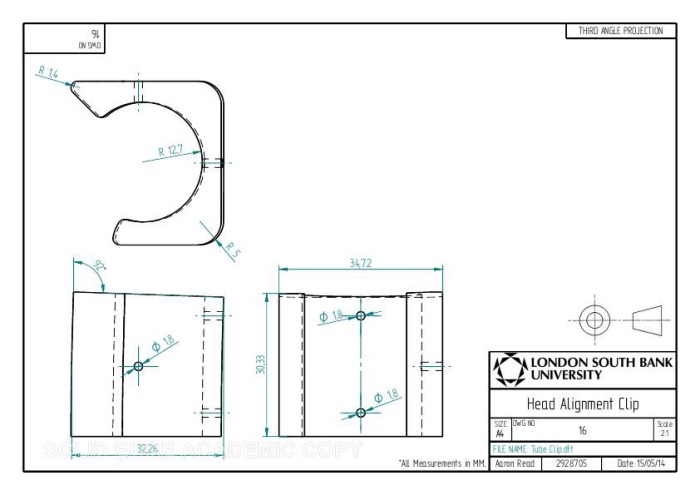

Engineering Drawing - Tube Clip.
View PDF

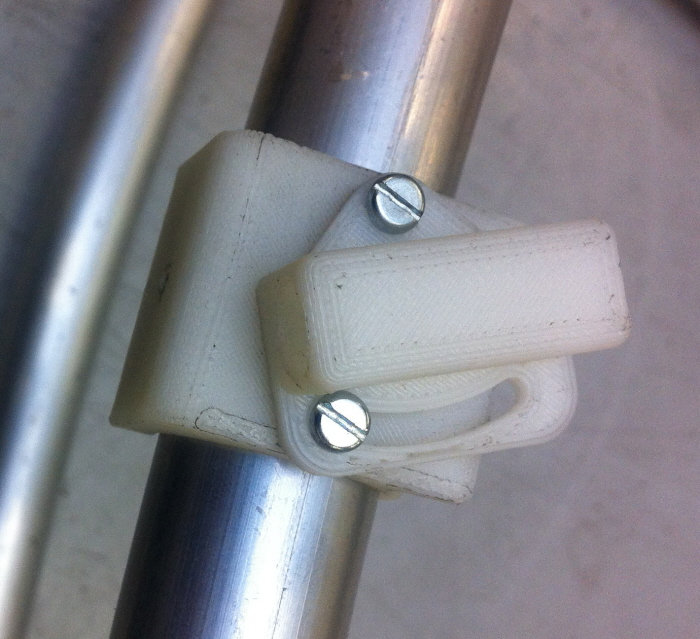

3D Printed Prototype of Tube Clip.

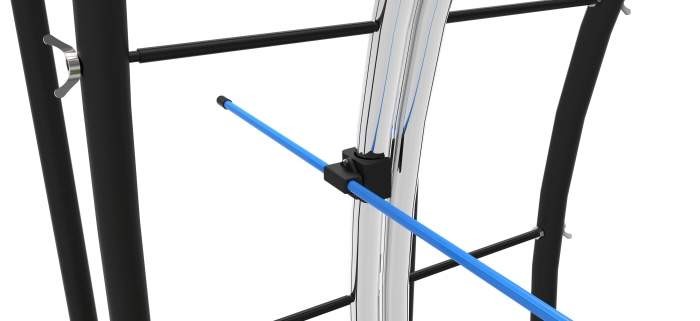

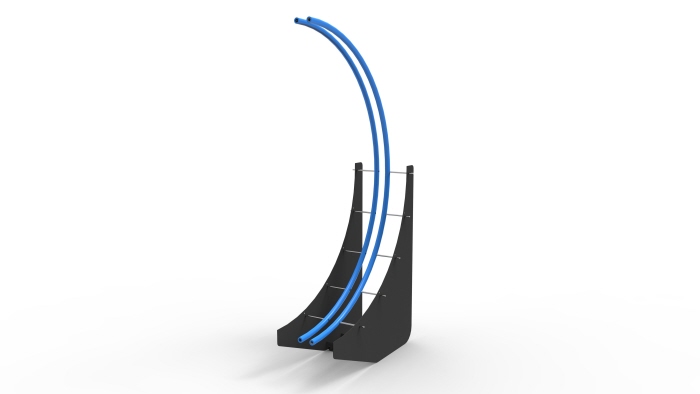

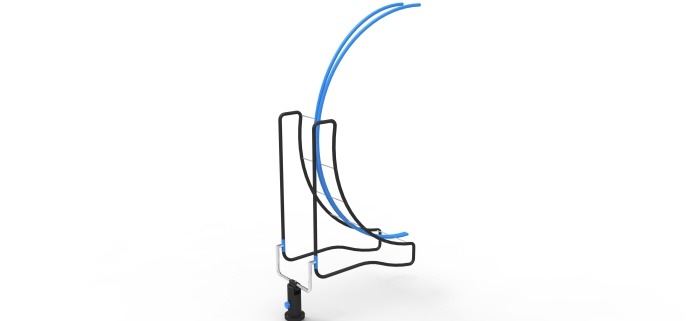

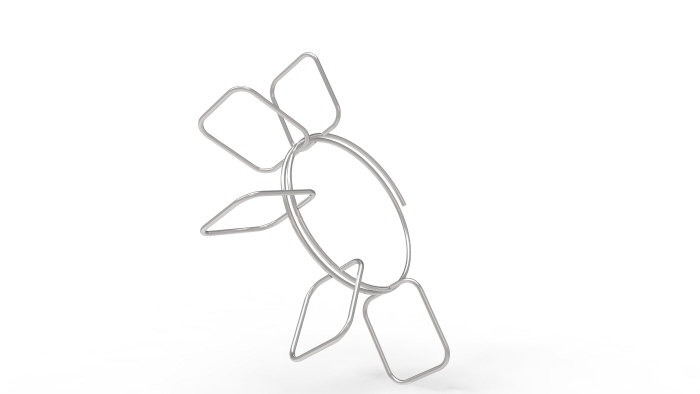

CAD Model of Head Alignment Device.

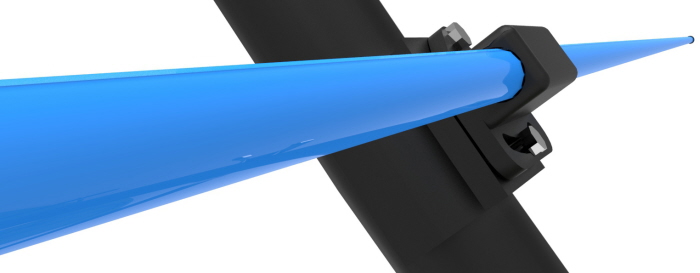

CAD Model of Head Alignment Device attached to Arcs.
gLike
Golf Trainer

Major Project - Golf Trainer to help beginners learn how to swing a club correctly. Adjustable to fit all heights and clubs and also change from Left to Right handed golfers. For more information please refer to the Golf Trainer Report.

Aaron Read
Upper Tier 2nd Class Honours Degree BSc (Hons) Product Design. Harlow, United Kingdom
