Re-Designing an Existing Washroom (For Females)
![](https://s3images.coroflot.com/user_files/individual_files/193072_5gLYI0lB7xzoXzDSqaCOY9bHy.jpg)
Photo documentation of the Existing washroom - Capturing images of the existing cubicals, water closets etc.
![](https://s3images.coroflot.com/user_files/individual_files/193072__hCmy6JrpZzjkPyUapDazhZpg.jpg)
Analysing space - Deciding on the kind of space that would be required, be it intimate, personal or social
![](https://s3images.coroflot.com/user_files/individual_files/193072_xymRAwBY18mce3qGReGO5_oIw.jpg)
Analysing space - Accomodating a Disabled person in the new Washroom
![](https://s3images.coroflot.com/user_files/individual_files/193072_WiIUgks5LiI21RAQzLKbn4uv_.jpg)
Study of Wheelchair Maneuverability - Accomodating a Disabled person in the new Washroom
![](https://s3images.coroflot.com/user_files/individual_files/193072_J9WIv7VstQ8UmkXZxF6k2RYgb.jpg)
Proposed Layout for the Washroom
![](https://s3images.coroflot.com/user_files/individual_files/193072_crhAfdtOuT_LP9dq1HZ3ZLNrh.jpg)
THE FINAL LAYOUT
![](https://s3images.coroflot.com/user_files/individual_files/193072_DizSr6EiEgZhXDlvm5o0Ap3Cw.jpg)
3-D Model Showing the NEW Restroom
![](https://s3images.coroflot.com/user_files/individual_files/193072_QSclD5vcaTbLNKZxGy5aBrbV3.jpg)

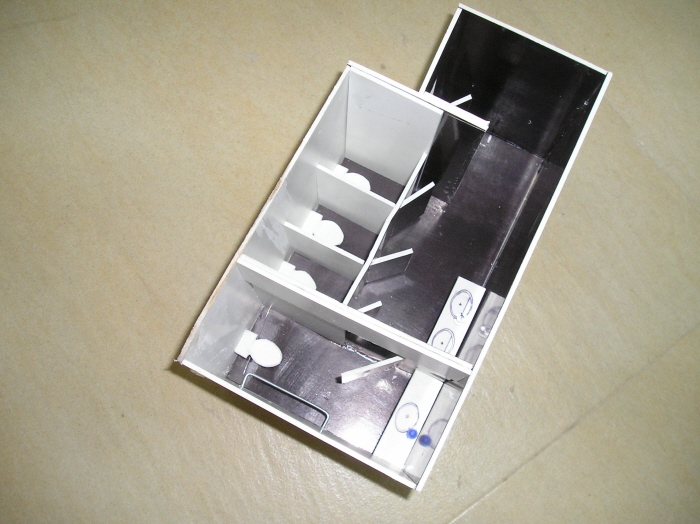

Public Washroom at an Educational Institute - A model showing the final design, keeping in mind a cubical for a wheelchair user
![](https://s3images.coroflot.com/user_files/individual_files/193072_4Ip1nPsuHeHgFEKK03VAl0fSm.jpg)
Designing a Bathroom Tap - Sketches of existing designs
![](https://s3images.coroflot.com/user_files/individual_files/193072_o93D_xfSCn5noZHmKjqFfiCSN.jpg)
Designing a Bathroom Tap - Concept Sketches
![](https://s3images.coroflot.com/user_files/individual_files/193072_3o4ZOK4EjdV52ZRDyv9B17mqh.jpg)
Designing a Bathroom Tap - Concept Sketches
![](https://s3images.coroflot.com/user_files/individual_files/193072_wrFf4fSUXfRqqyDkjpJgVt8UZ.jpg)
Designing a Bathroom Tap - Proposed design
![](https://s3images.coroflot.com/user_files/individual_files/193072__Tb3wVJjcVKoGDYLBw7qaTd8O.jpg)
Designing a Bathroom Tap - Proposed design with dimensions
![](https://s3images.coroflot.com/user_files/individual_files/193072_7jAa1tAMZlAd7M2TgalHQ7CCB.jpg)
Designing a Bathroom Tap - The tap's mechanism
![](https://s3images.coroflot.com/user_files/individual_files/193072_1nkz9YG9eC4rcIxrmVZdpXFRz.jpg)
Designing a Bathroom Tap - Relating the mechanism to human comfort
![](https://s3images.coroflot.com/user_files/individual_files/193072_utiKs2UoM1K1l5iQC_JiAnBe2.jpg)
Designing a Bathroom Tap - The Final Design (From different angles)
