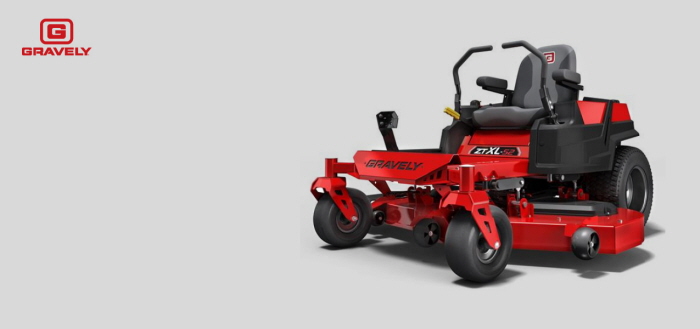

My task was to differenciate the Gravely ZTXL and ZTX by redesigning the front foot plate and casters on the ZTXL.
![](https://s3images.coroflot.com/user_files/individual_files/585682_ze08ijqcyrpkgewzemxrypy2h.jpg)
Ideation
![](https://s3images.coroflot.com/user_files/individual_files/585682_yil6wodklkvjm6gr9ysqwfvtg.jpg)

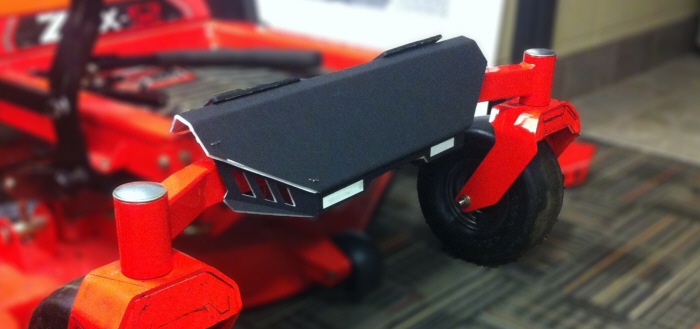

Foam Core
![](https://s3images.coroflot.com/user_files/individual_files/585682_yydyfaeisvgc7d7dh0hqbrl4u.jpg)

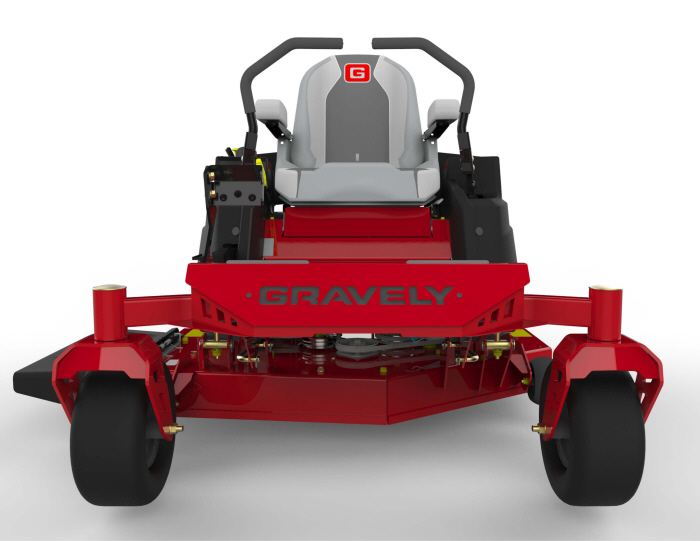

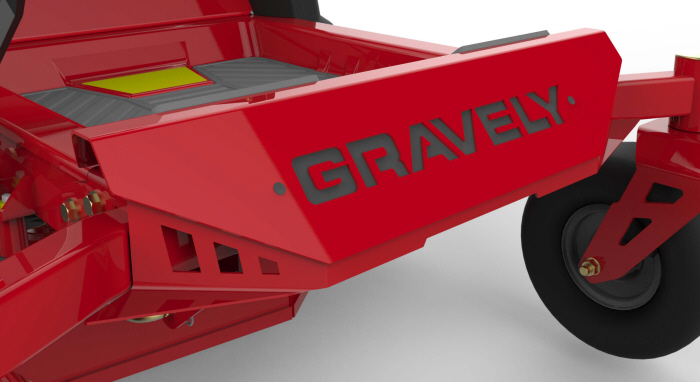

While keeping the Gravely 2016 brand language, I made the front foot plate two pieces giving depth and a sense of quality. Also, I extended the lower piece along the frame which allows the caster to feel more connected with the rest of the unit.
![](https://s3images.coroflot.com/user_files/individual_files/585682_toncyismqsi5ui_s5mjywo3hc.jpg)
![](https://s3images.coroflot.com/user_files/individual_files/585682_vjnlobd_rkc6rdw0ksehlwhye.jpg)

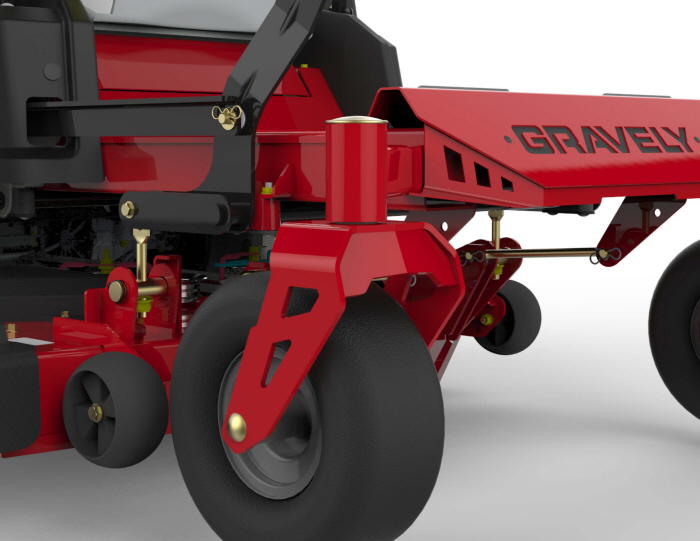

Slight fold in the front caster giving a sense of forward motion
Improving aesthetics by added cut outs while still passing the strength test
