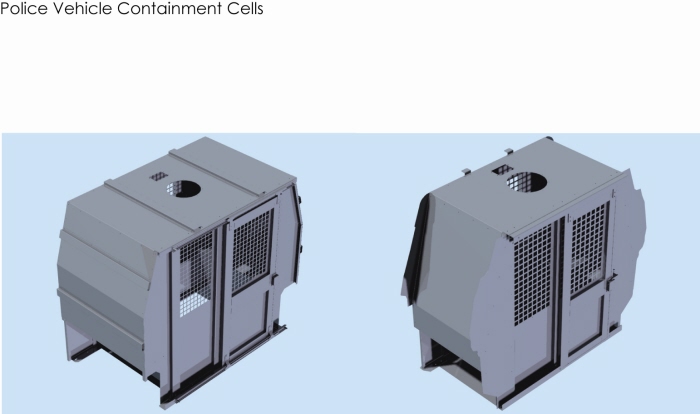

Police Van Containment Cells - Solid Edge 2 man cell. Each CAD model had every dimension linked to an excel spread sheet for adaptability to different vehicles. I took these cells from concept to completion (sometimes even construction too). They were entirely my own project as one of only 2 engineers in a small company. As a placement student i was blessed with a very high level of responsibility and i'm very proud of the outcome.
Police Van Containment Cells - Solid Edge 4 man cell.

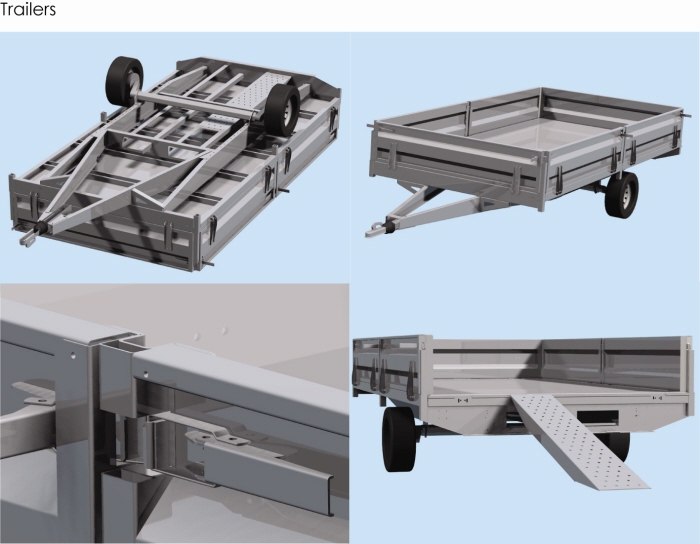

Luxury flatbed Trailer - SolidEdge

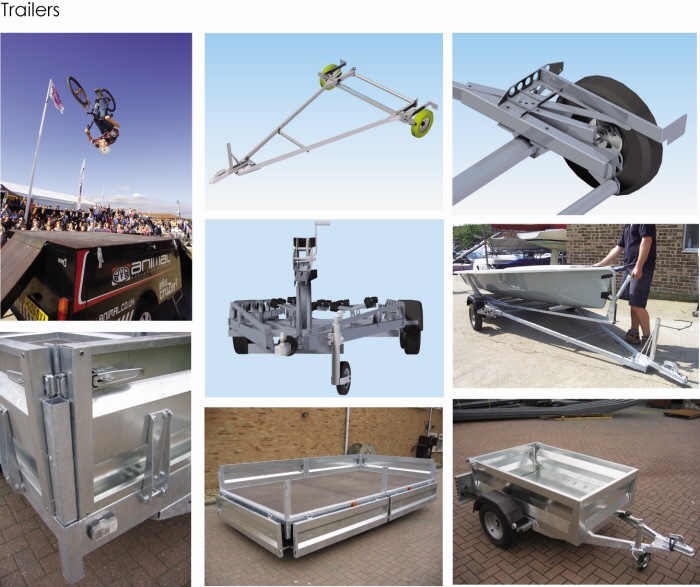

Variety of Trailers - All trailers shown above were designed with SolidEdge with sheet metal parts.
