![](https://s3images.coroflot.com/user_files/individual_files/1421173_m_c2oluivxtfneyw_piuhggwk.png)
Isometric View of the Robotic Chess set.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_vcxxfj38_gg9diue4j_2aolpx.png)
Solidworks drawing for the board.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_m_c2oluivxtfneyw_piuhggwk.jpg)

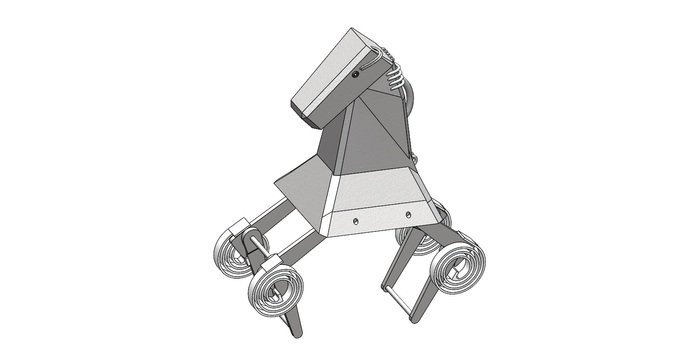

Isometric view of the knight piece.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_o9blpgbllj0knjcrpqcniz2t9.png)
Solidworks drawing of the knight piece. The knight uses spring powered legs to jump.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_cizafel6qh63tqgqjrtqenqji.jpg)
Isometric view of the king piece.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_sbdctumy_0l4apyvt8bkad2ee.jpg)
Solidworks drawing of the king piece. The king moves via the pawns carrying it.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_zreetp5xqaayfykh0gu0ed79y.jpg)
Solidworks drawing of the pawn piece. The pawn uses a track ball to move small distances.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_a5xrarvjiuu7f9rjpvtu8_uv2.jpg)
Isometric view of the queen piece.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_dixroyjrtitd6xlxxthkai_q2.jpg)
Solidworks drawing of the queen piece. The queen uses long spider like legs to travel large distances on the board.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_7olkj8p0leamdc3pvbvmuc7gq.jpg)
Isometric view of the rook piece.
![](https://s3images.coroflot.com/user_files/individual_files/1421173_9kztsmveh9ewrd72_b683w_2x.jpg)
Solidworks drawing of the rook piece. The rooks feet shift up and down through a series of gears to move.
Solidworks animation of how the pieces move.
